DIY 3 Zone Mini Split Systems

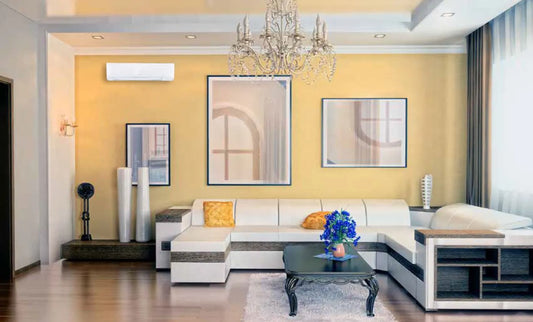

A diy mini split 3 zone system pairs a single outdoor heat pump condenser with three indoor wall mounted air handlers. Refrigerant circulates between the outdoor condenser and each indoor unit via dedicated line sets, delivering customized heating and cooling to three distinct rooms. Because every indoor air handler operates with its own thermostat and wireless remote, occupants can adjust temperature settings in each room without wasting energy.

Configuring a 3 head mini split setup depends on the square footage and thermal load of the three rooms you want to control. Outdoor 3 zone condensers efficiently power balanced indoor air handler combinations, such as three 9,000 BTU units for individual bedrooms or a combination of two 9,000 BTU units for smaller rooms alongside a 12,000 BTU or 15,000 BTU unit for an open living area.

Yes, a three zone mini split allows complete multi room temperature control throughout the year. Utilizing variable speed inverter compressor technology, the outdoor heat pump modulates capacity dynamically based on active indoor demand. This provides continuous heating or cooling across all three zones, preventing temperature swings and reducing electricity costs compared to running multiple single zone units.

Setting up a diy 3 head mini split requires three individual refrigerant line sets, electrical communication cables, and condensate drain tubing for each wall mounted air handler. You will also need a solid outdoor mounting pad or bracket to support the outdoor unit. Browse our full line of mini split installation supplies and flexible refrigerant line sets to select all compatible connections for your setup.

Each indoor air handler in a 3 zone system contains its own internal temperature sensor and control board. While all three units run on the same overall mode heating or cooling each zone maintains its own target temperature. Unoccupied rooms can be turned down or switched off entirely, ensuring maximum operational efficiency and lowering overall household energy consumption.

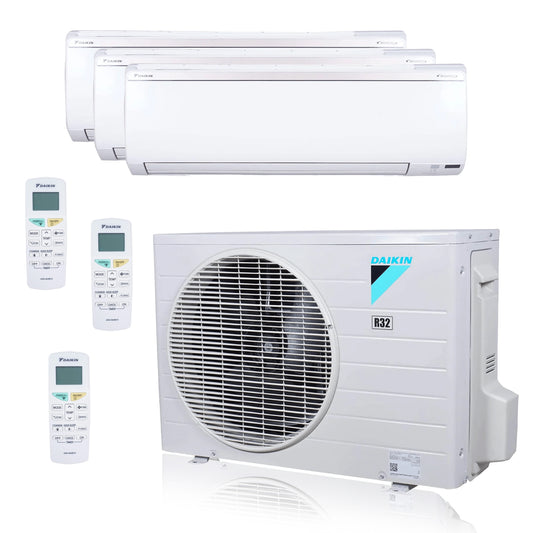

Our collection offers high performance ACiQ mini splits and advanced Daikin mini splits engineered with next generation R32 refrigerant. These systems feature exceptional SEER2 efficiency ratings and weather resistant outdoor cabinets built for long term reliability. Explore our complete selection of ductless mini splits to get wholesale pricing, full factory warranty coverage, and fast free liftgate shipping on your order.
