DIY 4-Zone Mini Split Systems

A 4 zone daikin mini split system utilizes a single outdoor heat pump condenser connected to four individual indoor air handlers. Each indoor unit operates independently, allowing you to set personalized temperatures in four separate rooms or living areas throughout your home. Refrigerant circulates between the outdoor compressor and indoor air handlers through small line sets, eliminating the need for expensive ductwork while delivering high efficiency cooling and winter heating.

A 36,000 BTU multi zone system provides three tons of total cooling and heating capacity, which is typically ideal for covering 1,200 to 1,800 square feet of total living space. The total capacity of a 4 head mini split is distributed among four indoor units, such as a mix of 9,000 BTU, 12,000 BTU, or 15,000 BTU wall mounted handlers. To ensure proper performance, match the BTU output of each indoor unit to the specific square footage and insulation level of the individual room it serves.

Installing a [diy 4 zone mini split] setup eliminates energy loss associated with leaky ductwork, which can account for up to thirty percent of energy consumption in traditional HVAC setups. Additionally, multi zone climate control prevents wasting energy on empty rooms because each handler can be turned off or adjusted independently. Systems utilizing inverter heat pump technology automatically scale compressor speed up or down to maintain precise temperatures with minimal electricity usage.

Yes, four zone mini split outdoor condensers are specifically engineered to support variable indoor unit combinations. For example, you can pair smaller 9,000 BTU handlers for bedrooms with larger 12,000 BTU or 18,000 BTU handlers for open living rooms or master suites. As long as the combined BTU ratings of the indoor handlers stay within the minimum and maximum capacity range of the outdoor condenser, you can customize your setup to match your exact floor plan.

To complete a multi zone installation, you will need a dedicated refrigerant line set, communication wiring, and a drain hose for each of the four indoor air handlers. You will also need a sturdy outdoor equipment mounting pad or wall bracket to keep the condenser elevated and level. Browse our full catalog of mini split installation supplies and durable refrigerant line sets to ensure you have all the necessary hardware for a smooth setup.

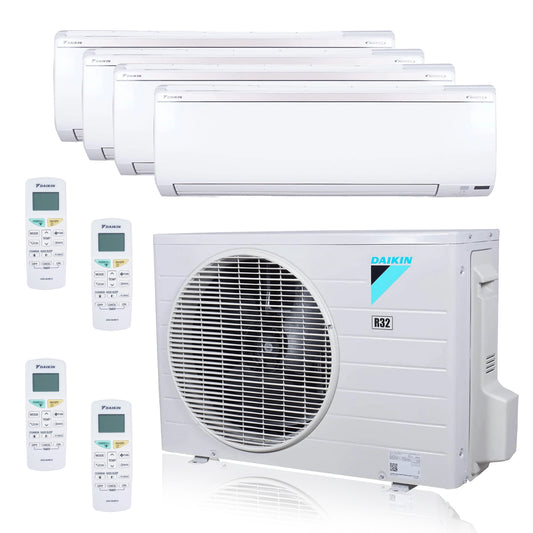

Our collection features advanced Daikin mini splits running on next generation R32 refrigerant. R32 offers superior thermal efficiency and a significantly lower global warming potential compared to older refrigerants. Combined with variable speed inverter compressors, these systems deliver whisper quiet operation, relentless performance during extreme outdoor temperatures, and long term savings on monthly utility bills. Explore our full catalog of ductless mini splits to secure direct wholesale pricing and free liftgate delivery on major equipment orders.
