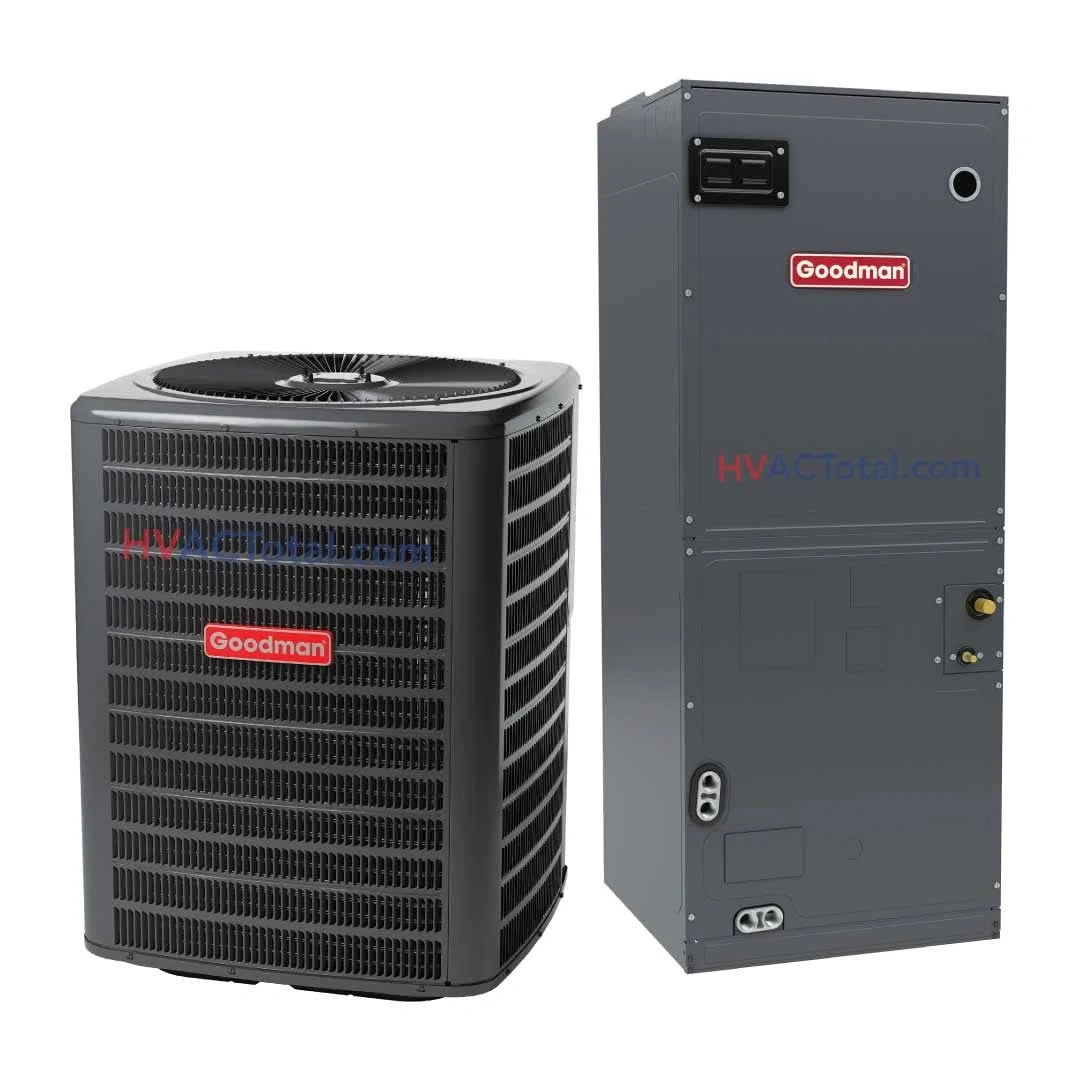

The 1.5 Ton 15.2 SEER2 Goodman Heat Pump Split System is designed for efficient, year-round comfort, providing dependable heating and cooling. This system combines key components that ensure durability and ease of maintenance.
Key Components and Features:

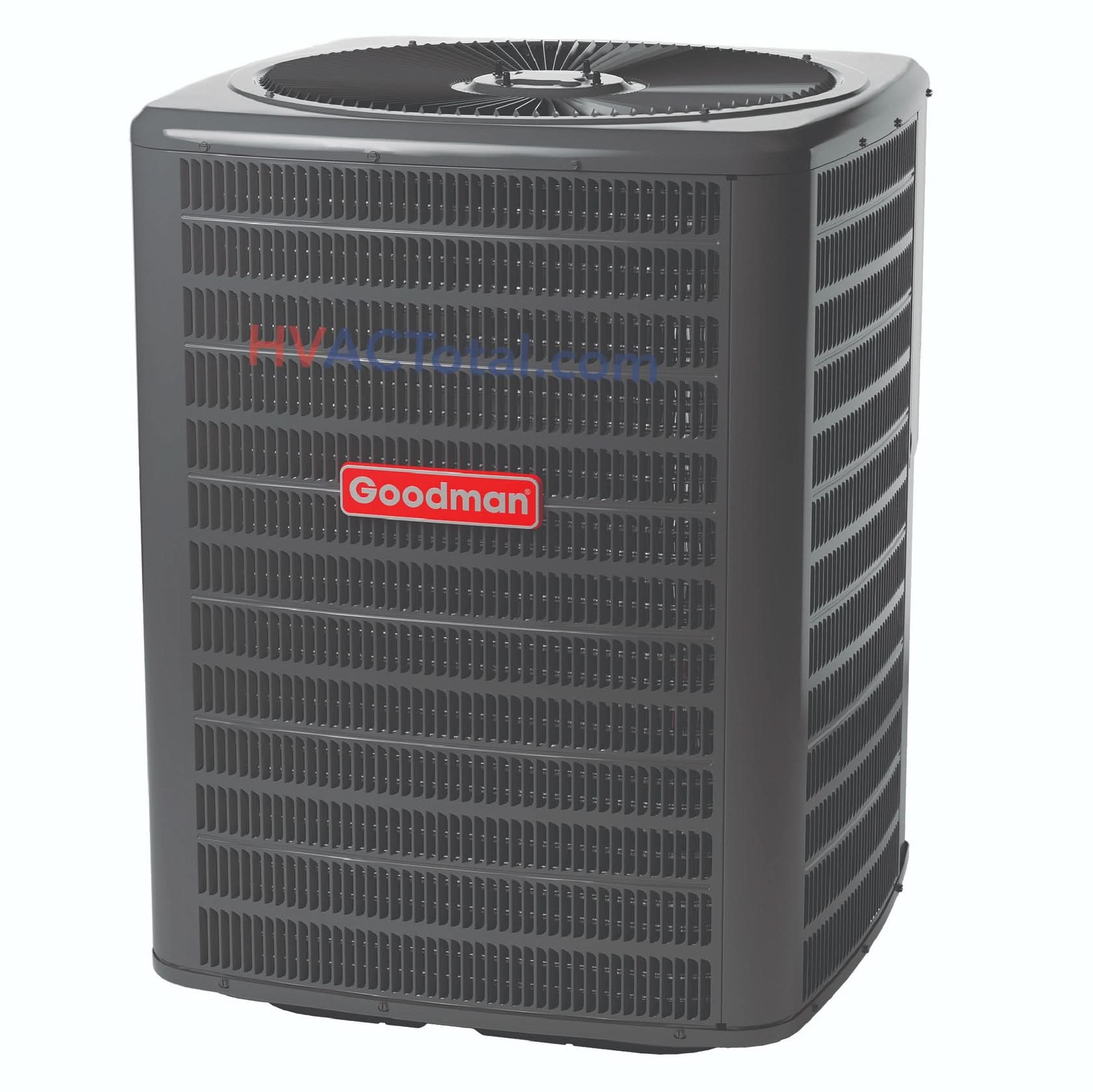

1.5 Ton Heat Pump Condenser (GLZS5BA1810):
- Adheres to 2023 M1 Test Standards.
- UL 60335-2-40 certified with an accessible grille design.
- Includes a robust steel coil guard and galvanized steel exterior.
- Finished in gray powder paint, salt spray-tested for 500 hours.
- Top and side maintenance access for convenience.

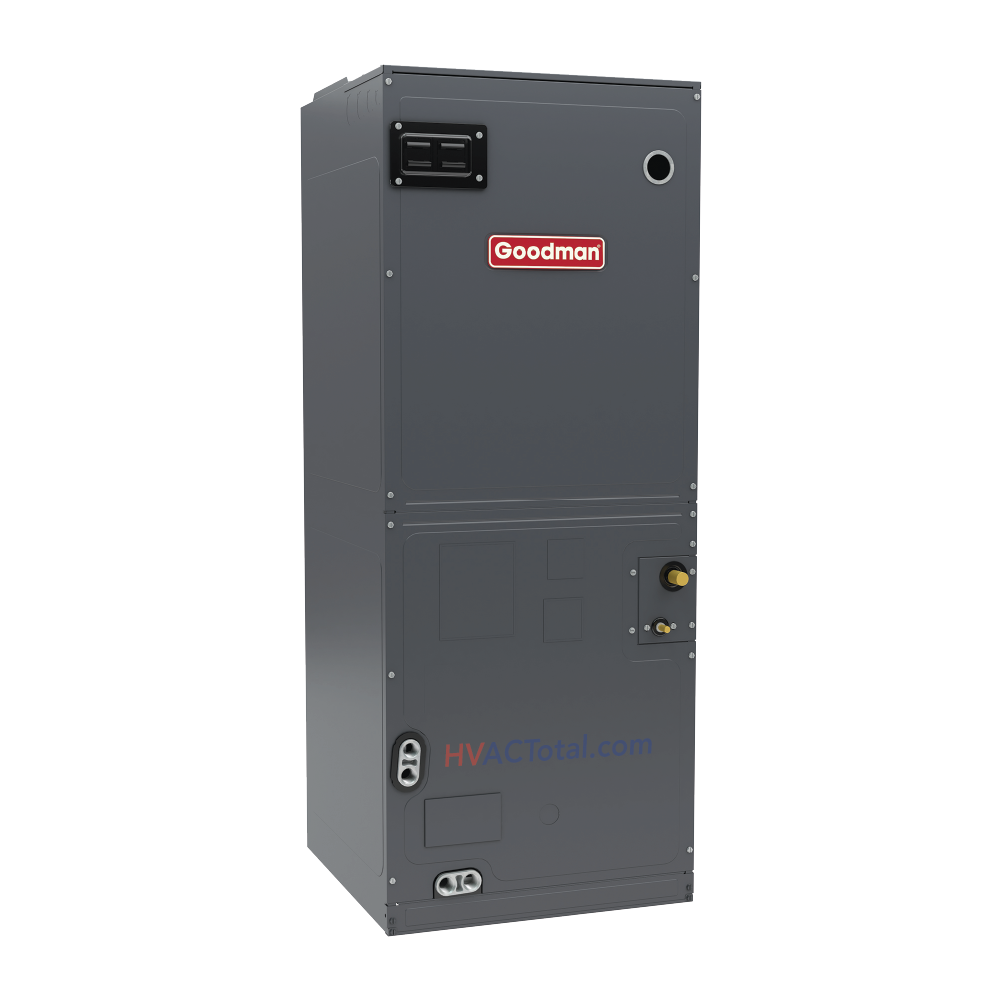

2 Ton Air Handler (AMST24BU1300):
- All-aluminum coil ensures efficient heat transfer.
- Equipped with a quiet, 9-speed ECM motor.
- Flexible heating options (5-10 kW), corrosion-resistant design.
- High-efficiency evaporator coil.
- Durable plastic drain pan, dual drainage points.
- Non-ducted air return compatibility.
- Galvanized steel construction with easy service access.
Cabinet Design:
- SmartFrame cabinet for enhanced durability.
- Configurable in both horizontal and vertical orientations.
- Compact 21" depth, ideal for attic installations.
- DecaBDE-free plastic drain pan with secondary drainage options.
- Insulated interior to minimize condensation.
- Tool-less access to filters with a sleek leather-grain finish.
Investing in the 1.5 Ton 15.2 SEER2 Goodman Heat Pump Split System means you’re choosing dependable heating and cooling backed by Goodman’s reputation for quality. This system delivers reliable performance, energy efficiency, and longevity—keeping your home comfortable season after season.
-
AHRI 215381159 Heat Pump Model Number GLZS5BA1810 Unit Height 39.5 in Unit Width 29 in Unit Depth 29 in Unit Weight 171 lb SEER 2 15.2 Heating Capacity Nominal 18000 Btu/H Max Overcurrent Protection 20 A Power Phase 1 Ph Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Scroll Refrigerant Type R-32 Air Handler Model Number AMST24BU1300 Unit Height 45 in Unit Width 17.5625 in Unit Depth 21 in Unit Weight 112 lb Tonnage 2 Cooling Capacity Nominal 24000 Btu/H Max Overcurrent Protection 15 A Power Phase 1 Ph Power Voltage 208/230 V Case/Uncased Cased Motor Speed Type Nine Speed ECM Refrigerant Type R-32 -
-
