Model: AQ-GLXS3BN3010 / ACiQ-MH36BU3VYEC / MG1E-B056F1ABM1
2.5 Ton 13.4 SEER2 80% AFUE 56,000 BTU Mobile Home Air Conditioner and Gas Furnace System with Coil, R32
Couldn't load pickup availability
Product Details

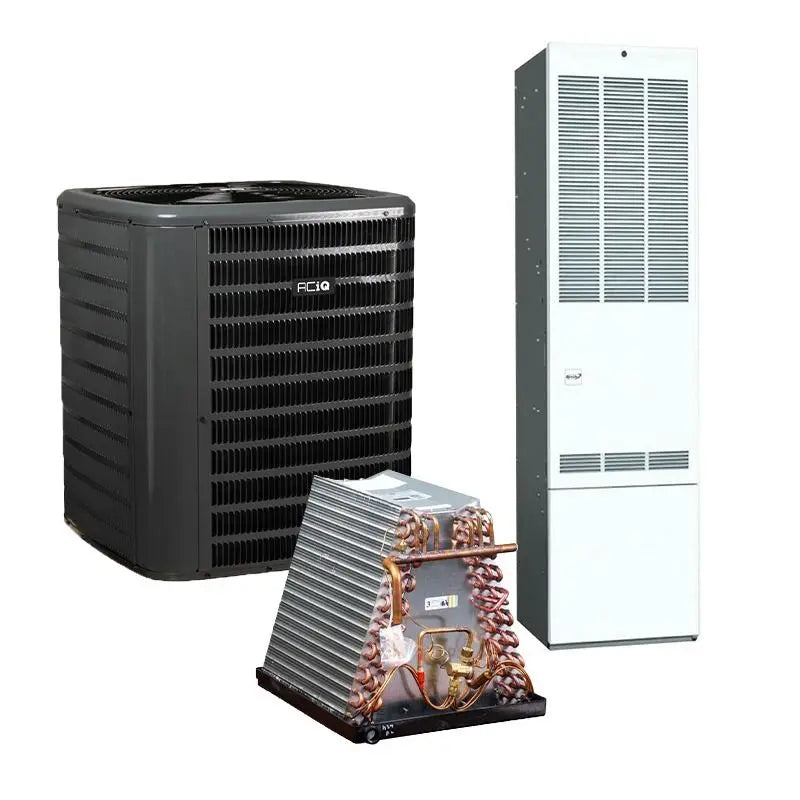

Our mobile home air conditioner and furnace system features a ACiQ air conditioner, furnace, and mobile home coil. Plus you can add either a 30ft or 50ft copper line set.

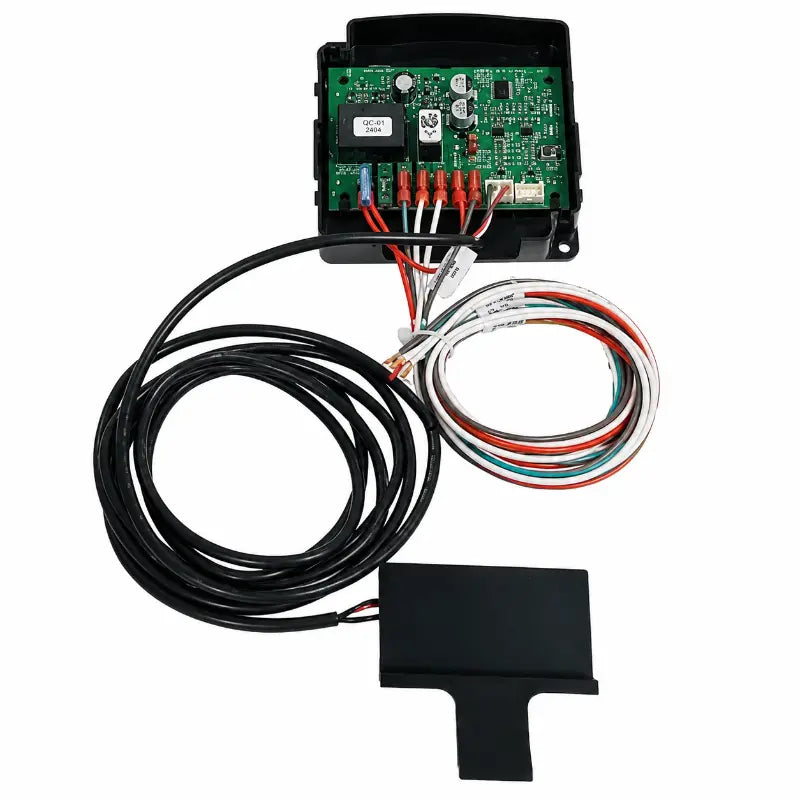

ACiQ RDS Kit Features
- Kit includes all components needed for RDS installation
- Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
- Flexible installation location, ideal for installs on existing equipment
- System designed to last the useful life of the evaporator coil
- Optional relay for controlling additional components
OVERVIEW

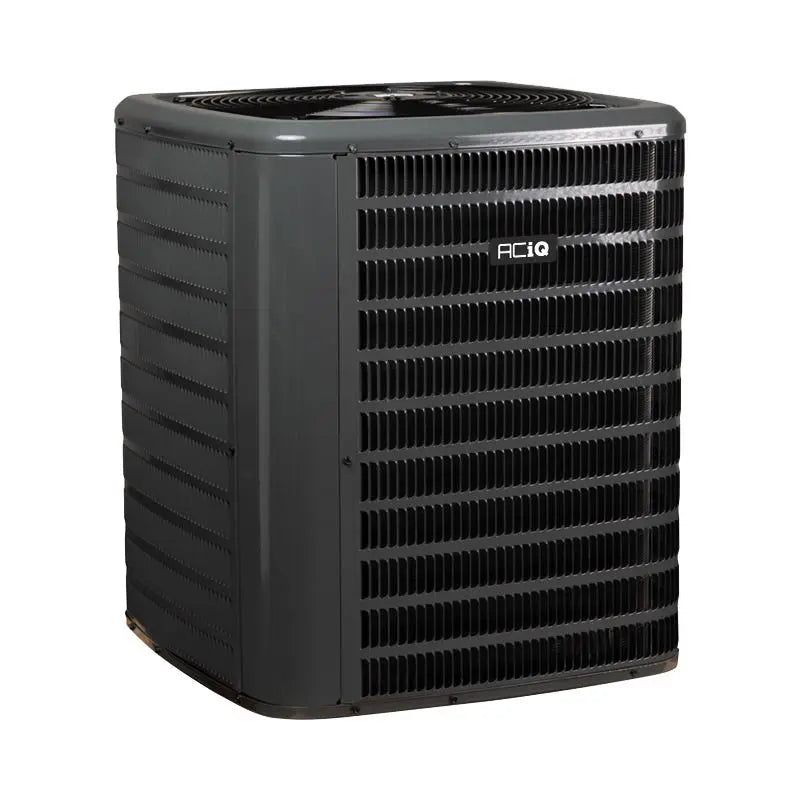

The ACiQ AQ-GLXS3BN3010 is a durable, high-quality condenser unit that is the perfect cooling solution for homes up to 1650 square feet in northern states. At a capacity of 2.5 tons and a SEER2 rating of 13.4, this cooling-only condenser won’t break the bank while still reliably cooling your home for years to come. Easy to access service valves make installation by a licensed HVAC professional a breeze. Pay for high-end performance without the high-end price tag when you choose ACiQ.
Same Quality, Better Value
Our private-label heating and cooling systems are built to the same rigorous standards as the industry’s leading brands — but deliver better value for your investment. Each unit features durable components, proven technology, and the performance you expect from a top-tier HVAC manufacturer. With fewer middlemen and lower overhead, you get exceptional comfort and reliability at a value that simply can’t be beat.
Built for Lasting Comfort
Designed for dependable year-round performance, these systems deliver quiet operation, consistent temperatures, and efficient energy use — all while keeping maintenance simple. With high-quality materials and precision engineering, each system is made to provide lasting comfort and lower long-term costs for your home or business.
QUICK FACTS
- 13.4 SEER2, 2.5 tons AC-only Condenser: With a 13.4 SEER2 efficiency rating and a tonnage of 2.5, this AC condenser is a great choice for small homes anywhere or medium-sized homes that experience shorter, milder summers.
- Single Stage: When properly sized and installed, a single stage condenser is a cost-effective and durable option to cool your home.
- R32 Refrigerant: With R32 refrigerant, this unit complies with Clean Air Act refrigerant requirements.
- Fully Charged for up to 15' of Line Set: The condenser comes fully pre-charged with enough refrigerant for up to 15 feet of line set.
Durability and Reliability
The AQ-GLXS3BN3010 is designed to last with features like a baked-on powder-paint finish that is approved for up to 500 hours of salt-spray. The factory-installed filter dryer also lowers general wear-and-tear on the unit while the enhanced copper tube prevents coil degradation, ensuring lasting and reliable comfort in your home.
Warranty
If the AQ-GLXS3BN3010 condenser fails, the unit comes with the manufacturer’s standard 10-year parts warranty as long as it is installed following state and local codes and registered online. Backed by the same trusted manufacturing partners behind major HVAC brands, the ACiQ warranty further guarantees the high-quality performance expected from any other major brand.
Disclaimer
- Due to Department of Energy efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
- For this unit to function, an indoor air handler or coil is required.
- This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
OVERVIEW

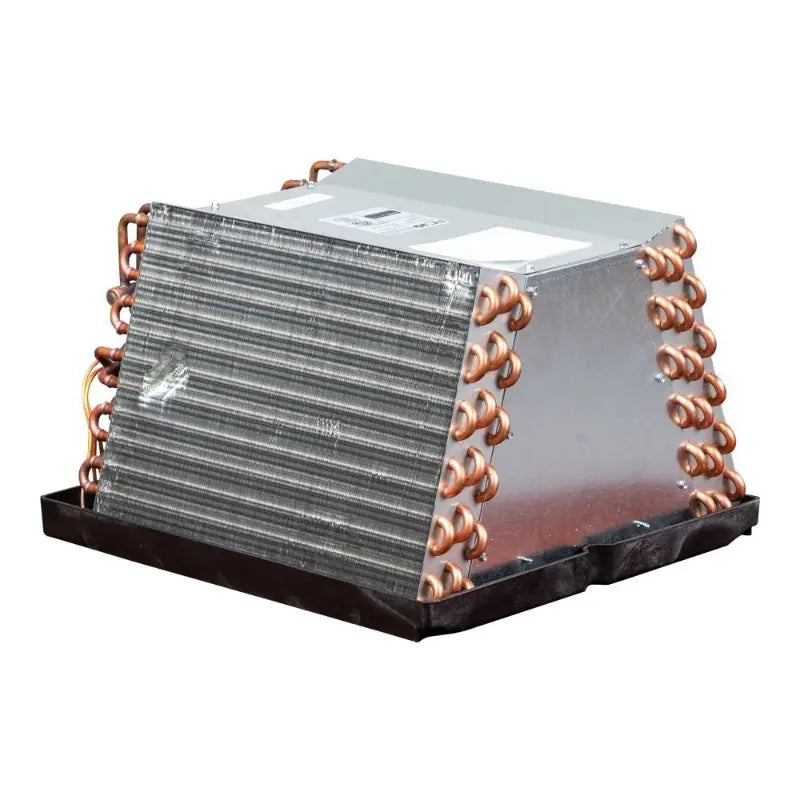

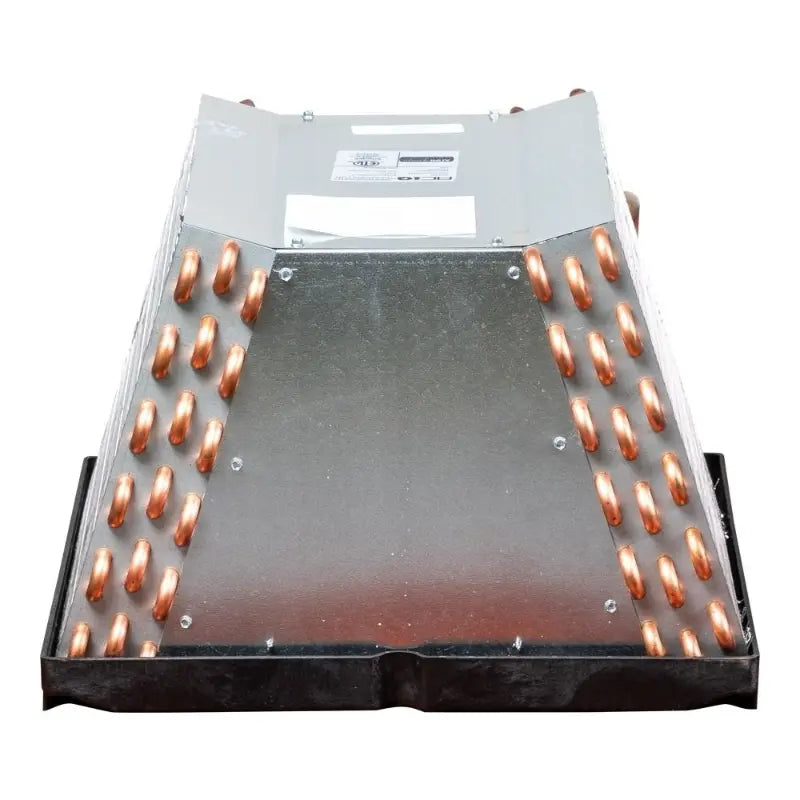

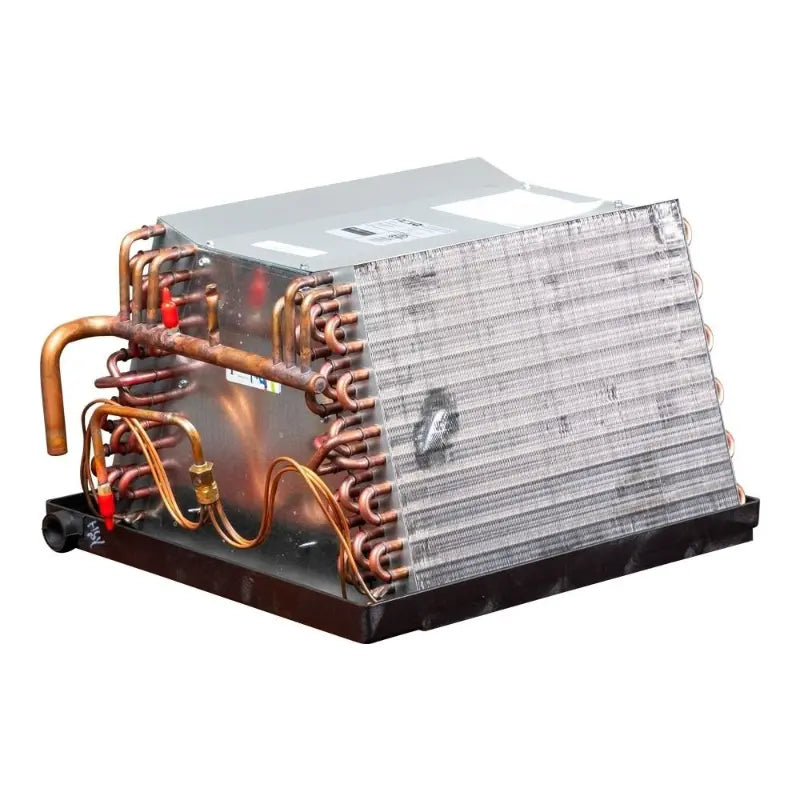

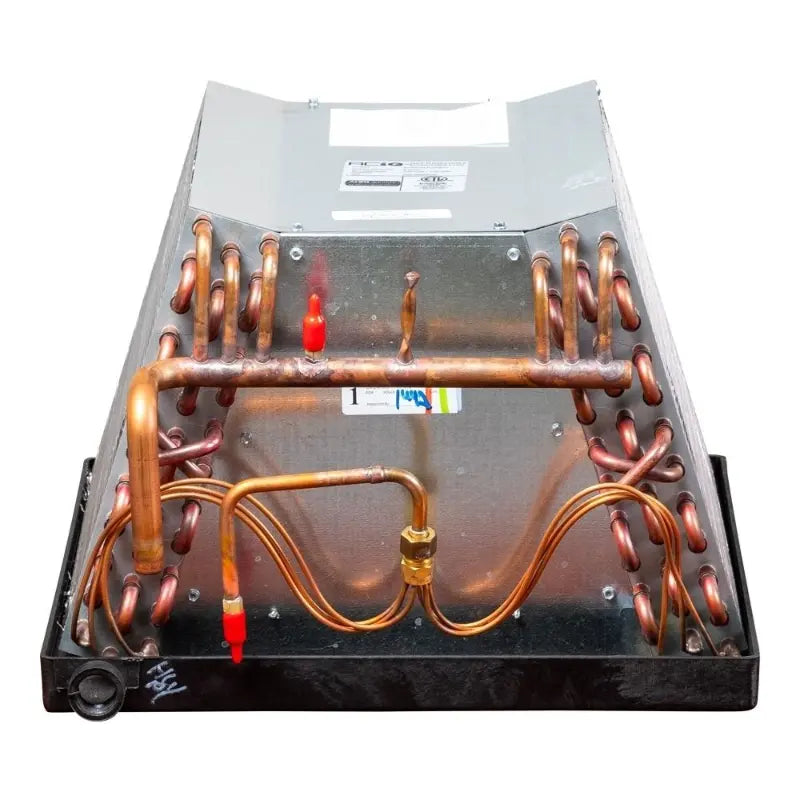

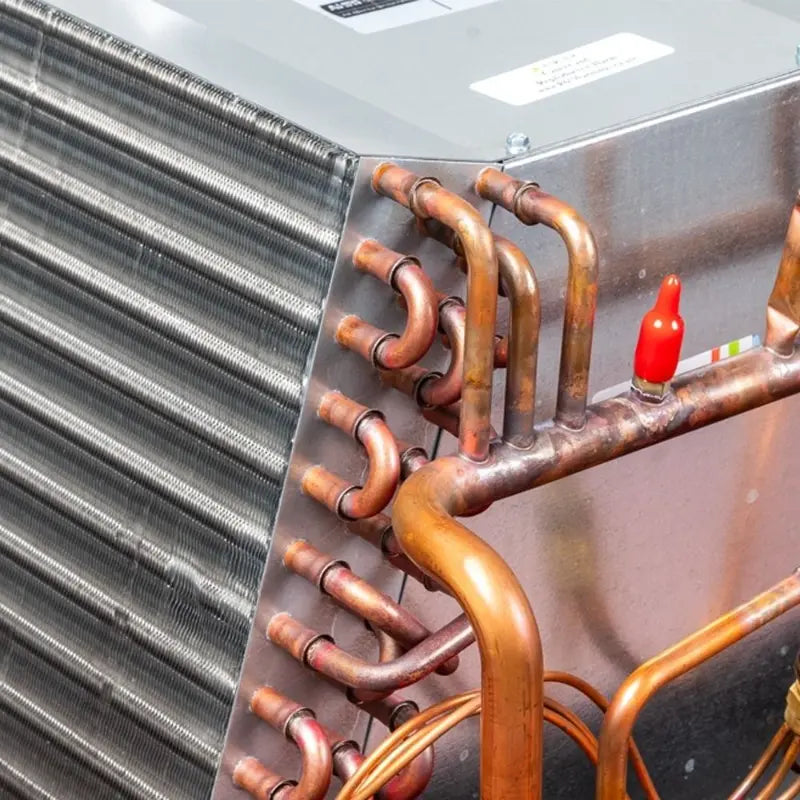

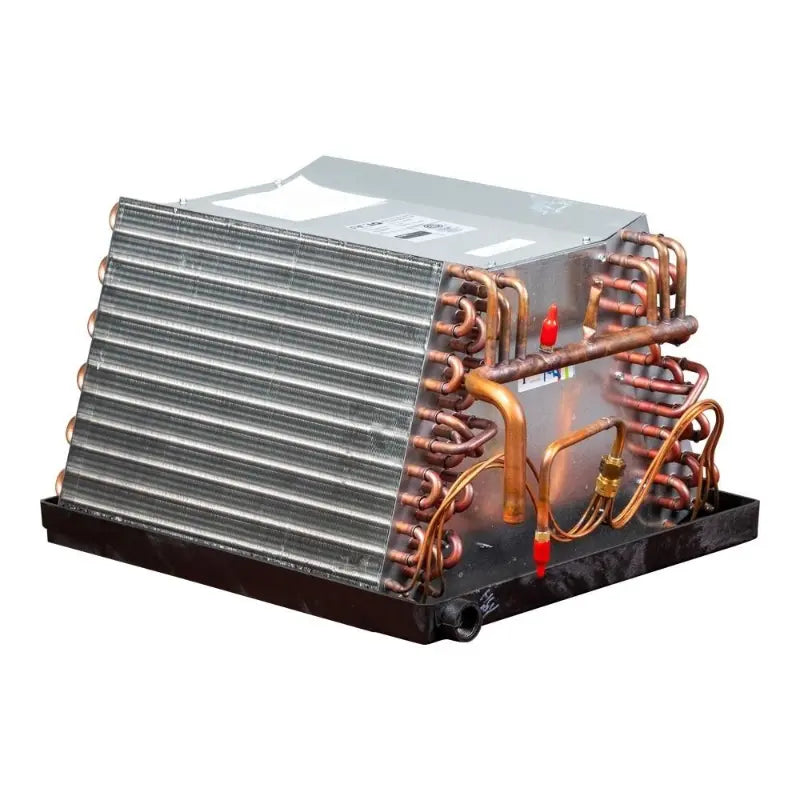

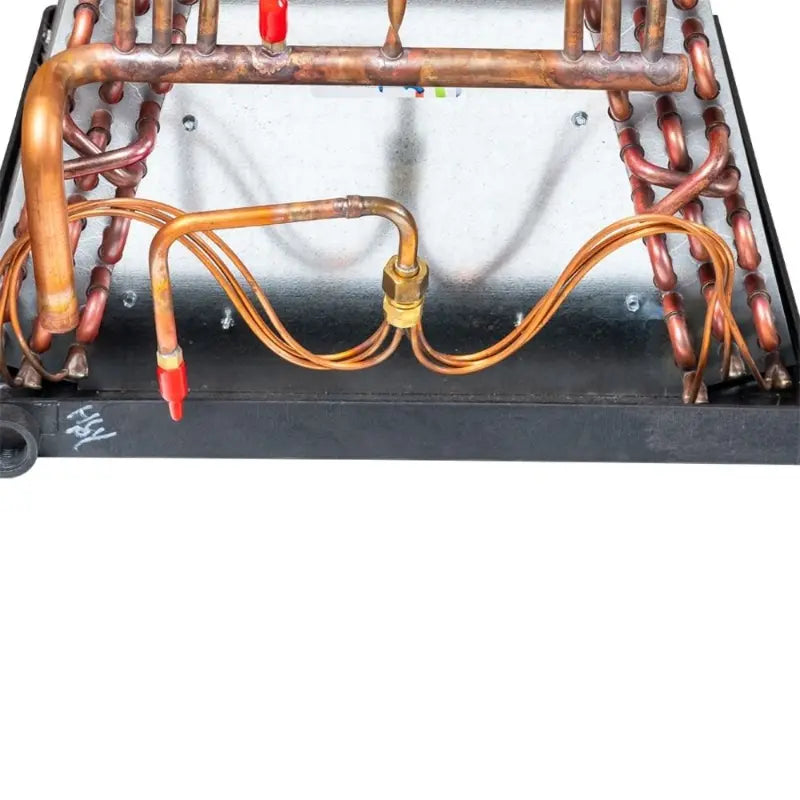

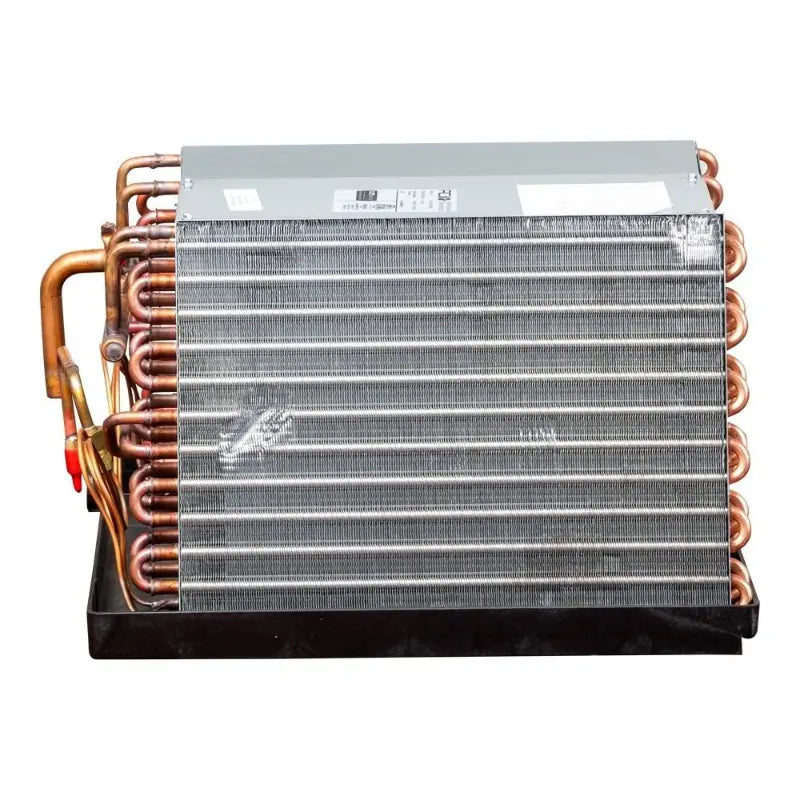

The ACIQ-MH36BU3VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
- 3 ton downflow evaporator coil
- Designed for mobile and manufactured home use only
- AHRI certifiable with all brands of air conditioners and heat pumps
- For use with manufactured homes furnaces
- Sturdy and compact design
- Rifled aluminum tubing with enhanced aluminum fins
- Left-hand refrigerant and plumbing connections
- Heavy duty polypropylene drain pans
- Downflow plate kit included
3 TON
The ACIQ-MH36BU3VYEC evaporator coil is rated to be compatible with condensers with up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
OVERVIEW

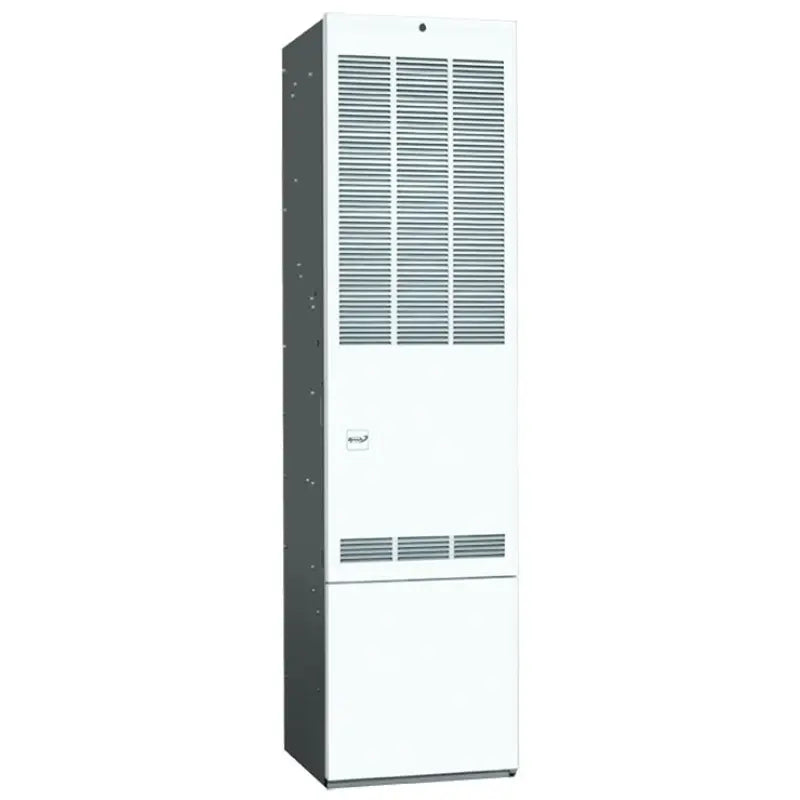

The Style Crest-Revolv MG1E-B056F1ABM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG1E-B056F1ABM1 will save you money both up front and over time.
QUICK FACTS
- 56,000 BTU, 80% natural gas furnace
- Can generally heat a small mobile home in ideal applications
- Compatible with R410A and R454B refrigerant
- Natural gas out of the box, but comes with an LP kit for field installation if needed
- Low maintenance requirements
- AC coil cabinet included with purchase (condenser and coil sold separately)
- Efficient ECM blower motor
56,000 BTU, 80% AFUE
With a system input of 56,000 BTU, The Style Crest-Revolv MG1E-B056F1ABM1 furnace can generally heat small mobile homes in ideal applications. With a basic efficiency rating of 80% AFUE, this input equates to an output of 44,800 BTU, and 80% of the fuel going into the unit is contributed to heating your home and the remaining 20% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.
Warranty
Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.
Installation and Maintenance
The Style Crest-Revolv MG1E-B056F1ABM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.
Specifications
| 2.5 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32 | |
|---|---|
| SKU | AQ-GLXS3BN3010 |
| Weight (in lbs) | 149.000000 |
| Brand/Manufacturer | Private Brand |
| Replaces | GSX130301 and GSXN3N3010 |
| Cooling BTU | 30,000 |
| Decibel Level (dBA) | 74 |
| Horsepower | 1/8 HP |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 14.7 Amps |
| Tonnage | 2.5 Ton |
| Connection | Sweat |
| Height | 32 1/2" |
| Width | 26" |
| Depth | 26" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
| ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B | |
| SKU | A2LZS |
| Weight (in lbs) | 5.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | A2L3SA, A2L4SA |
| Style Crest-Revolv MG1E 80% 56,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible | |
| SKU | MG1E-B056F1ABM1 |
| Weight (in lbs) | 167.000000 |
| Exhaust Flue Requirement | Metal |
| Brand/Manufacturer | Style Crest-Revolv |
| Replaces | MG1E-056B |
| Furnace Efficiency / AFUE | 80% |
| Heating BTU | 56,000 BTU |
| Blower Motor | ECM Multi Speed |
| Configuration | Downflow |
| Electrical | 120 Volt - Single Phase |
| Phase | Single Phase |
| Max Breaker Size | 15 amps |
| Burner Stages | Single |
| Fuel Type | Gas |
| Height | 76" |
| Width | 19.75" |
| Depth | 23.75" |
| Warranty | 2 years parts (10 years heat exchanger parts) |
| ACIQ 3 Ton Uncased Downflow Mobile Home Coil with TXV | Copper - R32 | |
| SKU | ACIQ-MH36BU3VYEC |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | ACiQ-M36BU3VYEC |
| Configuration | Downflow |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 3 Ton |
| Height | 19 1/2" |
| Width | 17 3/4" |
| Depth | 19 5/8" |
| Warranty | 10 Year Limited Warranty |
