Experience year-round comfort with the Goodman 2 Ton 15.2 SEER2 R-32 Dual Fuel System. This powerful and efficient system combines a high-performance heat pump with a reliable gas furnace, thus offering optimal heating and cooling in all seasons.
Features of Goodman Dual Fuel System:

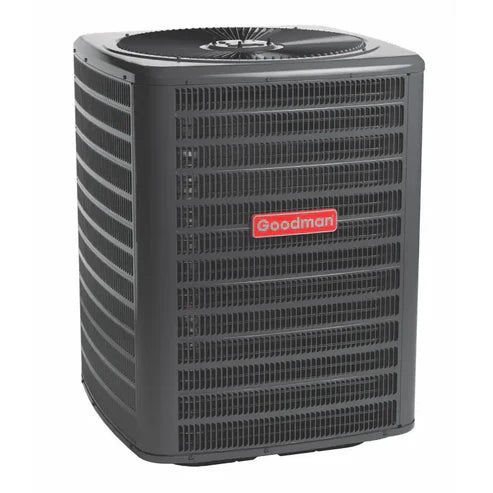

Heat Pump Condenser (GLZS4BA2410)
- High-efficiency scroll compressor: For reliable and energy-efficient cooling.
- SmartShift technology: Hence, makind sure quiet and efficient defrost cycles.
- Enhanced aluminum fin coil: Optimized for efficient heat transfer (5mm tubes 1.5-3 ton, 7mm tubes 4-5 ton).
- Single-speed PSC condenser fan motor: Reliable and economical airflow.
- Factory-installed components: Includes filter drier, accumulator, crankcase heater, and muffler.
- High/low-pressure switches: Protect the system from unsafe pressure conditions.
- Service valves with sweat connections: For easy maintenance and servicing.
- Contactor with lug connection: Enables reliable electrical connection.
- Removable grille-style top design: Facilitates easy access for maintenance.
- Steel louver coil guard: Thus, protecting the coil from damage.
- 208/230V: Standard operating voltage of Goodman's dual fuel system.

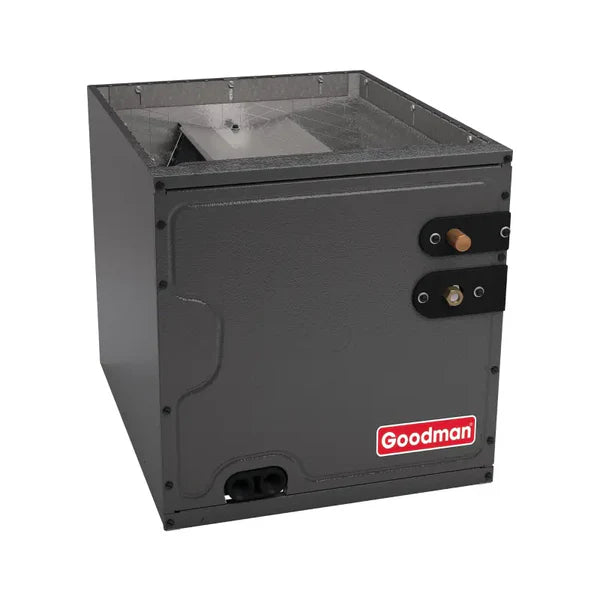

Evaporator Coil (CAPTA3022B3)
- All-Aluminum evaporator coil: Durable and efficient heat exchange, optimized for R-32 with dedicated sensor.
- Factory-installed TXV: For both cooling and heat pump applications.
- Improved accessibility: 21" depth for easier attic access and single front access panel.
- Enhanced durability: Galvanized, leather grain-embossed finish.
- Drain Pan: UV-resistant drain pan, and rust-resistant thermoplastic drain pans with secondary drain connections.
- Environmental considerations: DecaBDE-free drain pan.
- Quality and safety: Foil-faced insulation, standardized suction tube stub length, drain pan rails.
- AHRI certified: Hence, meets the industry performance standards.
- ETL listed: Thus, meets safety and performance standards.

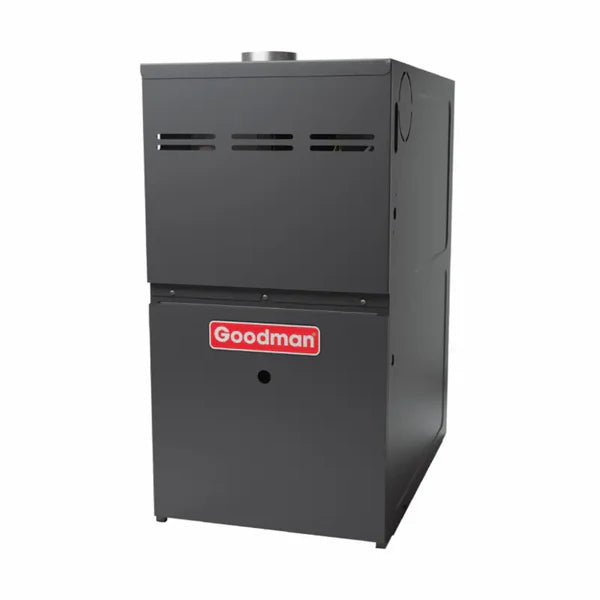

Gas Furnace (GR9S800604BN)
- High-performance components: Aluminized-steel, dual-diameter tubular heat exchanger, single-stage gas valve, hot surface ignitor, and single-speed draft inducer.
- Efficient operation: Uses an efficient, multi-speed blower motor and an insulated heat exchanger.
- Enhanced convenience: Self-diagnostic control board.
- Adaptable installation options: (left or right gas/electrical service), and flexible configuration (upflow, horizontal left or right).
Invest in your comfort and choose the Goodman 2 Ton 15.2 SEER2 R-32 Dual Fuel System. Therefore, contact us today for a free quote and experience the difference.
-
AHRI Reference 215218674 Heat Pump Condenser Model Number GLZS4BA2410 SEER 2 14.3 EER2 12.5 Tonnage 2 Unit Height x Width x Depth 32.5 x 29 x 29 in Unit Weight 150 lb Cooling Capacity 24,000 Btu/H Heating Capacity 24,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 11.2 Max Fuse Size 15 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3022B3 Tonnage 2.5 Unit Height x Width x Depth 22 x 17.5 x 21 in Weight 40 lb Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S800604BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 108 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 48,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Vent Size 4" Motor Type ECM Stages Single LoNox No -
-
