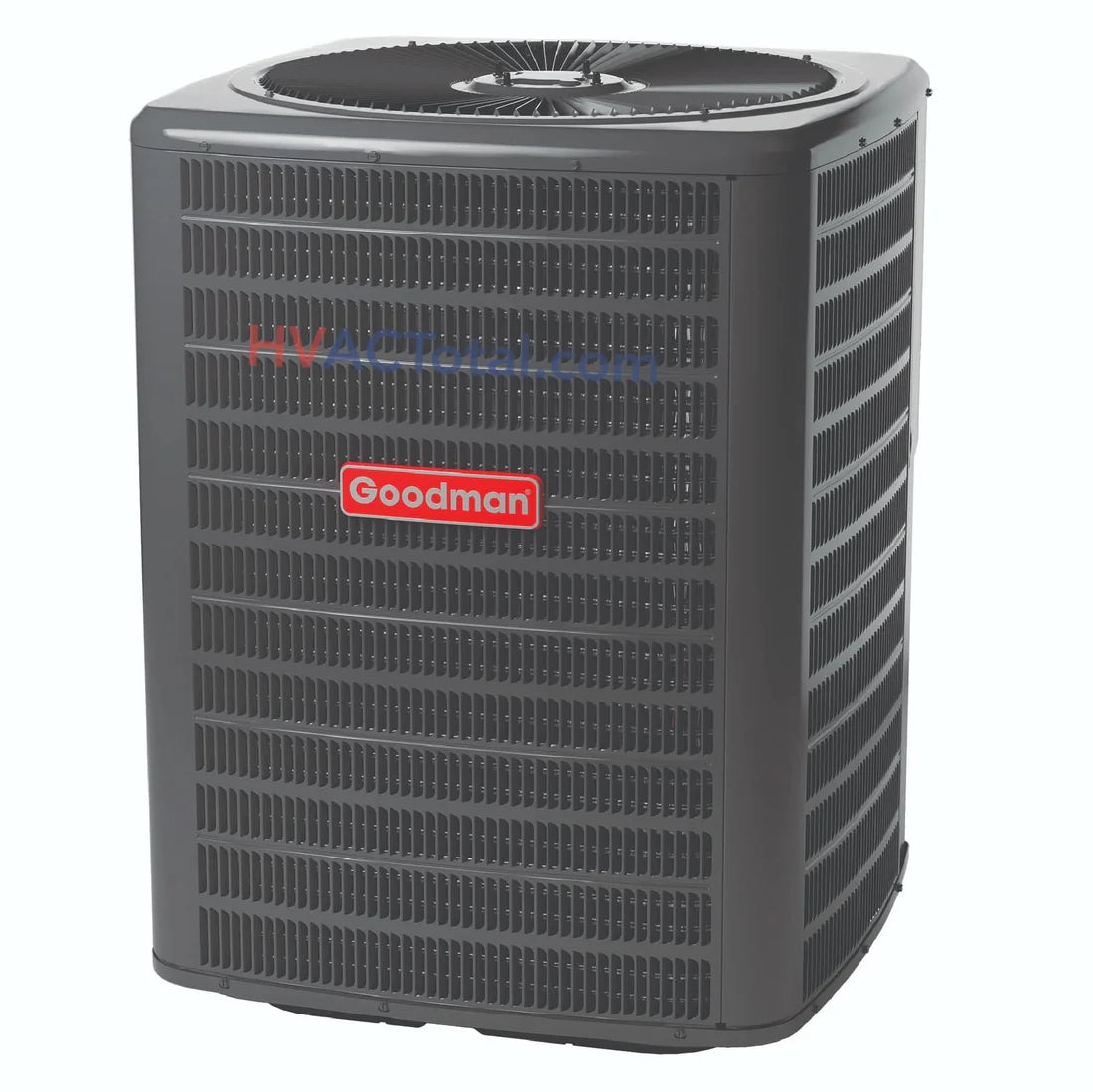

GLZS4BA2410
- Product Benefits: Meets the 2023 M1 Test Standards
- Cabinet Features:
- Removable grille style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)

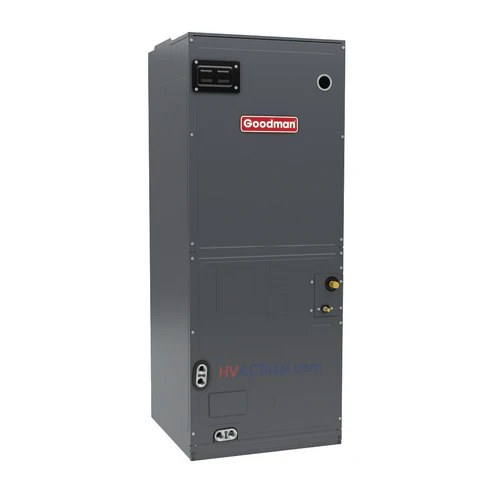

AMST24BU1300
- Product Benefits:
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, 9-speed ECM motor
- Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
- High-efficiency evaporator coil
- Quiet operation
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Rigid SmartFrame cabinet
- Horizontal or vertical configuration capabilities
- 21” depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
-

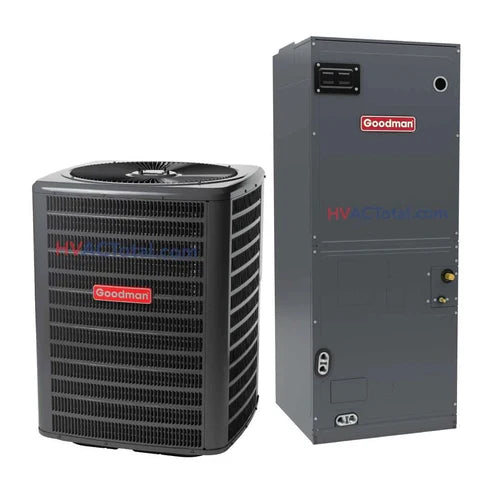

AHRI 215213871 Heat Pump Model Number GLZS4BA2410 Unit Height 32.5 in Unit Width 29 in Unit Depth 29 in Unit Weight 160 lb SEER 2 15.2 Heating Capacity Nominal 24000 Btu/H Max Overcurrent Protection 15 A Power Phase 1 Ph Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Air Handler Model Number AMST24BU1300 Unit Height 45 in Unit Width 17.5625 in Unit Depth 21 in Unit Weight 112 lb Tonnage 2 Cooling Capacity Nominal 24000 Btu/H Max Overcurrent Protection 15 A Power Phase 1 Ph Power Voltage 208/230 V Case/Uncased Cased Energy Source Electric Motor Speed Type Nine Speed ECM Refrigerant Type R-32 -
-
