Model: GLZS5BA4210 / AMST42CU1300

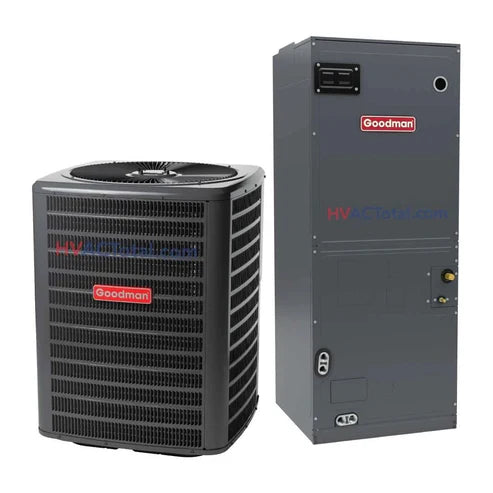

3.5 Ton 15.2 SEER2 Goodman R32 Heat Pump Split System
3.5 Ton 15.2 SEER2 Goodman R32 Heat Pump Split System

Couldn't load pickup availability
Product Details
Designed for efficiency, the Goodman 3.5 Ton 15.2 SEER2 Heat Pump Split System delivers consistent heating and cooling while integrating crucial components that operate seamlessly.

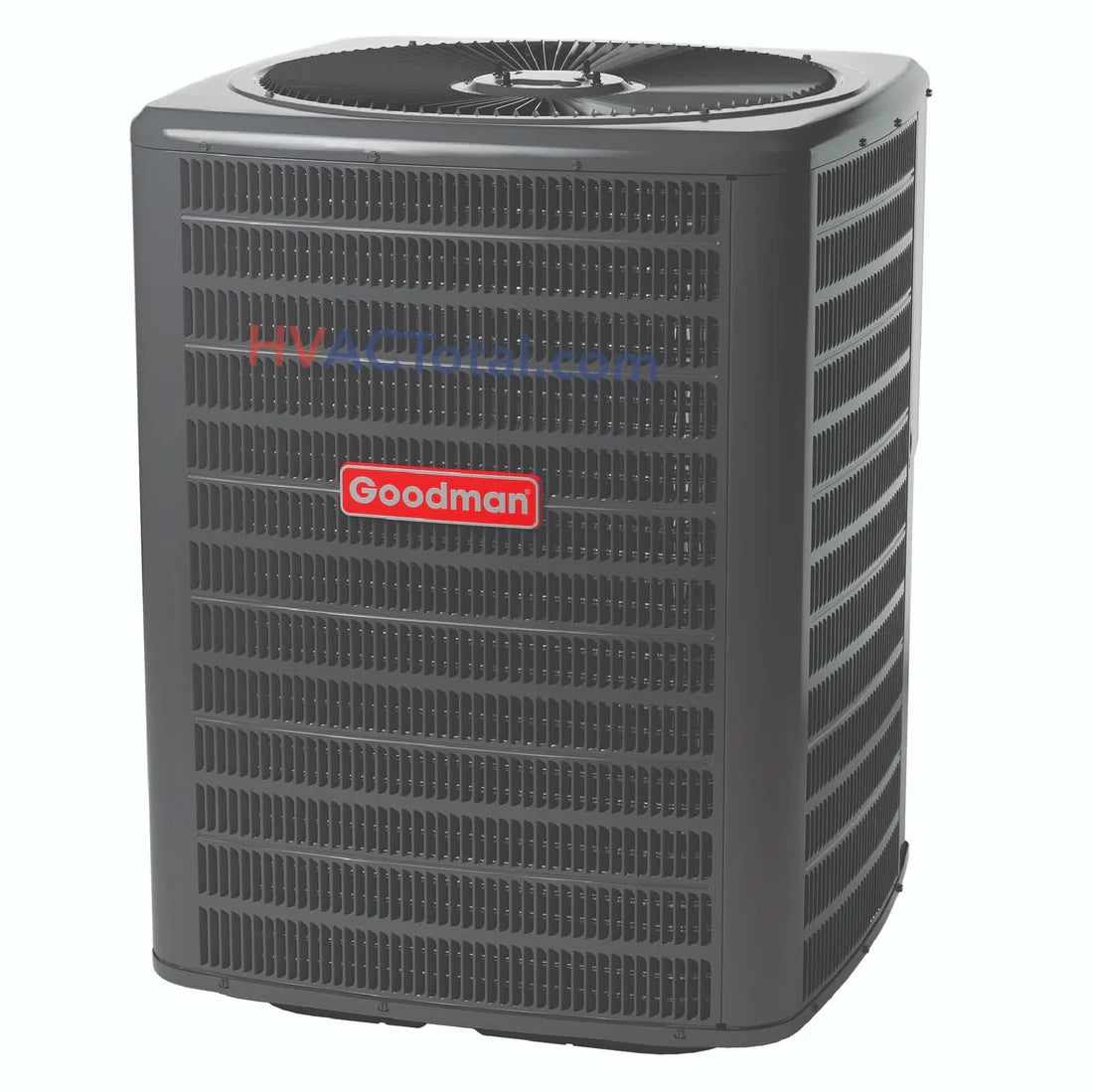

3.5 Ton Heat Pump Condenser (GLZS5BA4210):
This condenser offers numerous benefits, such as:
- Adherence to 2023 M1 Test Standards.
- UL 60335-2-40 certification.
- Features a grille that is easy to remove.
- A robust steel coil guard and a galvanized steel cabinet.
- A sleek gray powder-coated finish, tested for 500 hours of salt spray resistance.
- This heat pump split system is designed for convenient maintenance with top and side access.

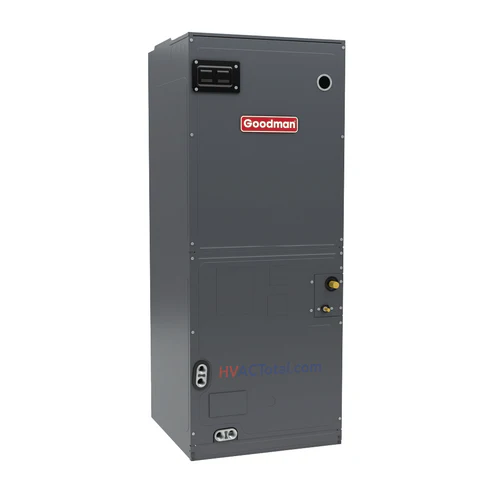

3.5 Ton Air Handler (AMST42CU1300):
Moreover, the air handler comes with several key features, including:
- An all-aluminum coil, hence for enhanced cooling efficiency.
- A quiet, 9-speed ECM motor with direct drive.
- Options for either no heat or corrosion-resistant heat (5-10 kW).
- A high-efficiency evaporator coil.
- A sturdy plastic drain pan featuring two connection points.
- Compatibility with non-ducted air return systems.
- A durable galvanized steel construction with easy servicing access.
Cabinet Features:
Furthermore, the cabinet of goodman heat pump split system is designed for both durability and convenience. It includes:
- A SmartFrame cabinet design for a rigid structure.
- The ability to be configured horizontally or vertically.
- A compact 21" depth, which is ideal for attic access.
- A DecaBDE-free plastic drain pan with secondary drainage.
- An insulated interior that helps reduce condensation.
- A leather grain finish with tool-less filter access.
Enhance your home’s comfort with the reliable and energy-efficient Goodman 3.5 Ton 15.2 SEER2 Heat Pump Split System. Moreover, Achieve lasting comfort in your home with Goodman's renowned quality, combining excellent performance and durability. Hence, trust in Goodman for year-round peace of mind.
Specifications
AHRI | 215381163 |
---|---|
Heat Pump Model Number | GLZS5BA4210 |
Unit Height | 35.75 in |
Unit Width | 35.5 in |
Unit Depth | 35.5 in |
Unit Weight | 257 lb |
SEER 2 | 15.2 |
Heating Capacity Nominal | 42000 Btu/H |
Max Overcurrent Protection | 35 A |
Power Phase | 1 Ph |
Power Voltage | 208/230 V |
Compressor Stages | Single Stage |
Compressor Type | Scroll |
Refrigerant Type | R-32 |
Air Handler Model Number | AMST42CU1300 |
Unit Height | 53.4375 in |
Unit Width | 21.125 in |
Unit Depth | 21 in |
Unit Weight | 153 lb |
Tonnage | 3.5 |
Cooling Capacity Nominal | 42000 Btu/H |
Max Overcurrent Protection | 15 A |
Power Phase | 1 Ph |
Power Voltage | 208/230 V |
Case/Uncased | Cased |
Motor Speed Type | Nine Speed ECM |
Refrigerant Type | R-32 |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- //hvactotal.com/cdn/shop/files/GLZS5 Spec Manual
- //hvactotal.com/cdn/shop/files/GLZS5 Installation Manual
- //hvactotal.com/cdn/shop/files/GLZS5 Warranty Guide
- //hvactotal.com/cdn/shop/files/AMST Air Handler Specs
- //hvactotal.com/cdn/shop/files/AMST Air Handler Installation
- //hvactotal.com/cdn/shop/files/AMST Air Handler Repair Parts
