Model: GLZS5BA3610 / AMST42CU1300

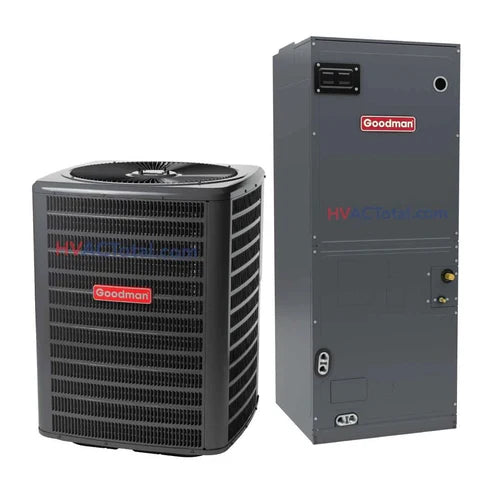

3 Ton 15.2 SEER2 Goodman R32 Heat Pump Split System
3 Ton 15.2 SEER2 Goodman R32 Heat Pump Split System

Couldn't load pickup availability
Product Details
Designed for reliable and efficient temperature regulation, the Goodman 3 Ton 15.2 SEER2 Heat Pump Split System combines multiple essential parts to work seamlessly.

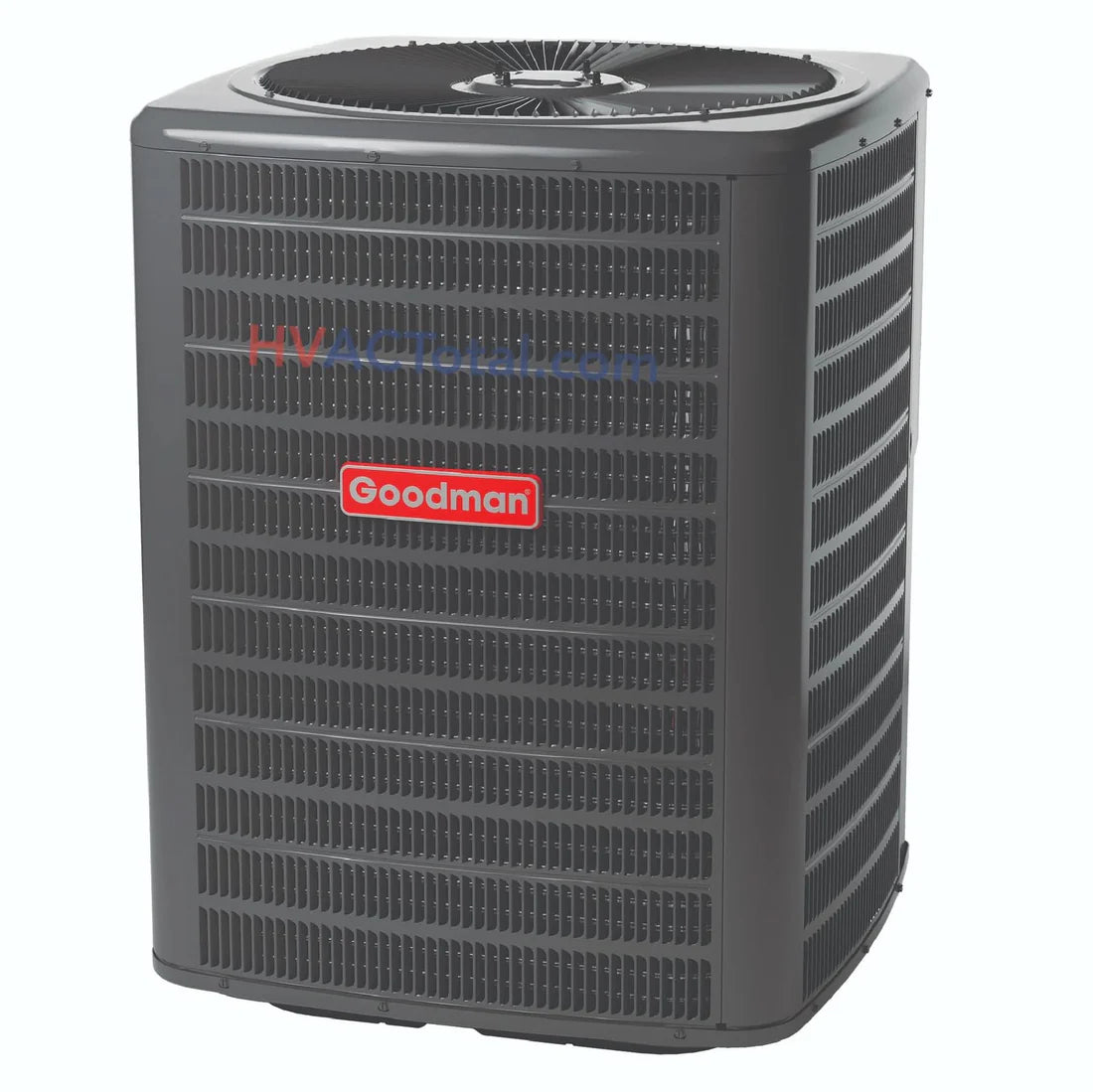

3 Ton Heat Pump Condenser (GLZS5BA3610):
This heat pump split system condenser provides several advantages, including:
- Compliant with the 2023 M1 Test Standards.
- UL 60335-2-40 certified, with a removable grille for added convenience.
- Made with a steel coil guard and galvanized steel cabinet, hence offering durable construction.
- Sleek gray powder-coated finish, tested for 500 hours of salt spray resistance.
- Easy maintenance with convenient top and side access.

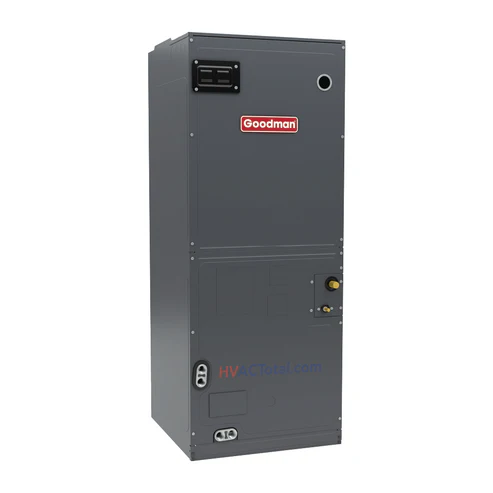

3.5 Ton Air Handler (AMST42CU1300):
In addition, the air handler includes several key features, such as:
- An all-aluminum coil engineered for maximum cooling efficiency.
- A quiet 9-speed ECM motor with direct drive for seamless operation.
- Heat options available from no heat to corrosion-resistant heat (5-10 kW).
- This heat pump split system features a high-efficiency evaporator coil for enhanced performance.
- A sturdy plastic drain pan with two connection points.
- Compatible with non-ducted air return systems.
- Built with rugged galvanized steel construction and designed, thus providing easy servicing access.
Cabinet Features:
Moreover, the is engineered for durability and convenience, offering:
- A robust and rigid structure thanks to the SmartFrame design.
- Flexible for both horizontal and vertical configurations.
- A compact 21" depth, hence making it ideal for attic installations.
- A DecaBDE-free plastic drain pan with secondary drainage, thus ensuring safety.
- An insulated interior to reduce condensation.
- A leather-grain finish and tool-free filter access for convenience.
Choosing the Goodman 3 Ton 15.2 SEER2 Heat Pump Split System means investing in reliable and energy-efficient heating and cooling. Additionally, With Goodman’s reputation for excellence, this heat pump split system delivers lasting comfort, offering peace of mind in every season. As a result, you'll enjoy an ideal combination of performance, durability, and energy savings with Goodman.
Specifications
AHRI | 215381162 |
---|---|
Heat Pump Model Number | GLZS5BA3610 |
Unit Height | 39.5 in |
Unit Width | 35.5 in |
Unit Depth | 35.5 in |
Unit Weight | 222 lb |
SEER 2 | 15.2 |
Heating Capacity Nominal | 36000 Btu/H |
Max Overcurrent Protection | 40 A |
Power Phase | 1 Ph |
Power Voltage | 208/230 V |
Compressor Stages | Single Stage |
Compressor Type | Scroll |
Refrigerant Type | R-32 |
Air Handler Model Number | AMST42CU1300 |
Unit Height | 53.4375 in |
Unit Width | 21.125 in |
Unit Depth | 21 in |
Unit Weight | 153 lb |
Tonnage | 3.5 |
Cooling Capacity Nominal | 42000 Btu/H |
Max Overcurrent Protection | 15 A |
Power Phase | 1 Ph |
Power Voltage | 208/230 V |
Case/Uncased | Cased |
Motor Speed Type | Nine Speed ECM |
Refrigerant Type | R-32 |
