Model: R5A4S30AKANA / EAM5X30M14A / N80MSN0451412A

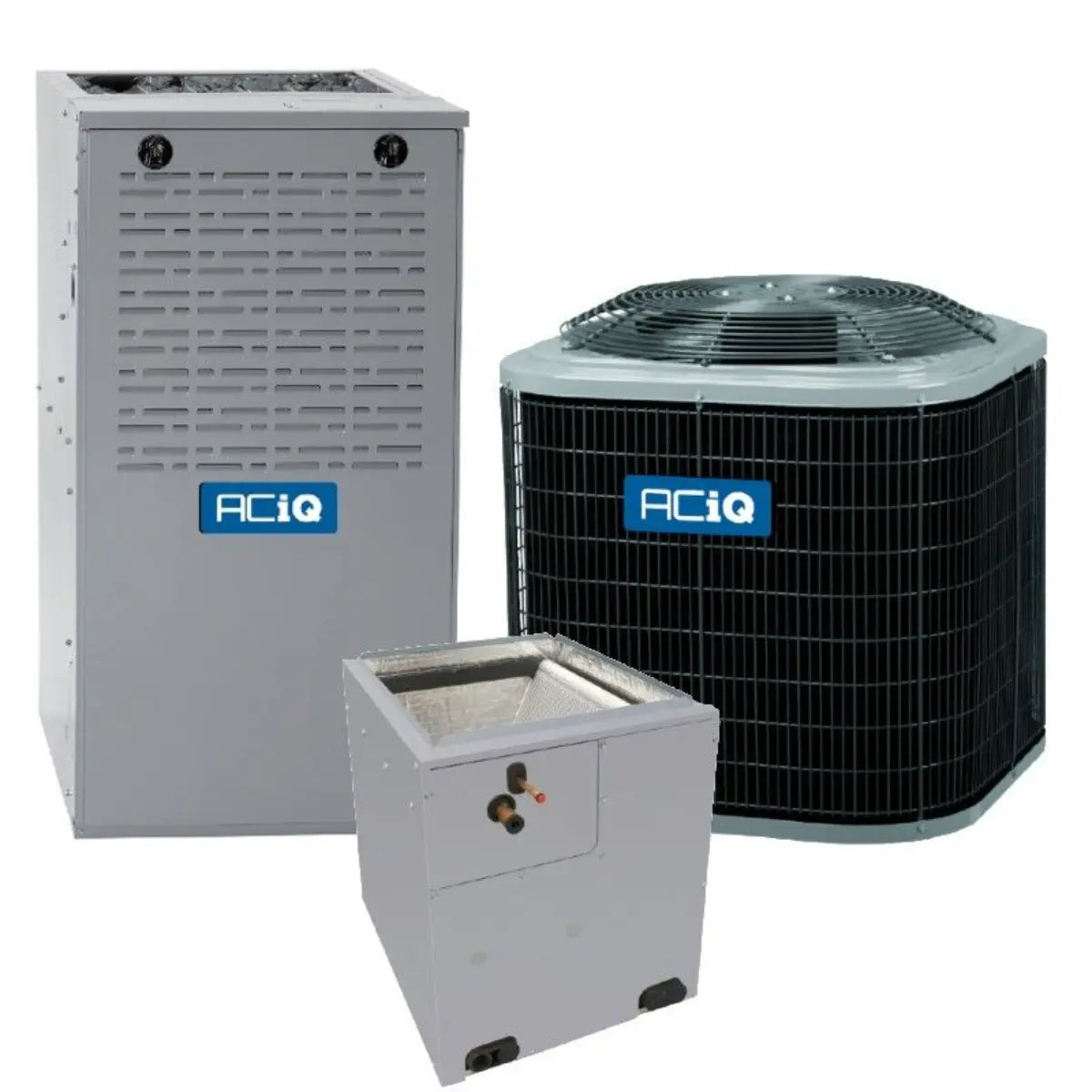

ACiQ 2.5 Ton 13.4 SEER2 R454B AC and 80% AFUE 40K BTU Multi Speed Furnace System - Multi-Positional
Works with natural gas or propane (conversion kit required).
High reliability & quality.
Designed, engineered, and assembled in the USA.
Couldn't load pickup availability
Product Details
OVERVIEW

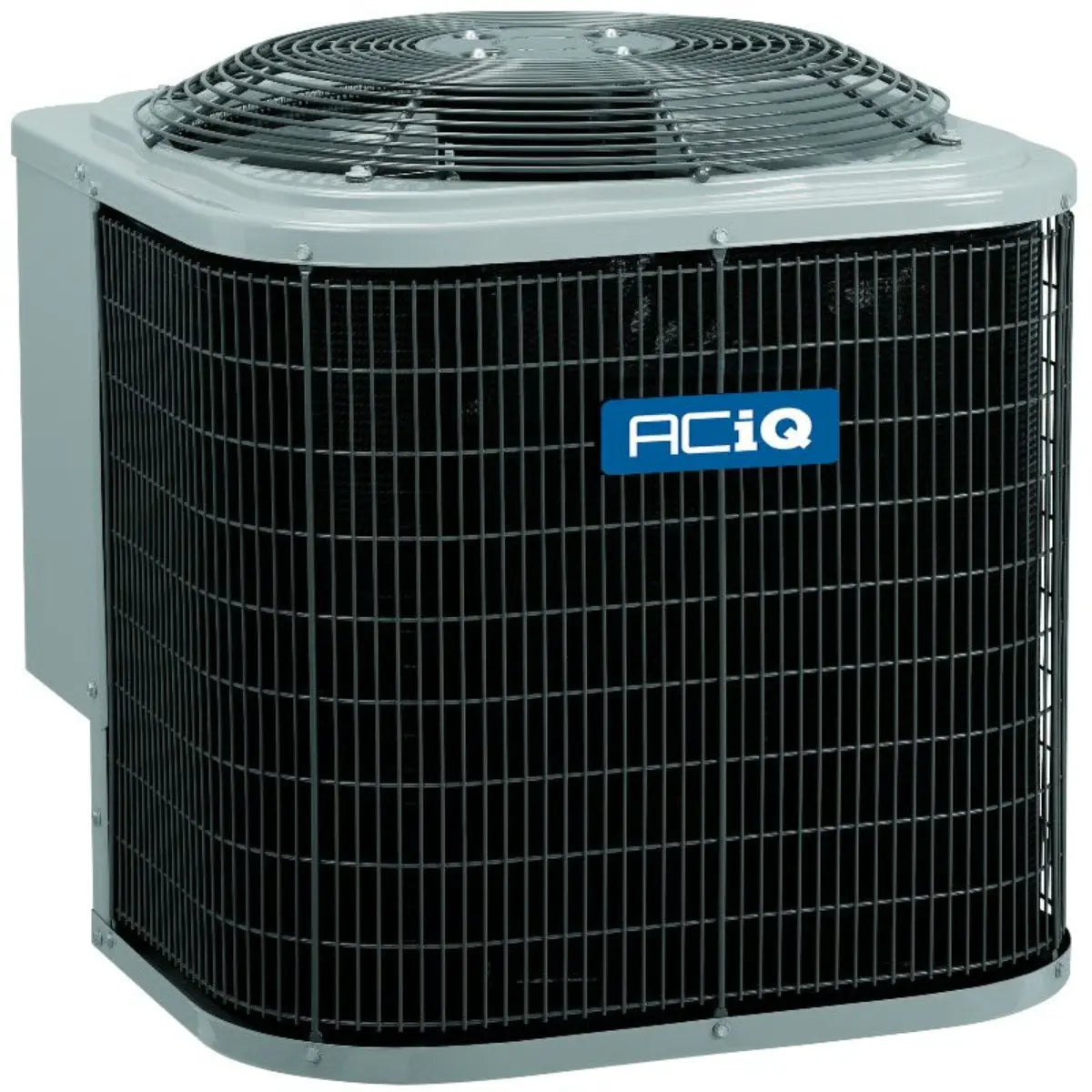

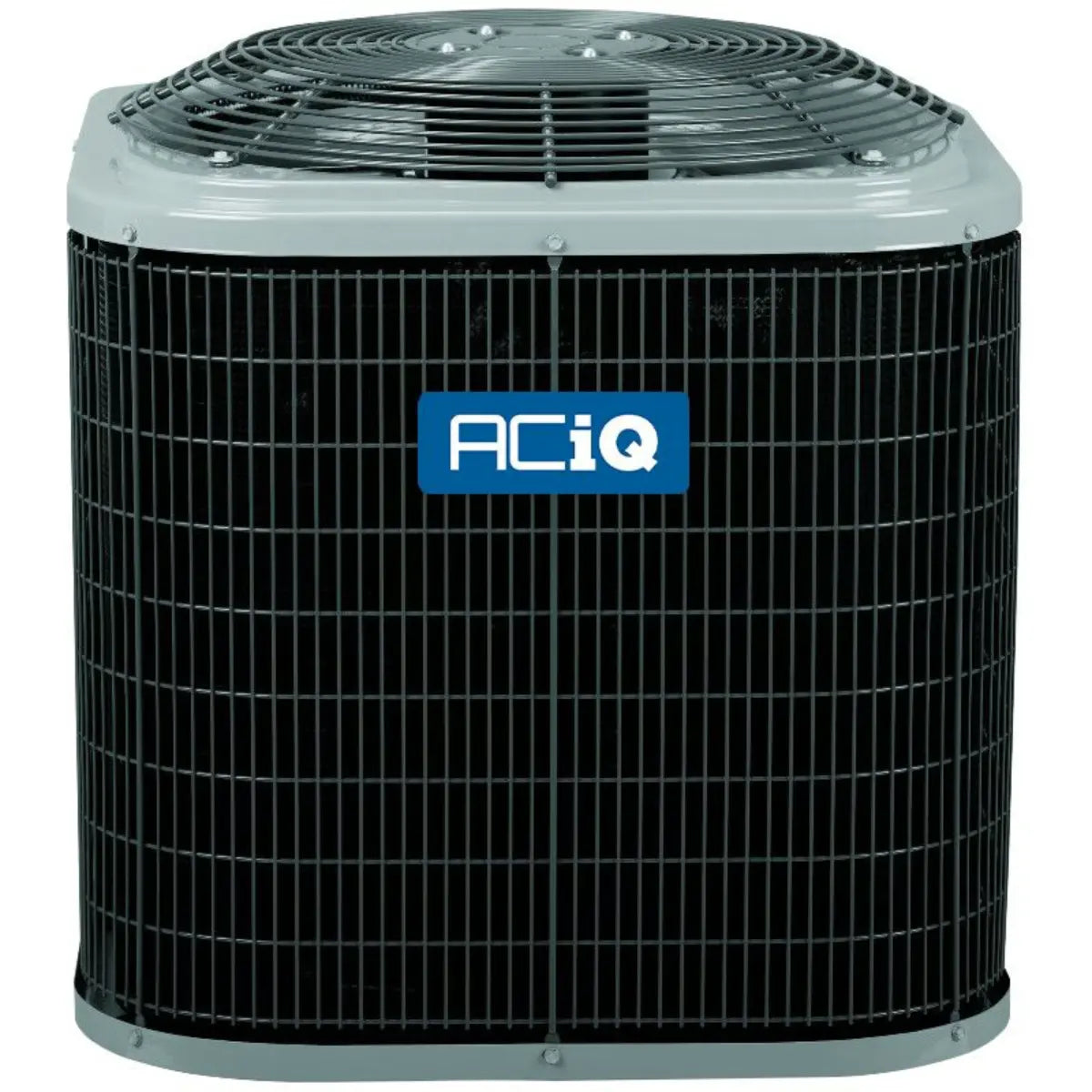

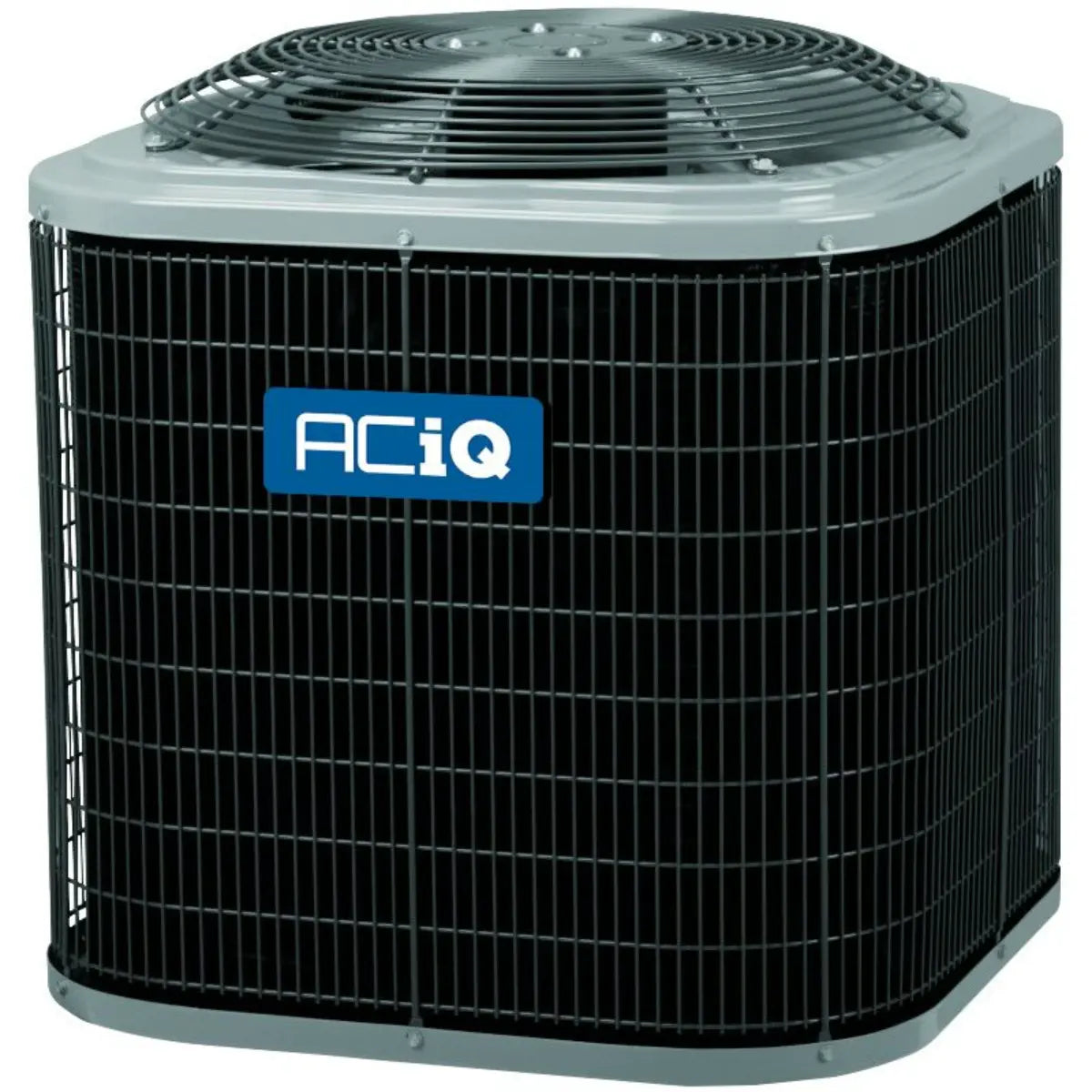

The ACIQ R5A4S30AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
- 2 ton, 13.4 SEER2 AC-only condenser
- Can cool a small to medium-sized house in average conditions
- Single stage compressor
- Filter drier included to be field-installed
2.5 Tons
The ACIQ R5A4S30AKANA air conditioner condenser has an output of 2.5 tons, generally enough to cool a small to medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
13.4 SEER2
The ACIQ R5A4S30AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.
This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.
Warranty
ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACIQ units are extremely durable. On the R5A4S30AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
OVERVIEW

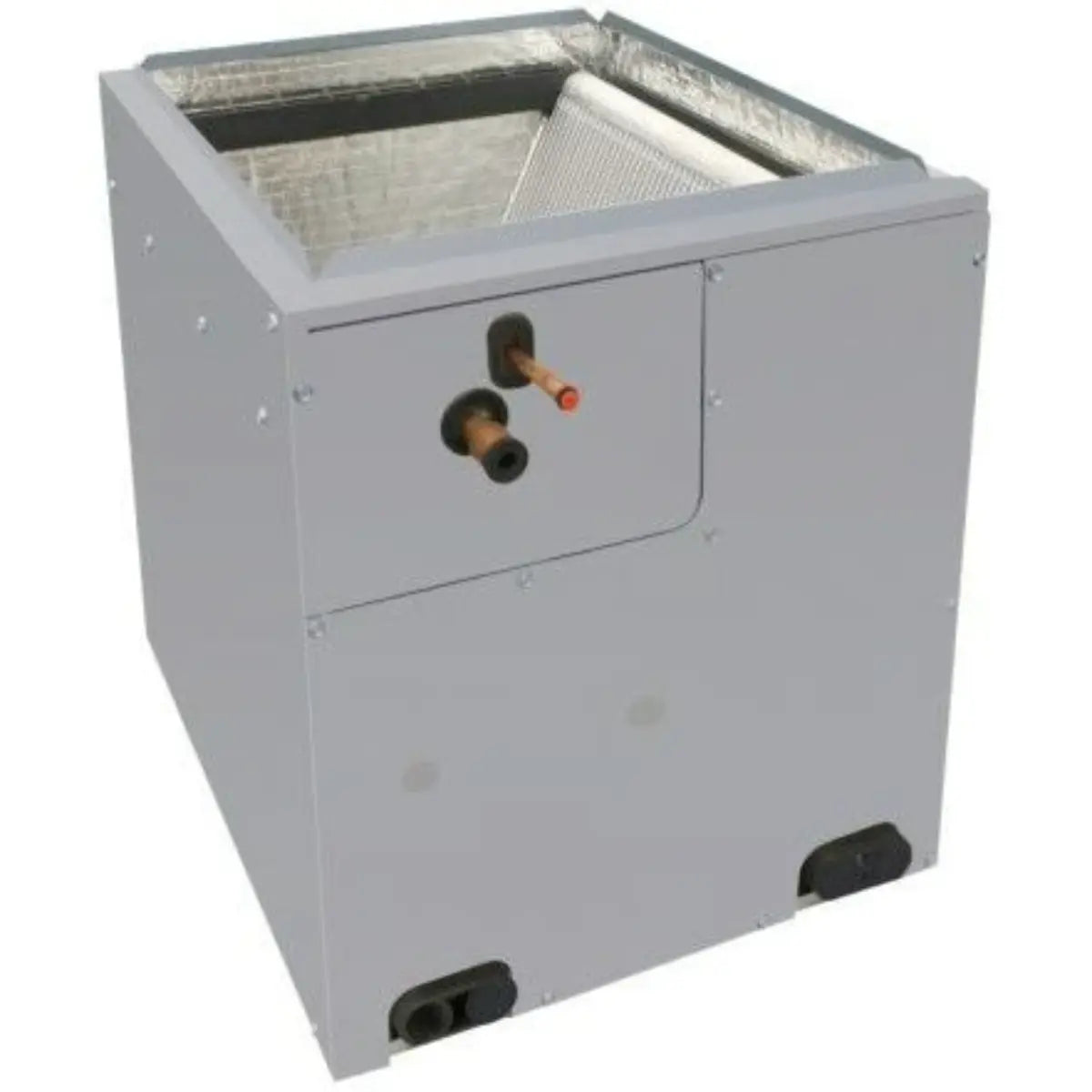

ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EAM5X30M14A horizontal coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. With its unique performance features along with its ability to be applied in any orientation, this coil is a superior option for your home's comfort.
QUICK FACTS
- 2.5 ton multi-positional evaporator coil
- Works in almost any upflow, downflow, or horizontal system setup
- Compatible with both AC-only and heat pump condensers
- Factory-installed TXV kit for enhanced energy optimization
- Sturdy and compact design
2.5 Tons
The ACIQ EAM5X30M14A is rated for up to 2.5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Warranty
ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.
OVERVIEW

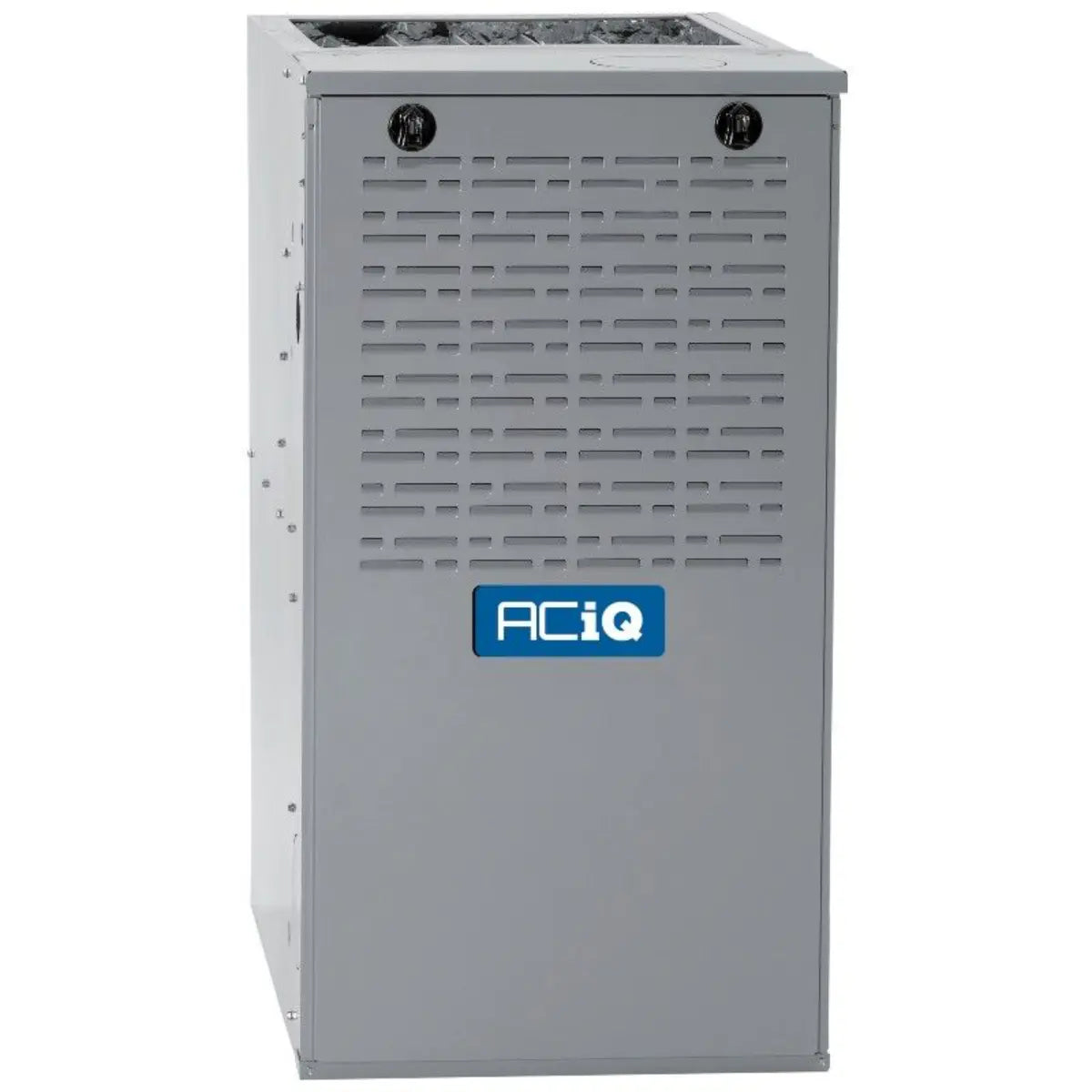

The ACiQ N80MSN0451412A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.
QUICK FACTS
- 44,000 BTU, 80% AFUE natural gas furnace
- Generally suitable for up to a small house in ideal applications
- Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
- Single stage burner with a multi-speed blower
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
44,000 BTU, 80% AFUE
The ACiQ N80MSN0451412A has an input of 44,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 35,200 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Warranty
ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80MSN0451412A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.
Specifications
| ACIQ 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage | |
|---|---|
| Feature | Spec |
| SKU | R5A4S30AKANA |
| Weight | 166.000000 |
| Manufacturer | ACiQ |
| Replaces | R4A4S30AKANA |
| Equivalent | Carrier Equivalent: 24ABB330ABN3 Tempstar Equivalent: R4A330GKH Bryant Equivalent: 113ANA030000 |
| Product Features | Basic Efficiency, New Refrigerant Compliant |
| Cooling BTU | 30000 |
| Maximum CFM | 2700 |
| Decibel Level (dBA) | 72 Decibels |
| Motor RPM | 825 |
| Horsepower | 1/10 HP |
| Refrigerant | R454B |
| SEER2 | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 16.2 Amps |
| Tonnage | 2.5 Ton |
| Connection | Sweat |
| Certification | UL Listed |
| Height | 31 11/16" |
| Width | 31 3/16" |
| Depth | 31 3/16" |
| Warranty | 10 Years Parts Warranty with Online Registration |
| ACIQ 2.5 Ton 14" Width Multi-Positional Evaporator Cased Coil - R454B | |
| Feature | Spec |
| SKU | EAM5X30M14A |
| Weight | 60.000000 |
| Manufacturer | ACiQ |
| Replaces | EAM4X30L14A |
| Equivalent | Carrier Equivalent: CAPMP2414ALA Tempstar Equivalent: EAM4X24L14A Bryant Equivalent: CAPMP2414ALA |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 2.5 Ton |
| Style | A-Coil |
| Connection | Sweat |
| Certification | UL Listed |
| Height | 25 13/16" |
| Width | 14 3/16" |
| Depth | 20 5/8" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |
| ACiQ 80% 40,000 BTU Single Stage Gas Furnace - 14" Width - Multi-Positional | |
| Feature | Spec |
| SKU | N80MSN0451412A |
| Weight | 108.000000 |
| AHRI Certificate Number | 213146204 |
| Exhaust Flue Requirement | Metal |
| Manufacturer | ACiQ |
| Replaces | N80ESN0451412A |
| Equivalent | Carrier Equivalent: 58SB0B045M14--12 Tempstar Equivalent: TN80ESN0451412A Bryant Equivalent: 810SA36045E14 |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 80% |
| Heating BTU | 44,000 |
| Blower Motor | Multi 18-Speed Constant Torque (MCT) ECM Motor |
| Maximum CFM | 715 |
| Configuration | Upflow/Downflow/Horizontal |
| Max Breaker Size | 15 Amps |
| Burner Stages | Single |
| Ignition Type | Direct Ignition with Silicon Nitride Hot Surface Ignitor |
| Fuel Type | Propane, Natural Gas |
| Height | 33 1/3" |
| Width | 14 3/16" |
| Depth | 29" |
| Warranty | 20 Year Heat Exchanger and 10 Year Parts with Online Registration |
Warranty & Shipping
Free Shipping on All HVAC Orders – Plus a 10-Year Warranty
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- ACiQ R5A4S Specifications Sheet
- ACiQ R5A4S Owner s Manual
- ACiQ AC Heat Pump Warranty
- //hvactotal.com/cdn/shop/files/ACiQ EAM5X Spec Sheet
- //hvactotal.com/cdn/shop/files/ACiQ EAM5X Installation Manual
- ACiQ Evaporator Coil Warranty
- ACiQ N80MSN-N80MSL Spec Sheet
- N80MSN N80MSL Installation Manual
- ACiQ Furnace Gas Conversion Kit Installation Manual
- ACiQ Furnace Warranty
