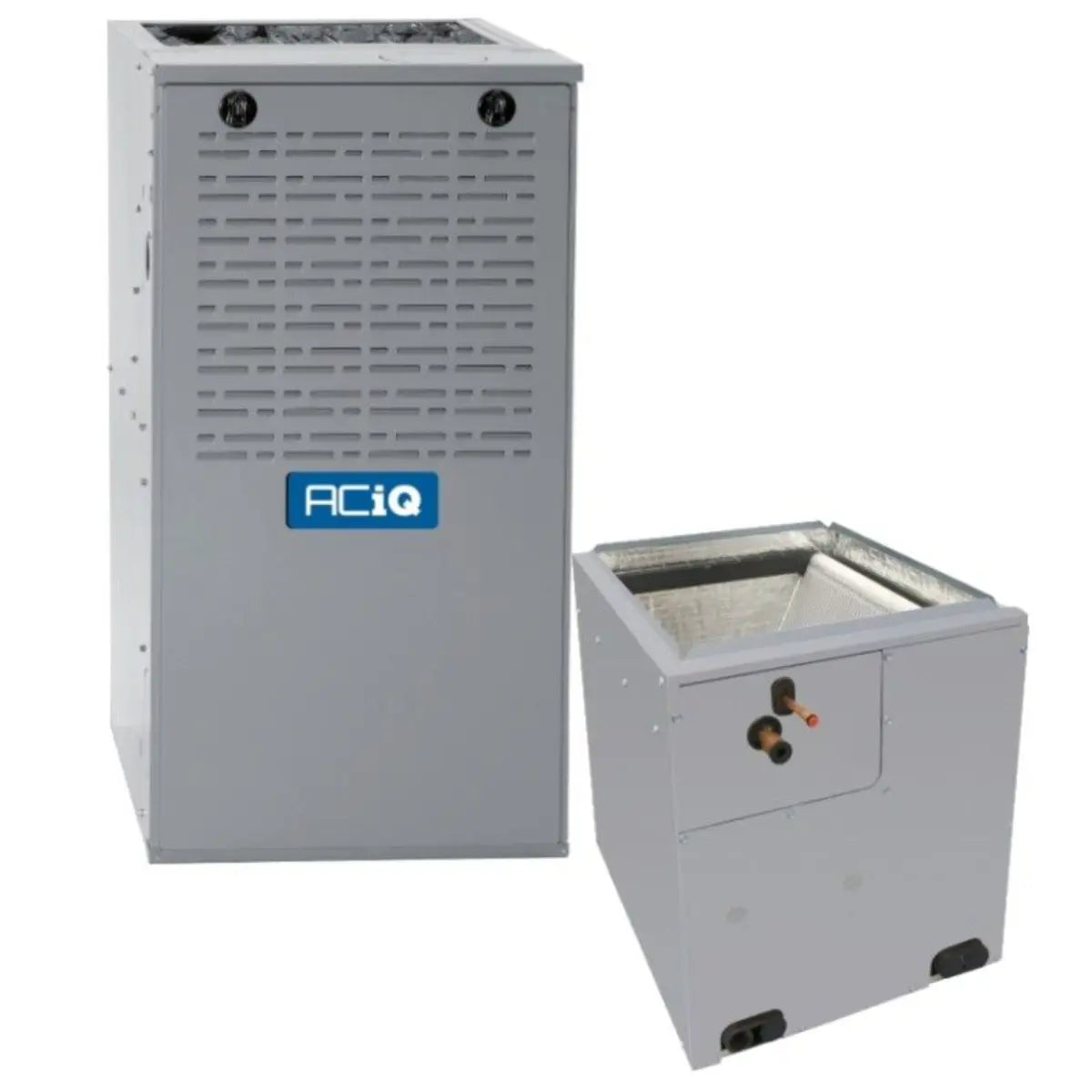

ACIQ 2.5 Ton 96% AFUE 60,000 BTU Furnace and Coil System Upflow/Downflow, R454B

OVERVIEW

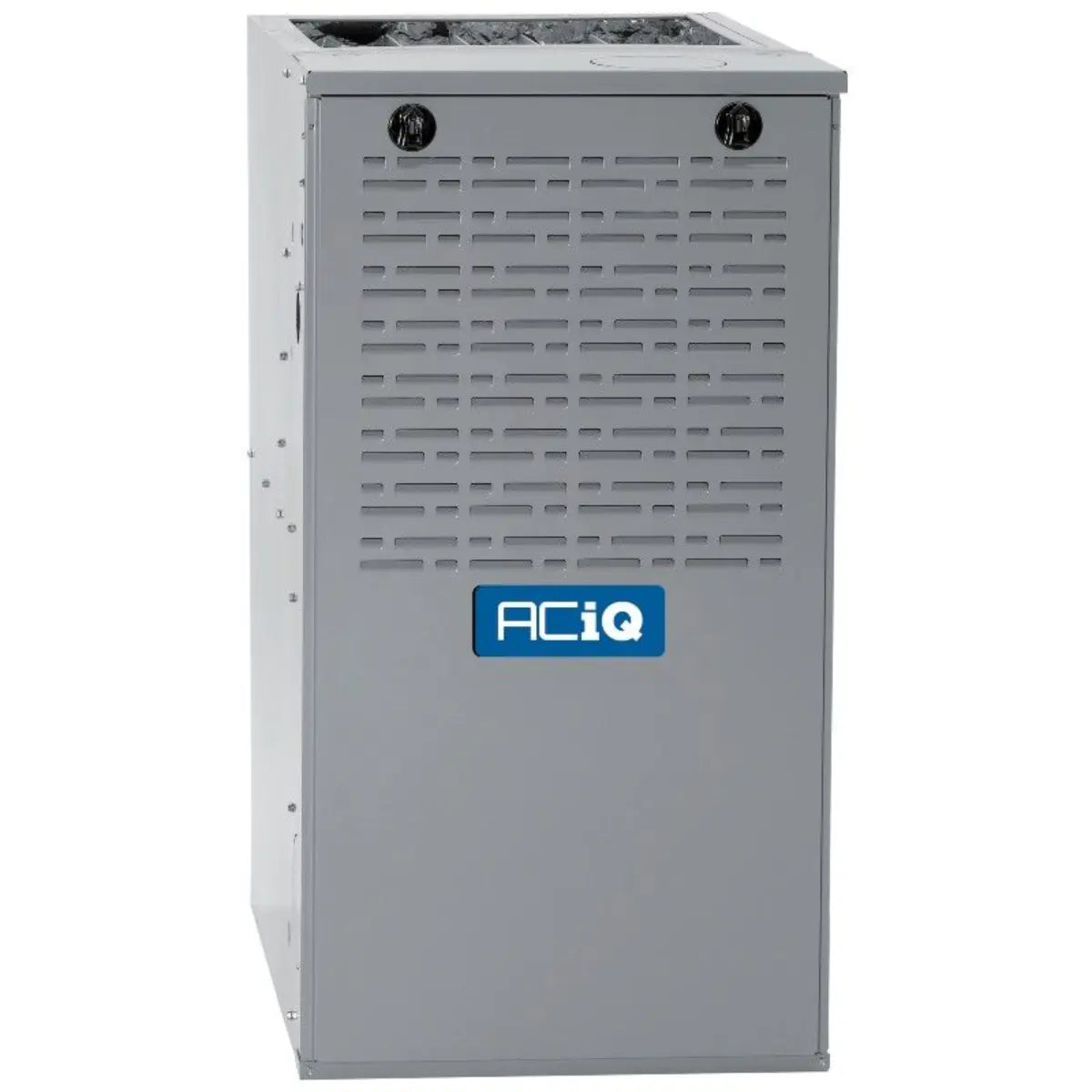

With its variable speed blower motor and two stage burner, the ACiQ G96VTN0601714A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G96VTN0601714A is a great choice to keep you comfortable while saving you money in energy bills year-round.

QUICK FACTS

• 60,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to a small to medium house in ideal applications
• Variable speed blower with a two stage burner
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

60,000 BTU, 96% AFUE

The ACiQ G96VTN0601714A has an input of 60,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 57,600 BTU, meaning that it is generally suitable for small to medium house in ideal climates. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while the remaining 4% is lost out the flue piping and lost to normal furnace operations. All 96% furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration - upflow, downflow, or horizontal - the ACiQ G96VTN0601714A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.

Superior Comfort

All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G96VTN0601714A definitely lives up to the name thanks in part to its variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIEW

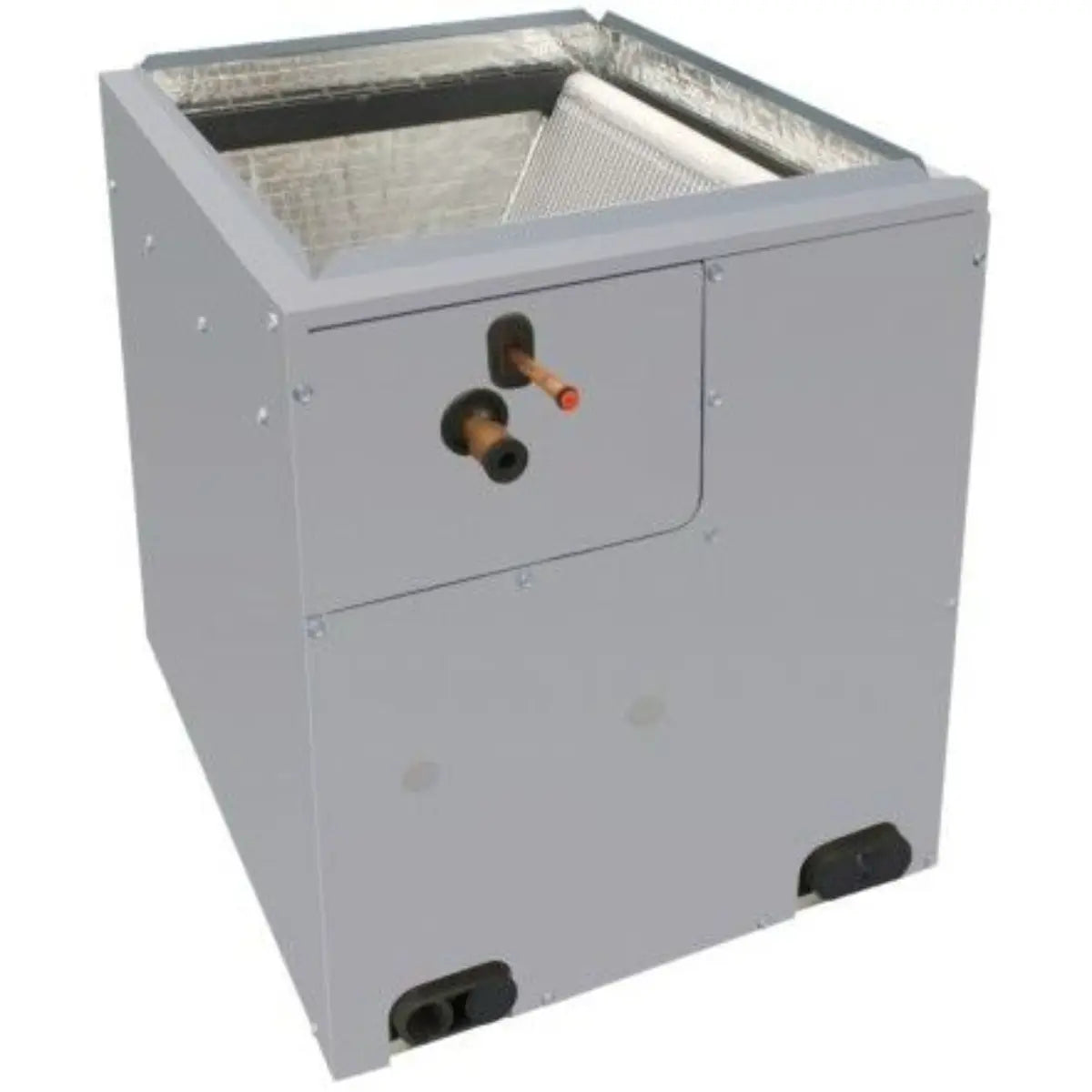

ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X30M17A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.

QUICK FACTS

• 2.5 ton vertical coil
• Works in both upflow and downflow applications
• Fully insulated, cased V-coil design for efficient heat transfer in a compact size
• Factory-installed TXV kit for enhanced energy optimization
• Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength

2.5 Tons

The ACIQ EVD5X30M17A is rated for up to 2.5 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.
