Model: AC-I-24AC14 / AC-I-1824ACL-17

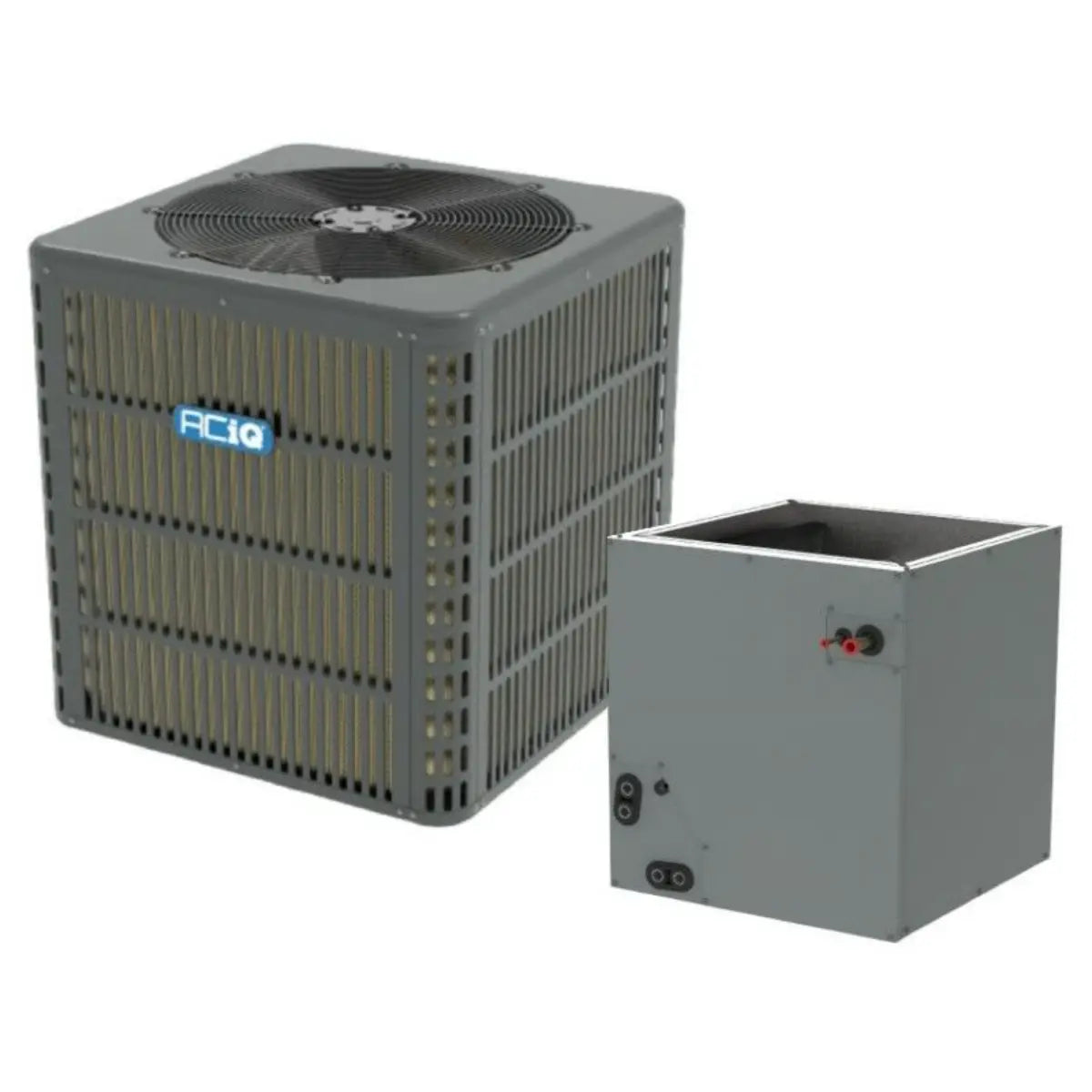

ACiQ 2 Ton 14.3 SEER2 Air Conditioner with 17.5" Multi-Positional Cased Coil, R32
Couldn't load pickup availability
Product Details
Matched AC and Coil Designed to Pair with any Flush-Fit Furnace
An ACiQ air conditioner and coil system is the perfect choice for any partial HVAC system replacement. Designed to pair with any furnace of a matching cabinet width, this coil system is the best choice for all of your cooling needs.
FEATURES
- 2 ton 14.3 SEER2 air conditioning condenser with 17.5" wide coil
- Pre-charged with R32 refrigerant
- Multi-positional coil - Can be installed in upflow, downflow, or horizontal orientations
- R32 refrigerant leak mitigation kit included with coil
- 12 year compressor and 7 year parts warranties
Reliable Home Cooling Comfort

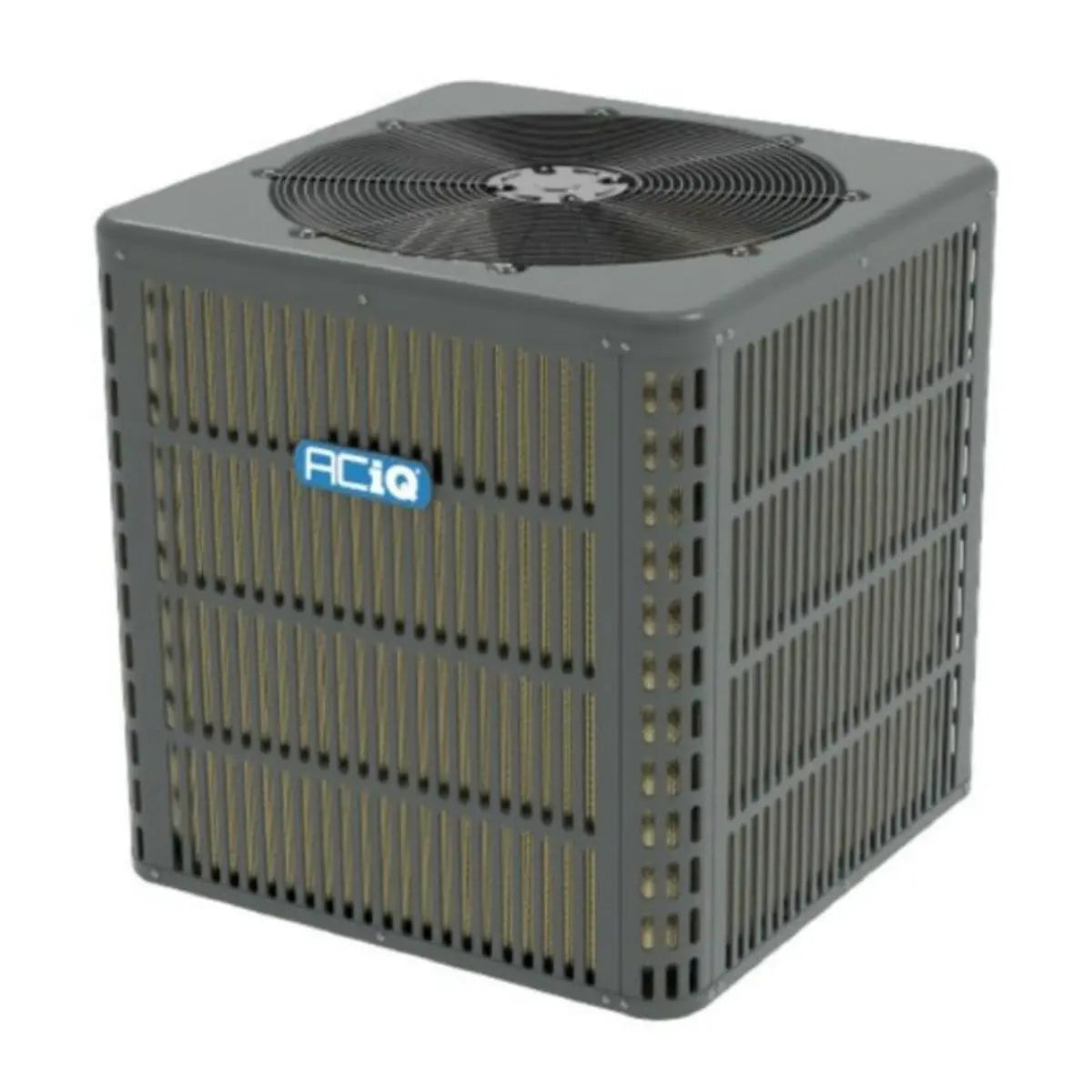

The ACiQ AC-I-24AC14 is a 2-ton air conditioner condenser designed to deliver consistent comfort throughout the year. With its advanced technology and SEER2 rating, it provides powerful yet economical cooling, making it an excellent choice for homeowners seeking reliability and performance.
Features
- 2 ton, 24,000 BTU Cooling capacity
- Can cool small homes in various climates
- Pre-charged with R32 refrigerant
- Quiet outdoor sound rating
- Corrosion-resistant design help withstand outdoor exposure
- TXV-controlled A‑coil support better humidity control and smoother airflow, enhancing overall comfort
2 Tons
The ACiQ AC-I-24AC14 is a 2 ton (24,000 BTU) central air conditioner condenser that uses R32 technology to deliver 14.3 SEER2 cooling performance while reducing energy consumption. This top-discharge, cooling-only outdoor unit is designed for quiet, reliable residential comfort. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Warranty
ACiQ offers a 12 year compressor and a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-551-2469 if you have any questions.

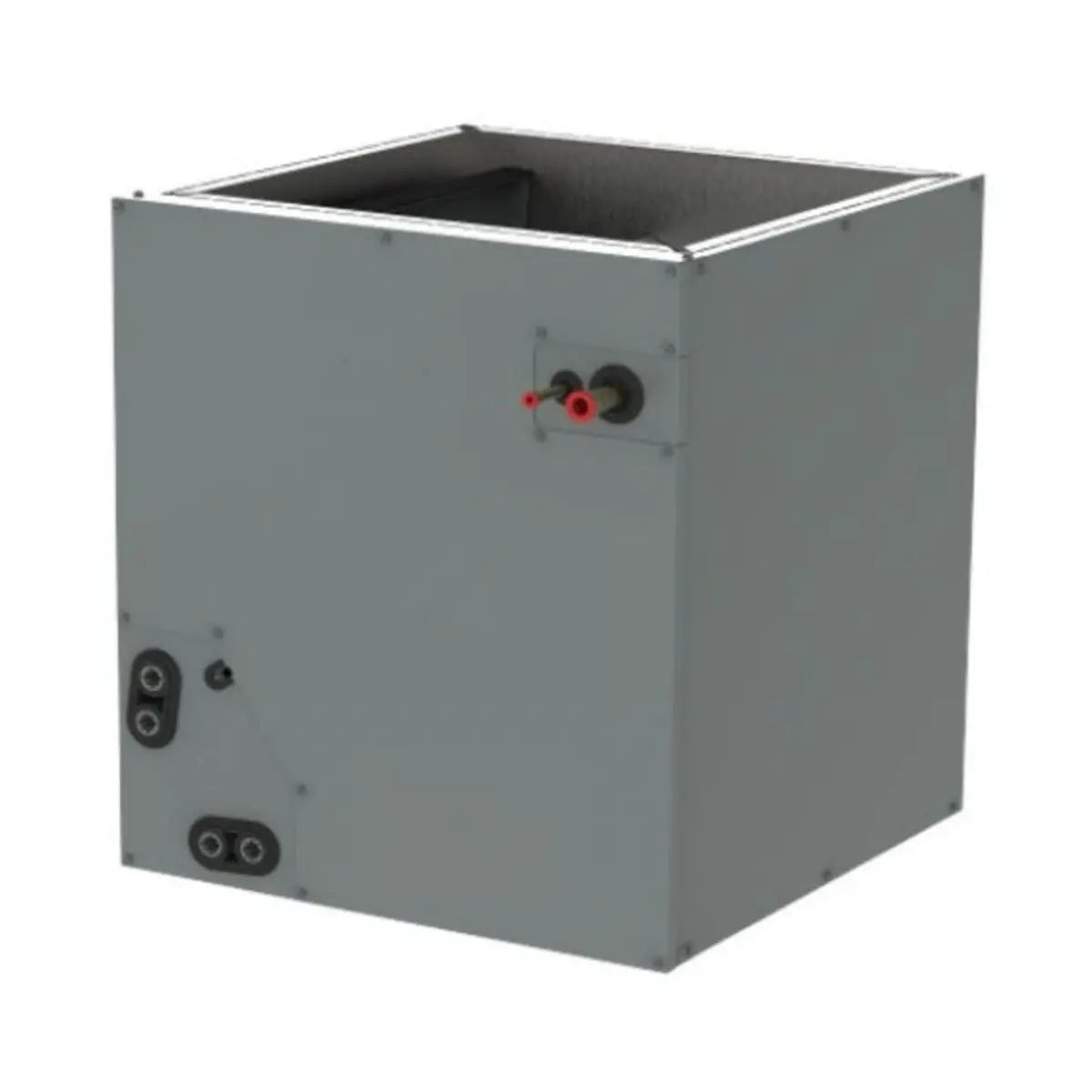

The ACiQ AC-I-1824ACL-17 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 1.5 to 2 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.
Key Features
- Multi-Position Design: Engineered for upflow, downflow, and horizontal applications, ensuring it fits your specific ductwork layout.
- Corrosion Resistance: Features an all-aluminum construction that significantly reduces the risk of formicary corrosion compared to traditional copper.
- Pre-Installed TXV: Includes a factory-installed Thermal Expansion Valve (TXV) for precise refrigerant metering and improved system efficiency.
- 17.5" Cabinet Width: A standard width that aligns perfectly with common furnace sizes for a clean, professional-looking install.
- AHRI Certified: Tested to meet industry standards for performance and reliability when paired with compatible ACiQ equipment.
- Compatible with R32: Comes with a leak mitigation control kit for handling R32 refrigerant.
Warranty
ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Specifications
| ACiQ 1.5 Ton 17.5" Width Vertical Evaporator Coil - Cased - R32 | |
|---|---|
| Feature | Spec |
| SKU | AC-I-1824ACL-17 |
| Weight | 43.000000 |
| Manufacturer | ACiQ |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 1.5 Ton |
| Style | A-Coil |
| Height | 18" |
| Width | 17.5" |
| Depth | 21.02" |
| Warranty | 10 Years with Online Registration |
| ACiQ 2 Ton 14.3 SEER2 Central Air Conditioner Condenser - R32 | |
| Feature | Spec |
| SKU | AC-I-24AC14 |
| Refrigerant Charge | 52.91 oz. |
| Weight | 126.000000 |
| Manufacturer | ACiQ |
| Cooling BTU | 24,000 BTU |
| Decibel Level (dBA) | 58 Decibels |
| Refrigerant | R32 |
| SEER2 | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 13 Amps |
| Tonnage | 2 Ton |
| Height | 25" |
| Width | 23.62" |
| Depth | 23.62" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
