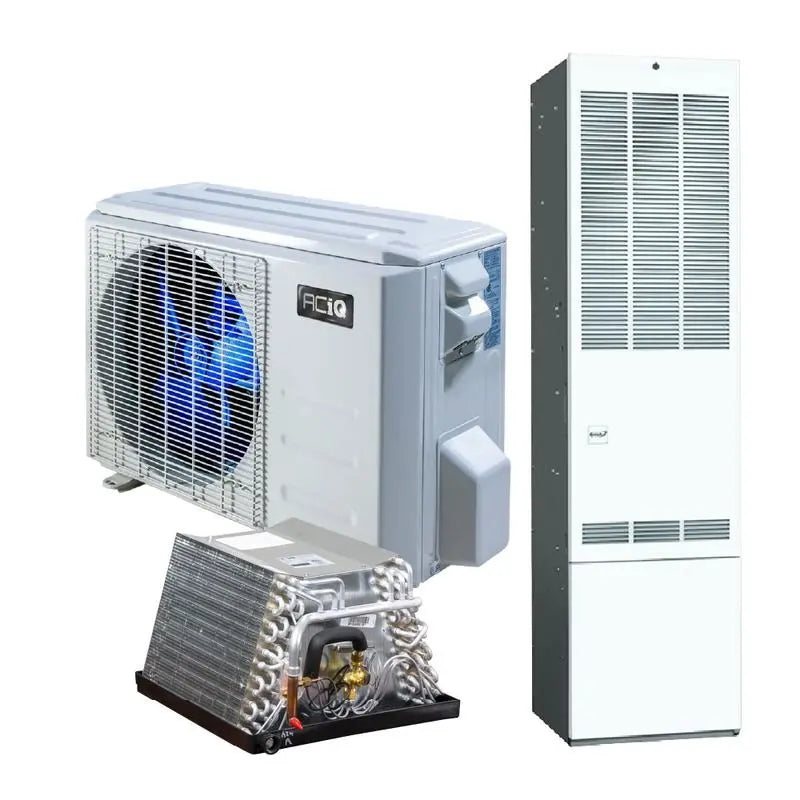

Model: ACiQ-24-EHPB / ACiQ-2413UDXBDE / MG2R-B072F1ACM1
ACiQ 2 Ton 19.4 SEER 95% AFUE 72,000 BTU High Efficiency Mobile Home Heat Pump & Gas Furnace System, R410A
Couldn't load pickup availability
Product Details
Our mobile home heat pump system features an ACiQ high efficiency heat pump, 95% AFUE gas furnace and mobile home coil with TXV. With tons of extra features and a great price, this ACiQ combination system is the perfect choice for all of your heating and cooling needs.
OVERVIEW

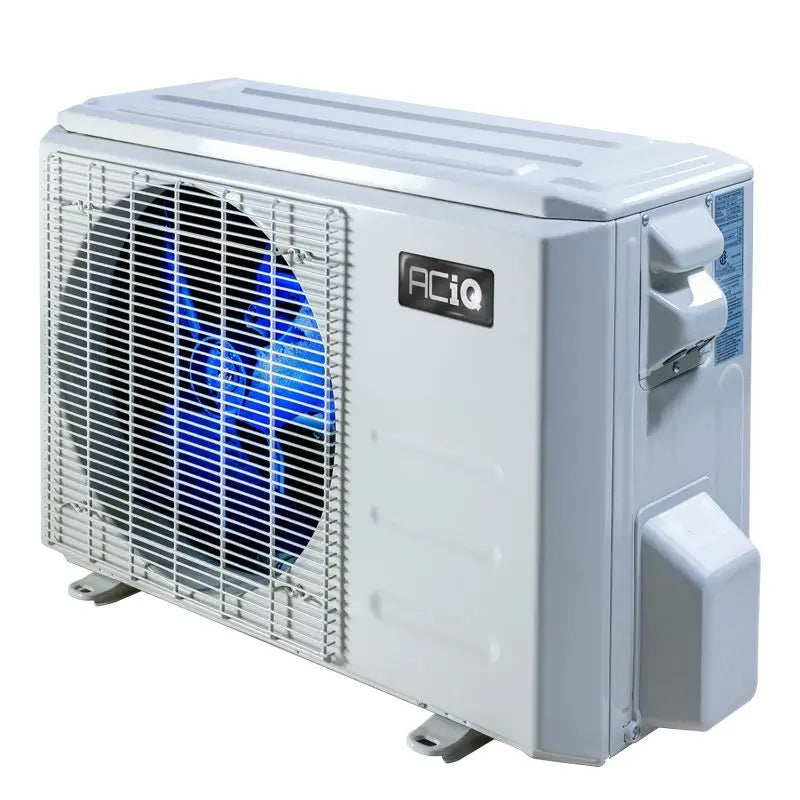

Inverter Heat Pump - The ACiQ-24-EHPB 2-ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the system to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.
Intelligent System - Equipped with advanced sensors, this system monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-24-EHPB can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
QUICK FACTS
- Variable output based on demand
- Inverter heat pump system for ducted applications
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Reliable heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating for longevity
- Quiet operation, even under high workloads
24,000 BTU, 17 SEER2
Boasting an efficiency rating of 17 SEER2, the ACiQ-24-EHPB provides versatile comfort across a range of climates. Reliable comfort with variable output that eliminates short cycling for lasting efficiency.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

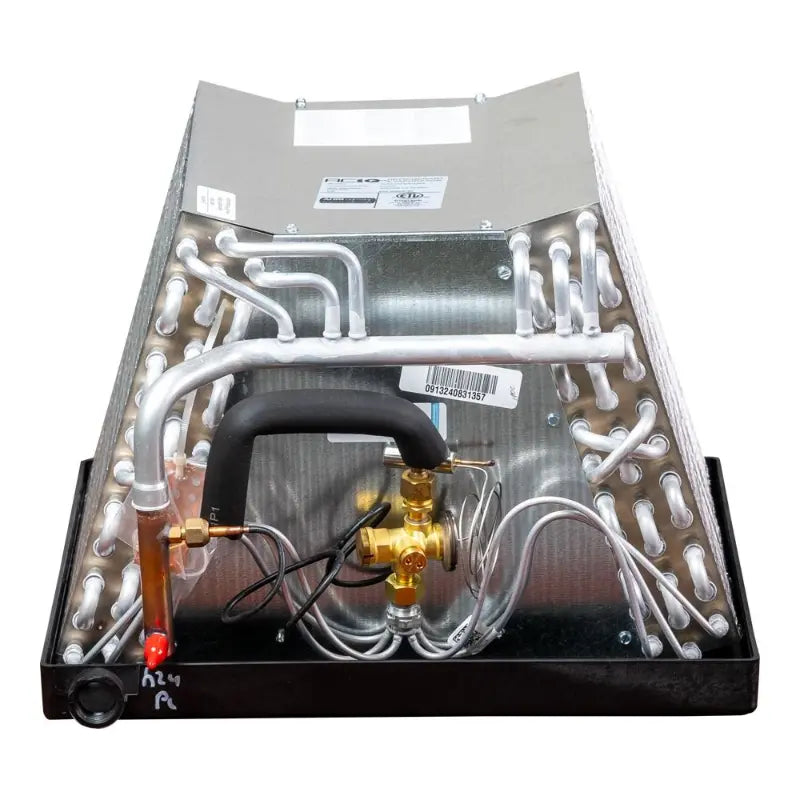

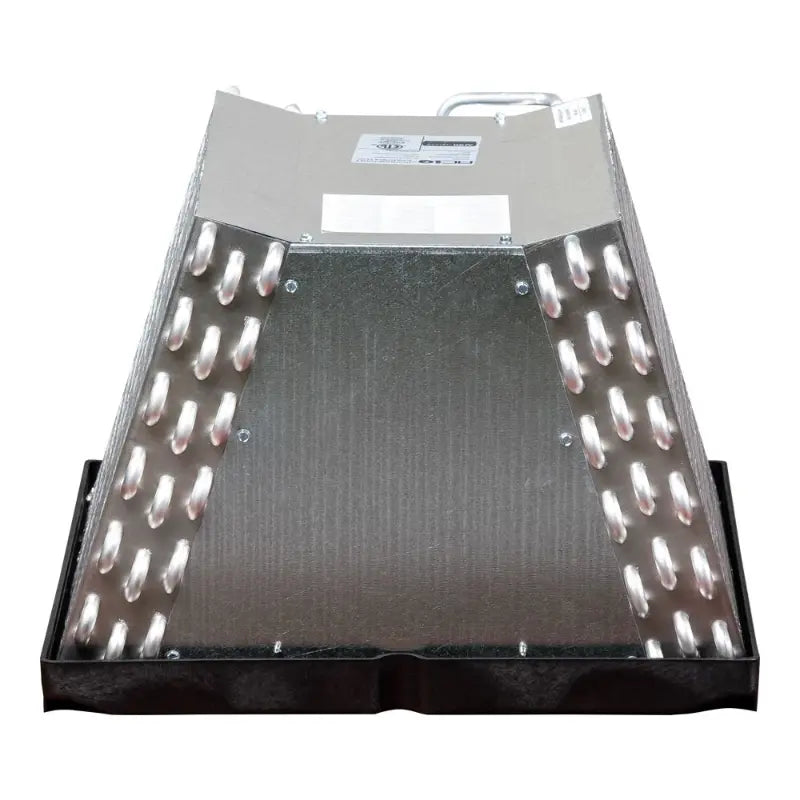

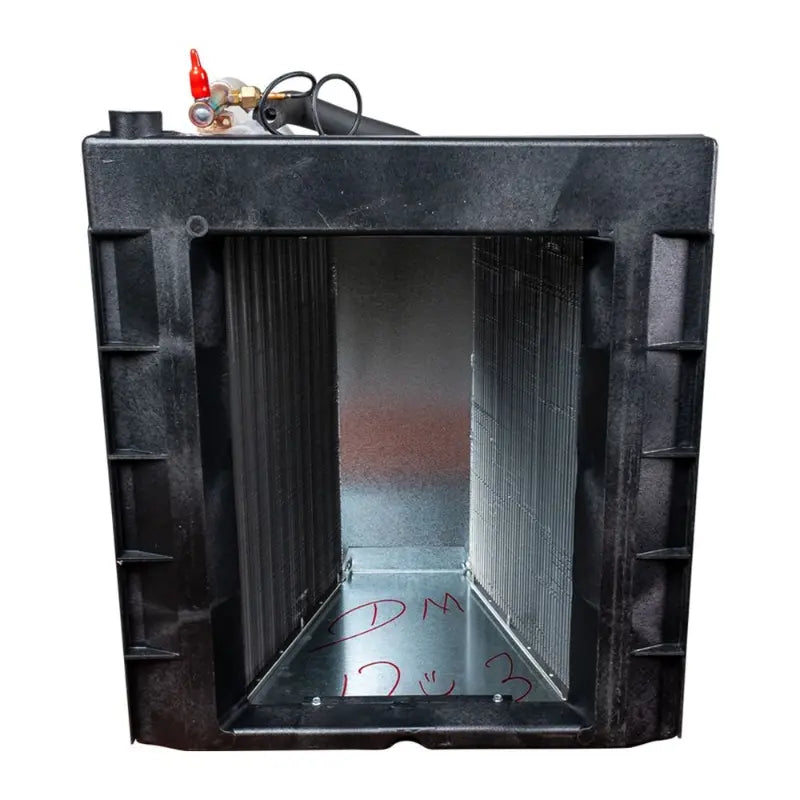

OVERVIEW

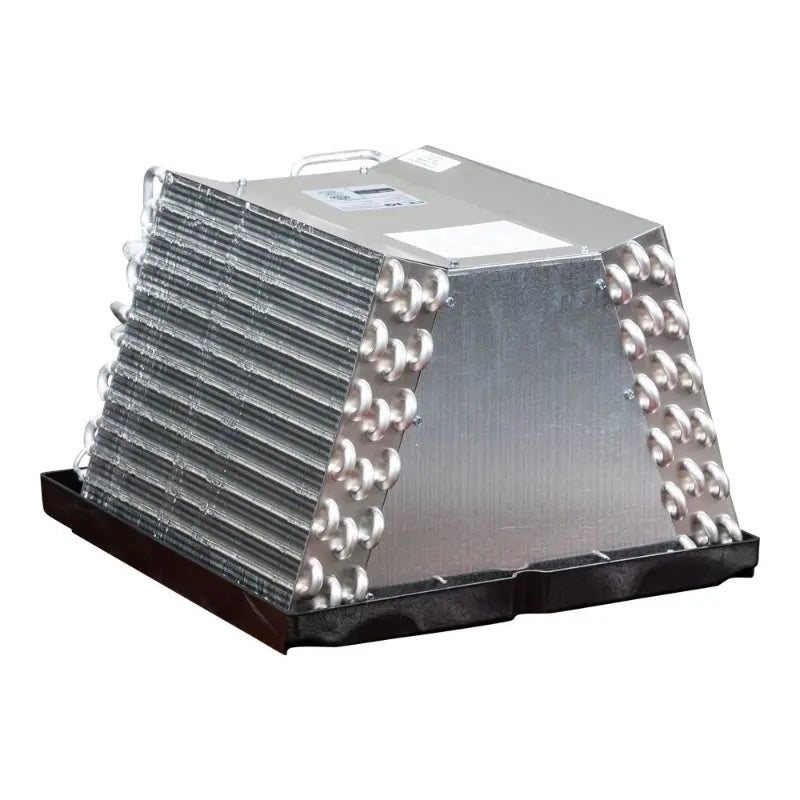

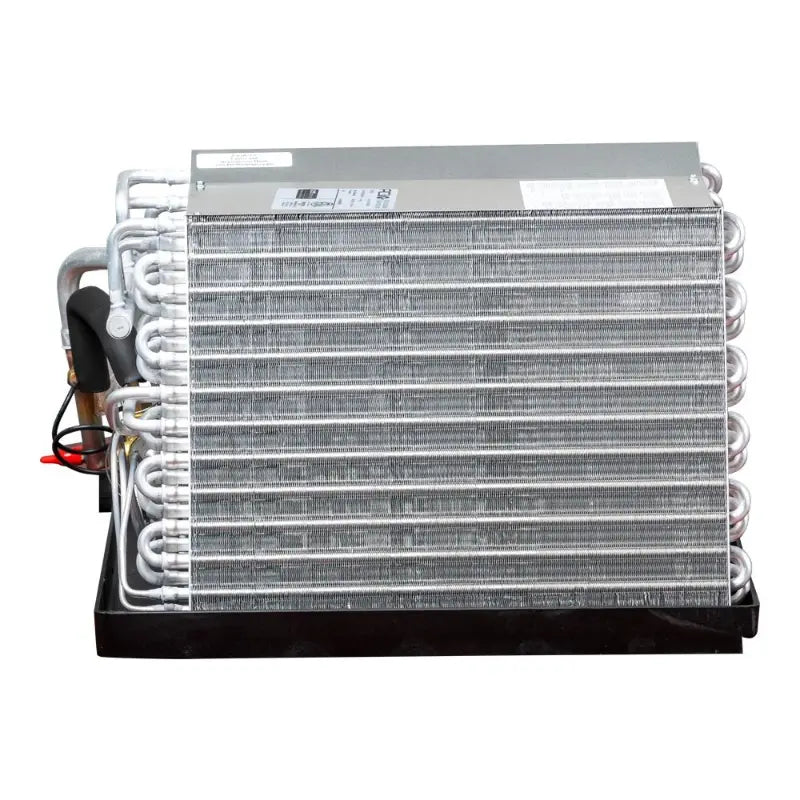

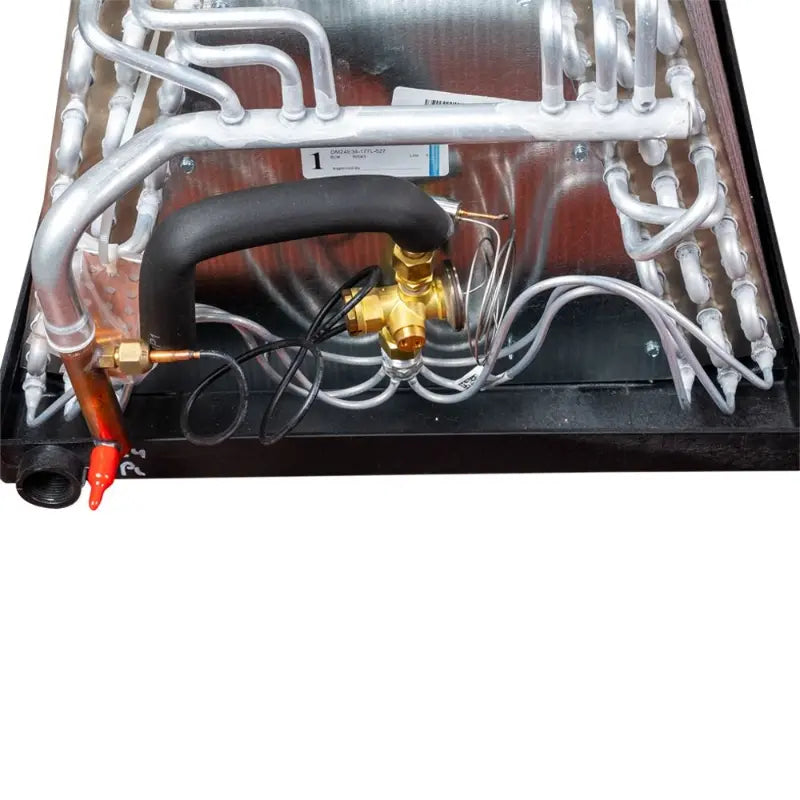

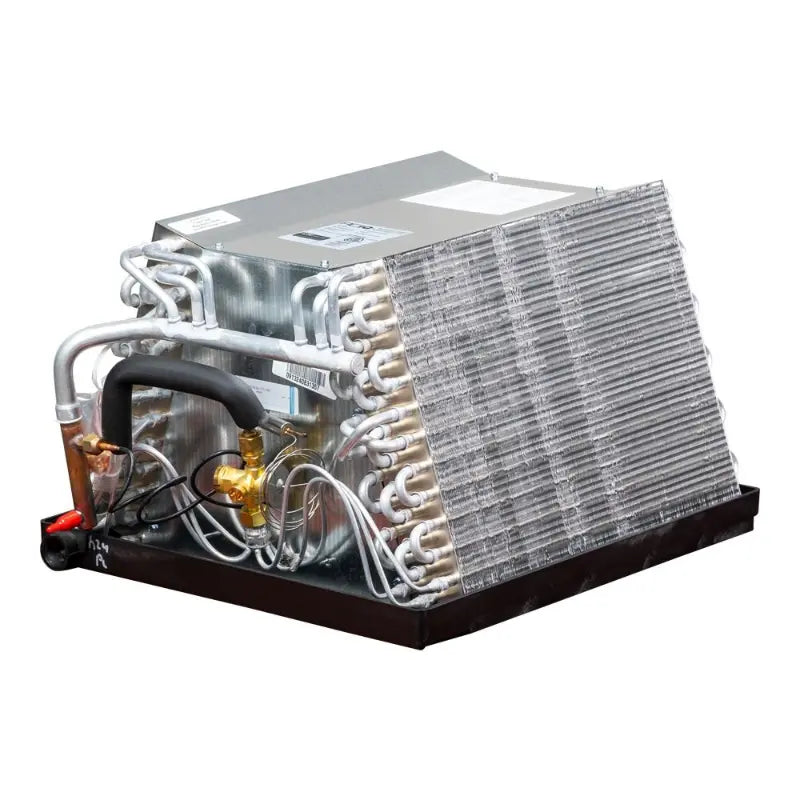

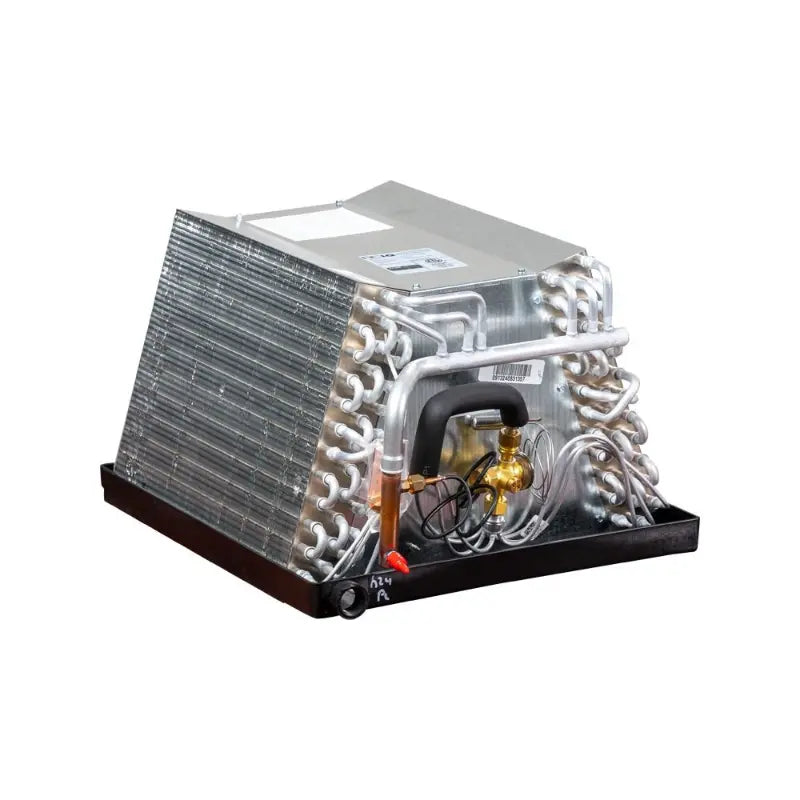

The ACiQ-2413UDXBDE coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
- 2 ton downflow evaporator coil
- Designed for mobile and manufactured home use only
- AHRI certifiable with all brands of air conditioners and heat pumps
- For use with manufactured homes furnaces
- Sturdy and compact design

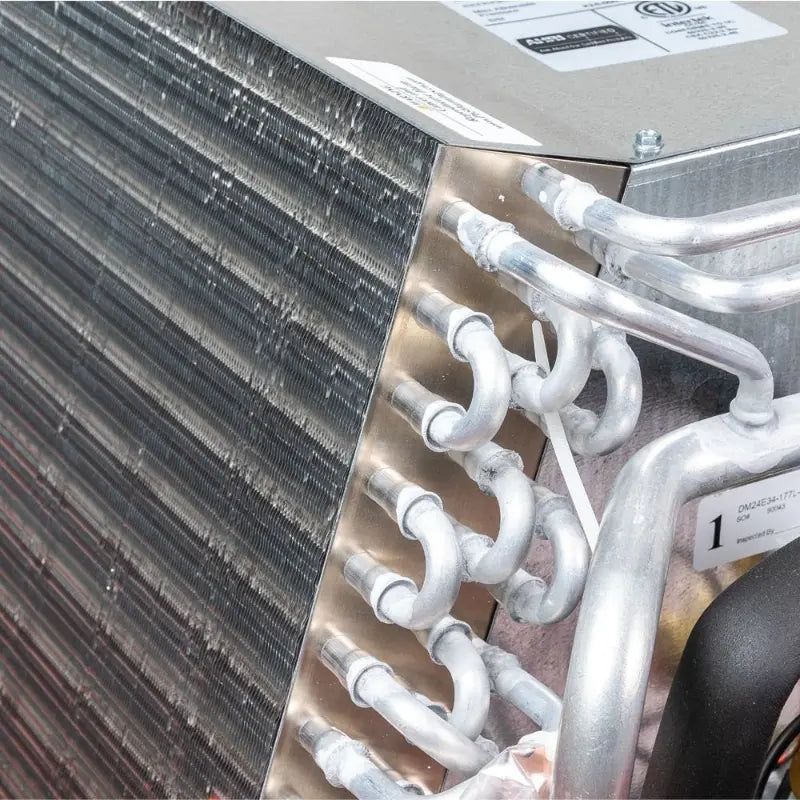

- Rifled aluminum tubing with enhanced aluminum fins
- Left-hand refrigerant and plumbing connections
- Heavy duty polypropylene drain pans
- Downflow plate kit included
2 TON
The ACiQ-2413UDXBDE evaporator coil is rated to be compatible with condensers with up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
OVERVIEW

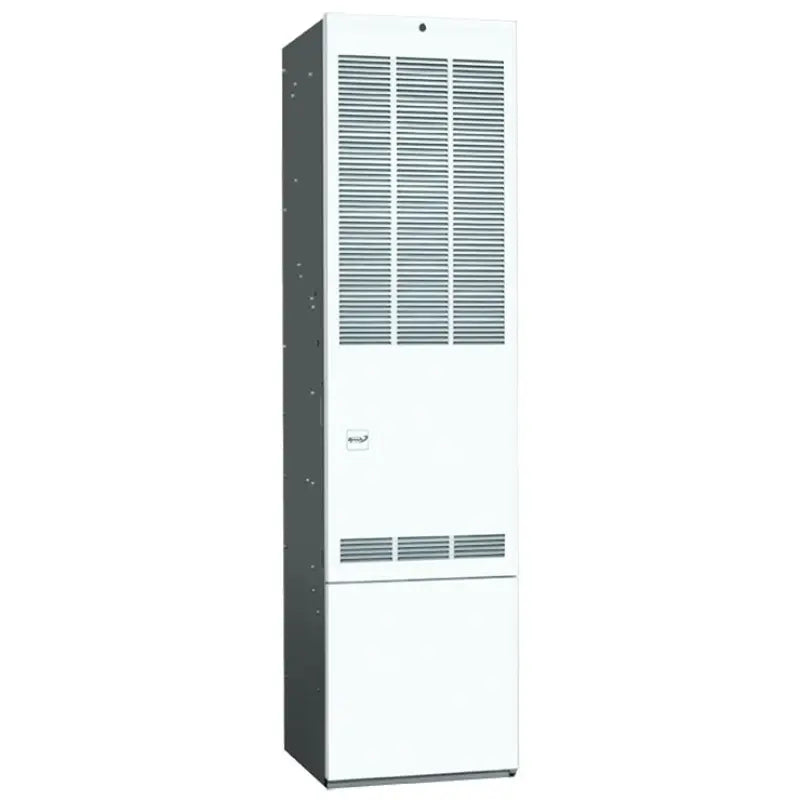

The Style Crest-Revolv high-efficiency MG2R-B072F1ACM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG2R-B072F1ACM1 will save you money both up front and over time.
QUICK FACTS
- 72,000 BTU, 95% natural gas furnace
- Can generally heat a small to medium mobile home in ideal applications
- Compatible with R410A and R454B refrigerant
- Natural gas out of the box, but comes with an LP kit for field installation if needed
- Low maintenance requirements
- Efficient multi-speed ECM blower motor
- AC coil cabinet included with purchase (condenser and coil sold separately)
72,000 BTU, 95% AFUE
With a system input of 72,000 BTU, The Style Crest-Revolv MG2R-B072F1ACM1 furnace can generally heat small to medium mobile homes in ideal applications. With a high efficiency rating of 95% AFUE, this input equates to an output of 68,400 BTU, and 95% of the fuel going into the unit is contributed to heating your home and only 5% of the fuel is lost out of the flue venting and is used up in normal furnace operations. If you have any questions, please contact us. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.
Warranty
Style Crest-Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.
Installation and Maintenance
The Style Crest-Revolv MG2R-B072F1ACM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.
Specifications
| Style Crest-Revolv MG2R 95% 72,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible | |
|---|---|
| SKU | MG2R-B072F1ACM1 |
| Weight (in lbs) | 170.000000 |
| Exhaust Flue Requirement | Plastic / PVC |
| Brand/Manufacturer | Style Crest-Revolv |
| Replaces | MG2R-072FB, MG2R-072FC |
| Furnace Efficiency / AFUE | 95% |
| Heating BTU | 72,000 BTU |
| Blower Motor | ECM Multi Speed |
| Decibel Level (dBA) | 75 dB |
| Configuration | Downflow |
| Electrical | 120 Volt - Single Phase |
| Max Breaker Size | 15 amps |
| Burner Stages | Single |
| Fuel Type | Gas |
| Height | 76" |
| Width | 19.75" |
| Depth | 23.75" |
| Warranty | 2 years parts (10 years heat exchanger parts) |
| ACiQ 2 Ton 19.4 SEER High Efficiency Heat Pump Condenser - R410A Inverter | |
| SKU | ACIQ-24-EHPB |
| Refrigerant Charge | 25' |
| Weight (in lbs) | 109.130000 |
| Brand/Manufacturer | ACiQ |
| Product Features | High Efficiency / Inverter, Two Stage Condenser, Variable Speed Condenser |
| Cooling BTU | 24000 BTU |
| Heating BTU | 24000 BTU |
| Maximum CFM | 1765 |
| Decibel Level (dBA) | 60 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| HSPF2 | 9.2 |
| SEER1 (Efficiency) | 20 |
| SEER2 (Efficiency) | 17 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 30 Amps |
| Min. Breaker Size | 19 Amps |
| Tonnage | 2 Ton |
| Min/Max Outdoor Temp for Heating | 5～75 |
| Min/Max Outdoor Temp for Cooling | 5～122 |
| Zone Compatibility | Single Zone |
| Length | 35.04" |
| Height | 26.50" |
| Depth | 13.46" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| ACiQ 2 Ton Uncased Downflow Mobile Home Coil with TXV | Aluminum | |
| SKU | ACiQ-2413UDXBDE |
| Weight (in lbs) | 18.000000 |
| Brand/Manufacturer | ACiQ |
| Configuration | Downflow |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 2 Ton |
| Height | 13 1/2" |
| Width | 17 3/4" |
| Depth | 19 5/8" |
| Warranty | 10 Year Limited Warranty |
