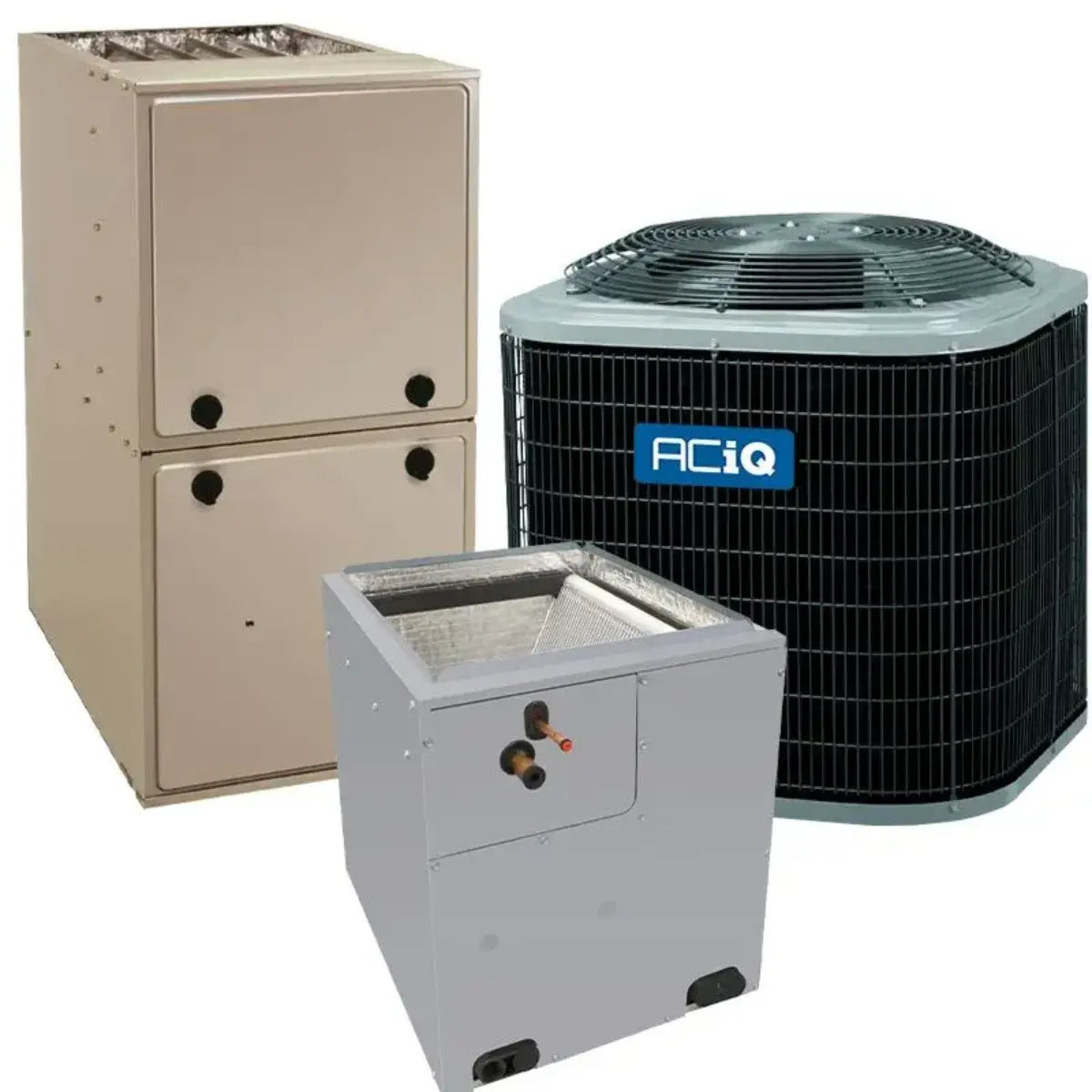

ACiQ 4 Ton 13.4 SEER2 R454B AC and 92% AFUE 100K Multi Speed Furnace System - Multi-Positional

OVERVIEW

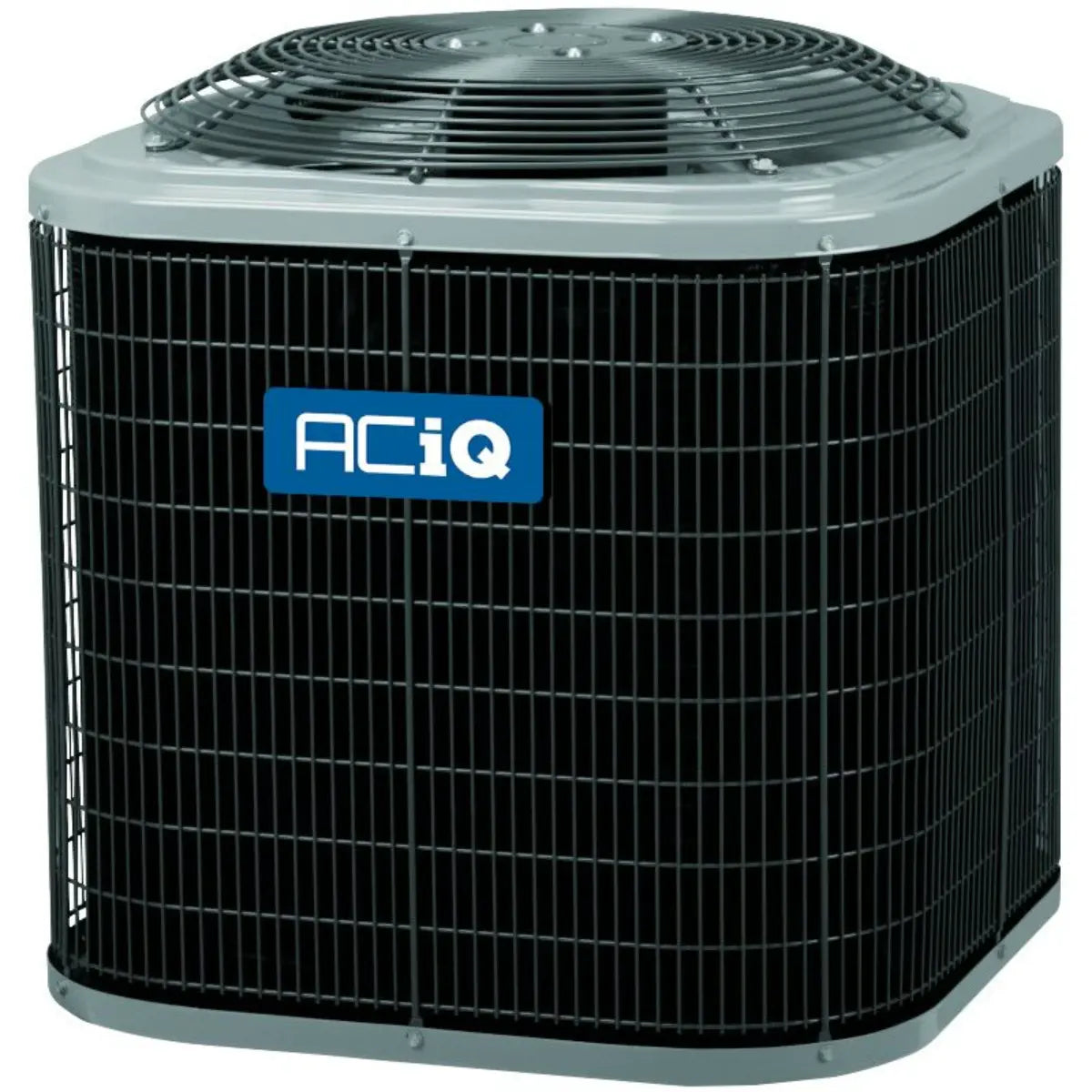

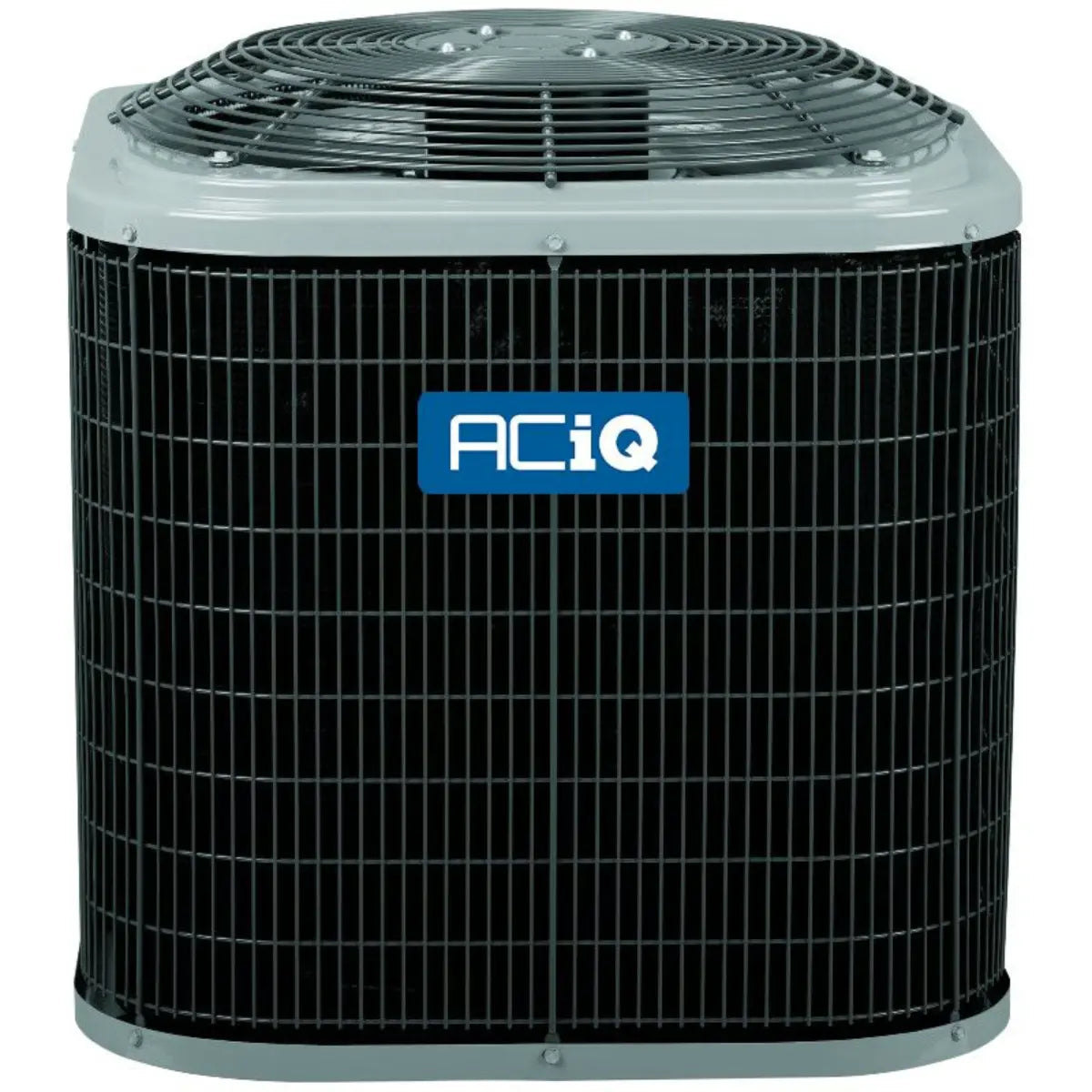

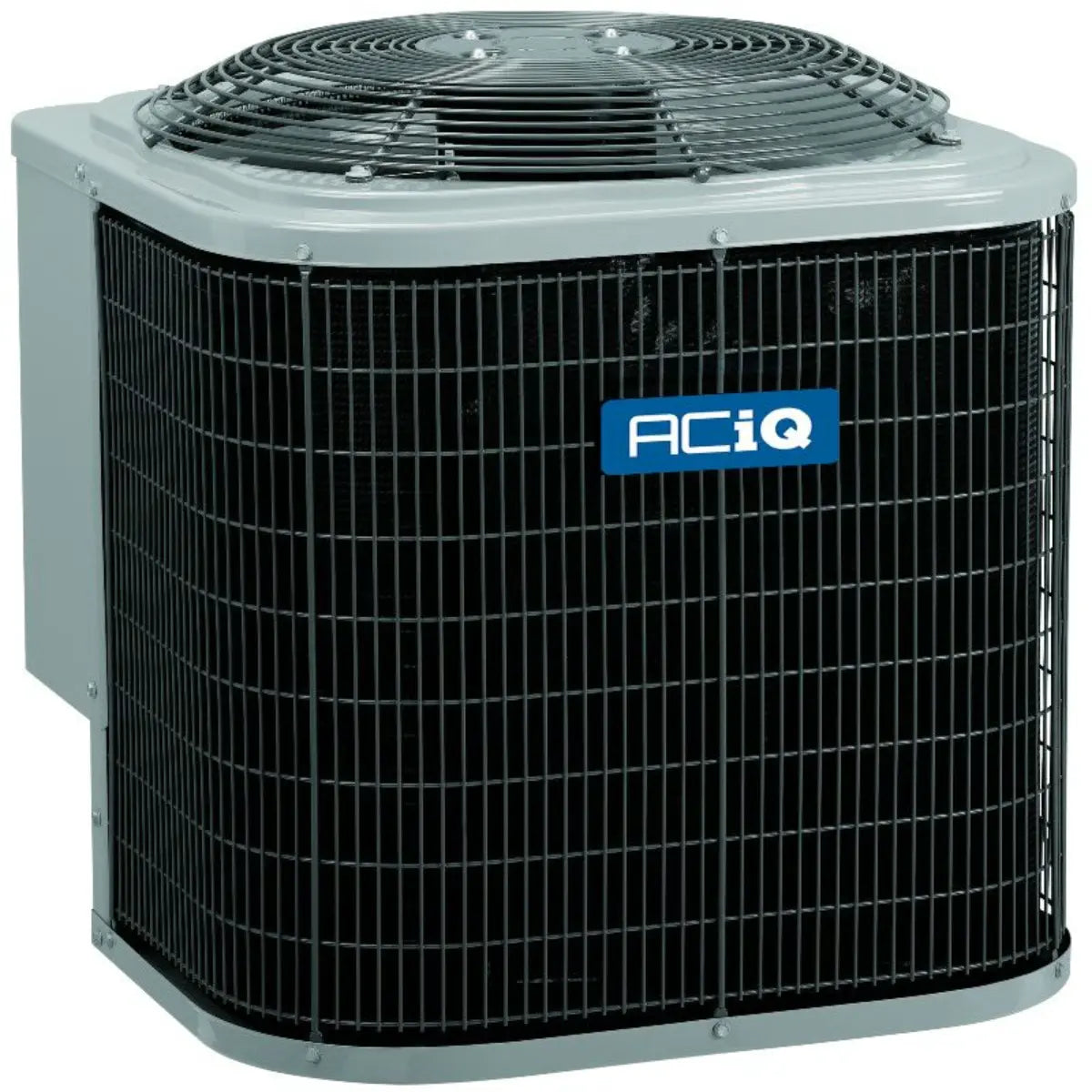

The ACIQ R5A4S48AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 4 ton, 13.4 SEER2 AC-only condenser
• Can cool a medium to large house in average conditions
• Single stage compressor
• Pre-charged with R454B refrigerant
• Filter drier included to be field-installed

4 Tons

The ACIQ R5A4S48AKANA air conditioner condenser has an output of 4 tons, generally enough to cool a medium to large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.4 SEER2

The ACIQ R5A4S48AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.

This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia For more information about state efficiency requirements, please click here.

Warranty

ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACIQ units are extremely durable. On the R5A4S48AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

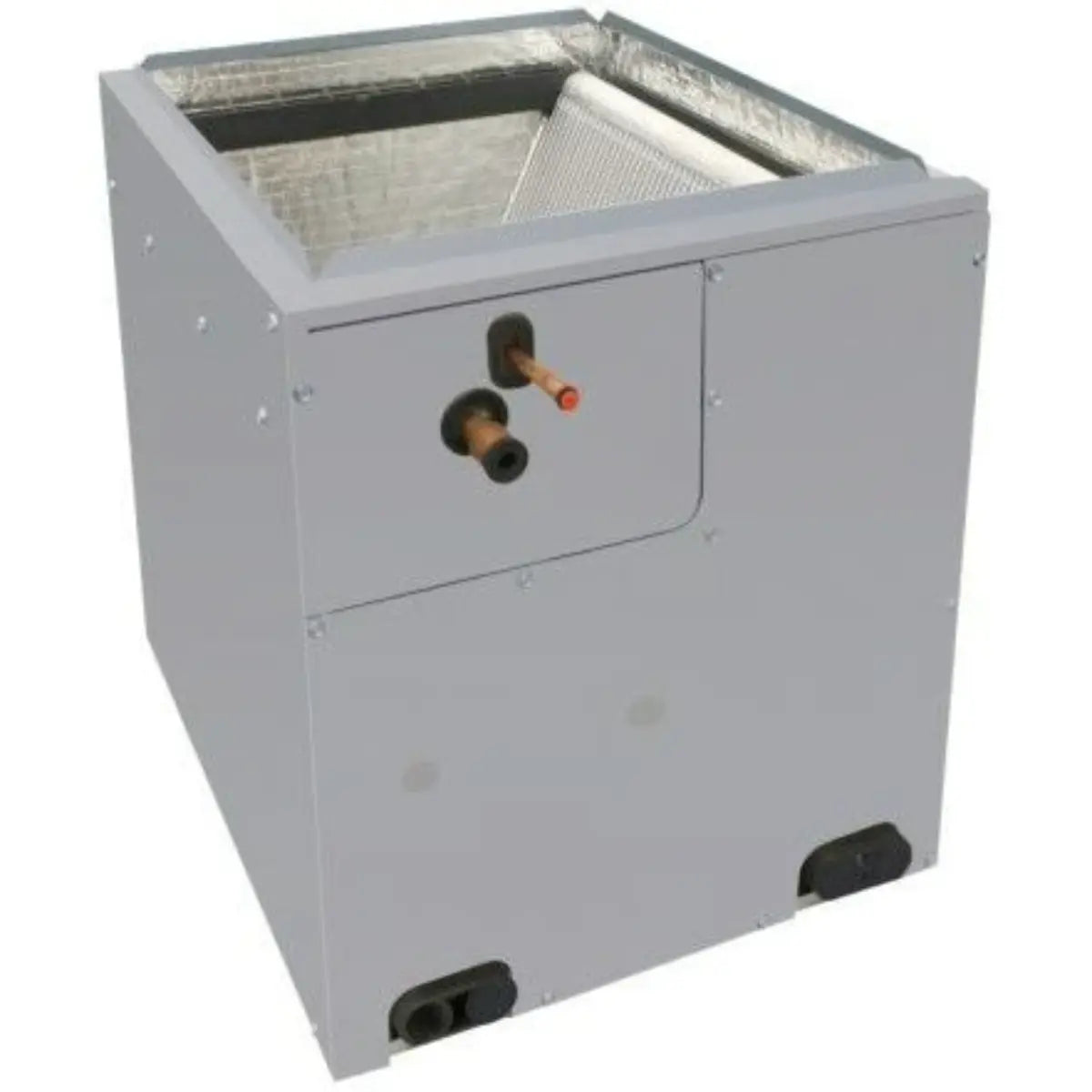

ACIQ patent-pending multipoise evaporator coil with Power-V technology features a V-shape coil design provides excellent heat transfer over the coil needed to keep your system operating at peak energy efficiency and delivering consistent comfort.

Features

• Cased V coil design for efficient heat transfer in a compact size.
• Efficiency-optimizing Thermostatic Expansion Valve (TXV) metering device.
• Corrosion-resistant all-aluminum coil.
• Fully insulated cabinet.
• 10-year parts limited warranty upon registration.
• Corrosion-resistant drain pan is designed in a Polybutylene Terephthalate (PBT) material that offers unsurpassed pan strength.

The V-coil design has a lighter, corrosion-resistant aluminum construction that increases system efficiency and durability. The all-aluminum recyclable coils supports our respect for the environment while providing durable and lasting resistance to multiple sources of corrosion.

The multipoise design allows the flexibility for the coil to be installed in multiple orientations, including upflow, downflow and horizontal applications.

ACIQ's V-coils with Power-V Technology features a variety of design improvements that allow for improved installation and serviceability by your HVAC technician.
