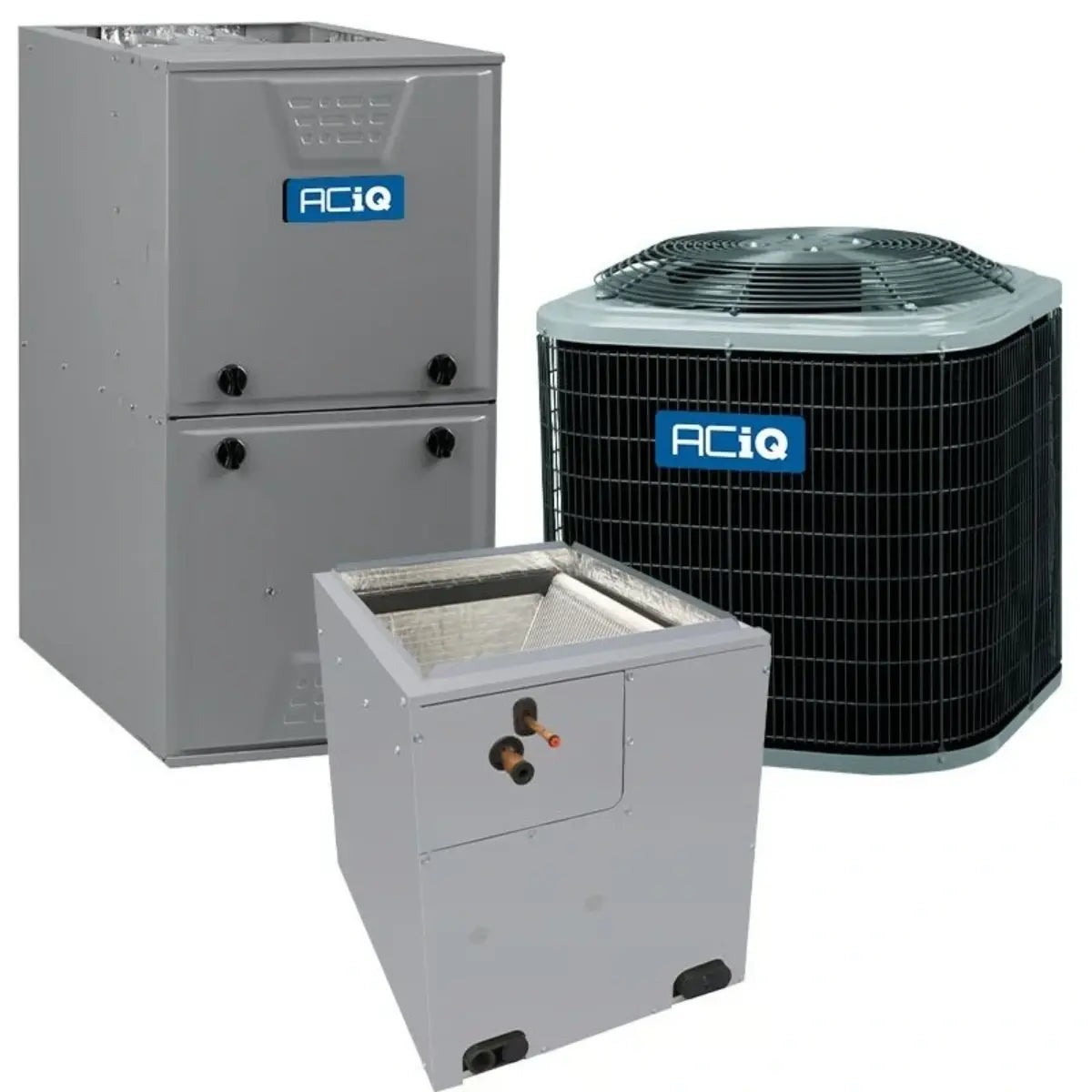

ACiQ 4 Ton 14 SEER2 R454B AC and 96% AFUE 80K Two Stage Variable Speed Furnace System - Multi-Positional

OVERVIEW

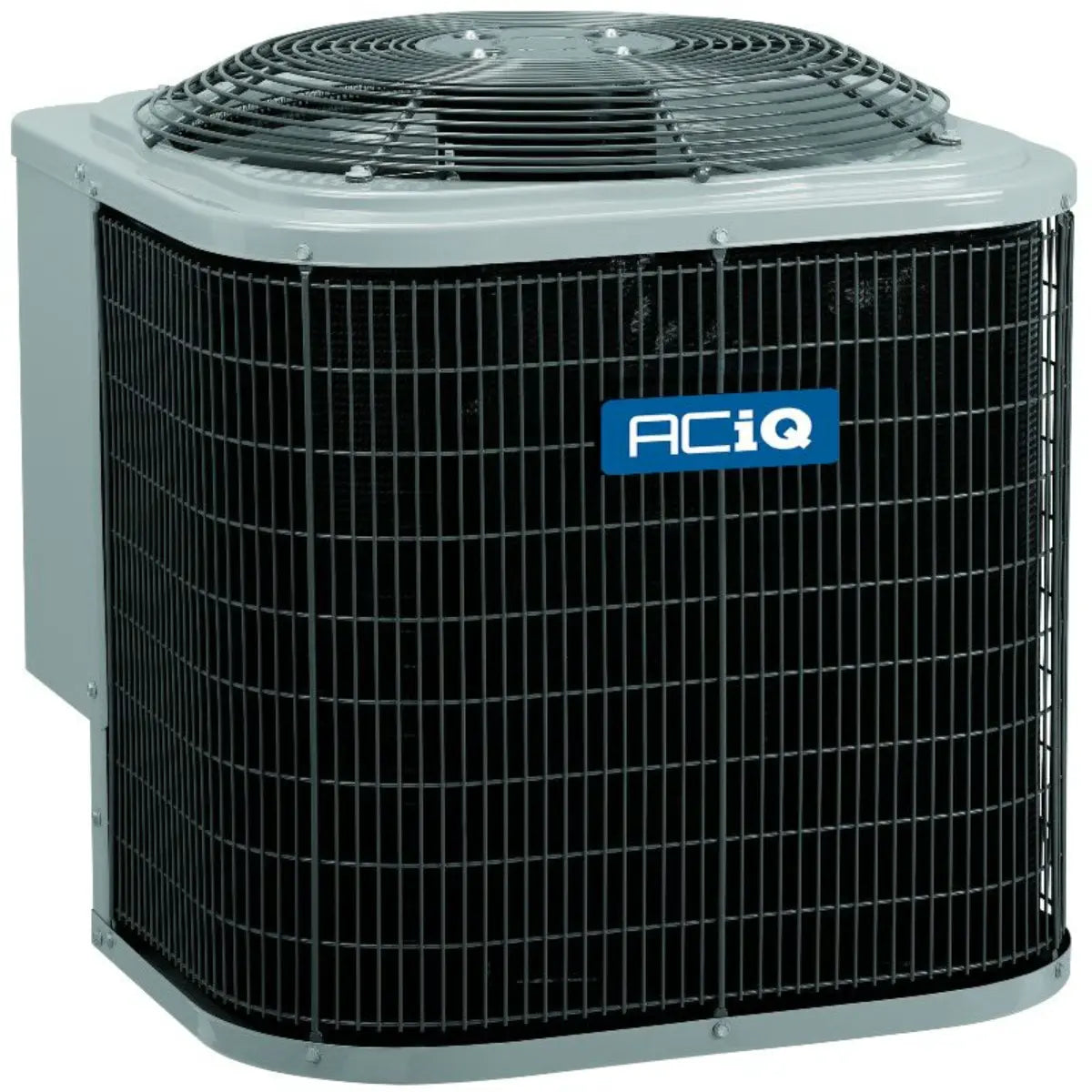

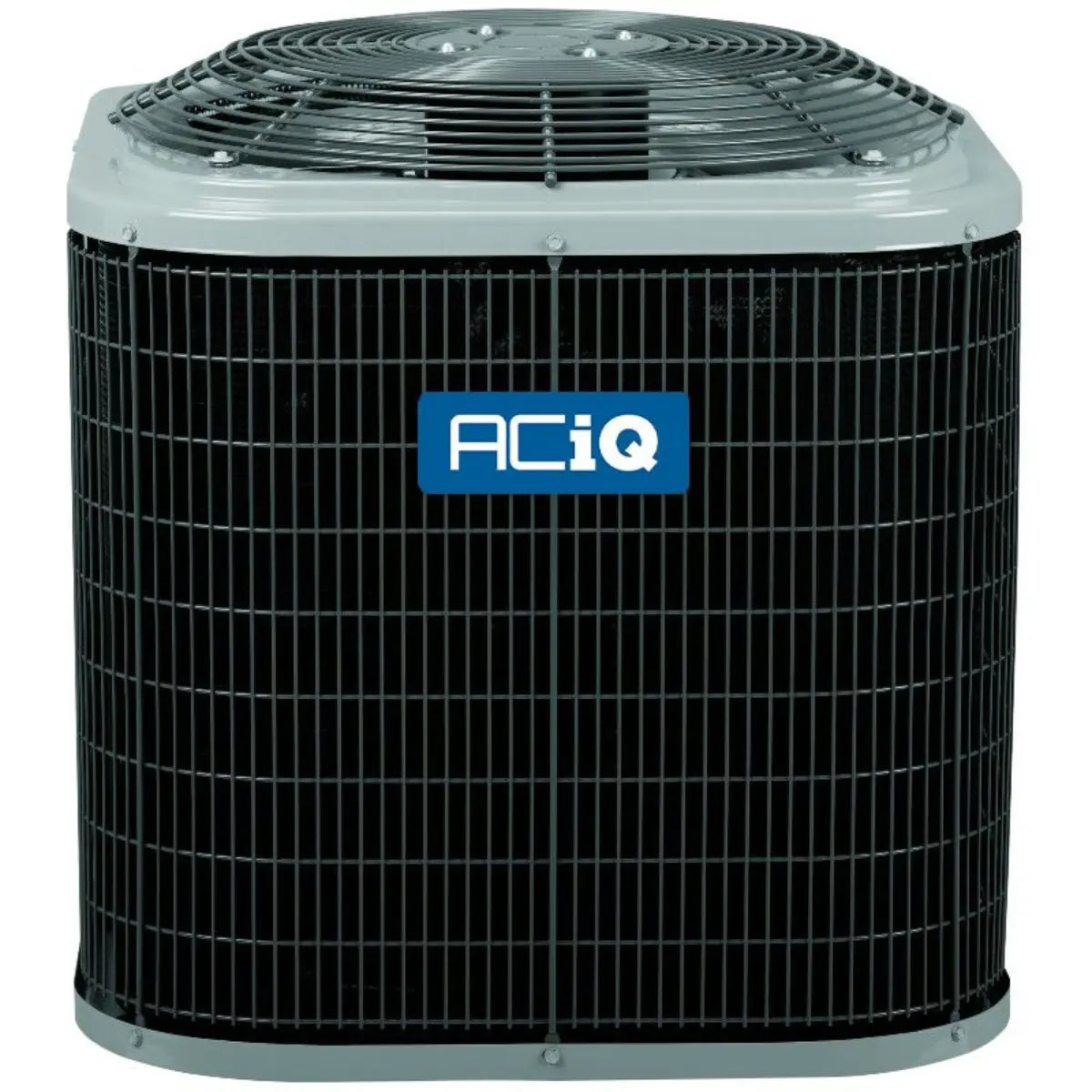

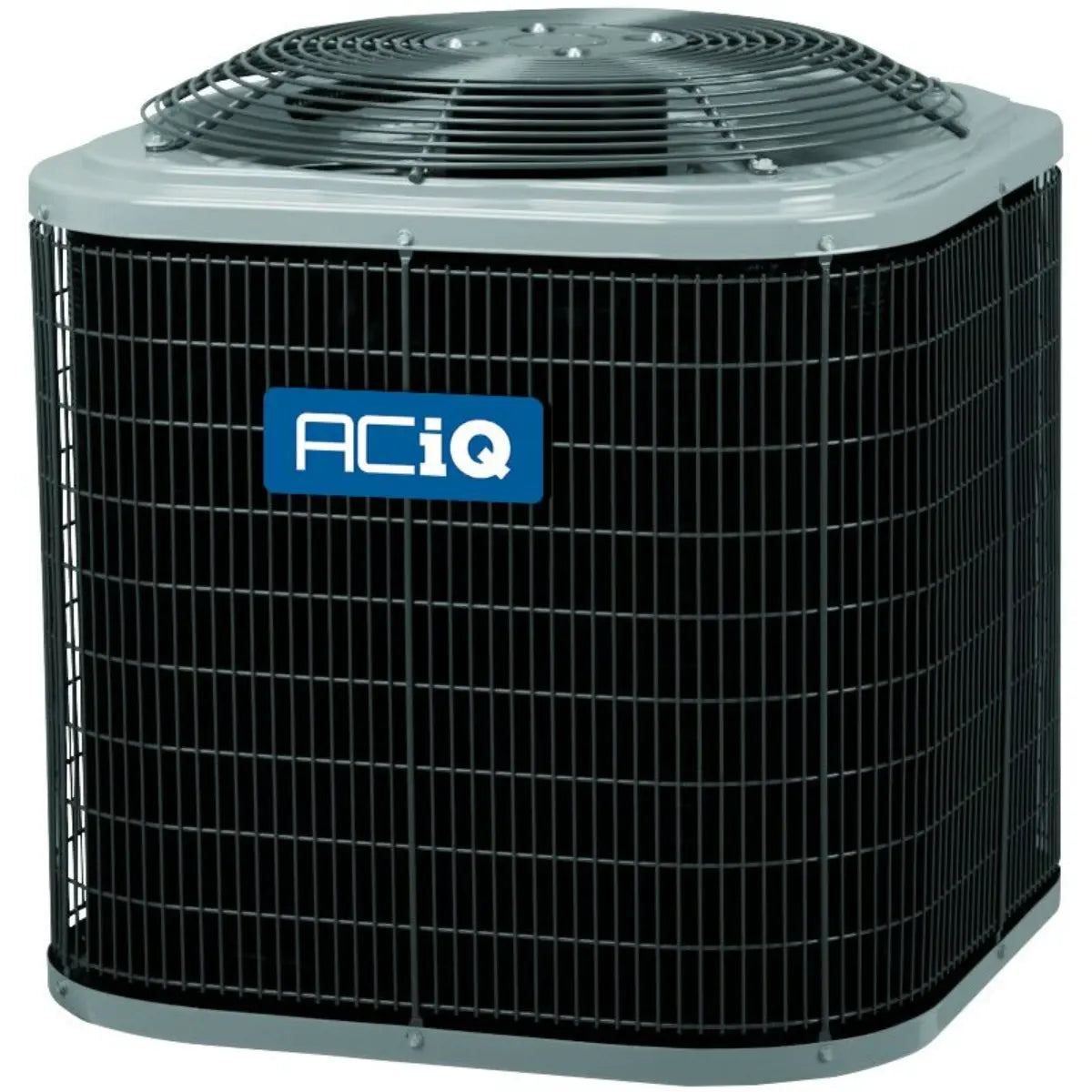

The ACIQ R5A5S48AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 4 Ton 13.8 SEER2 ACIQ Air Conditioner Condenser
• Can cool a medium to large house in average conditions
• Single stage compressor
• Pre-charged with R454B refrigerant
• Filter drier included to be field-installed

4 Tons

The ACIQ R5A5S48AKAWA air conditioner condenser has an output of 4 tons, generally enough to cool a medium to large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.8 SEER2

The ACIQ R5A5S48AKAWA air conditioner condenser is rated at 13.8 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.

Warranty

ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACIQ units are extremely durable. On the R5A5S48AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

OVERVIEW

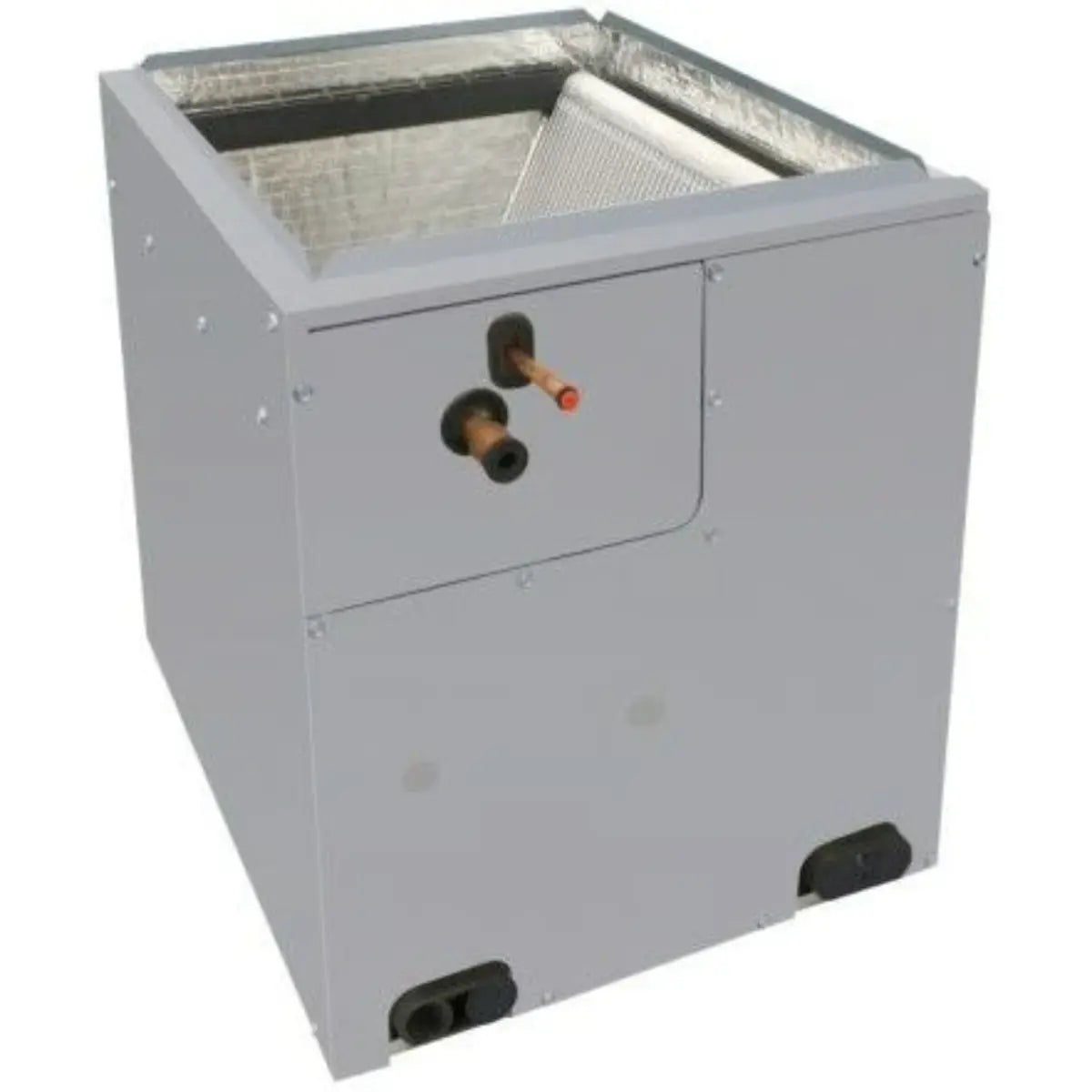

ACIQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X48M21A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.

QUICK FACTS

• 4 ton vertical coil
• Works in both upflow and downflow applications
• Fully insulated, cased V-coil design for efficient heat transfer in a compact size
• Factory-installed TXV kit for enhanced energy optimization
• Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength

4 Tons

The ACIQ EVD5X48M21A is rated for up to 4 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACIQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

OVERVIEW

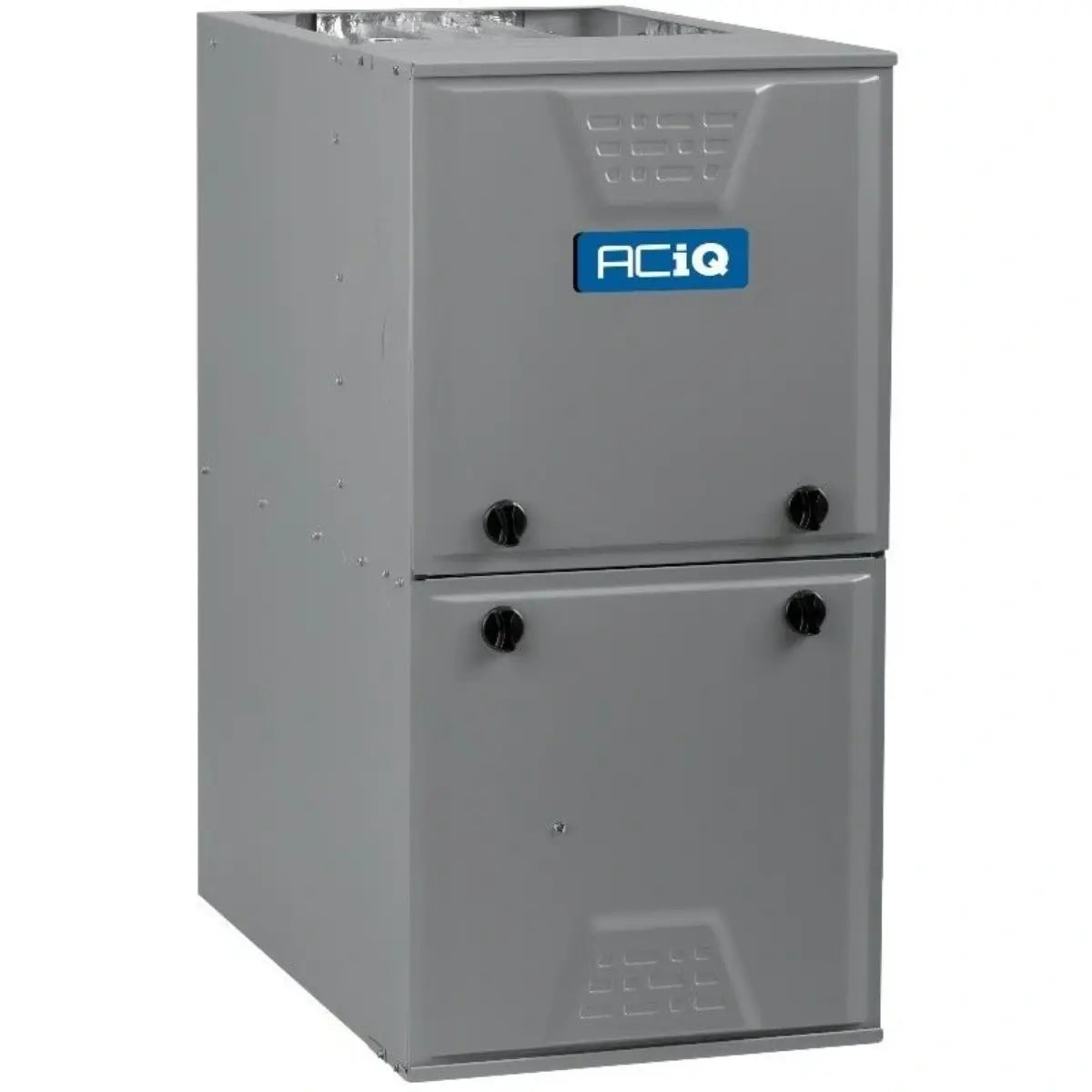

With its variable speed blower motor and two stage burner, the ACiQ G96VTN0802120A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G96VTN0802120A is a great choice to keep you comfortable while saving you money in energy bills year-round.

QUICK FACTS

• 80,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to a medium-sized house in ideal applications
• Variable speed blower with a two stage burner
• Multi-positional design-can be installed in the upflow, downflow, or horizontal orientations
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

80,000 BTU, 96% AFUE

The ACiQ G96VTN0802120A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU, meaning that it is generally suitable for medium-sized houses in ideal climates. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while the remaining 4% is lost out the flue piping and lost to normal furnace operations. All 96% furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.

Warranty

ACiQ offers standard 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration-upflow, downflow, or horizontal-the ACiQ G96VTN0802120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.

Superior Comfort

All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G96VTN0802120A definitely lives up to the name thanks in part to its variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
