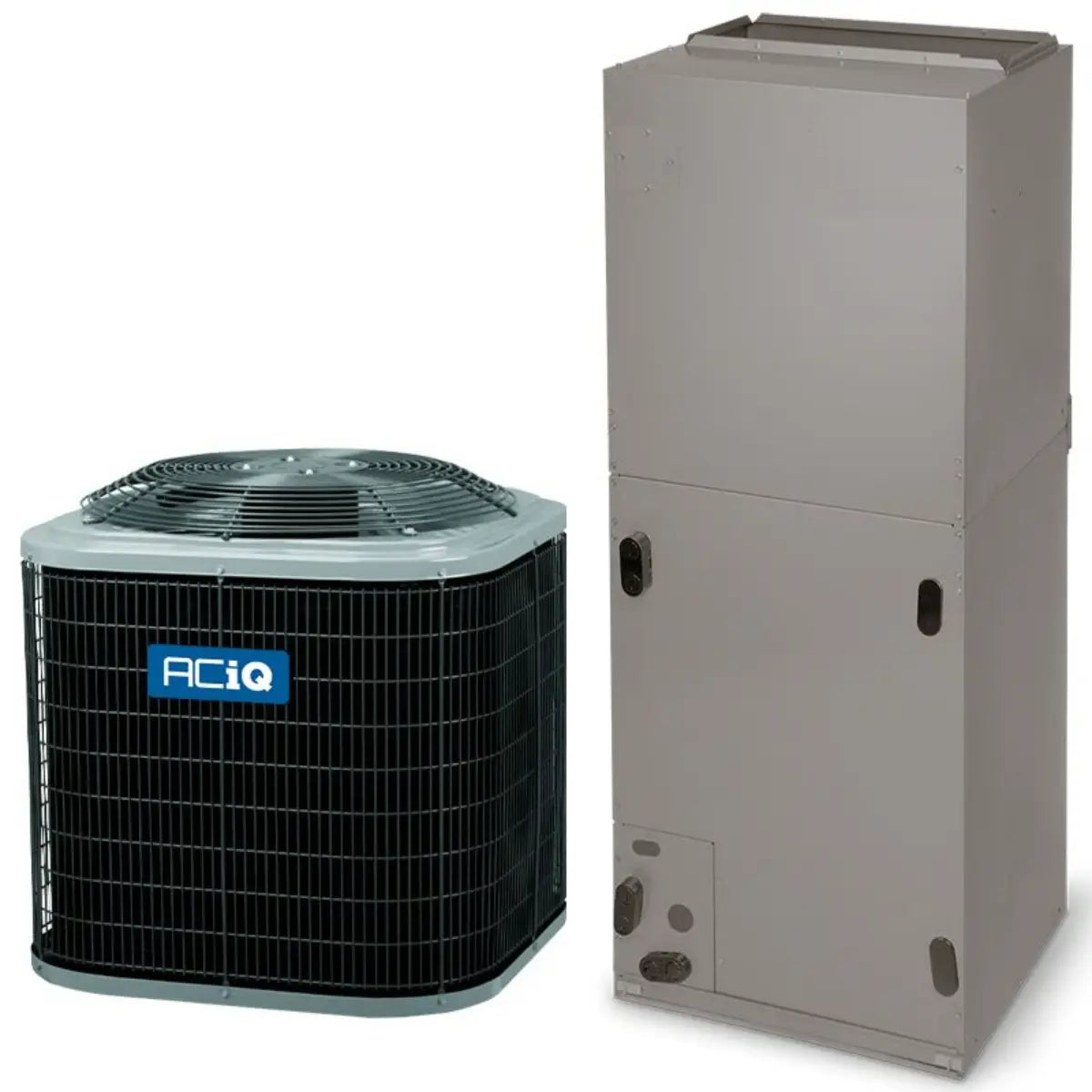

Model: R5H5S48AKAAA / FHMA5X48L0CA
ACIQ 4 Ton 15 SEER2 Heat Pump Split System R454B Single Stage, Multi-Positional
Couldn't load pickup availability
Product Details
With tons of extra features and a great price, an ACIQ heat pump air conditioning system is the perfect choice for all of your heating and cooling needs for any time of year. All ACIQ models come with a 10 year parts warranty.
OVERVIEW

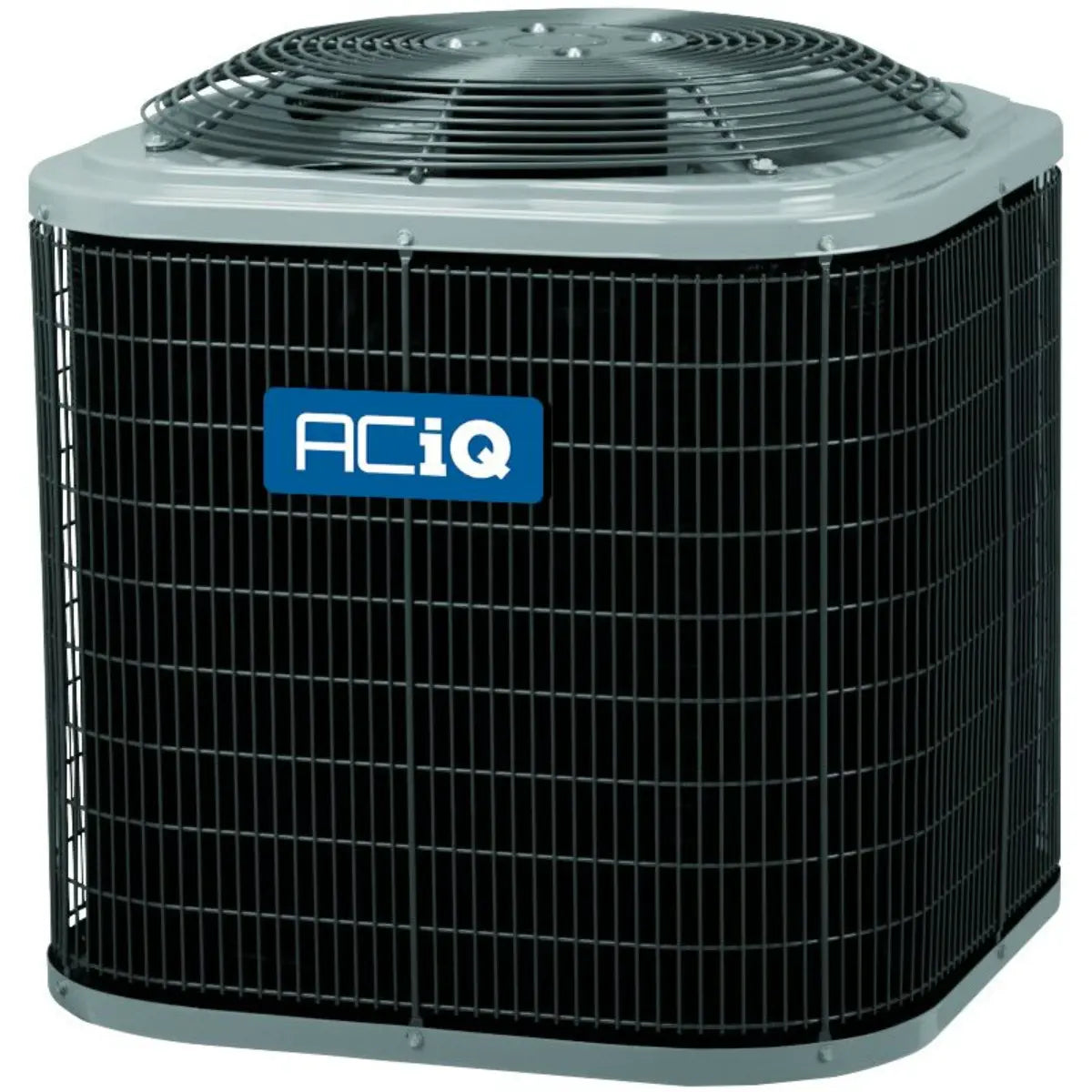

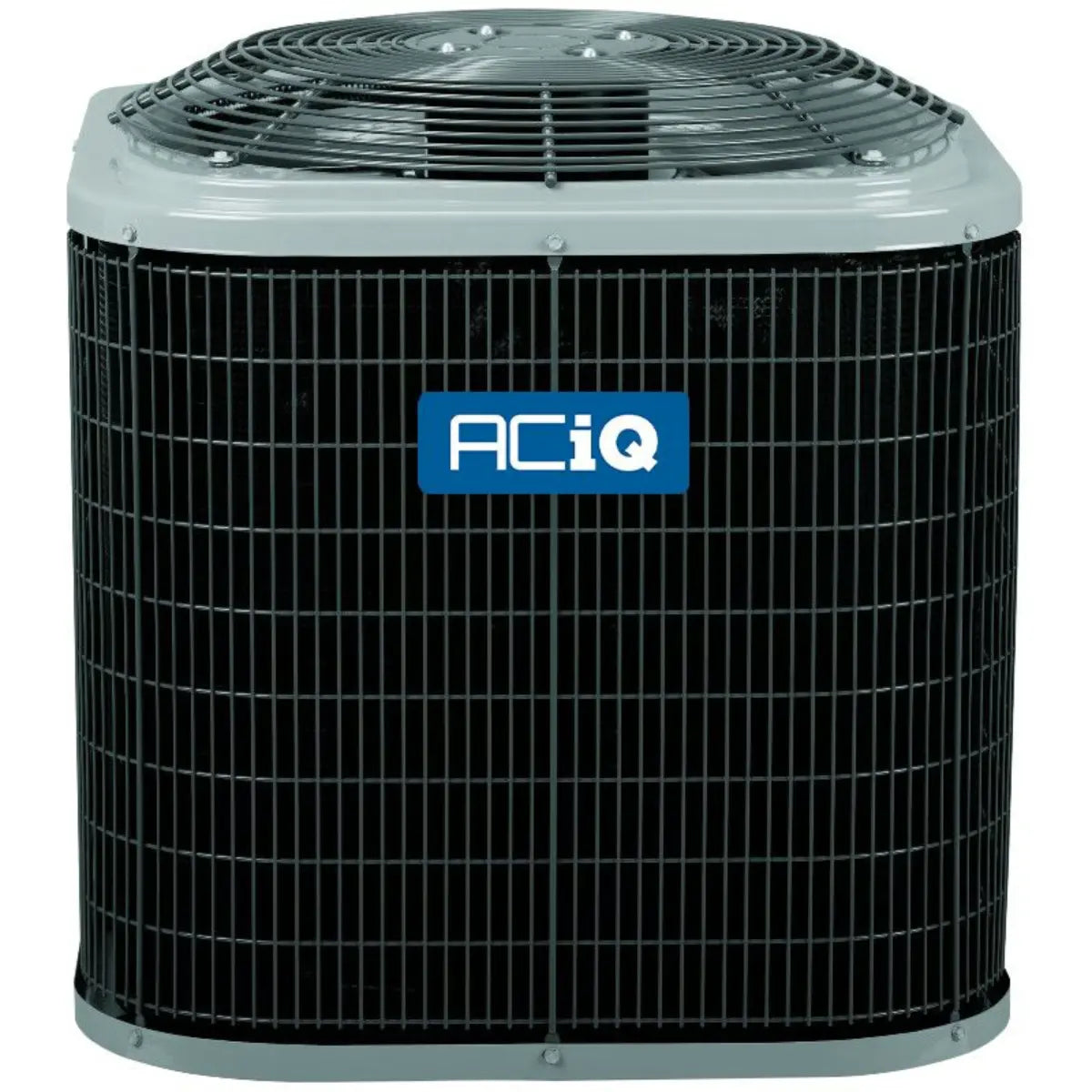

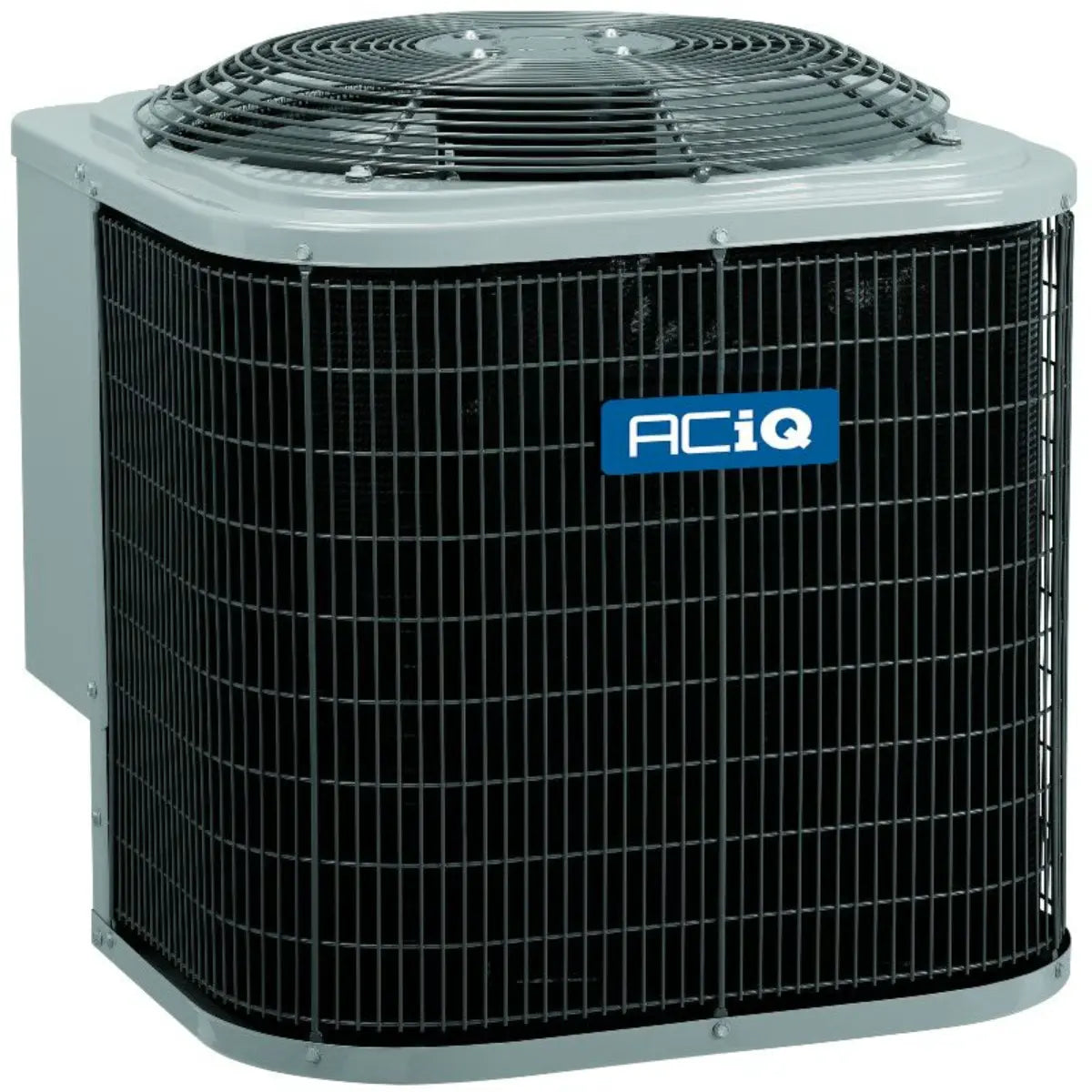

The ACIQ R5H5S48AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
- 4 ton, 14.3 SEER2 heat pump condenser
- Can heat and cool a medium to large house in average conditions
- Single stage compressor
- Pre-charged with R454B refrigerant
- Filter drier included to be field-installed
4 Tons
The ACIQ R5H5S48AKAAA heat pump condenser has an output of 4 tons, generally enough to heat and cool a medium to large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.
14.3 SEER2
The ACIQ R5H5S48AKAAA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.
Efficiency Choices for Every Climate
Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 39% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.
All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.
High Efficiency
ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.
Longer life, longer warranty
ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.
OVERVIEW

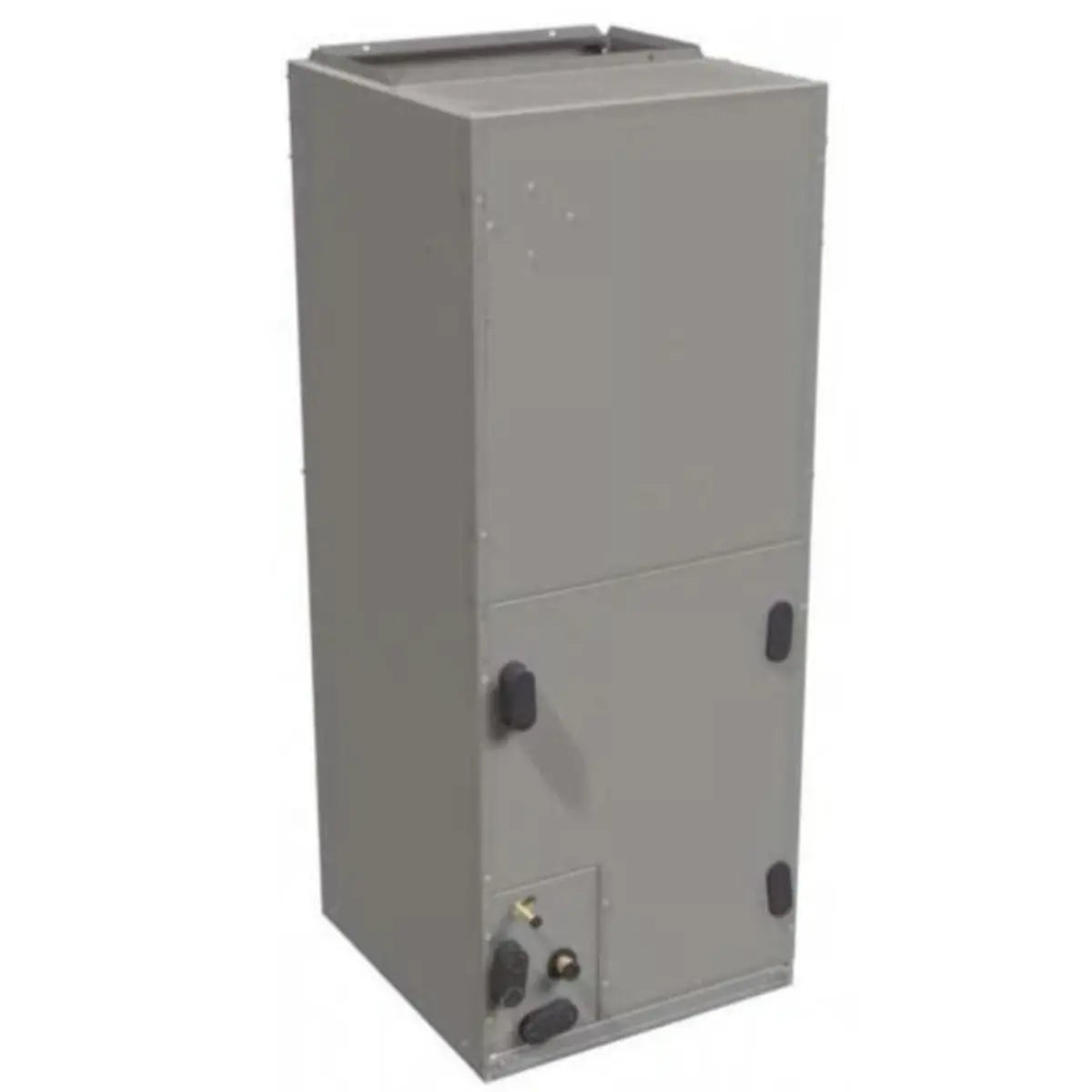

Get the most out of your indoor comfort by choosing ACIQ FHMA5X48L0CA air handler that fits your needs. This air handler include comfort enhancing and durability features to deliver lasting performance. If you want superior quality and enhanced comfort, look no further than this model.
QUICK FACTS
- 4 ton air handler
- R454B Refrigerant
- Multi 5-Speed high-efficiency ECM blower motor
- Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
- Factory-installed TXV kit for enhanced energy optimization
- Compatible with both AC-only and heat pump condensers
- Sturdy, fully insulated cabinet
4 Tons
The ACIQ FHMA5X48L0CA air handler is rated for an output of 4 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
R454B Refrigerant
With R454B refrigerant, ACIQ proudly displays our commitment to environmental stewardship. It is a refrigerant that delivers a 75% decrease in global warming potential while maintaining original R-410A's non-ozone depleting properties. All new ACIQ fan coils with R454B include factory-installed leak dissipation systems to meet new UL requirements and to show our commitment to safety.
Warranty
ACIQ offers a 5 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.
Installation and Durability
To make a more versatile unit, ACIQ designed the FHMA5X48L0CA to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FHMA5X48L0CA air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.
Intelligent Comfort
The FHMA5X48L0CA air handler has an efficient 5-speed ECM blower motor, providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FHMA5X48L0CA meets ACIQ's superior standards.
Specifications
| 4 Ton 21" Width ACIQ Multi-Positional Air Handler - R454B | |
|---|---|
| Feature | Spec |
| SKU | FHMA5X48L0CA |
| Weight (in lbs) | 182.000000 |
| Brand/Manufacturer | ACiQ |
| Cooling BTU | 48,000 |
| Blower Motor | Multi-tap 5-Speed ECM |
| Maximum CFM | 1400 |
| Horsepower | 3/4 HP |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Filter Size | 20" x 20" |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 7.6 Amps |
| Tonnage | 4 Ton |
| Connection | Sweat |
| Height | 53 7/16" |
| Width | 21 1/8" |
| Depth | 22 1/16" |
| Warranty | 10 Years Parts and 5 Years No Hassle Replacement with Online Registration |
| ACIQ 4 Ton 14.3 SEER2 Heat Pump Condenser - R454B Single Stage | |
| Feature | Spec |
| SKU | R5H5S48AKAAA |
| Refrigerant Charge | 15' |
| Weight (in lbs) | 252.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | R4H5S |
| Product Features | Basic Efficiency, New Refrigerant Compliant |
| Cooling BTU | 48,000 |
| Heating BTU | 48,000 |
| Maximum CFM | 3800 |
| Decibel Level (dBA) | 76 |
| Motor RPM | 1110 |
| Horsepower | 1/4 HP |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| HSPF2 | 7.5 |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 7/8" |
| Electrical | 208/230v 1Ph 60Hz |
| Max Breaker Size | 50 Amps |
| Min. Breaker Size | 29.4 Amps |
| Tonnage | 4 Ton |
| Min/Max Outdoor Temp for Heating | -10°F ～66°F |
| Min/Max Outdoor Temp for Cooling | 55°F～125°F |
| Ambient Temperature Range | 55°F～125°F |
| Height | 38 7/16" |
| Width | 31 3/16" |
| Depth | 31.2" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |
