Model: AC-I-60AC14 / AC-I-4860ACL-21

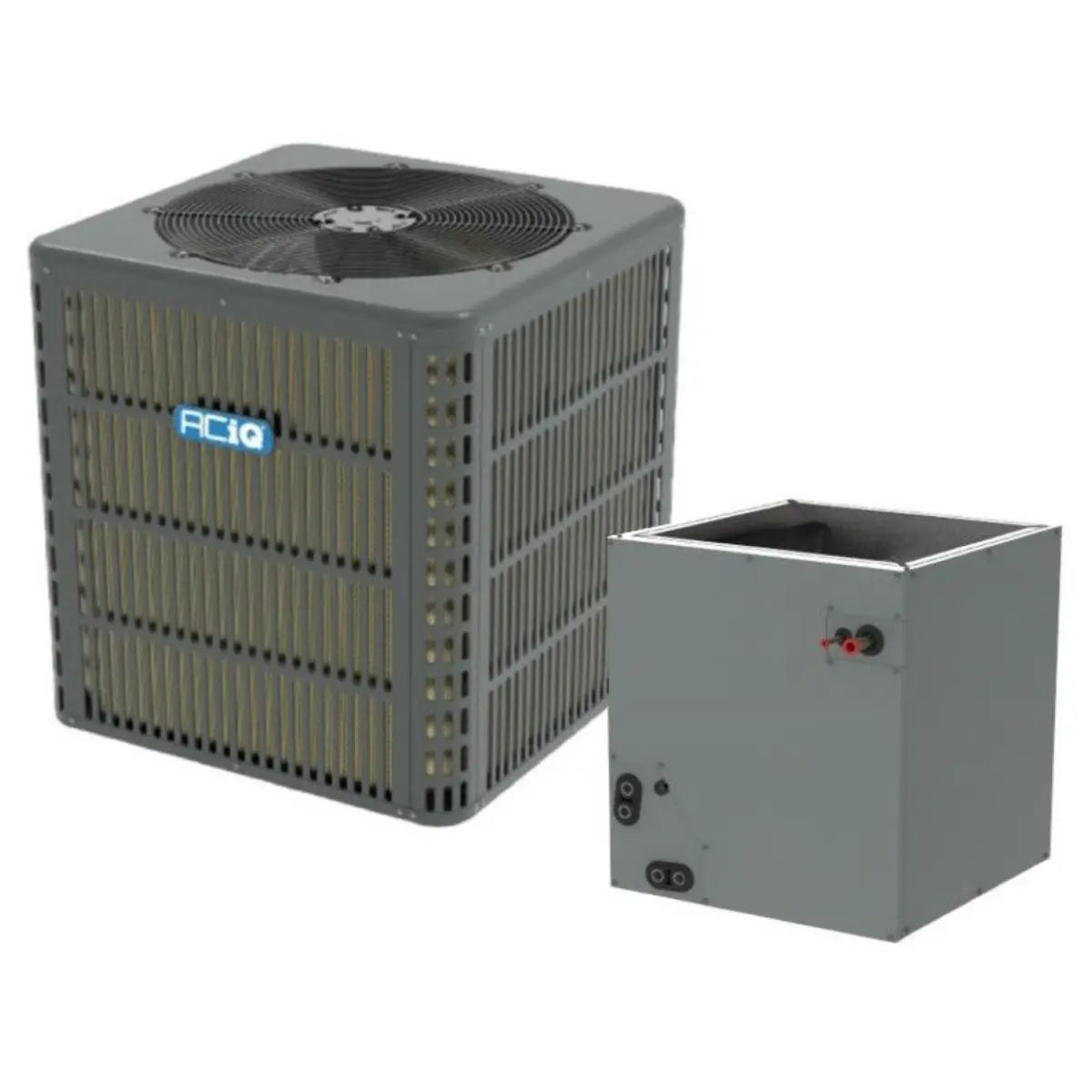

ACiQ 5 Ton 13.8 SEER2 Air Conditioner with 21" Multi-Positional Cased Coil, R32

$2,788.00

Price Match Request

Found a lower price on equipment? Let us know and we'll match it (Exclude below-cost items).

Product
ACiQ 5 Ton 13.8 SEER2 Air Conditioner with 21" Multi-Positional Cased Coil, R32
Our Price
$2,788.00
From $232.33/mo with 🛒shopPay
Check your purchasing power

Product Details

Matched AC and Coil Designed to Pair with any Flush-Fit Furnace

An ACiQ air conditioner and coil system is the perfect choice for any partial HVAC system replacement. Designed to pair with any furnace of a matching cabinet width, this coil system is the best choice for all of your cooling needs.

FEATURES

  • 5 ton 14.3 SEER2 air conditioning condenser with 21" wide coil
  • Pre-charged with R32 refrigerant
  • Multi-positional coil - Can be installed in upflow, downflow, or horizontal orientations
  • R32 refrigerant leak mitigation kit included with coil
  • 12 year compressor and 7 year parts warranties

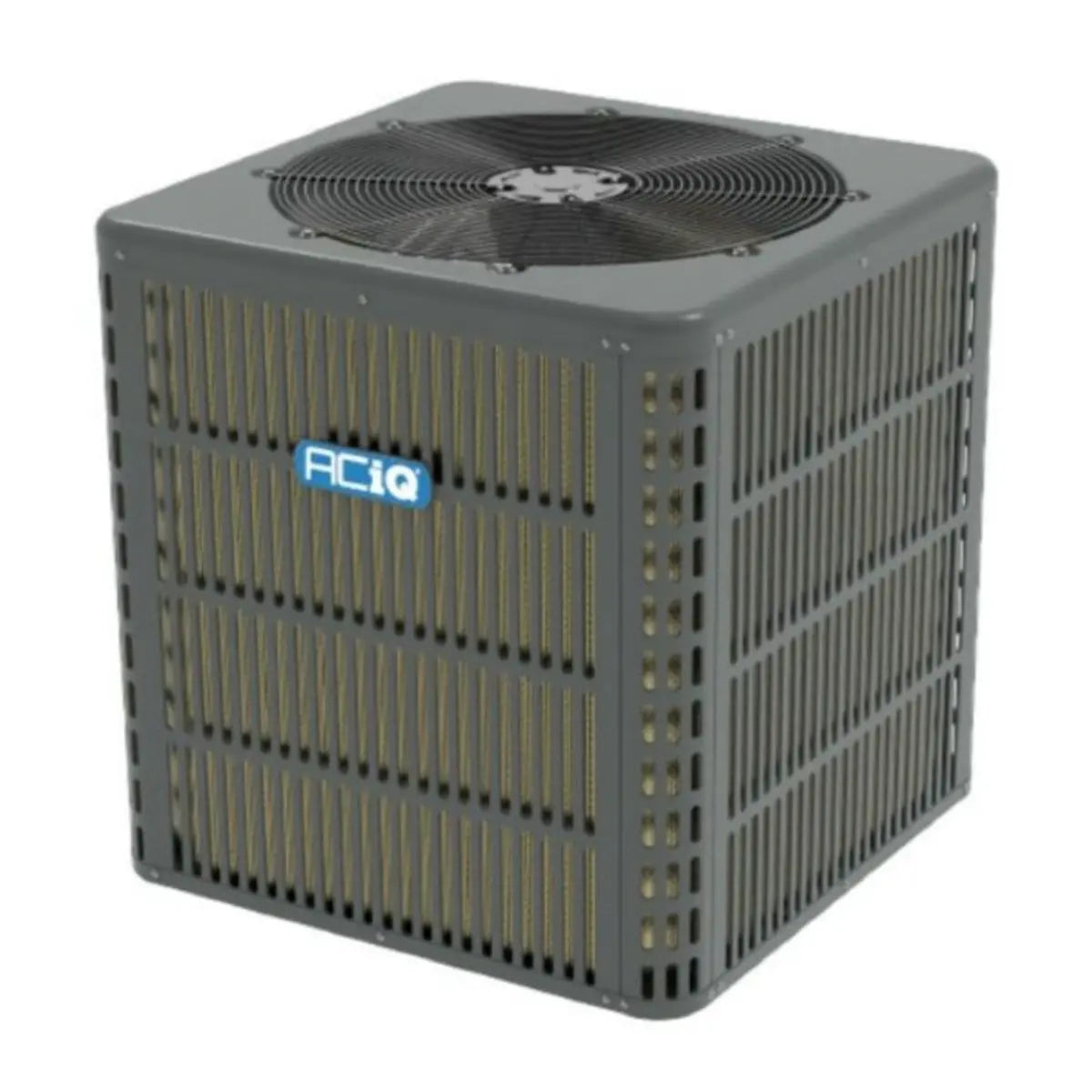

ACiQ 5 Ton 13.8 SEER2 Central Air Conditioner Condenser - R32

Reliable Home Cooling Comfort

The ACiQ AC-I-60AC14 is a 5-ton air conditioner condenser designed to deliver consistent comfort throughout the year. With its advanced technology and SEER2 rating, it provides powerful yet economical cooling, making it an excellent choice for homeowners seeking reliability and performance.

Features

  • 5 ton, 60,000 BTU Cooling capacity
  • Can cool large homes in various climates
  • Pre-charged with R32 refrigerant
  • Quiet outdoor sound rating
  • Corrosion-resistant design help withstand outdoor exposure
  • TXV-controlled A‑coil support better humidity control and smoother airflow, enhancing overall comfort

3 Tons

The ACiQ AC-I-60AC14 is a 5 ton (60,000 BTU) central air conditioner condenser that uses R32 technology to deliver 13.8 SEER2 cooling performance while reducing energy consumption. This top-discharge, cooling-only outdoor unit is designed for quiet, reliable residential comfort. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.

Warranty

ACiQ offers a 12 year compressor and a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-551-2469 if you have any questions.

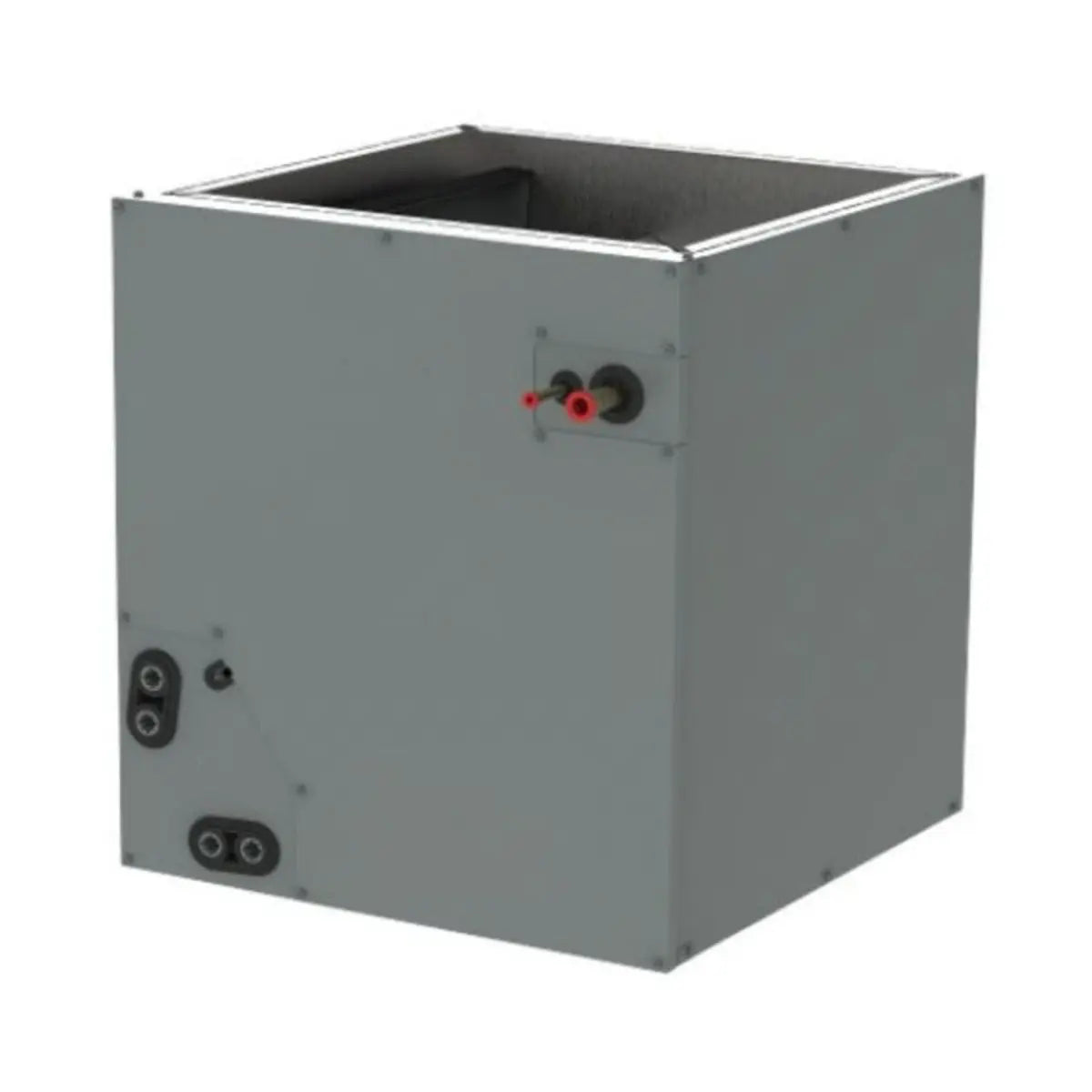

ACiQ 3.5 to 5 Ton 21" Width Multi-Positional Evaporator Coil - Cased - R32

The ACiQ AC-I-4860ACL-21 is a high-performance cased evaporator coil designed for maximum durability and installation flexibility. Optimized for systems ranging from 3.5 to 5 tons, this coil is the perfect indoor companion for both air conditioning and heat pump outdoor units.

Key Features

  • Multi-Position Design: Engineered for upflow, downflow, and horizontal applications, ensuring it fits your specific ductwork layout.
  • Corrosion Resistance: Features an all-aluminum construction that significantly reduces the risk of formicary corrosion compared to traditional copper.
  • Pre-Installed TXV: Includes a factory-installed Thermal Expansion Valve (TXV) for precise refrigerant metering and improved system efficiency.
  • 21" Cabinet Width: A standard width that aligns perfectly with common furnace sizes for a clean, professional-looking install.
  • AHRI Certified: Tested to meet industry standards for performance and reliability when paired with compatible ACiQ equipment.
  • Compatible with R32: Comes with a leak mitigation control kit for handling R32 refrigerant.

Warranty

ACiQ offers a 7 year parts limited warranty. Please note that in order for the warranty to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Specifications

ACiQ 5 Ton 13.8 SEER2 Central Air Conditioner Condenser - R32
Feature Spec
SKU AC-I-60AC14
Refrigerant Charge 102.29 oz.
Weight (in lbs) 193.000000
Brand/Manufacturer ACiQ
Product Features Basic Efficiency
Cooling BTU 60,000 BTU
Decibel Level (dBA) 60 Decibels
Refrigerant R32
SEER2 (Efficiency) 13.8
Condenser Stages Single Stage
Compressor Type Rotary
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 50 Amps
Min. Breaker Size 33 Amps
Tonnage 5 Ton
Height 32.87"
Width 29.13"
Depth 29.13"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration
ACiQ 3.5 to 5 Ton 21" Width Multi-Positional Evaporator Coil - Cased - R32
Feature Spec
SKU AC-I-4860ACL-21
Weight (in lbs) 87.000000
Brand/Manufacturer ACiQ
Refrigerant R32
Liquid Line 3/8"
Suction Line 3/4"
Tonnage 3.5 Ton
Style A-Coil
Height 27.80"
Width 21"
Depth 21.02"
Warranty 10 Years with Online Registration

Warranty & Shipping

Free Shipping on All HVAC Orders – Plus a 10-Year Warranty

Warranty

Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.

Processing Time

We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.

Equipment Arrival

Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.

Making Notes on the Delivery Receipt

If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."

If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."

How Do I Handle a Damaged Shipment?

If  any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
