Model: ACIQ-KE12Z-HP230B / ACIQ-KE12W-W-HP230B
ACiQ Essentials 12,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
ACiQ Essentials 12,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
Couldn't load pickup availability
Call Us at 866-718-1799
Product Details
ACIQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACIQ Essentials single zone air handler can handle small to medium spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.
ACIQ Essentials 12,000 BTU Single Zone Wall Mounted Mini Split Systems are a great fit for any space around 280-400 square feet. These would work perfectly for:
Single Room Applications
|
Supplemental Home Locations
|
- The ACIQ Essentials 12,000 BTU 17 SEER2 Single Zone Wall Mounted Mini Split System is the perfect solution for cooling a single room or area in your home. With its sleek design and efficient cooling capabilities, this system is sure to keep you comfortable all year round.
- This system features WiFi connectivity, allowing you to control the temperature and settings from anywhere using your smartphone or tablet. The 17 SEER2 rating ensures energy efficiency, helping you save on your utility bills while staying cool.
- Installation is easy with the included mounting hardware and step-by-step instructions. The ACIQ Essentials Single Zone Wall Mounted Mini Split System is designed for quiet operation, so you can enjoy a peaceful environment without any distractions. This is not a DIY system and will need to be installed by a registered HVAC Technician.
Everything You Need In One Kit
ACIQ Essentials mini splits arrive with the essential components you’ll need for a complete, professional installation! Included with each system are 16ft line sets, mounting hardware, and other accessories—so you won’t have to source extra parts. While you’ll still need a licensed HVAC technician to handle setup and refrigerant connections, this all-in-one package keeps things simple and hassle-free, ensuring your new system is up and running smoothly in no time.
Electrical lines must be purchased separately from this system.
Upgrade your home's cooling system with the ACIQ Essentials 12,000 BTU 20 SEER2 Single Zone Wall Mounted Mini Split System and enjoy reliable, efficient cooling all year long.

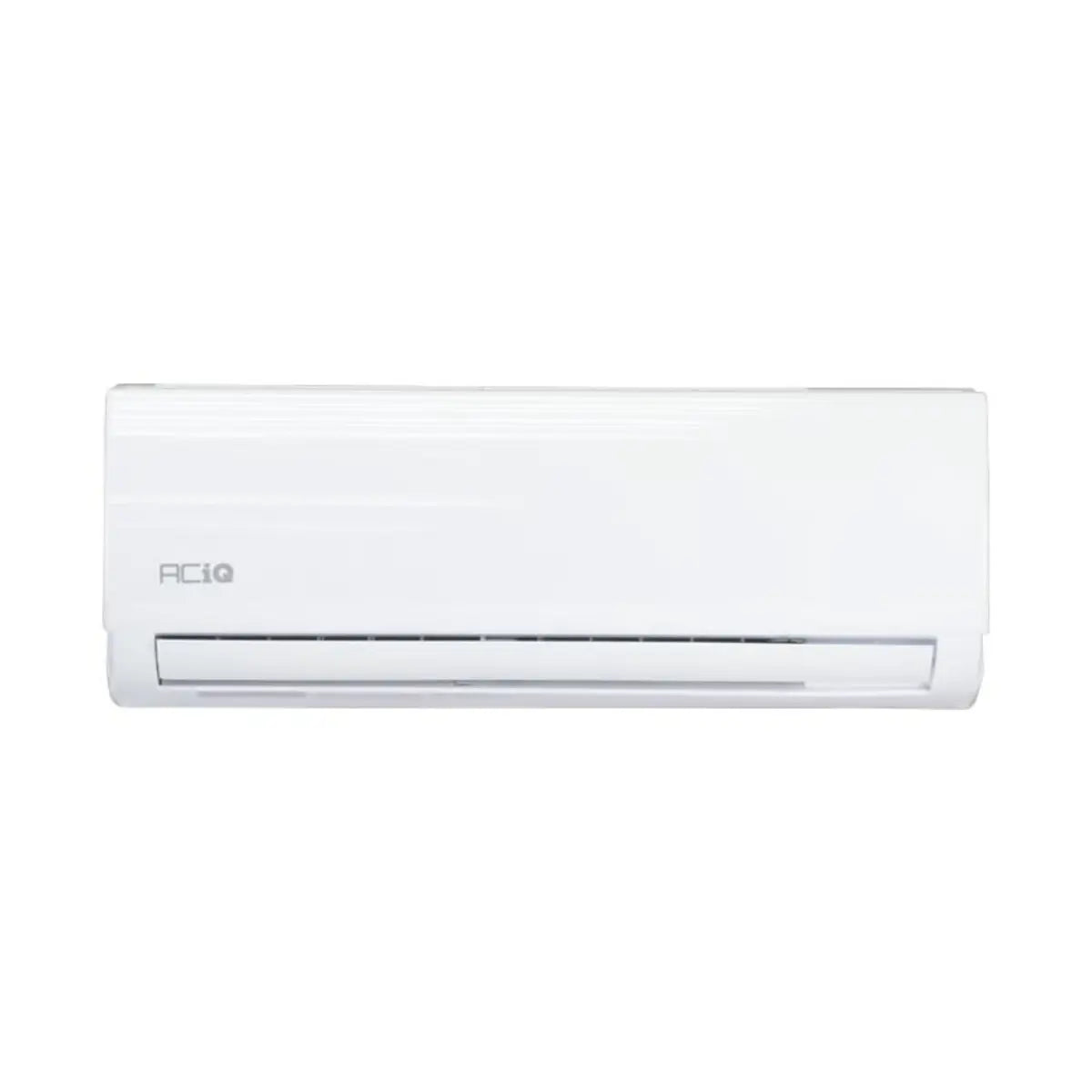

The Essentials air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
12,000 BTU ACIQ Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - 230V
The ACIQ Essentials 12,000 BTU Single Zone Wall Mounted Mini Split System is a smart, reliable solution for cooling and heating individual spaces! Perfect for bedrooms, offices, or any room up to 280 square feet and backed by the same trusted manufacturing partners behind major HVAC brands, ACIQ delivers high-end performance without the high-end price tag.
With a 17 SEER2 efficiency rating, built-in WiFi control, and quiet operation, this system keeps you comfortable all year long—without driving up your energy bill or disrupting your day. It’s designed for easy installation by a licensed HVAC professional and comes ready with everything you need for a clean, efficient setup.
Premium Performance, Without the Premium Price
ACIQ Essential Single Zone Mini Split Systems deliver efficient cooling and heating. Showcasing powerful performance, but with an affordable price, ACIQ Essential mini splits help keep your energy costs in check.
A Warranty You Can Take Comfort In
Your ACIQ mini split comes with a 6-year compressor warranty and a 4-year parts warranty when you register at ACIQ.com, giving you confidence in your investment. It’s designed to keep your system running smoothly, so you can rely on consistent performance year after year. With ACIQ’s support, you get both comfort and peace of mind built right into your system.
Specifications
| SKU | ACiQ-KE12Z-HP230B |
|---|---|
| Refrigerant Charge | 17.63 oz. |
| Weight | 61.730000 |
| AHRI Certificate Number | 218045390 |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant, WiFi |
| HSPF2 | Region IV / V: 8.5 / 7.1 |
| Cooling BTU | 12000 BTU |
| Heating BTU | 12000 BTU |
| Decibel Level (dBA) | 55 (Max) |
| Refrigerant | R32 |
| SEER Bundle | 17 |
| SEER2 | 17 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | MOP: 15A |
| Min. Breaker Size | MCA: 11A |
| Tonnage | 1.0 Ton |
| Tonnage Bundle | 1 Ton |
| BTU/Tonnage | 12,000 BTU/1 Ton |

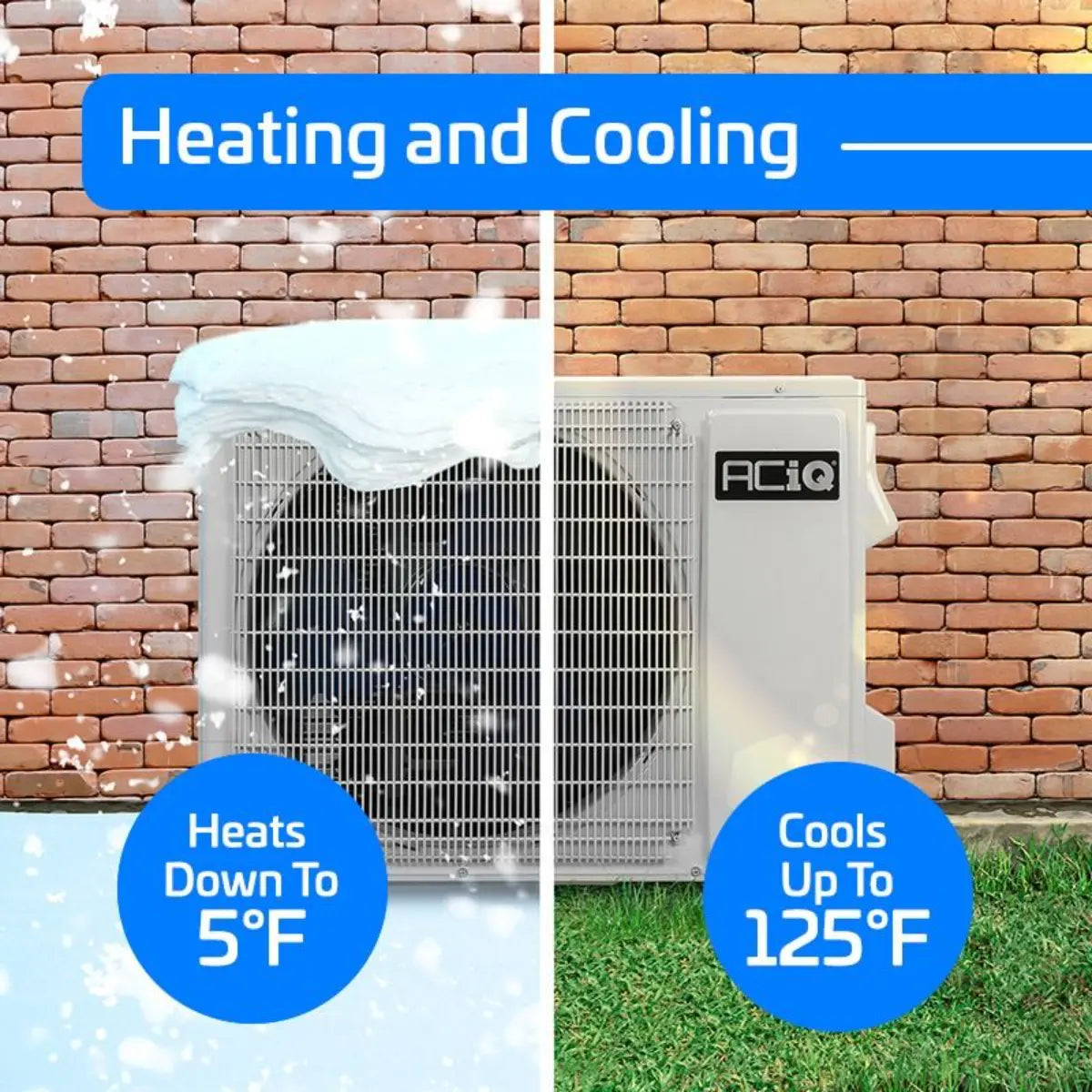

| Min/Max Outdoor Temp for Heating | 5°F ~ 86°F |
| Min/Max Outdoor Temp for Cooling | 53.6°F ~ 122°F |
| Zone Compatibility | Single Zone |
| Height | 19.61" |
| Width | 30.98" |
| Depth | 11.42" |
| SKU | ACiQ-KE12W-W-HP230B |
| Weight | 20.940000 |
| AHRI Certificate Number | 218045390 |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant |
| HSPF2 | Region IV / V: 8.5 / 7.1 |
| Cooling BTU | 12000 BTU |
| Heating BTU | 12000 BTU |
| Maximum CFM | Up to 294 CFM |
| Decibel Level (dBA) | As low as 33 Decibels |
| Refrigerant | R32 |
| SEER2 | 17 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Tonnage | 1.0 Ton |
| Tonnage Bundle | 1 Ton |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Operating Mode | Heating/Cooling |
| Height | 11.50" |
| Width | 31.93" |
| Depth | 7.99" |
