Model: ACIQ-KE18Z-HP230B / ACIQ-KE18W-W-HP230B
ACiQ Essentials 18,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
ACiQ Essentials 18,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
Couldn't load pickup availability
Call Us at 866-718-1799
Product Details
ACIQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The Essentials single zone air handler can handle smaller spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.
- Remote Control Included
- Perfect for up to 380 sq ft Room/Zone
- High Efficiency SEER2 17, and HSPF2 9.5 Ratings
- Quiet Comfort from 5-122°F
- Wi-Fi Enabled, and Line Set Included
- 6 Year Compressor Warranty and 4 Year Parts
Upgrade your home's cooling system with the ACIQ Essentials 18,000 BTU 17 SEER2 Single Zone Wall Mounted Mini Split System and enjoy reliable, efficient cooling all year long.

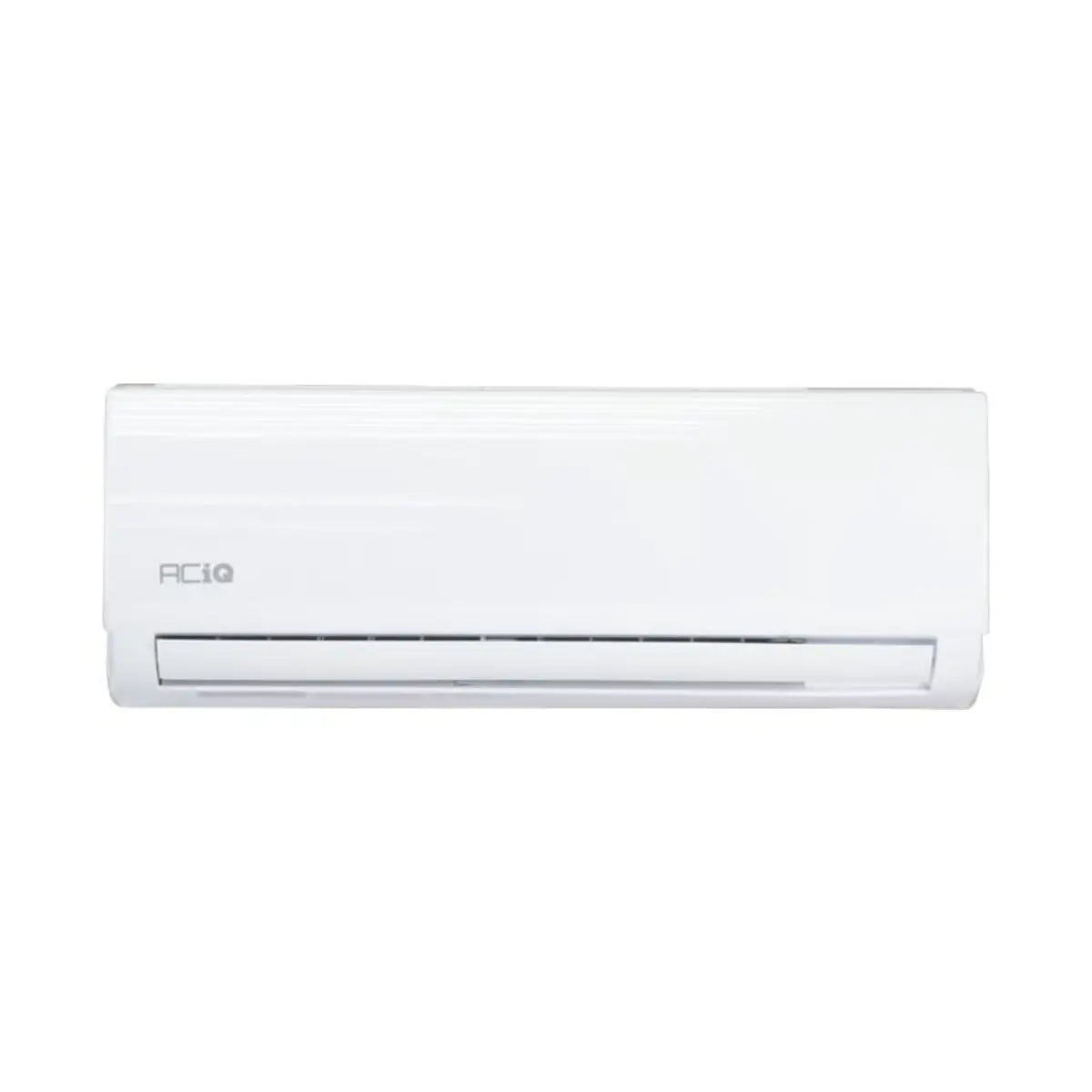

The Essentials air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
The ACIQ Essentials 18,000 BTU Single Zone Wall Mounted Mini Split System is a smart, reliable solution for cooling and heating individual spaces! Perfect for bedrooms, offices, or any room up to 380 square feet and backed by the same trusted manufacturing partners behind major HVAC brands, ACIQ delivers high-end performance without the high-end price tag.
With a 17 SEER2 efficiency rating, built-in WiFi control, and quiet operation, this system keeps you comfortable all year long—without driving up your energy bill or disrupting your day. It’s designed for easy installation by a licensed HVAC professional and comes ready with everything you need for a clean, efficient setup.
Everything You Need In One Kit
ACIQ Essentials mini splits arrive with the essential components you’ll need for a complete, professional installation! Included with each system are 16ft line sets, mounting hardware, and other accessories—so you won’t have to source extra parts. While you’ll still need a licensed HVAC technician to handle setup and refrigerant connections, this all-in-one package keeps things simple and hassle-free, ensuring your new system is up and running smoothly in no time.
Electrical lines must be purchased separately from this system.
18,000 BTU: Perfect for spaces up to 380 square feet
Single Room Applications
|
Supplemental Home Locations
|

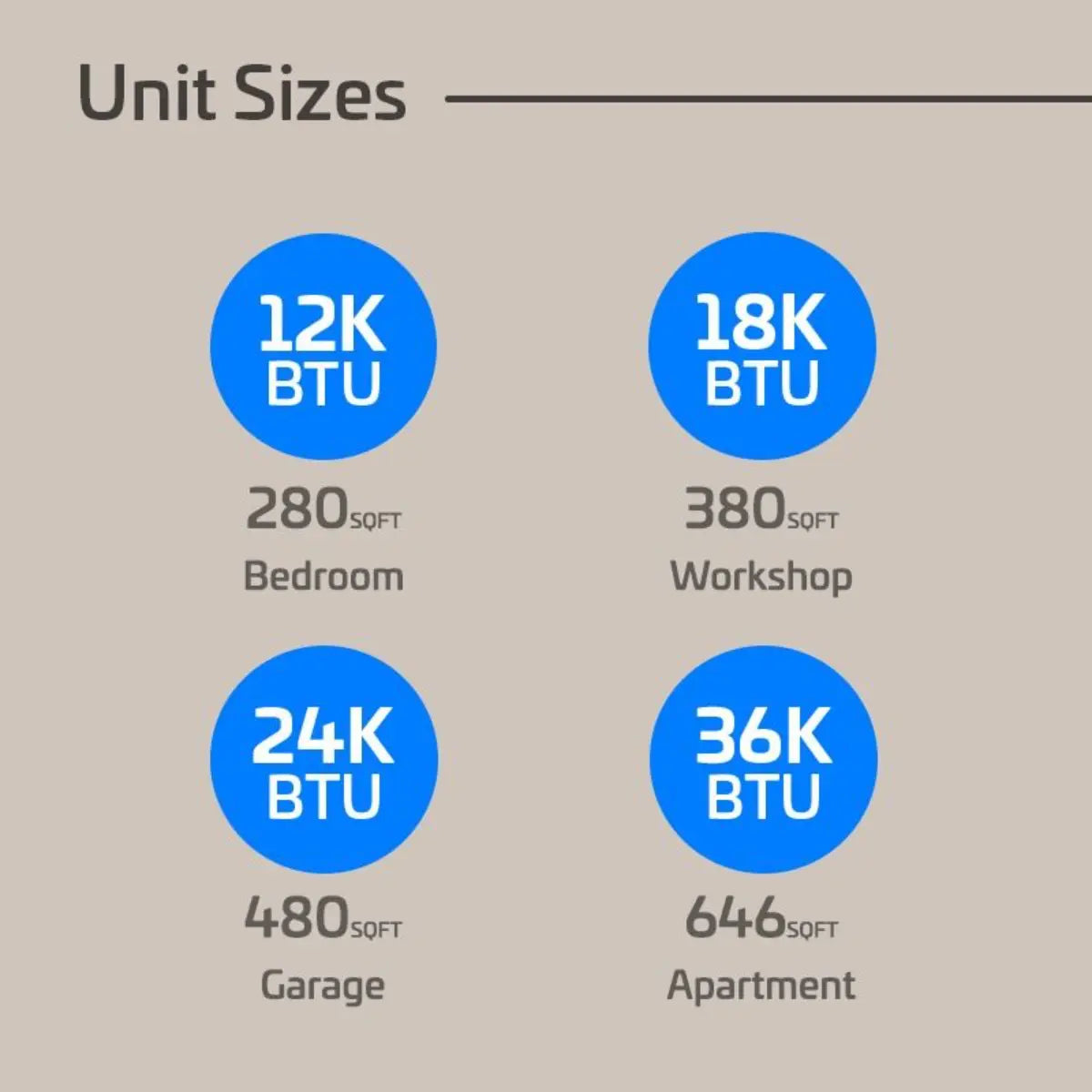

Find Your Perfect Fit
ACIQ Essentials are designed to fit your space perfectly. With multiple BTU sizes available, our single-zone systems make it simple to choose the right level of comfort—whether you’re outfitting a small bedroom, a medium living area, or a larger open-concept space.
Premium Performance, Without the Premium Price
ACIQ Essential Single Zone Mini Split Systems deliver efficient cooling and heating. Showcasing powerful performance, but with an affordable price, ACIQ Essential mini splits help keep your energy costs in check.
A Warranty You Can Take Comfort In
Your ACIQ mini split comes with a 6-year compressor warranty and a 4-year parts warranty when you register at ACIQ.com, giving you confidence in your investment. It’s designed to keep your system running smoothly, so you can rely on consistent performance year after year. With ACIQ’s support, you get both comfort and peace of mind built right into your system.
Specifications
| SKU | ACiQ-KE18Z-HP230B |
|---|---|
| Refrigerant Charge | 26.63 oz. |
| Weight | 69.440000 |
| AHRI Certificate Number | 218045391 |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant, WiFi |
| HSPF2 | Region IV / V: 8.5 / 7.2 |
| Cooling BTU | 18000 BTU |
| Heating BTU | 19000 BTU |
| Decibel Level (dBA) | 57 (Max) |
| Refrigerant | R454B |
| SEER2 | 17 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | MOP: 20A |
| Min. Breaker Size | MCA: 12A |
| Tonnage | 1.5 Ton |
| Tonnage Bundle | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Min/Max Outdoor Temp for Heating | -4°F ~ 86°F |
| Min/Max Outdoor Temp for Cooling | 5°F ~ 122°F |
| Zone Compatibility | Single Zone |
| Height | 23.70" |
| Width | 33.98" |
| Depth | 13.74" |
| SKU | ACiQ-KE18W-W-HP230B |
| Weight | 27.560000 |
| AHRI Certificate Number | 218045391 |
| Manufacturer | ACiQ |
| Replaces | ACiQ-K18W-HP230 |
| Product Features | New Refrigerant Compliant |
| HSPF2 | Region IV / V: 9.5 / 8.2 |
| Cooling BTU | 18000 BTU |
| Heating BTU | 19000 BTU |
| Maximum CFM | Up to 412 CFM |
| Decibel Level (dBA) | As low as 32 Decibels |
| Refrigerant | R32 |
| SEER2 | 17 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | 5 ~ 86 |
| Min/Max Outdoor Temp for Cooling | 53.5 ~ 122 |
| Zone Compatibility | Single Zone |
| Height | 21.61" |
| Width | 31.89" |
| Depth | 12.01" |
