Model: ACIQ-KE24Z-HP230B / ACIQ-KE24W-W-HP230B
ACiQ Essentials 24,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
ACiQ Essentials 24,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
Couldn't load pickup availability
Call Us at 866-718-1799
Product Details

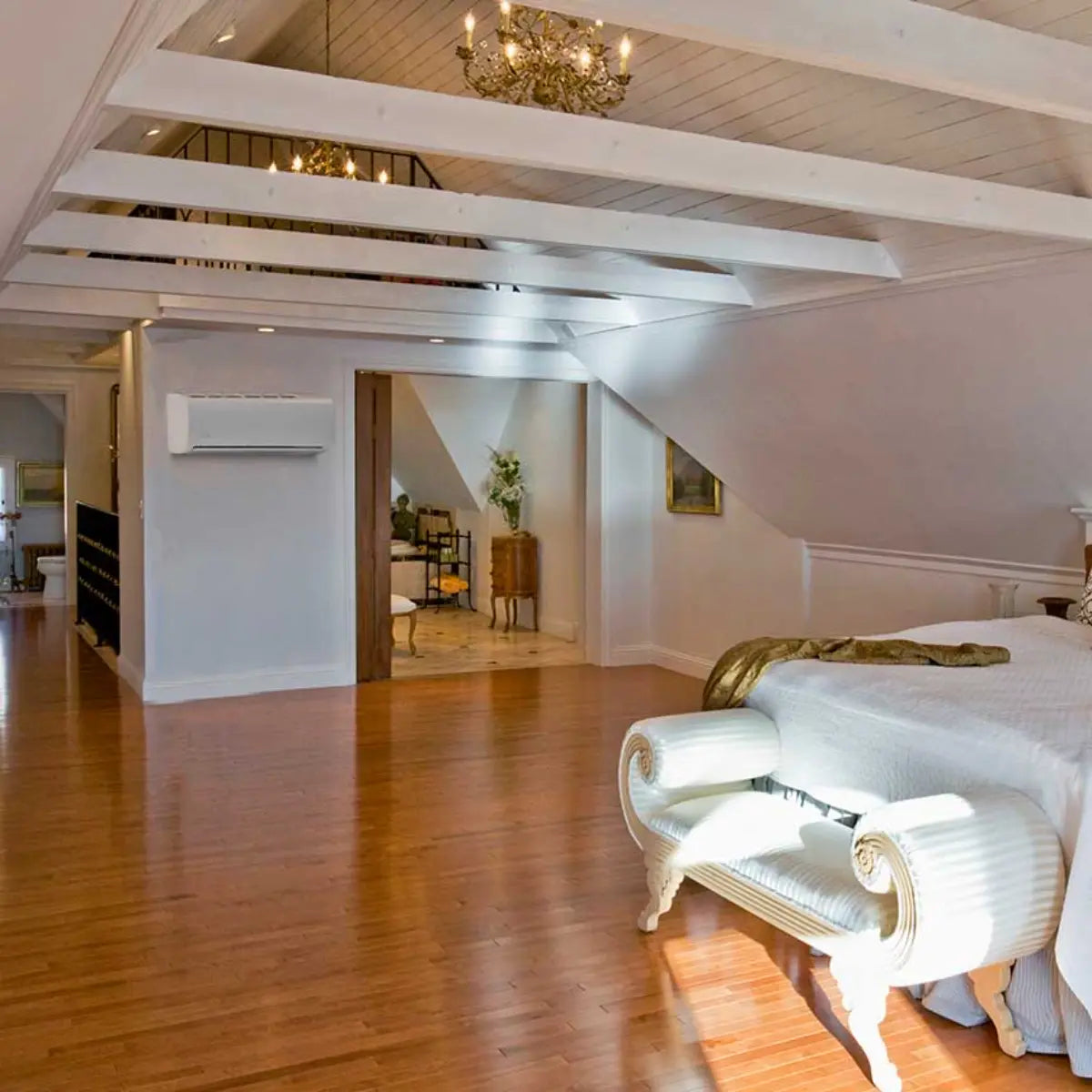

The ACIQ Essentials 24,000 BTU Single Zone Wall Mounted Mini Split System (ACIQ-KE24Z-HP230B / ACIQ-KE24W-W-HP230B) is a powerful and reliable solution for cooling and heating larger rooms or open spaces. Ideal for living rooms, bedrooms, offices, or areas up to 480 square feet, it’s backed by the same trusted manufacturing partners behind major HVAC brands—delivering premium performance without the premium price tag.

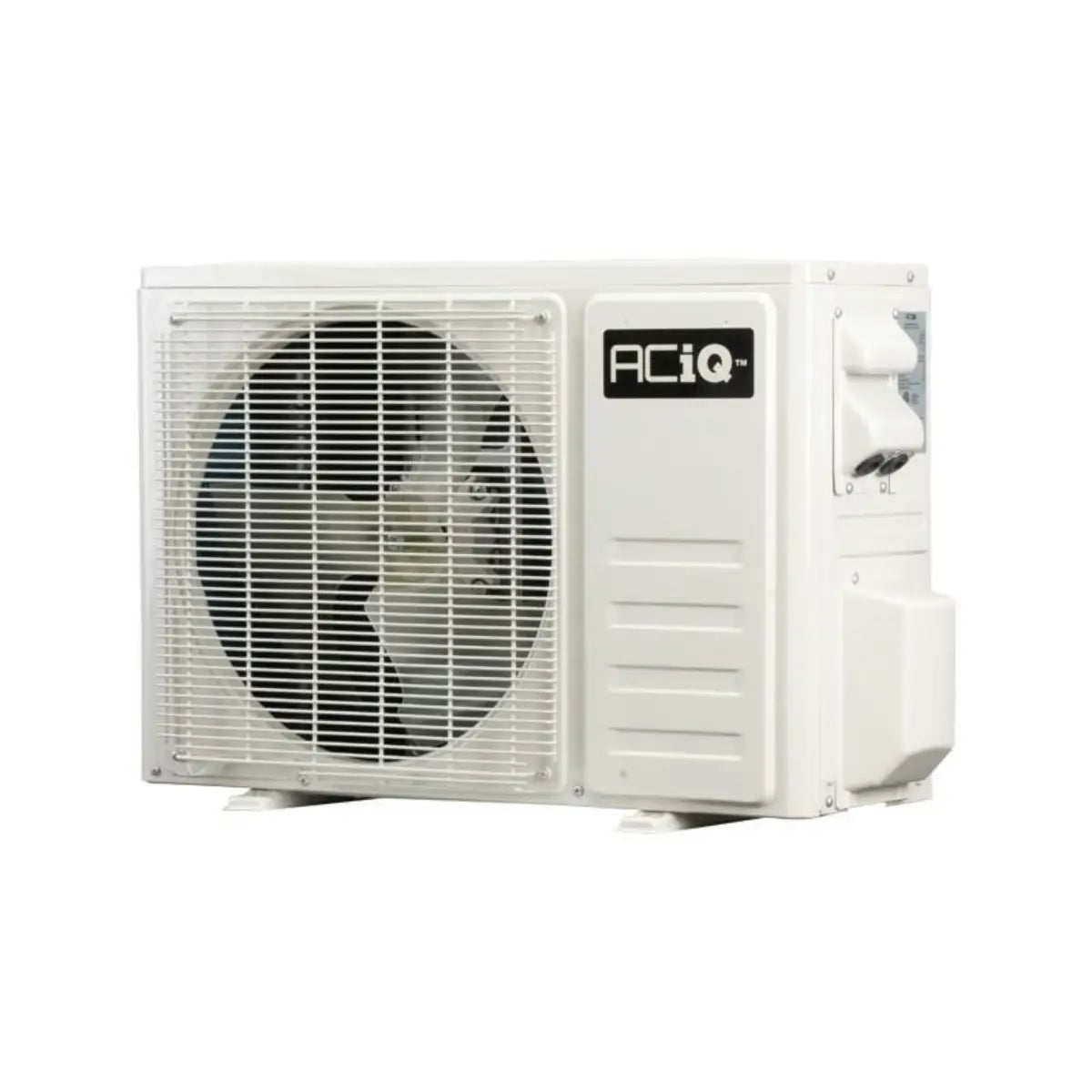

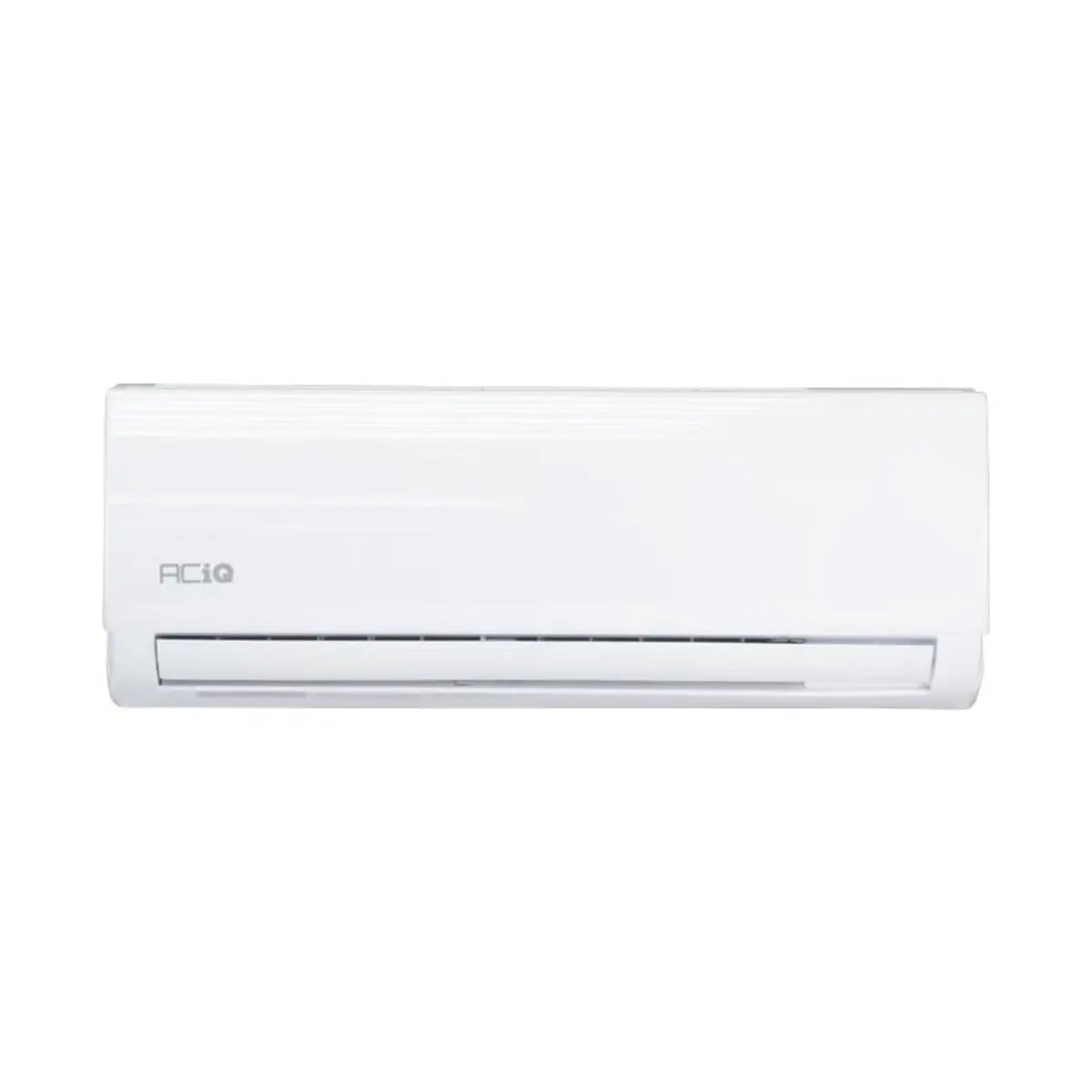

With a 17 SEER2 efficiency rating, built-in WiFi control, and quiet operation, this system provides year-round comfort while keeping energy costs low. Designed for professional installation, the ACIQ-KE24Z-HP230B outdoor condenser and ACIQ-KE24W-W-HP230B indoor air handler ensure dependable, efficient performance and long-lasting durability.
Everything You Need In One Kit
ACIQ Essentials mini splits arrive with the essential components you’ll need for a complete, professional installation! Included with each system are 16ft line sets, mounting hardware, and other accessories—so you won’t have to source extra parts. While you’ll still need a licensed HVAC technician to handle setup and refrigerant connections, this all-in-one package keeps things simple and hassle-free, ensuring your new system is up and running smoothly in no time.
Electrical lines must be purchased separately from this system.
24,000 BTU: Perfect for spaces up to 480 square feet
Single Room Applications
|
Supplemental Home Locations
|
Find Your Perfect Fit
ACIQ Essentials are designed to fit your space perfectly. With multiple BTU sizes available, our single-zone systems make it simple to choose the right level of comfort—whether you’re outfitting a small bedroom, a medium living area, or a larger open-concept space.
Premium Performance, Without the Premium Price
ACIQ Essential Single Zone Mini Split Systems deliver efficient cooling and heating. Showcasing powerful performance, but with an affordable price, ACIQ Essential mini splits help keep your energy costs in check.
A Warranty You Can Take Comfort In
Your ACIQ mini split comes with a 6-year compressor warranty and a 4-year parts warranty when you register at ACIQ.com, giving you confidence in your investment. It’s designed to keep your system running smoothly, so you can rely on consistent performance year after year. With ACIQ’s support, you get both comfort and peace of mind built right into your system.
Specifications
| SKU | ACiQ-KE24Z-HP230B |
|---|---|
| Refrigerant Charge | 36.68 oz. |
| Weight | 81.570000 |
| AHRI Certificate Number | 218045392 |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant |
| HSPF2 | Region IV / V: 9.5 / 8.5 |
| Cooling BTU | 24000 BTU |
| Heating BTU | 24600 BTU |
| Decibel Level (dBA) | 56 (Max) |
| Refrigerant | R32 |
| SEER2 | 17 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | MOP: 25A |
| Min. Breaker Size | MCA: 17A |
| Tonnage | 2 Ton |
| Tonnage Bundle | 2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton |

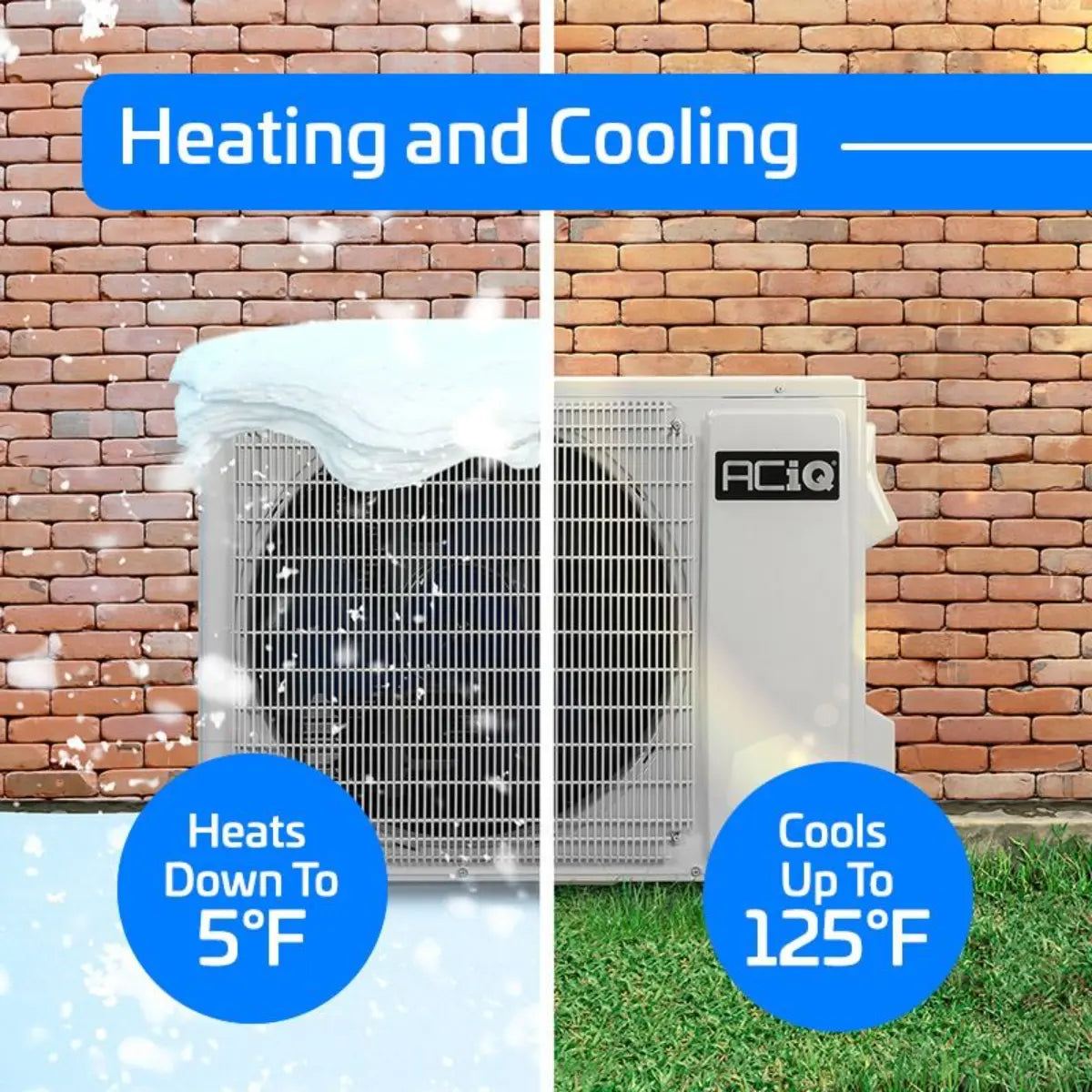

| Min/Max Outdoor Temp for Heating | 5°F ~ 86°F |
| Min/Max Outdoor Temp for Cooling | 53.6°F ~ 122°F |
| Zone Compatibility | Single Zone |
| Height | 25.39" |
| Width | 35.43" |
| Depth | 15.94" |
| = | |
| SKU | ACiQ-KE24W-W-HP230B |
| Weight | 33.070000 |
| AHRI Certificate Number | 218045392 |
| Manufacturer | ACiQ |
| Replaces | ACiQ-K24W-HP230 |
| Product Features | New Refrigerant Compliant |
| HSPF2 | Region IV / V: 9.5 / 8.5 |
| Cooling BTU | 24500 BTU |
| Heating BTU | 24500 BTU |
| Maximum CFM | Up to 676 CFM |
| Decibel Level (dBA) | As low as 37 Decibels |
| Refrigerant | R32 |
| SEER2 | 17 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Tonnage | 2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | 5 ~ 86 |
| Min/Max Outdoor Temp for Cooling | 53.6 ~ 122 |
| Zone Compatibility | Single Zone |
| Operating Mode | Heating/Cooling |
| Height | 12.40" |
| Width | 39.76" |
| Depth | 8.66" |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
