Model: ACIQ-KE36Z-HP230B / ACIQ-KE36W-W-HP230B

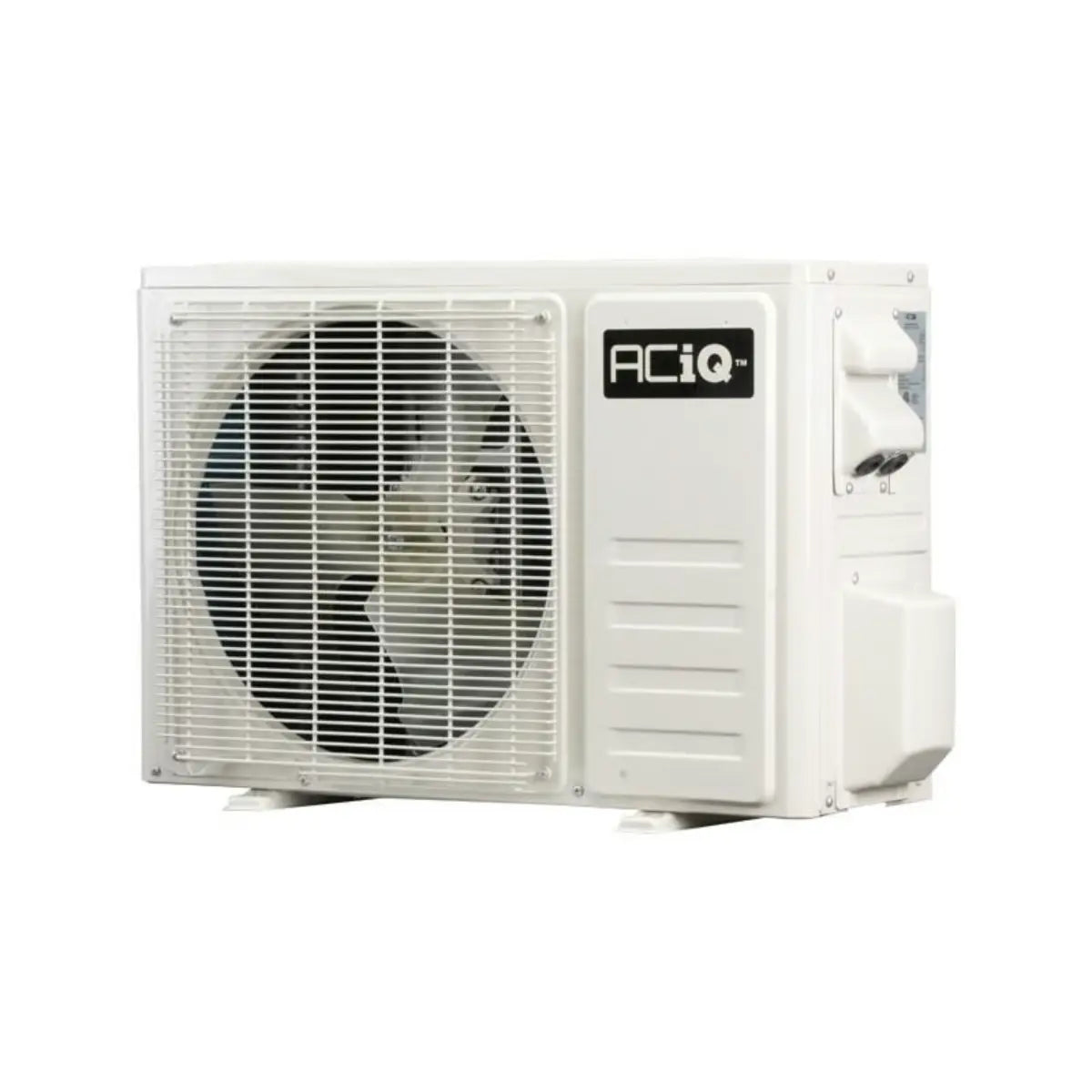

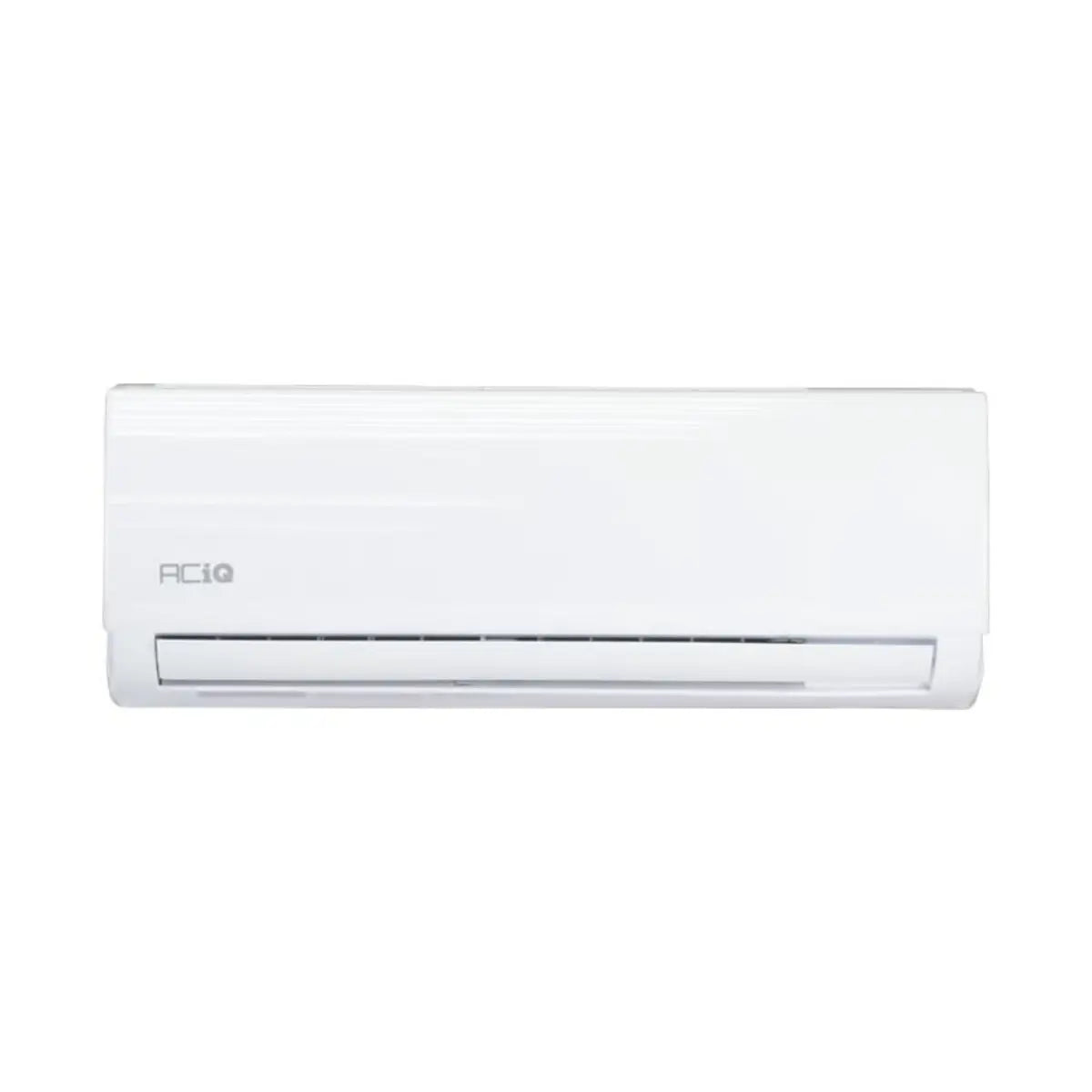

ACiQ Essentials 36,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
ACiQ Essentials 36,000 BTU 17 SEER2 230V Single Zone Wall Mount Mini Split Heat Pump System - R32
Couldn't load pickup availability
Call Us at 866-718-1799
Product Details
The ACIQ Essentials 36,000 BTU Single Zone Wall Mounted Mini Split System is a powerful, reliable solution for cooling and heating large spaces! Ideal for living rooms, open areas, or any space up to 646 square feet. Backed by the same trusted manufacturing partners behind major HVAC brands, ACIQ delivers high-end performance without the high-end price tag.
- Remote Control Included
- Perfect for up to 646 sq ft Room/Zone
- High Efficiency SEER2 17, and HSPF2 9.5 Ratings
- Quiet Comfort from 5-122°F
- Wi-Fi Enabled, and Line Set Included
- 6 Year Compressor Warranty and 4 Year Parts
Everything You Need In One Kit
ACIQ Essentials mini splits arrive with the essential components you’ll need for a complete, professional installation! Included with each system are 16ft line sets, mounting hardware, and other accessories—so you won’t have to source extra parts. While you’ll still need a licensed HVAC technician to handle setup and refrigerant connections, this all-in-one package keeps things simple and hassle-free, ensuring your new system is up and running smoothly in no time.
Electrical lines must be purchased separately from this system.

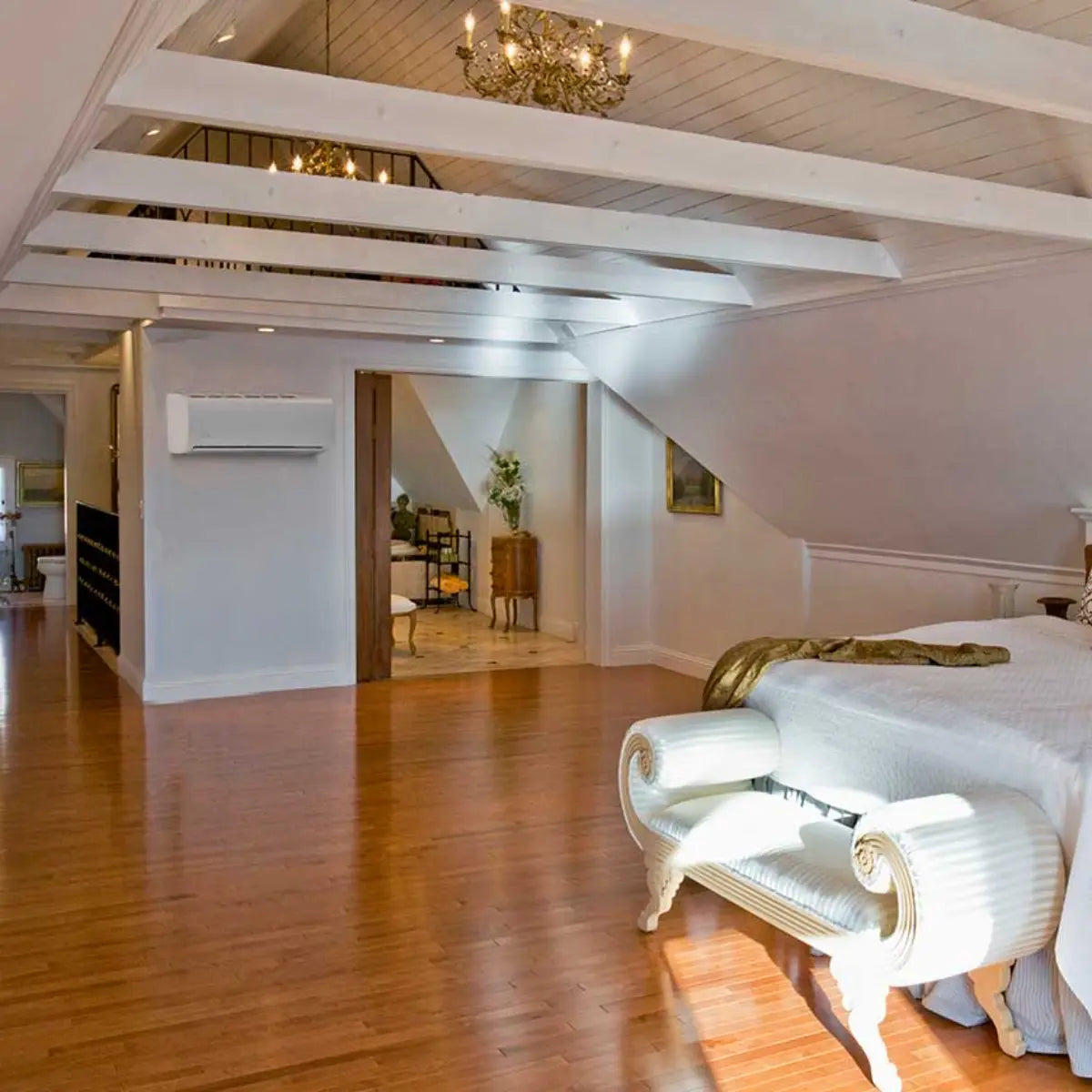

36,000 BTU: Perfect for spaces up to 646 square feet
Large Single Areas
|
Light Commercial & Residential Applications
|
Find Your Perfect Fit
ACIQ Essentials are designed to fit your space perfectly. With multiple BTU sizes available, our single-zone systems make it simple to choose the right level of comfort—whether you’re outfitting a small bedroom, a medium living area, or a larger open-concept space.
Premium Performance, Without the Premium Price
ACIQ Essential Single Zone Mini Split Systems deliver efficient cooling and heating. Showcasing powerful performance, but with an affordable price, ACIQ Essential mini splits help keep your energy costs in check.
A Warranty You Can Take Comfort In
Your ACIQ mini split comes with a 6-year compressor warranty and a 4-year parts warranty when you register at ACIQ.com, giving you confidence in your investment. It’s designed to keep your system running smoothly, so you can rely on consistent performance year after year. With ACIQ’s support, you get both comfort and peace of mind built right into your system.
Specifications
| SKU | ACiQ-KE36Z-HP230B |
|---|---|
| Refrigerant Charge | 56.08 oz. |
| Weight | 122.400000 |
| AHRI Certificate Number | 218045393 |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant |
| HSPF2 | Region IV / V: 8.5 / 7.5 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 36000 BTU |
| Decibel Level (dBA) | 63 (Max) |
| Refrigerant | R32 |
| SEER2 | 17 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 5/8" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | MOP: 30A |
| Min. Breaker Size | MCA: 18A |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |

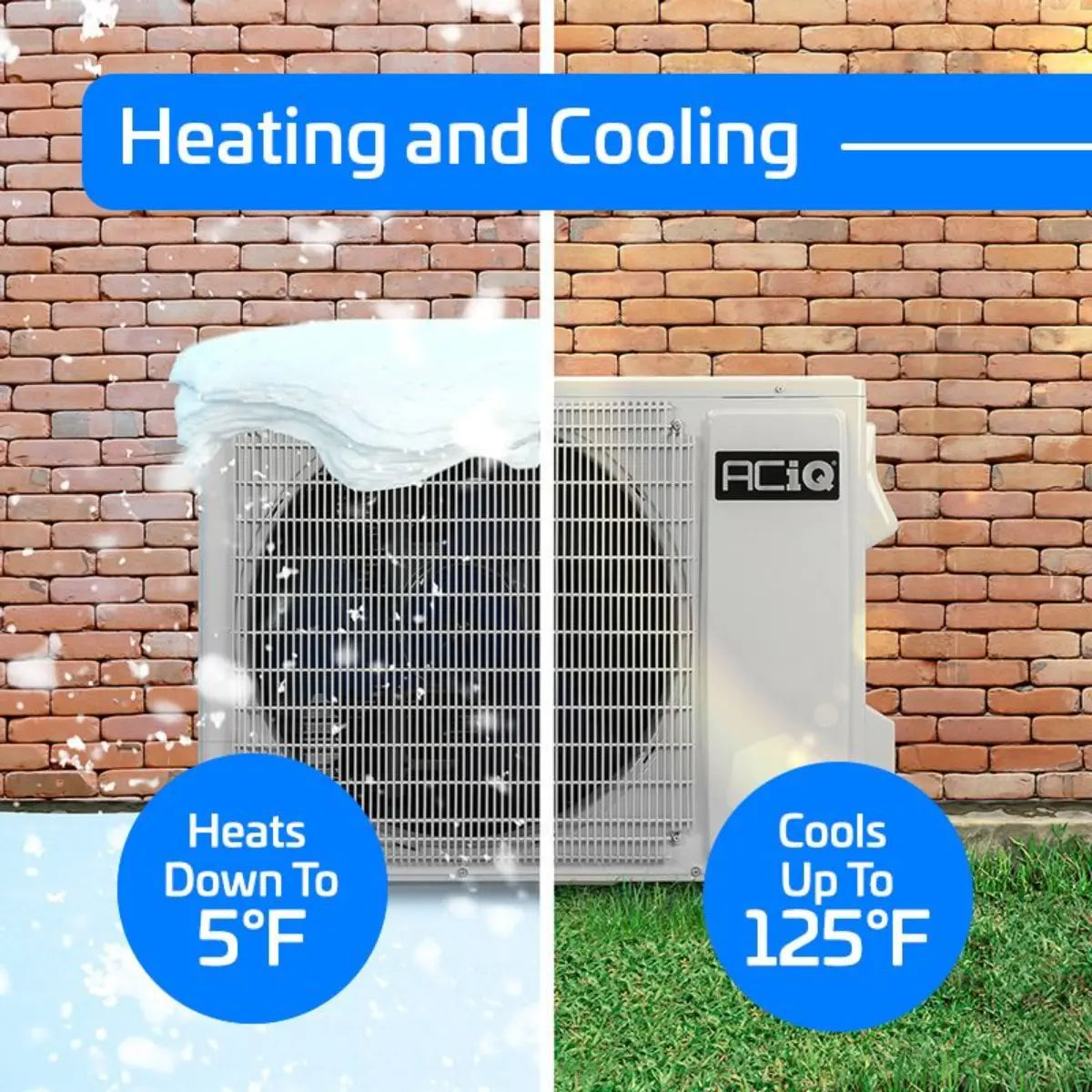

| Min/Max Outdoor Temp for Heating | 5°F ~ 86°F |
| Min/Max Outdoor Temp for Cooling | 53.6°F ~ 122°F |
| Zone Compatibility | Single Zone |
| Height | 32.87" |
| Width | 40.24" |
| Depth | 18.90" |
| SKU | ACiQ-KE36W-W-HP230B |
| Weight | 46.300000 |
| AHRI Certificate Number | 218045393 |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant |
| HSPF2 | Region IV / V: 8.5 / 7.5 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 36000 BTU |
| Maximum CFM | Up to 646 CFM |
| Decibel Level (dBA) | As low as 39 Decibels |
| Refrigerant | R32 |
| SEER2 | 17 |
| Liquid Line | 1/4" |
| Suction Line | 5/8" |
| Electrical | 208/230V, 1 Ph, 60 Hz |
| Electric Phase Filter | Single Phase |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | 5 ~ 86 |
| Min/Max Outdoor Temp for Cooling | 53.6 ~ 122 |
| Zone Compatibility | Single Zone |
| Height | 31.61" |
| Width | 38.50" |
| Depth | 16.57" |
