Model: ACIQ-24-HPD-MH / ACIQ-MH24AU3VWEC / ACIQ-EFS1020FD-MH

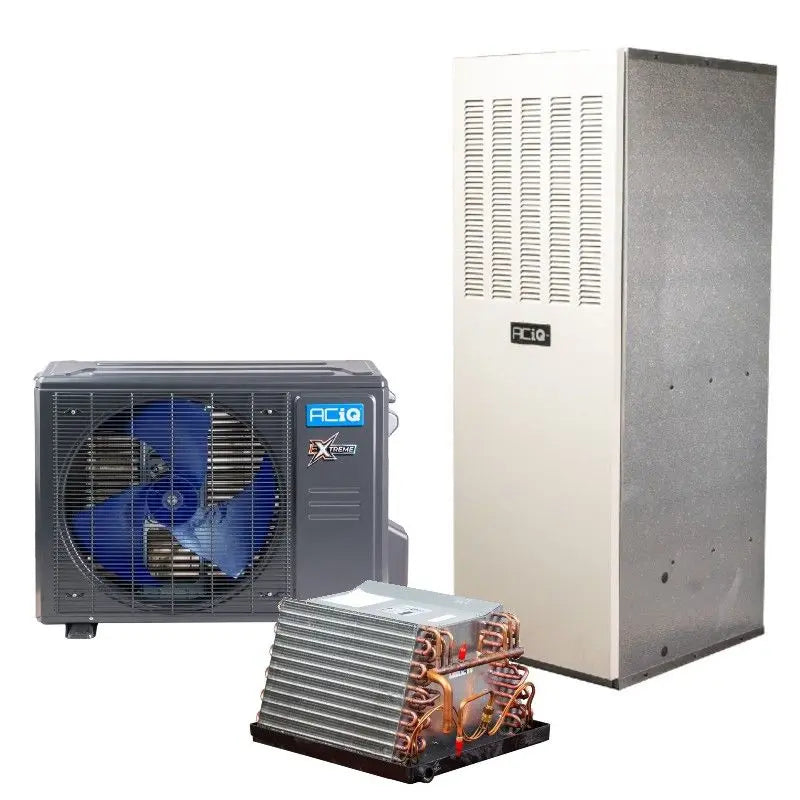

ACiQ Extreme Series 2 Ton 18.3 SEER2 10kW Mobile Home Electric Furnace & Heat Pump System - R454B Inverter
Couldn't load pickup availability
Product Details
Cost-Saving Extreme Heat Efficiency, Ready for Mobile Homes
An ACiQ electric furnace and Extreme series heat pump system is the perfect HVAC system choice for any size of mobile or manufactured home. With efficient inverter technology helping save you save tons on your electric bill and Extreme Heat capabilities keeping you warm in subzero temperatures, you can depend on ACiQ to provide you with the right central furnace and heat pump system for all your heating and cooling needs at an affordable price.
FEATURES
- 2 ton 18.3 SEER2 heat pump condenser, 2 ton mobile home coil, and 10kW mobile home electric furnace
- Extreme heat technology - Capable of producing heat in outdoor temperatures down to -22°F
- Pre-charged with R454B refrigerant
- Rated for use in mobile and manufactured homes
- R454B refrigerant leak mitigation kit included with coil
- Warranties (with online registration):
- Heat Pump: 12 years compressor and 7 years parts
- Evaporator Coil: 10 years parts
- Furnace: 5 years parts

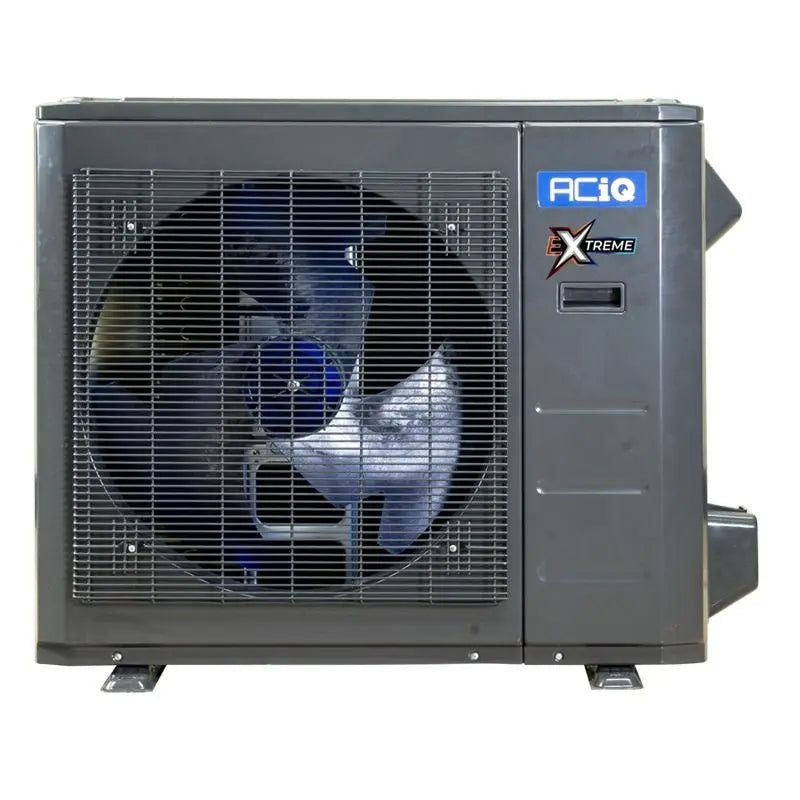

OVERVIEW

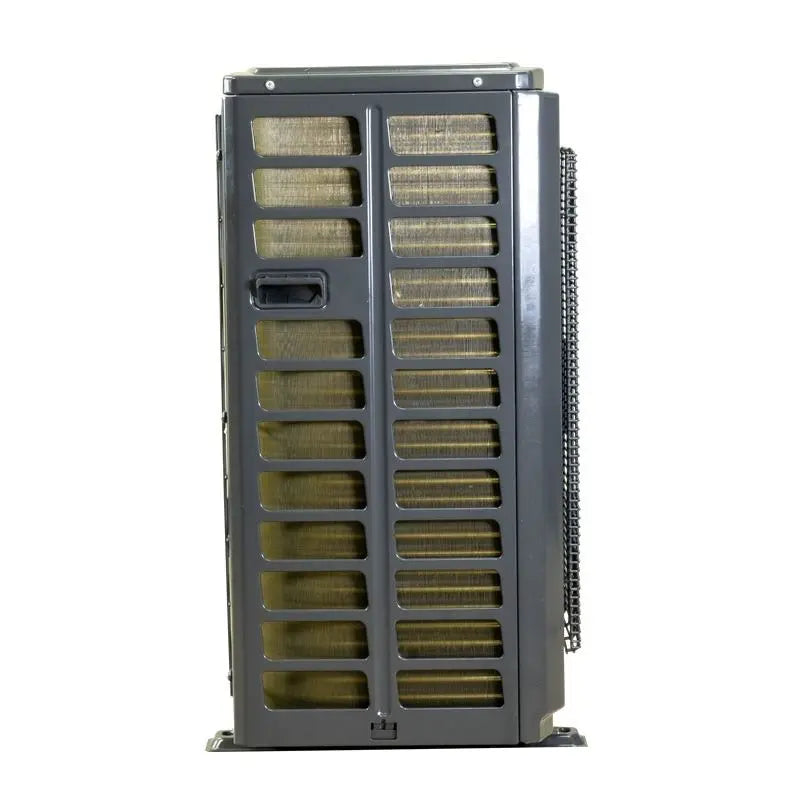

Inverter - The ACIQ-24-HPD 2 ton Extreme series central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode that optimizes future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-24-HPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Extreme Heat Technology - "Extreme Heat" means extended temperature range heating all the way down to -22°F. Traditional heat pumps cannot produce significant heat below about 30°F outside temperature. Below that threshold, they rely on expensive backup electric heat. The ACIQ-24-HPD uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
QUICK FACTS
- Variable BTU output based on demand: 12,000-23,000 BTU for cooling, 12,000-24,000 for heating
- R454B refrigerant
- Inverter heat pump system for ducted applications
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures

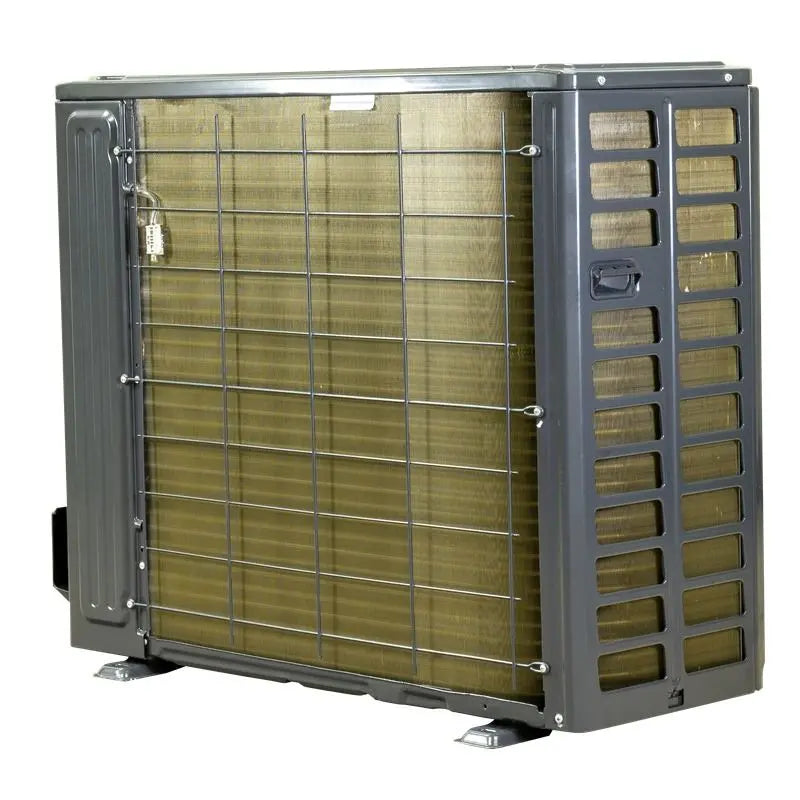

- Durable gold fin condenser coil coating for longevity
- Quiet operation, even under high workloads
2 Ton, 18.3 SEER2
Boasting an efficiency rating of 18.3 SEER2, the ACIQ-24-HPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

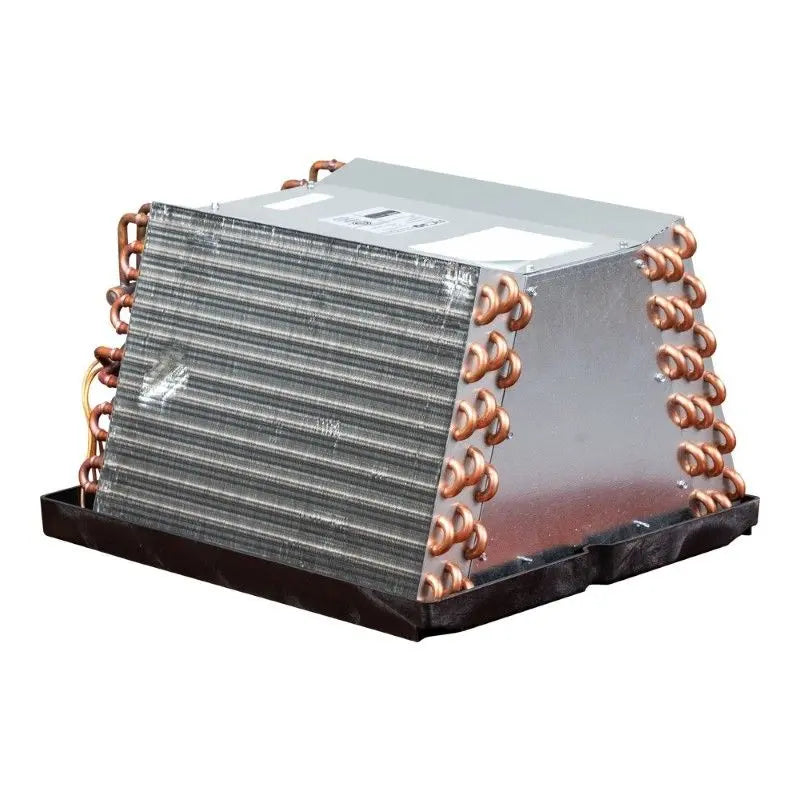

OVERVIEW

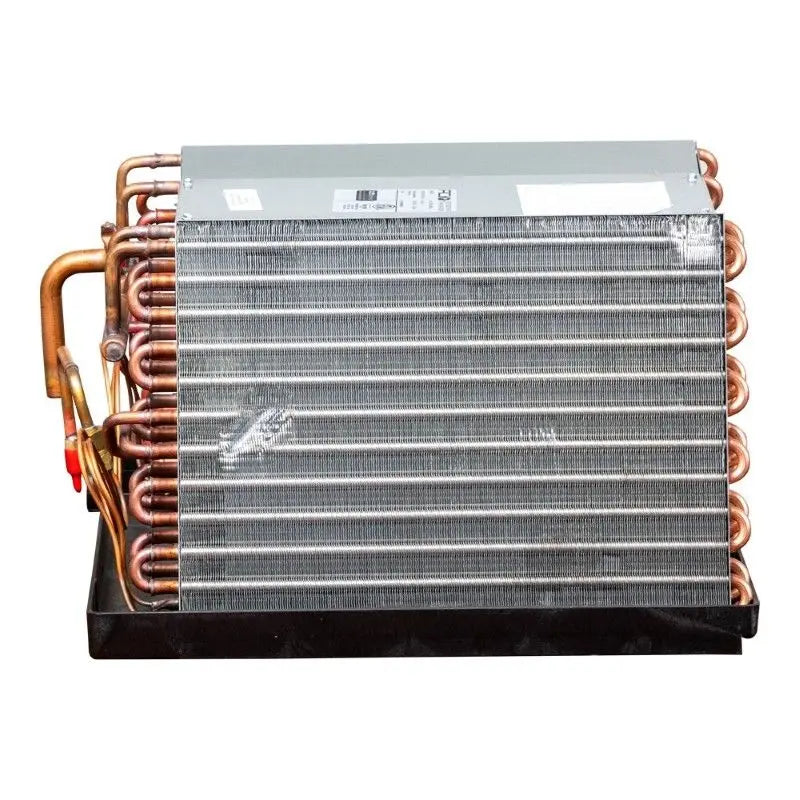

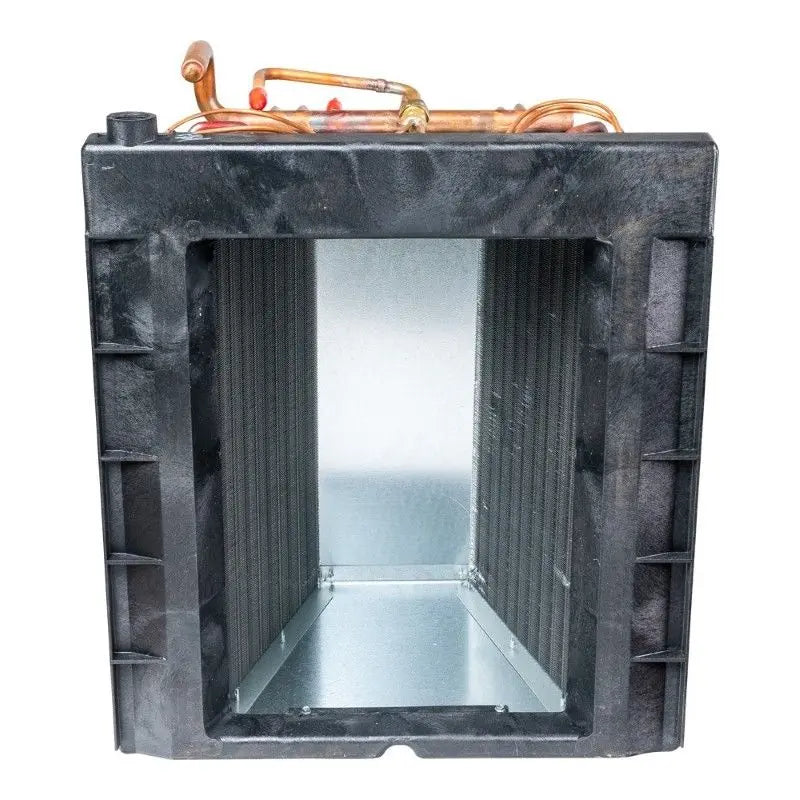

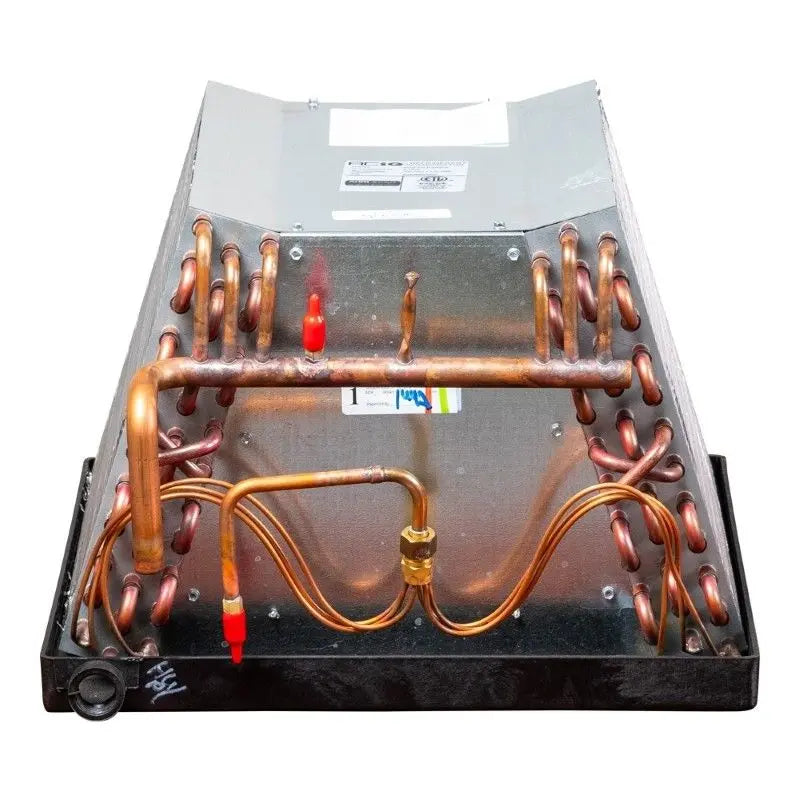

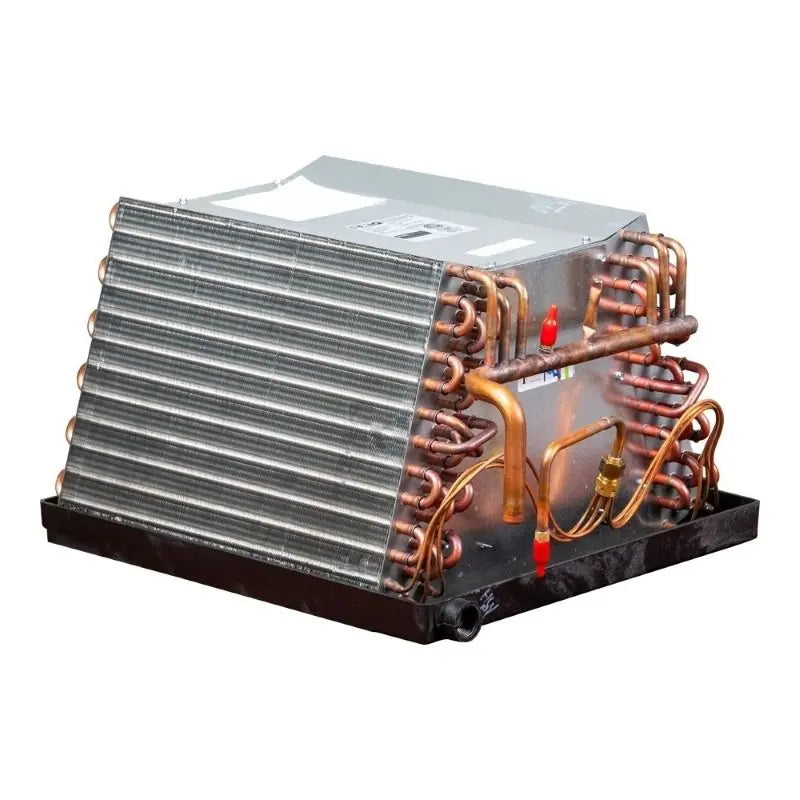

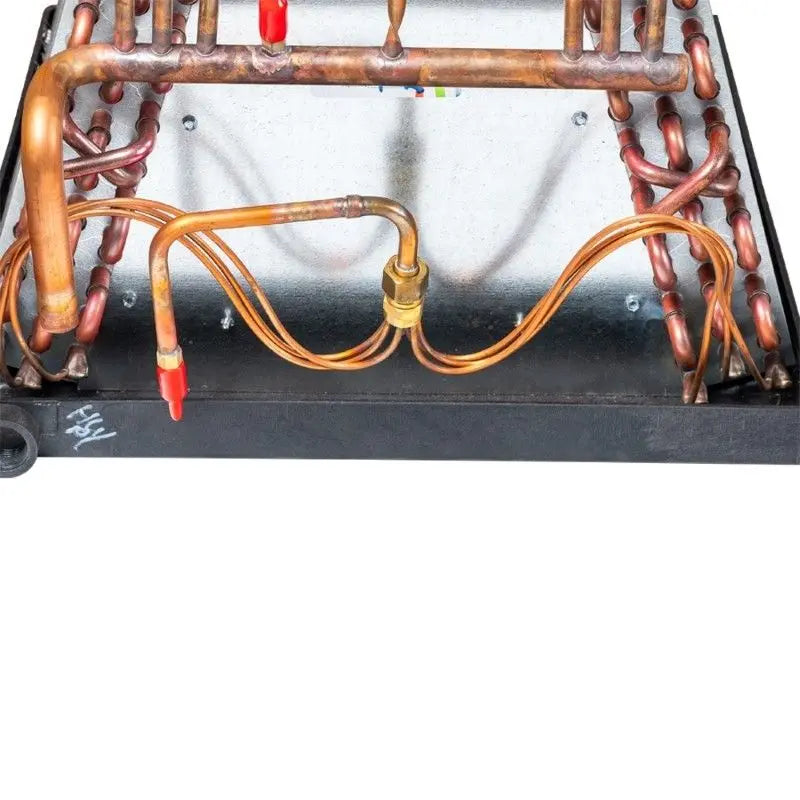

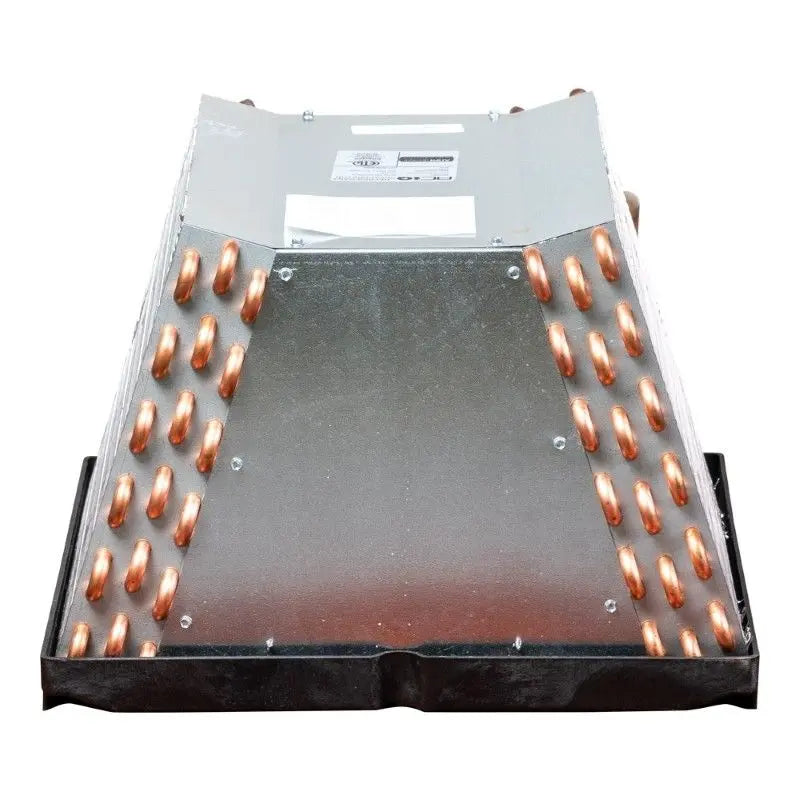

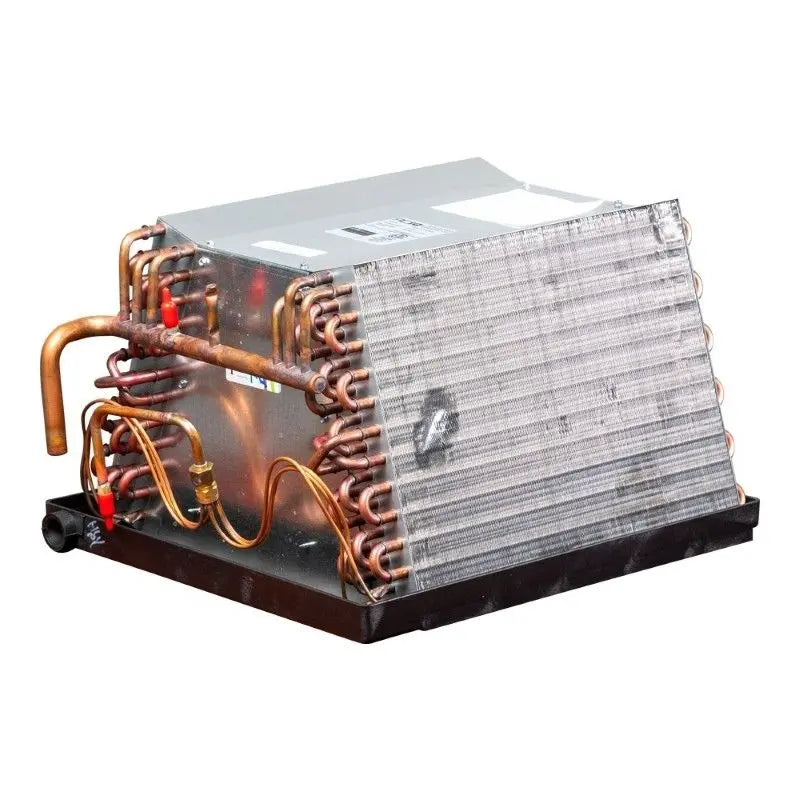

The ACIQ-MH24AU3VWEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
- 2 ton downflow evaporator coil
- R454B-refrigerant compatible
- Designed for mobile and manufactured home use only
- AHRI certifiable with all brands of air conditioners and heat pumps
- For use with manufactured homes furnaces
- Sturdy and compact design

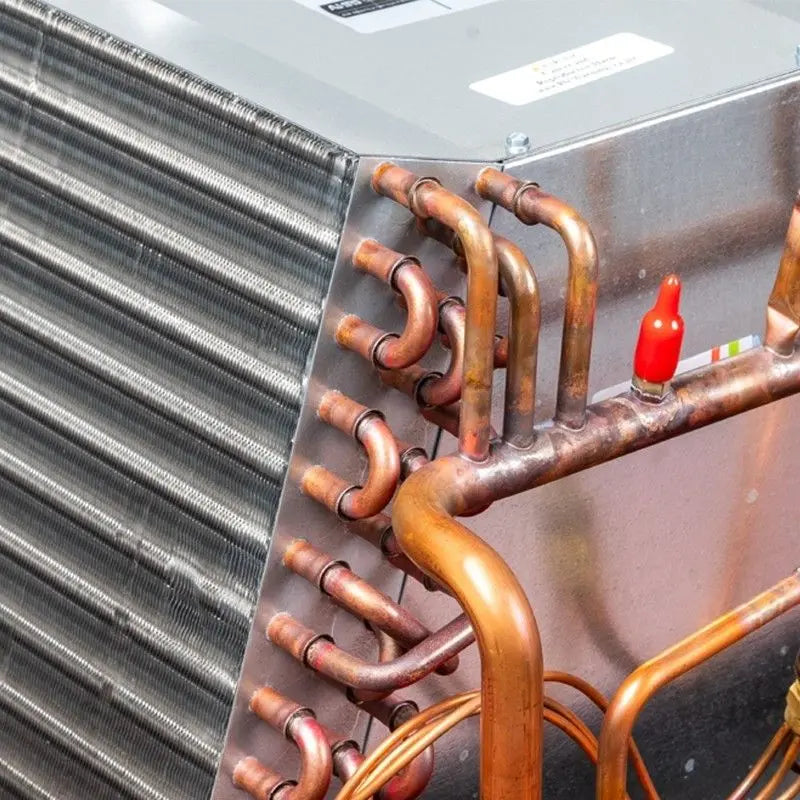

- Rifled aluminum tubing with enhanced aluminum fins
- Left-hand refrigerant and plumbing connections
- Heavy duty polypropylene drain pans
- Downflow plate kit included
2 TON
The ACIQ-MH24AU3VWEC evaporator coil is rated to be compatible with condensers with up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.

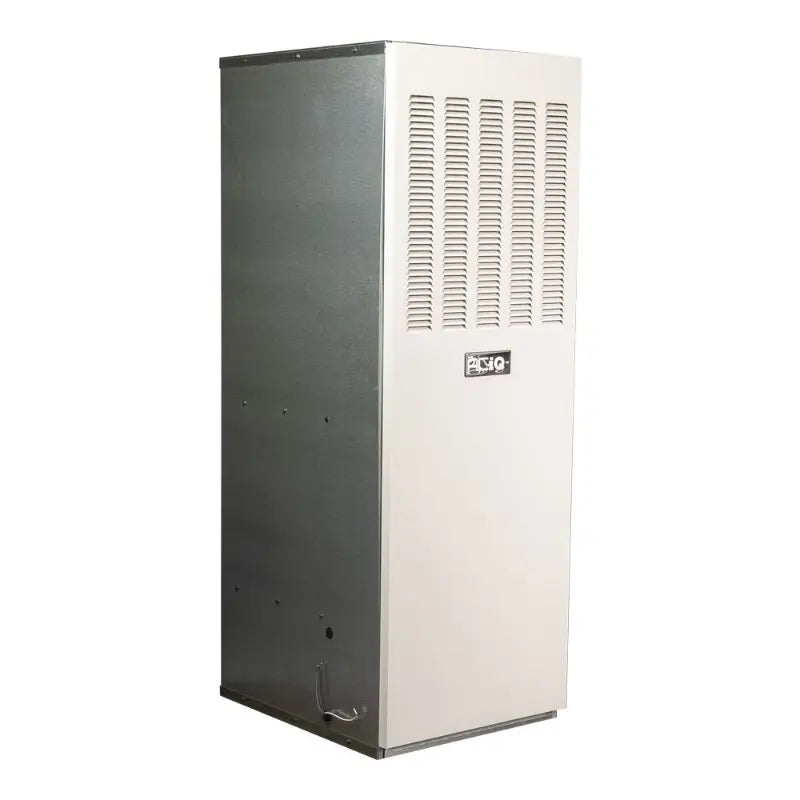

ACiQ 10kW Mobile Home Electric Downflow Furnace - R454B/R32 Compatible
OVERVIEW

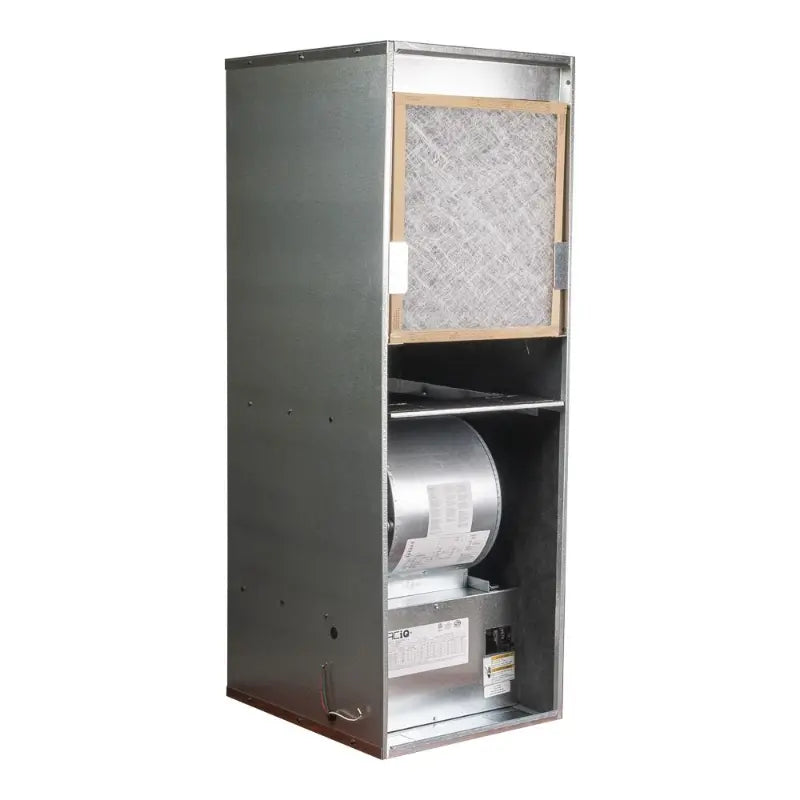

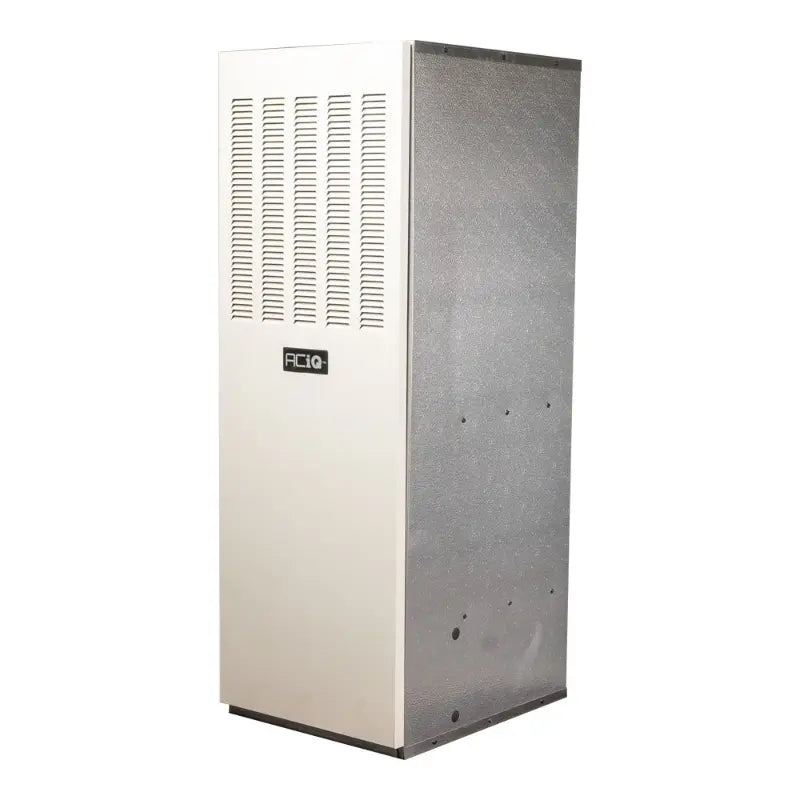

The ACiQ-EFS1020FD-MH electric furnace is a reliable heat source for almost any mobile home application. With its easy installation and maintenance, this unit will provide comfort to your home in all-electric system setups.
QUICK FACTS
- 10 kW electric furnace
- R454B and R32 refrigerant compatible
- Can generally heat a small mobile home in ideal applications
- Low maintenance requirements

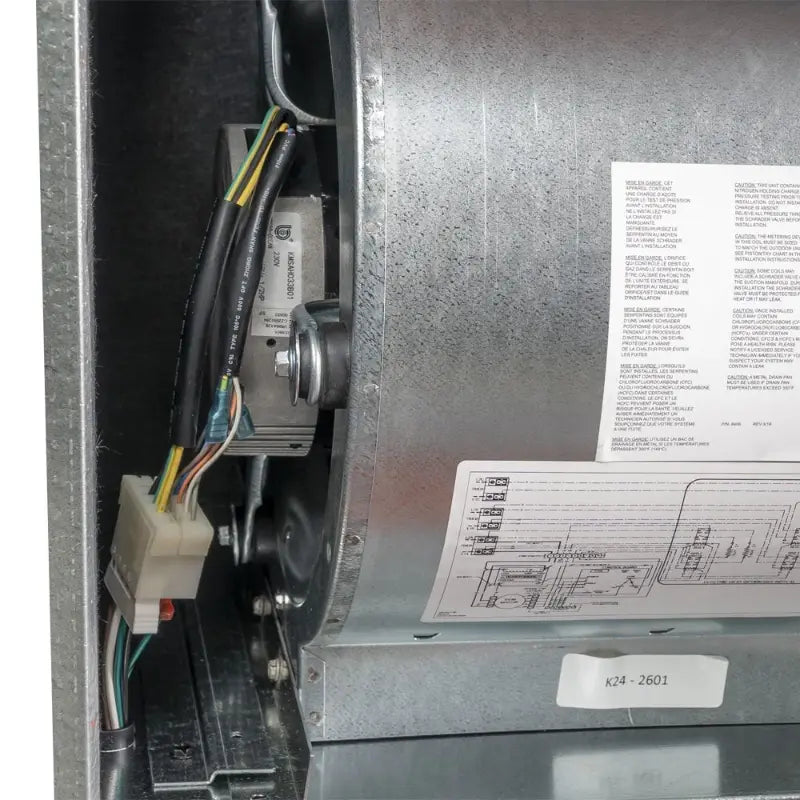

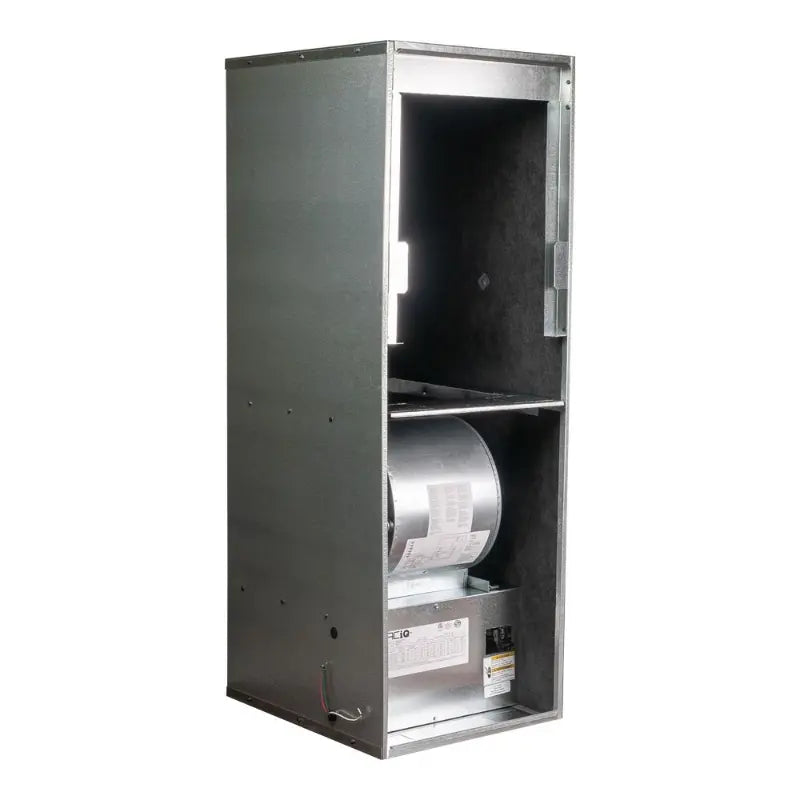

- Efficient multi-speed ECM blower motor
- Effective air filter to improve air quality
- Built-in circuit breakers for safety and dependability
- Sturdy, galvanized steel cabinet

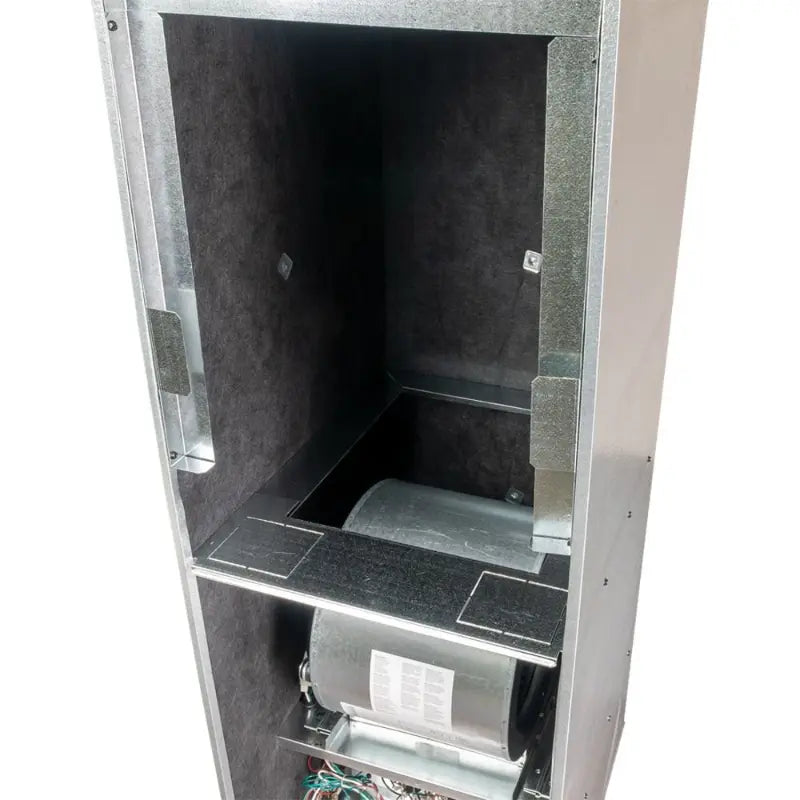

- AC coil cabinet included with purchase (condenser and coil sold separately)

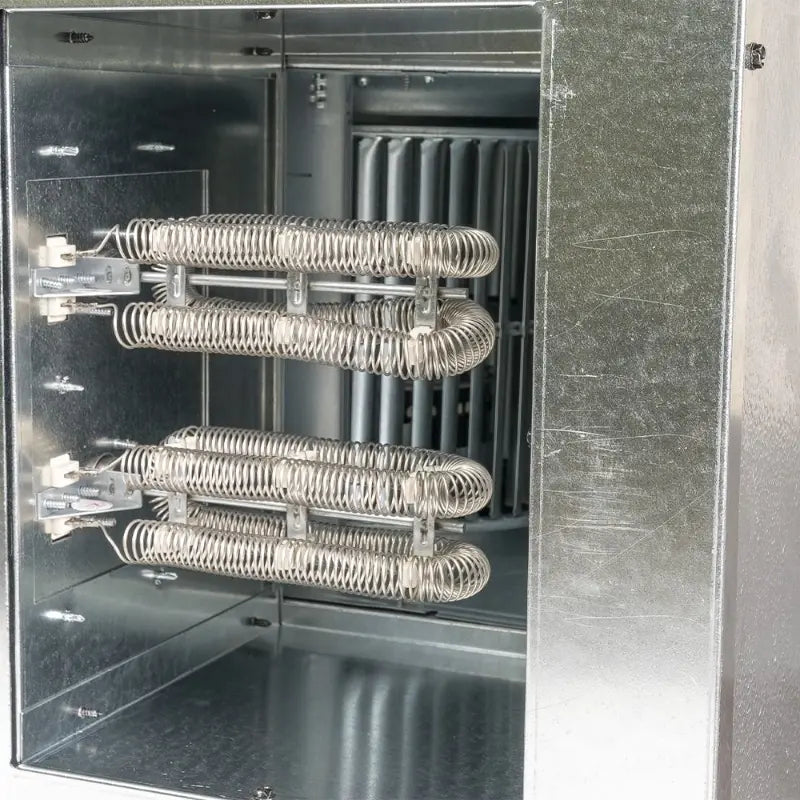

Modular Electric Heat Kit

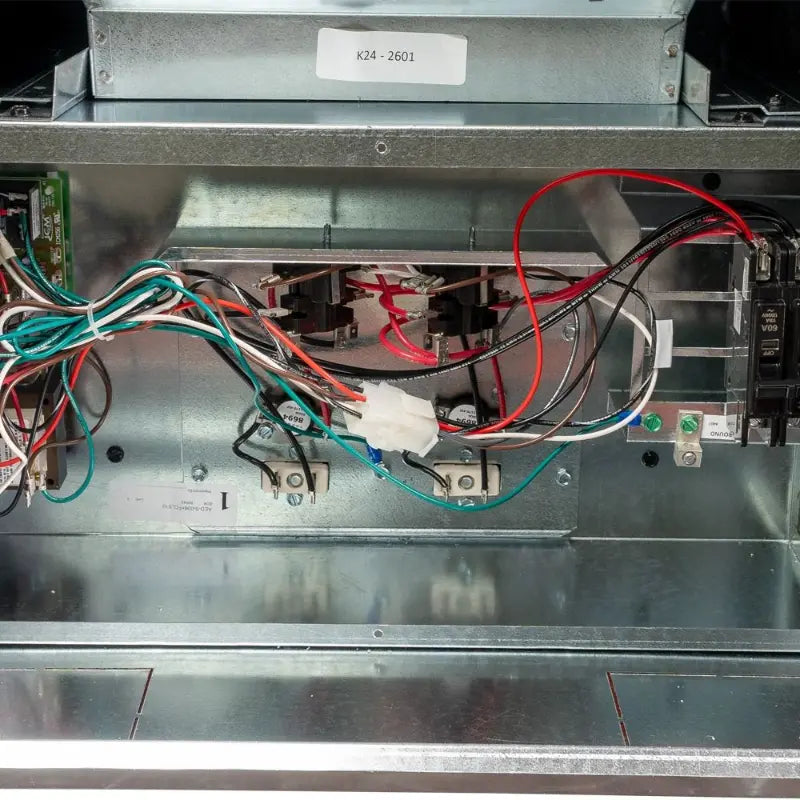

The ACiQ-EFS1020FD-MH is generally able to heat up to a small mobile home in average installations. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.
Warranty
Hassle-free five-year limited parts warranty.
Installation and Maintenance
The ACiQ-EFS1020FD-MH electric furnace is designed to be easily installed for a faster process, lowering labor costs. The filter is also easy to wash or replace, lowering maintenance costs.

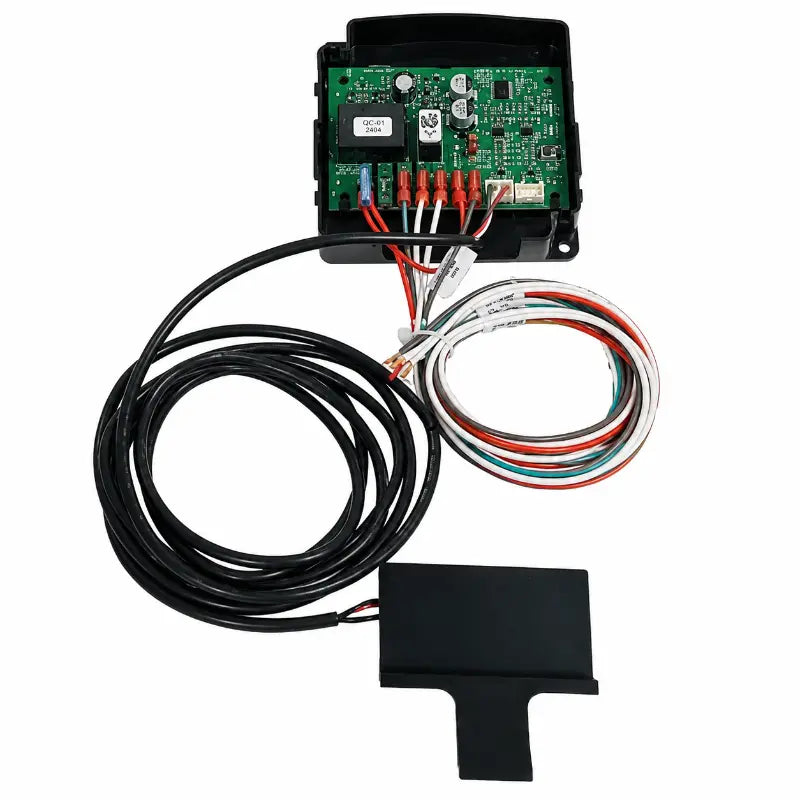

ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
ACiQ RDS Kit Features
- Kit includes all components needed for RDS installation
- Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
- Flexible installation location, ideal for installs on existing equipment
- System designed to last the useful life of the evaporator coil
- Optional relay for controlling additional components
Specifications
| ACIQ 2 Ton 18.3 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B | |
|---|---|
| SKU | ACIQ-24-HPD |
| Refrigerant Charge | 74.08 oz. |
| Weight (in lbs) | 109.130000 |
| Brand/Manufacturer | ACiQ |
| Replaces | ACiQ-24-HPB |
| Cooling BTU | 23,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 1765.7 |
| Decibel Level (dBA) | 60 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| HSPF2 | 10.0 |
| SEER2 (Efficiency) | 18.3 |
| EER2 | 11.7 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |

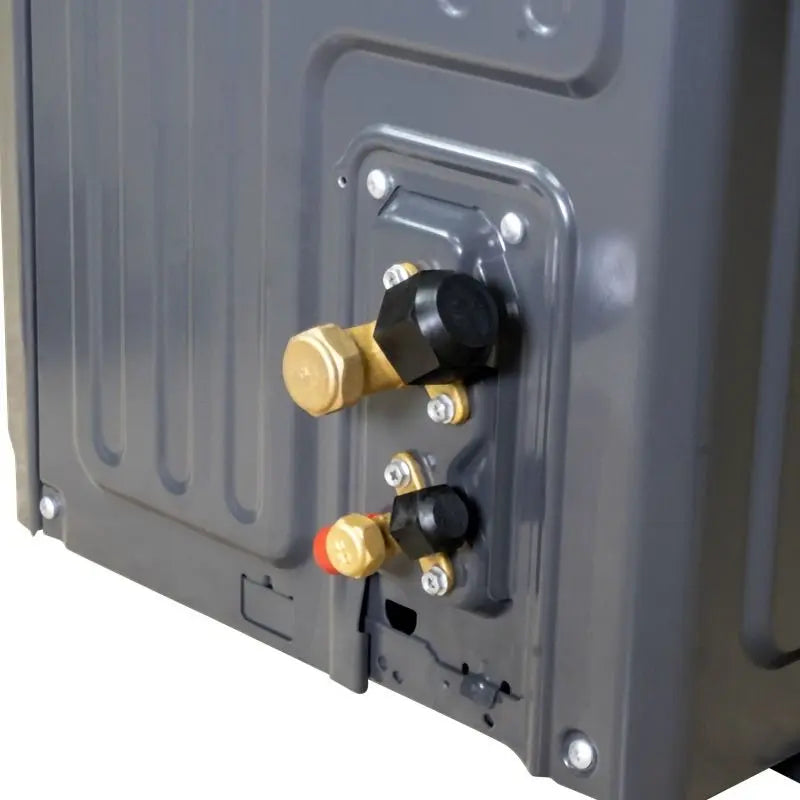

| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 19 Amps |
| Tonnage | 2 Ton |
| Min/Max Outdoor Temp for Heating | -22°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -22°F - 122°F |
| Zone Compatibility | Single Zone |
| Ambient Temperature Range | -22°F - 122°F |
| Height | 26.50" |
| Width | 35.04" |
| Depth | 13.46" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| ACIQ 2 Ton Uncased Downflow Mobile Home Coil with TXV - R454B | |
| SKU | ACIQ-MH24AU3VWEC |
| Weight (in lbs) | 18.000000 |
| Brand/Manufacturer | ACiQ |
| Configuration | Downflow |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 2 Ton |
| Height | 13 1/2" |
| Width | 17 3/4" |
| Depth | 19 5/8" |
| Warranty | 10 Year Limited Warranty |
| ACiQ 10kW Mobile Home Electric Downflow Furnace - R454B/R32 Compatible | |
| SKU | ACIQ-EFS1020FD-MH |
| Weight (in lbs) | 115.000000 |
| Brand/Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant |
| Heating BTU | 32,800 BTU |
| Blower Motor | ECM Multi Speed |
| Drive Type | Direct |
| Maximum CFM | 1760 |
| Horsepower | 3/4 HP |
| Electric Heat | 10 Kilowatts |
| Configuration | Downflow |
| Electrical | 240v 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 60 Amp |
| Fuel Type | Electric |
| Height | 57" |
| Width | 19 3/4" |
| Depth | 24 1/2" |
| Warranty | 5 Year Limited Parts Warranty |
| ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B | |
| SKU | A2LZS |
| Weight (in lbs) | 5.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | A2L3SA, A2L4SA |
