Daikin

SKU: Model: 3MXM24AVJU9 / FTXV09AVJU9 / FTXV12AVJU9 / FTXV12AVJU9

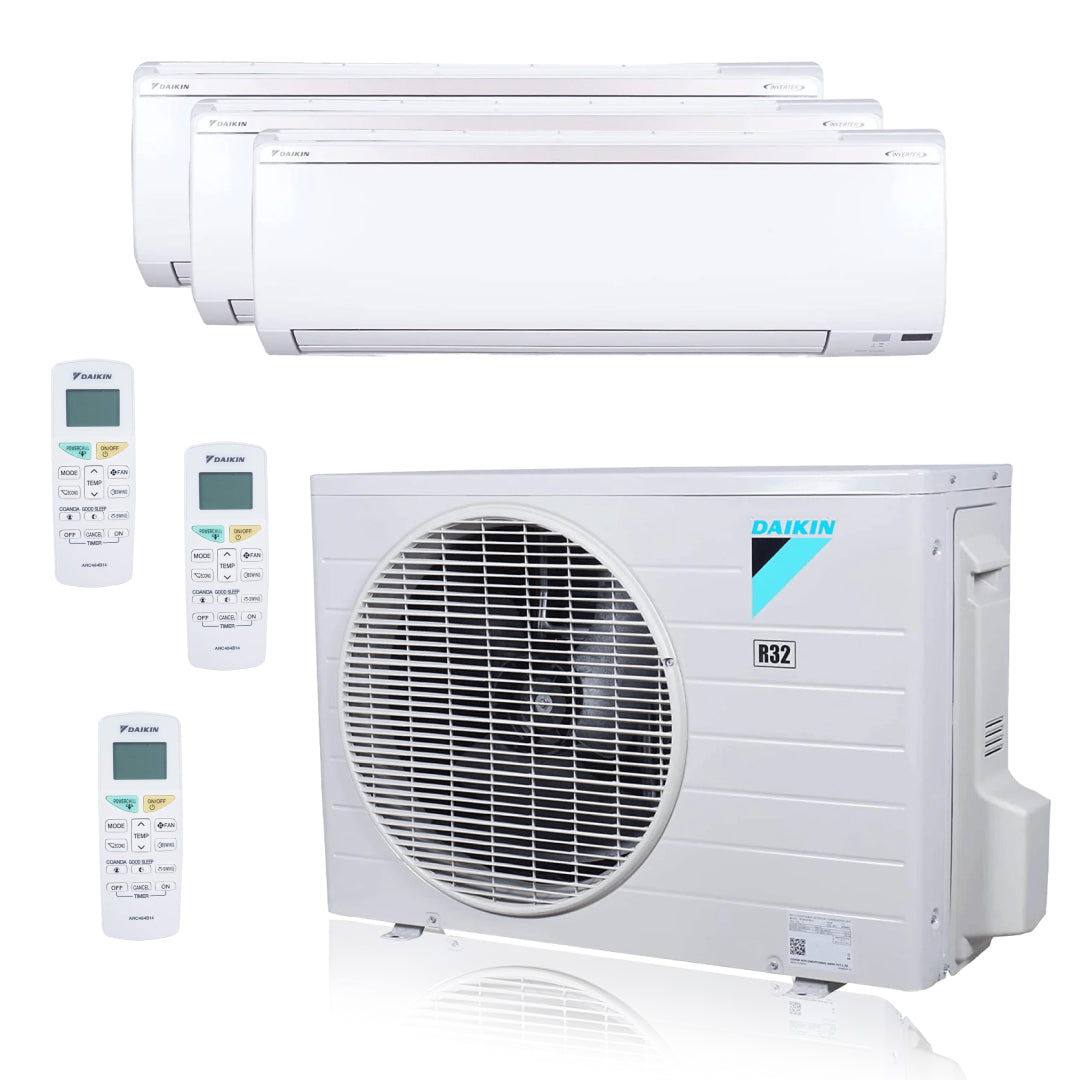

Daikin MXM Series 24000 BTU 20.6 SEER2 3 Zone R32 Ductless Mini Split Heat Pump System - 9K+12K+12K

Daikin MXM Series 24000 BTU 20.6 SEER2 3 Zone R32 Ductless Mini Split Heat Pump System - 9K+12K+12K

  • Heats 5–64°F, cools 50–115°F. 9K BTU covers 250–400 sq ft, 12k BTU: 400–600 sq ft.
Regular price $5,200.00
Regular price Sale price $5,200.00
Sale Sold out
Guaranteed Safe Checkout

Add to Cart for a Discount. 100% Privacy – We Do Not Share Your Personal Info.
Free Shipping
Ships in 1-2 Days
60 Day Guarantee
Data Privacy

Need Help?

Call, chat or email us anytime!
View full details
  • The Daikin MXM Series 24000 BTU 20.6 SEER2 3 Zone R32 Ductless Mini Split Heat Pump System - 9K+12K+12K uses advanced inverter technology to maintain stable temperatures and save energy. With a 20.6 SEER2 rating, 12 EER2, and 9.7 HSPF2, it provides efficient cooling and heating in extreme ambient conditions, all within a quiet, easy-to-install design.

    Standard Features of MXM Series:

    • Power Supply 208/230/1
    • Precharged for up to 131 ft of liquid line
    • Outdoor sound pressure as low as 52 dB(A)
    • Indoor sound pressure as low as 24 dB(A)
    • Quiet operation
    • Anti-corrosion treatment on heat exchanger
    • Auto changeover
    • Self-diagnostics with digital display
    • Auto restart after power failure

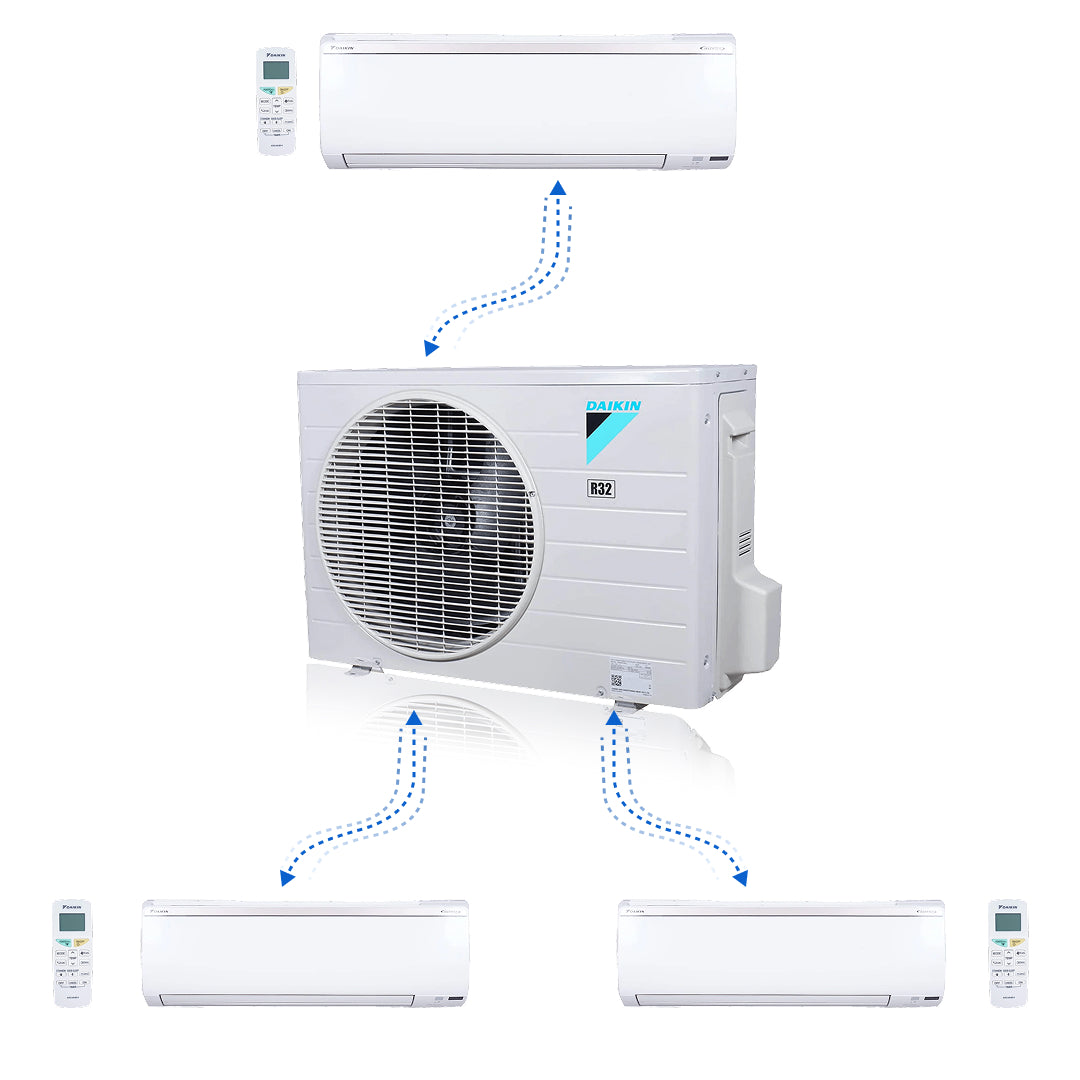

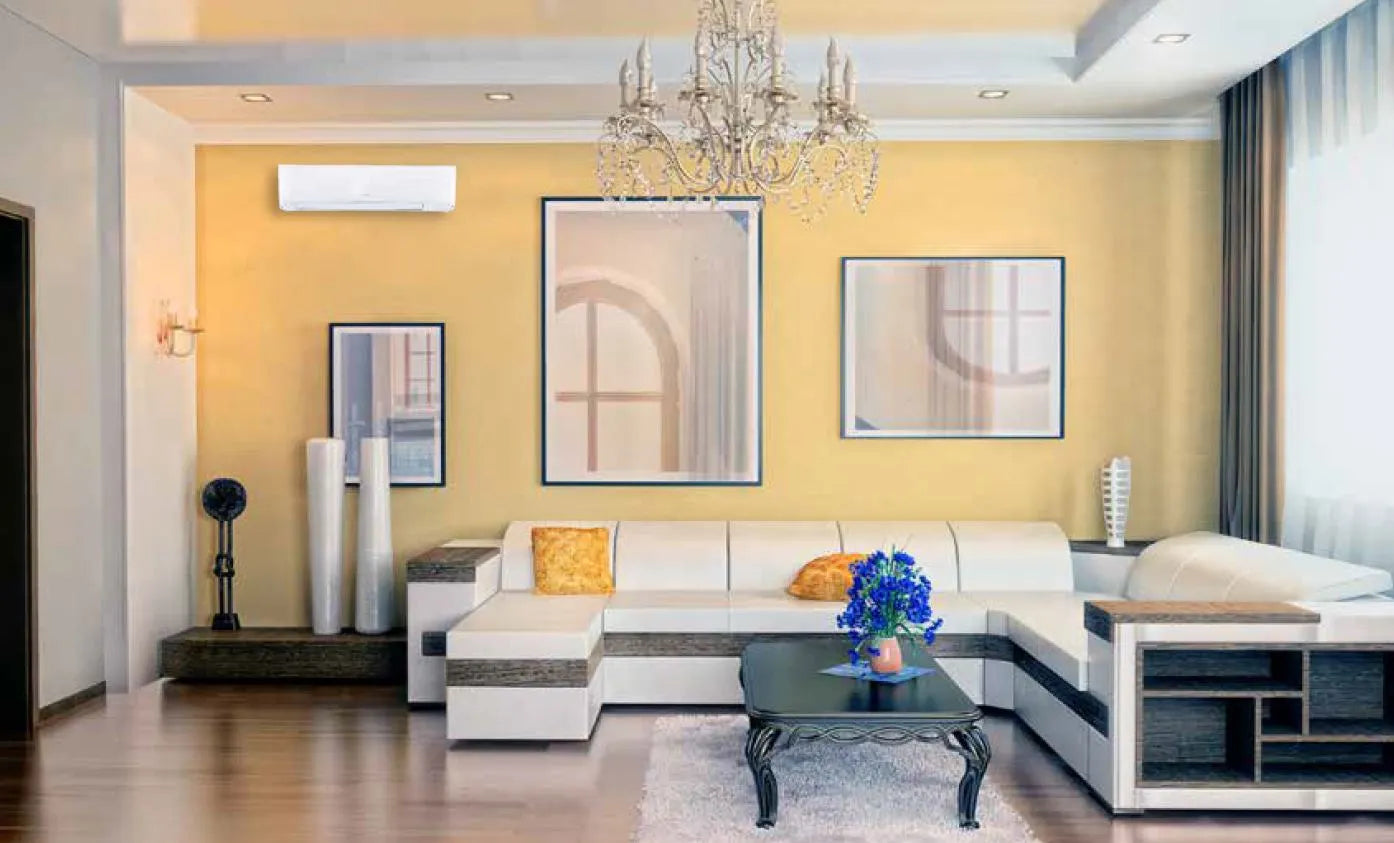

    Perfect for 3 zone applications, the Daikin wall-mounted design provides a sleek and space-saving installation. With a standard operating range of

    • Heating: 5°F to 60°F
    • Cooling: 14°F to 115°F

    It delivers reliable temperature control in various climates.

  • Warranty

    Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a certified HVAC technician.

    Processing Time

    We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.

    Equipment Arrival

    Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.

    Making Notes on the Delivery Receipt

    If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."

    If items or boxes are missing, mark the receipt as " Short" and list the missing items. A packing slip will be attached for reference. Allow up to 7 business days for the carrier to find the missing items. If they cannot be located, we will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."

    How Do I Handle a Damaged Shipment?

    If  any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.

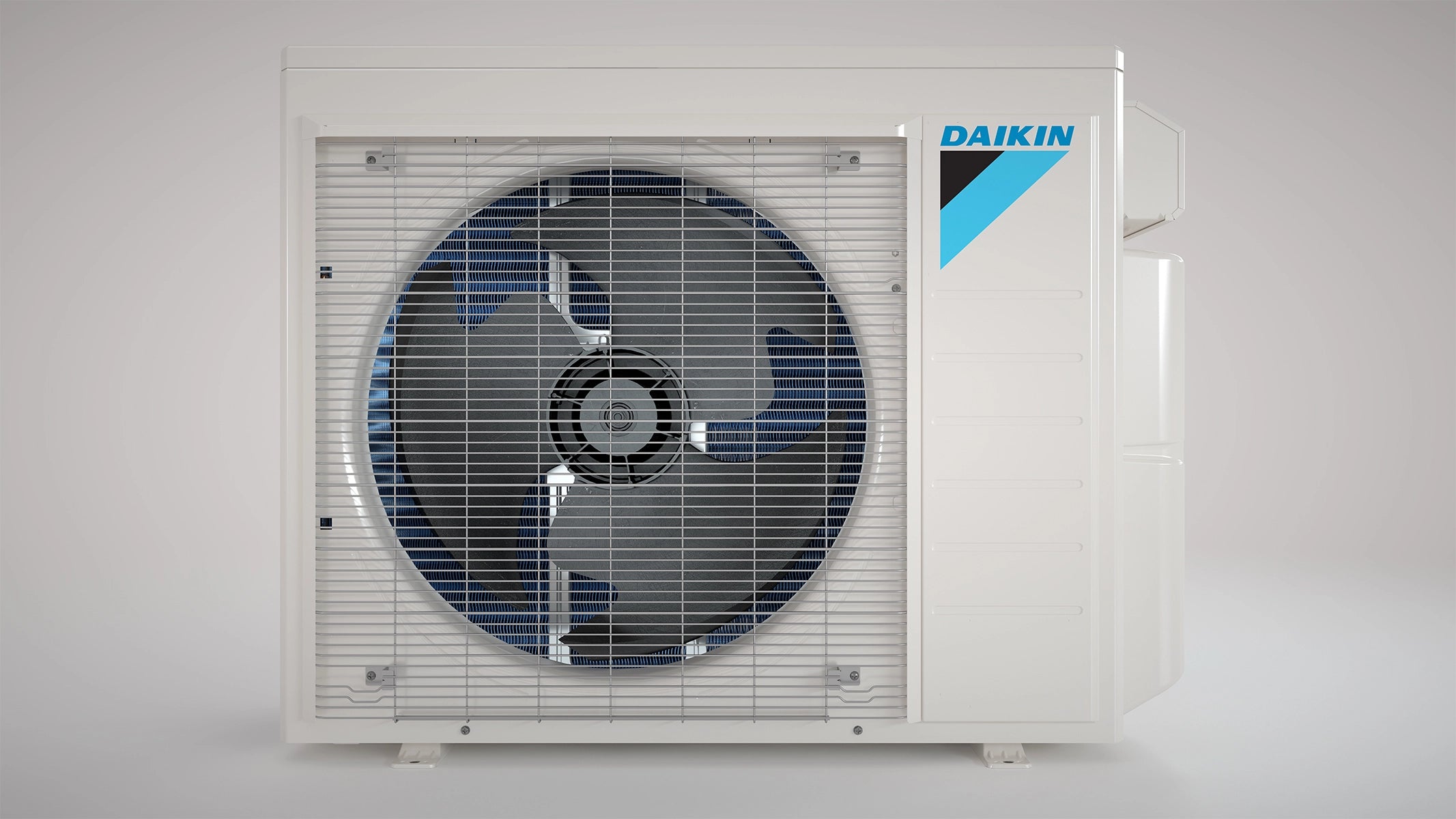

  • Outdoor Unit 3MXM24AVJU9
    Nominal Capacity 24,000
    Sound Cooling 52 dB(A)
    Sound Heating 54 dB(A)
    Dimensions H x W x D 29-1/2 x 34-1/4 x 12-5/8
    Weight 140
    Line Size & Qty 1/4 (2) x 3/8 (1), 1/2 (2)
    MOCP 25
    Indoor Unit FTXV09AVJU9
    Nominal Capacity 9,000
    Sound Cooling 43/35/31/24 dB(A)
    Sound Heating 41/35/28/25 dB(A)
    Dimensions H x W x D 11-1/4 x 30-5/16 x 8-3/4
    Weight 19
    Line Size & Qty 1/4 x 3/8
    Indoor Unit FTXV12AVJU9
    Nominal Capacity 12,000
    Sound Cooling 45/37/31/24 dB(A)
    Sound Heating 45/37/30/26 dB(A)
    Dimensions H x W x D 11-1/4 x 30-5/16 x 8-3/4
    Weight 19
    Line Size & Qty 1/4 x 3/8
