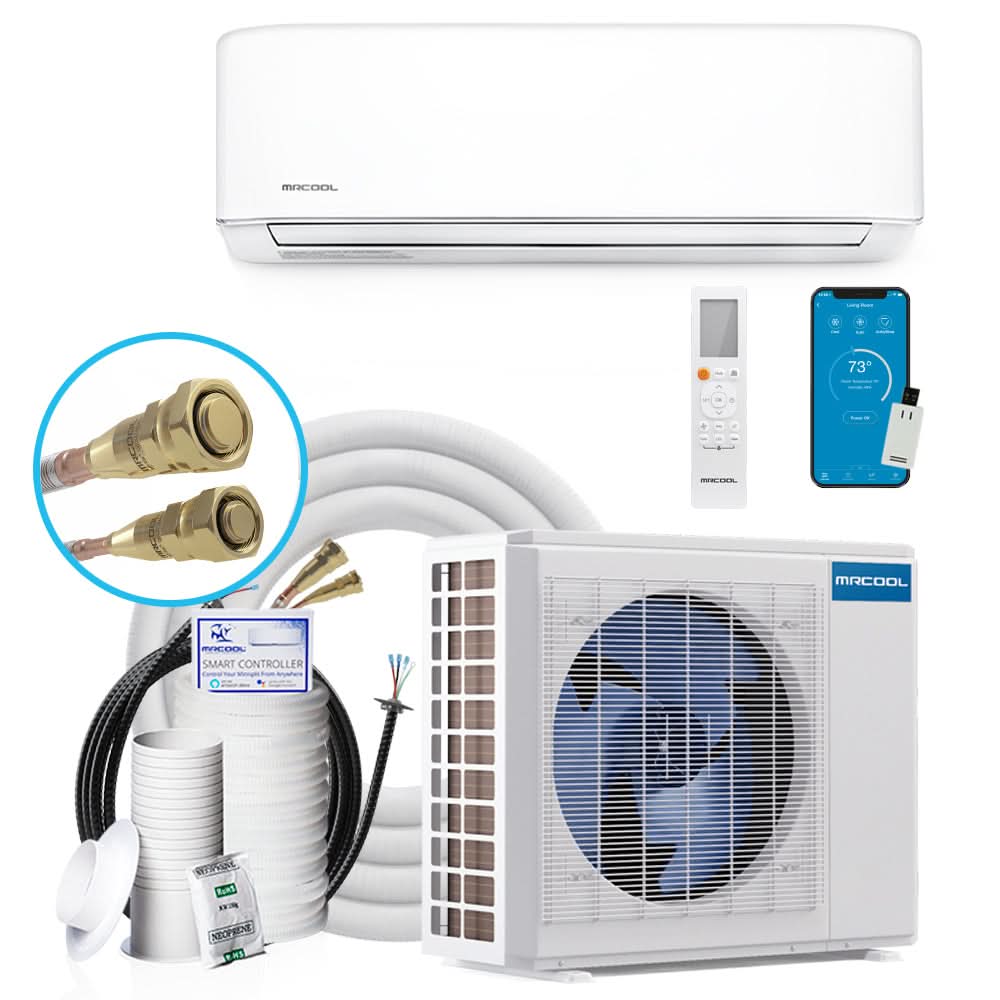

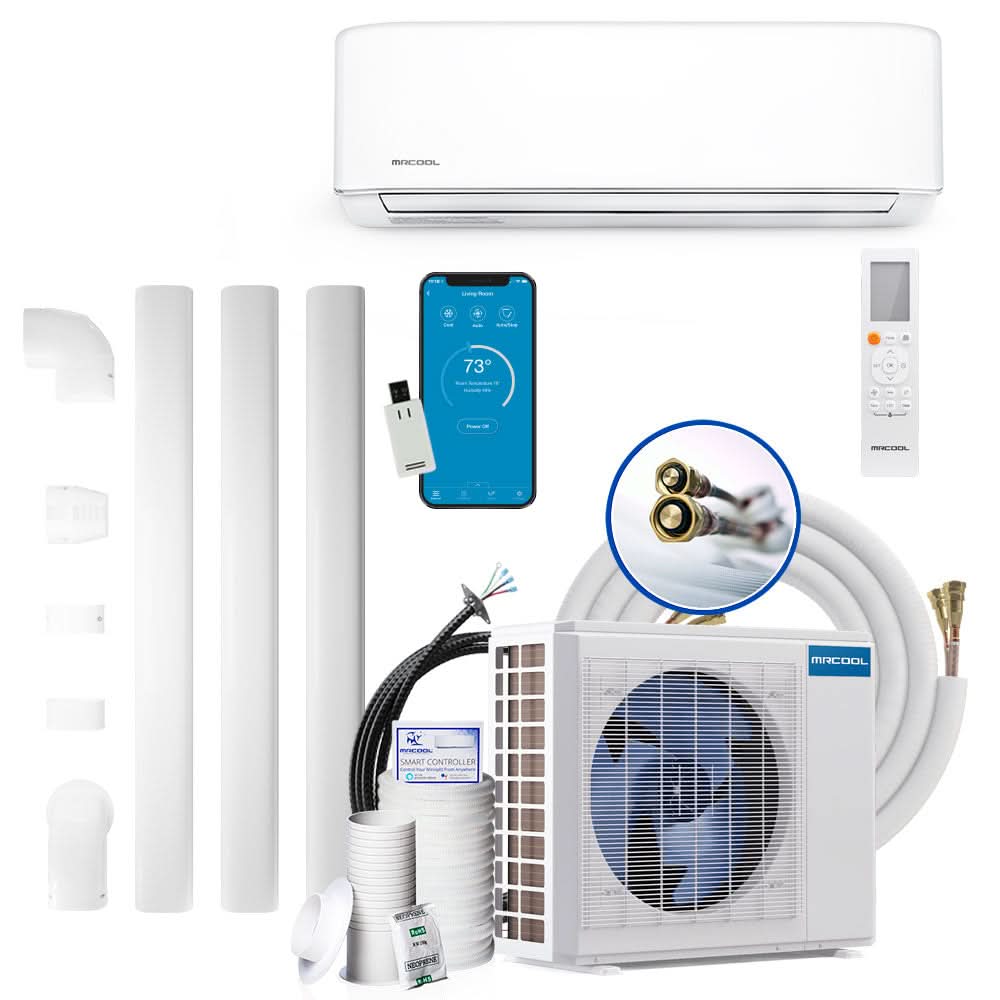

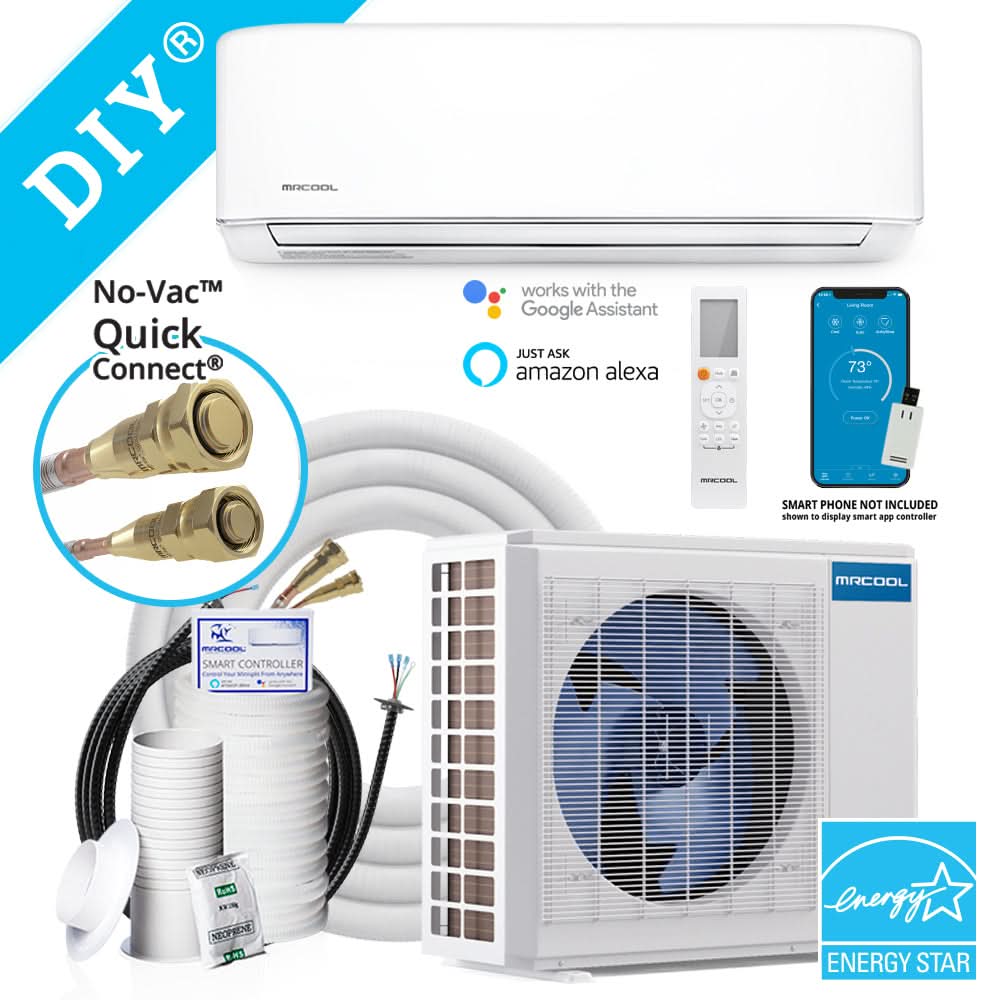

Experience the ultimate in efficiency, durability, and ease with the MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump. This all-in-one system combines superior performance with simplicity, making it the perfect choice for your home. With an impressive 20.5 SEER efficiency rating, Energy Star certification, and the ability to heat and cool an area up to 1,000 sq. ft., it guarantees exceptional comfort year-round.
Built with robust construction and a corrosion-resistant Gold Fin condenser, this system ensures longevity and reliability even in coastal environments. What sets it apart is its user-friendly design, allowing homeowners to install it themselves in just a few hours using basic tools, thanks to the patented MrCool Pre-Charged Quick-Connect Line Set that comes included.
Embrace versatility with up to six operating modes, including AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The Follow Me Feature adjusts the room temperature based on your location, detected by the hand-held remote control. Plus, you can control the system with ease from your smartphone using the Smart HVAC app.
Rest assured with the limited lifetime compressor warranty, providing you with peace of mind for years to come.
PRODUCT DETAILS:
- Brand: MRCOOL
- Series: DIY 4th Gen E STAR
- Model: DIY-24-HP-WM-230C25
- GTIN: 00810035935174
- UPC: 810035935174
- Unit Type: Mini-Split
- Color: White
- Color Family: White
- Maximum Coverage Area: Up to 1000 sqft
- Zone Capacity: 1
- Refrigerant Type: R-410A
- Refrigerant Volume: 81.13 oz
TECHNICAL SPECIFICATIONS:
- SEER: 20.5
- EER: 12.5
- COP: 3.15
- HSPF: hspf4/hspf5: 10.5/9
- CFM: 605.88/505.88/364.71
- Tonnage: 2
- Cooling Capacity: 23000 BTU
- Heating Capacity: 25000 BTU
- Voltage: 208-230 V
- Phase: 1
- Cycle: 60 Hz
- Max Fuse Breaker: 35 A
- Min Circuit Ampacity: 22 A
- Line Set Length: 25ft
- Max Lineset Length: 75 ft
- Liquid Line Size: 3/8 in
- Suction Line Size: 5/8 in
- Compressor Motor Type: Twin-Rotary
- Condenser Fan Motor RPM: 850/750/700
- Blower Motor RPM: 1200/1000/700
FEATURES:
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion-resistant for coastal living
- Variable-speed DC inverter compressor technology for cost-effective operation
- Environmentally friendly R-410A refrigerant
- Quieter operation with Decibel Rating: 48.5/43.5/33 (Low: 33 dBA, High: 48.5 dBA)
- Inverter technology for energy-efficient performance
- Wi-Fi compatibility and app control for remote operation with iOS and Android
CERTIFICATIONS:
- Energy Star certified
- AHRI certified
- UL listed
WARRANTY:
- Limited Lifetime Compressor
- 5-year Parts/7-year Compressor (Base warranty)
- 5-year Parts (Base parts warranty)
- Proposition 65 warning: Contains chemicals, aerosol, and compressed gas
RESTRICTED STATES: GU; PR; VI
DIMENSIONS & WEIGHT:

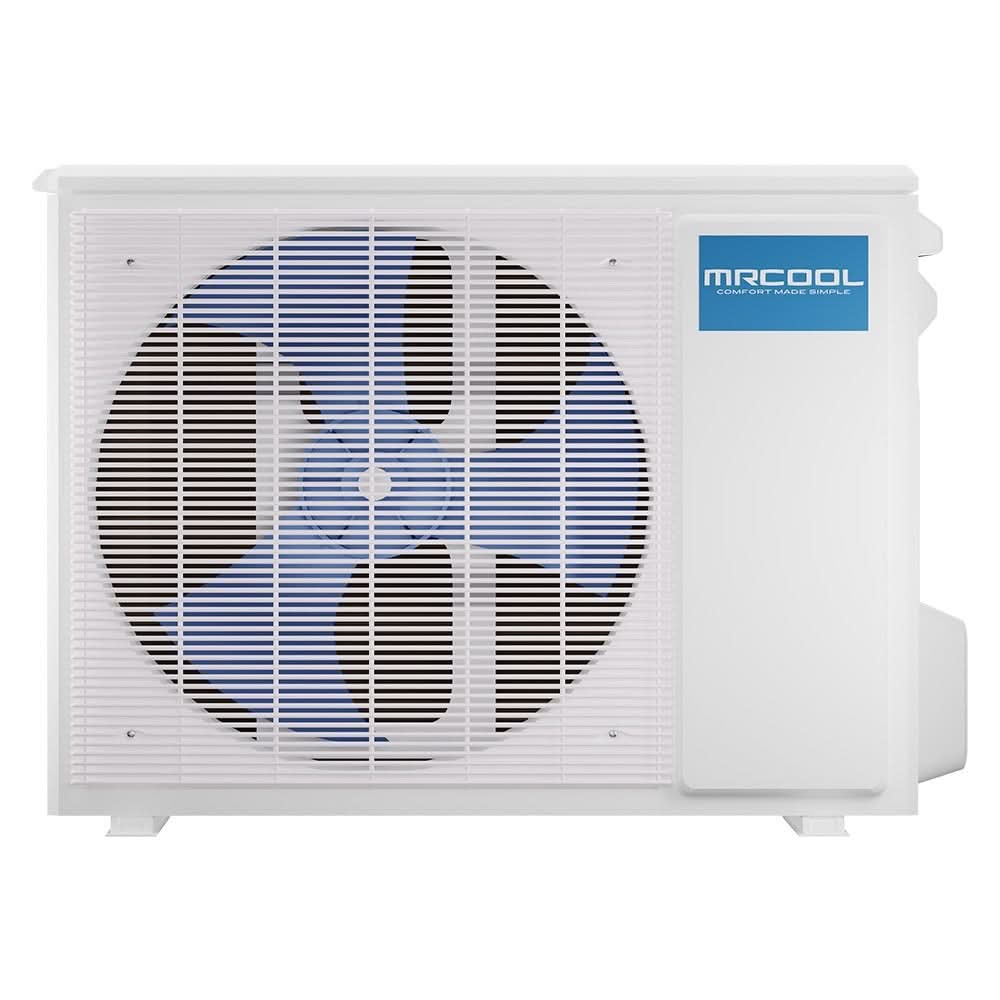

Condenser:
- Depth: 16.14 in
- Height: 31.89 in
- Width: 37.24 in
- Weight: 125.22 lbs
Air Handler:
- Depth: 8.90 in
- Height: 13.19 in
- Width: 42.52 in
- Weight: 35.27 lbs
Discover the perfect blend of efficiency and simplicity with the MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump – the smart choice for your home comfort needs.
-
-
