Goodman

SKU: Model: GLXS4BA1810 / CHPTA1822A3 / GR9S800403AN

Goodman 1.5 Ton 14.5 SEER2 AC & 80% AFUE 40K BTU Gas Furnace System, R32 Refrigerant - Horizontal

Goodman 1.5 Ton 14.5 SEER2 AC & 80% AFUE 40K BTU Gas Furnace System, R32 Refrigerant - Horizontal

Regular price $3,283.00
Regular price Sale price $3,283.00
Sale Sold out
Guaranteed Safe Checkout
View full details
  • GLXS3BN1810

    • Product Benefits:
      • Energy-Efficient Compressor
      • Fully charged for 15' of tubing length
      • Copper tube/ enhanced aluminum fin coil-5mm diameter
      • Factory-installed filter drier
      • Sweat connection service valves with easy access to gauge ports
      • Enclosed contactor with lug connection
      • High-pressure switch
      • Capacitors with extended life
      • AHRI Certified
      • ETL Listed
    • Cabinet Features:
      • Removable grille-style top design compliant with UL 60335-2-40
      • Venturi for increased velocity of airflow
      • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
      • Wire fan discharge grille
      • Steel louver coil guard
      • Top and side maintenance access
      • Single-panel access to controls with space provided for field-installed accessories

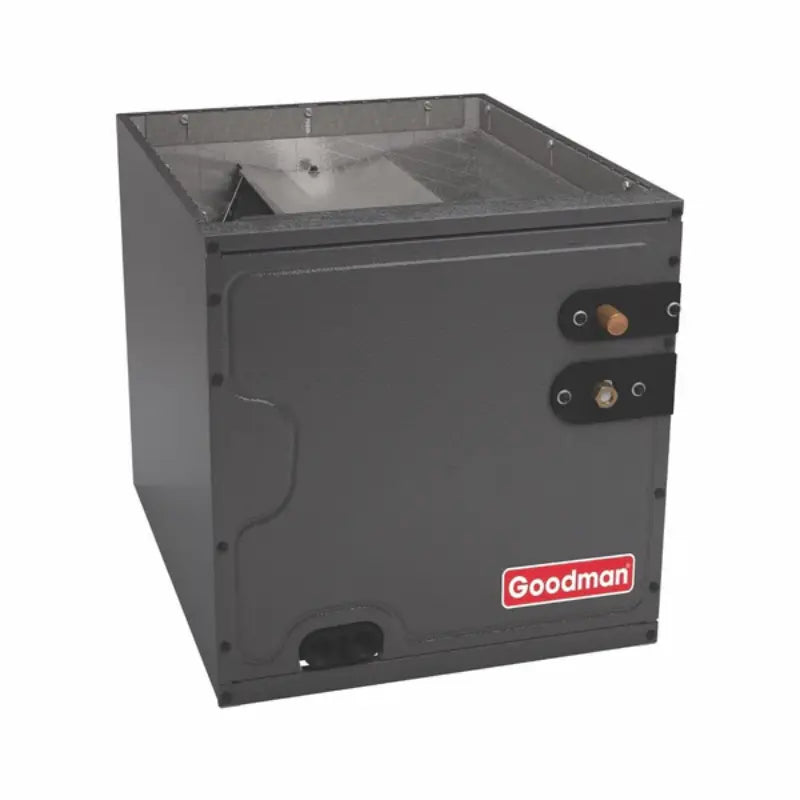

    CHPTA1822A3

    • Product Benefits:
      • All-Aluminum evaporator coil
      • Optimized for use with R-32 refrigerant including circuits and manifolds
      • R-32 sensor designed for the life span of the coil
      • Factory-installed thermal expansion valves for cooling and heat pump applications
      • Standardized copper suction tube stub length
      • Check flowrator for cooling and heat pump applications
      • Vertical application
      • 21" depth for easier attic access
      • Single front access panel
      • Foil-faced insulation covers the internal casing to reduce cabinet condensation
      • Galvanized, leather grain-embossed finish
      • Rust resistant, thermoplastic drain pan featuring a low water-retention design
      • DecaBDE-free thermoplastic drain pan with secondary drain connections
      • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
      • UV-resistant drain pan
      • AHRI certified
      • ETL Listed

    GR9S800403AN

    • Product Benefits:
      • High reliability and quality
      • Faster condensate water drainage and no unit water leakage
      • Durable and long igniter life
      • Provisions for electronic air cleaner and humidifier
      • Quiet and Economical heating
      • Energy Efficient and quiet circulation
      • Lower NOx emission
      • Self-diagnostic control board with constant memory
      • Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
      • Tax Credit
      • Operates on two-stage or single-stage thermostats
      • Easy Connection for EAC and Humidifier"
    • Cabinet Features:
      • Multi-position installation: upflow, horizontal left or right
      • Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
      • Easy to install top venting with optional side vent
      • Convenient left or right connection for gas and electrical service
      • Cabinet air leakage (Qleak) less than or equal to 2%
      • Fully insulated heat exchanger and blower section
      • Bottom or side return air applications
      • Heavy-gage steel cabinet with durable finish
  • AHRI Reference 215214585
    AC Model Number GLXS4BA1810
    SEER 2 14.3
    Tonnage 1.5
    Unit Height x Width x Depth 27 x 26 x 26 in
    Unit Weight 69 lb
    Cooling Capacity Nominal 18,000 Btu/H
    Max Overcurrent Protection 15A
    Power Voltage 208/230 V
    Compressor Stages Single Stage
    Compressor Type Rotary
    Refrigerant Type R-32
    Evaporator Coil Model Number CHPTA1822A3
    Tonnage 1.5
    Unit Height x Width x Depth 14 x 22 x 21 in
    Cased/Uncased Cased
    Coil Application Horizontal
    Refrigerant Type R-32
    Gas Furnace Model Number GR9S800403AN
    Height x Width x Depth 33-3/8 x 14 x 28 in
    Weight 86 lb
    AFEU 80%
    Configuration Upflow/Horizontal
    BtuH Input 40,000
    BtuH Output 32,000
    Tons 3
    CFM 1,200
    Min. Circuit Amps 7.7
    Motor Type ECM
    Stages Single
    LoNox No
