GLXS3BN1810
- Product Benefits:
- Energy-Efficienct Compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
CAPTA2422B3
- Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
- Vertical application
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pan featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL Listed

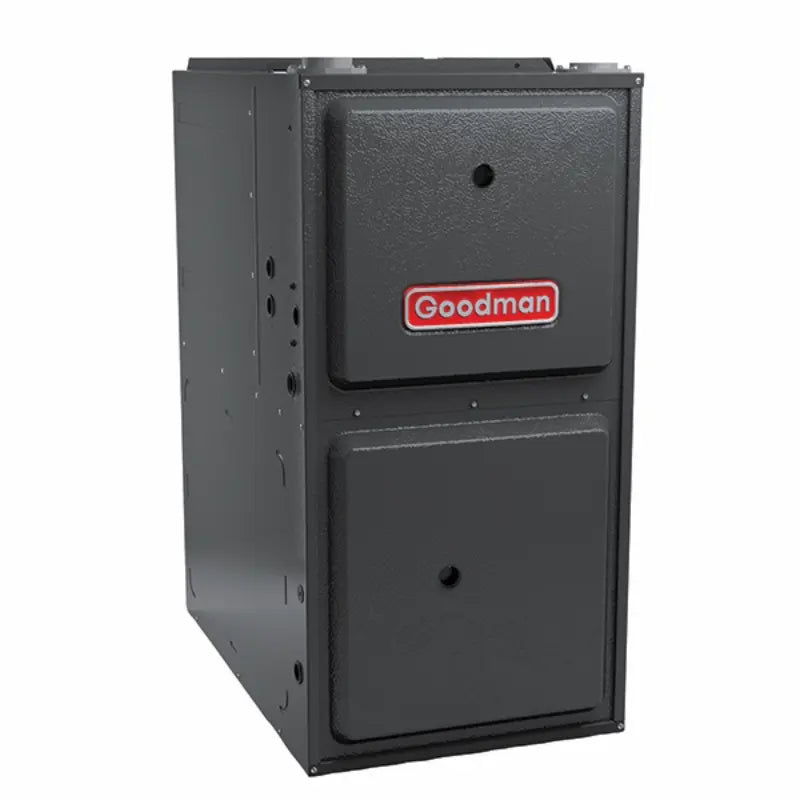

GR9T960603BN
- Product Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Quiet and Economical heating
- Energy Efficient and quiet circulation
- Lower NOx emission
- Self-diagnostic control board with constant memory
- Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
- Tax Credit
- Operates on two-stage or single-stage thermostats
- Easy Connection for EAC and Humidifier
- Cabinet Features:
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable finish
- Product Benefits:
-
AHRI Reference 215276817 AC Model Number GLXS3BN1810 SEER 2 13.4 Tonnage 1.5 Unit Height x Width x Depth 27.5 x 26 x 26 in Unit Weight 114 lb Cooling Capacity Nominal 18,000 Btu/H Max Overcurrent Protection 15A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CAPTA2422B3 Tonnage 2 Unit Height x Width x Depth 22 x 17.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9T960603BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 115 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 57,600 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 7.8 Motor Type ECM Stages Two LoNox No -
-
