Model: GLXS5BA1810 / CAPTA2422A3 / GR9S800603AN

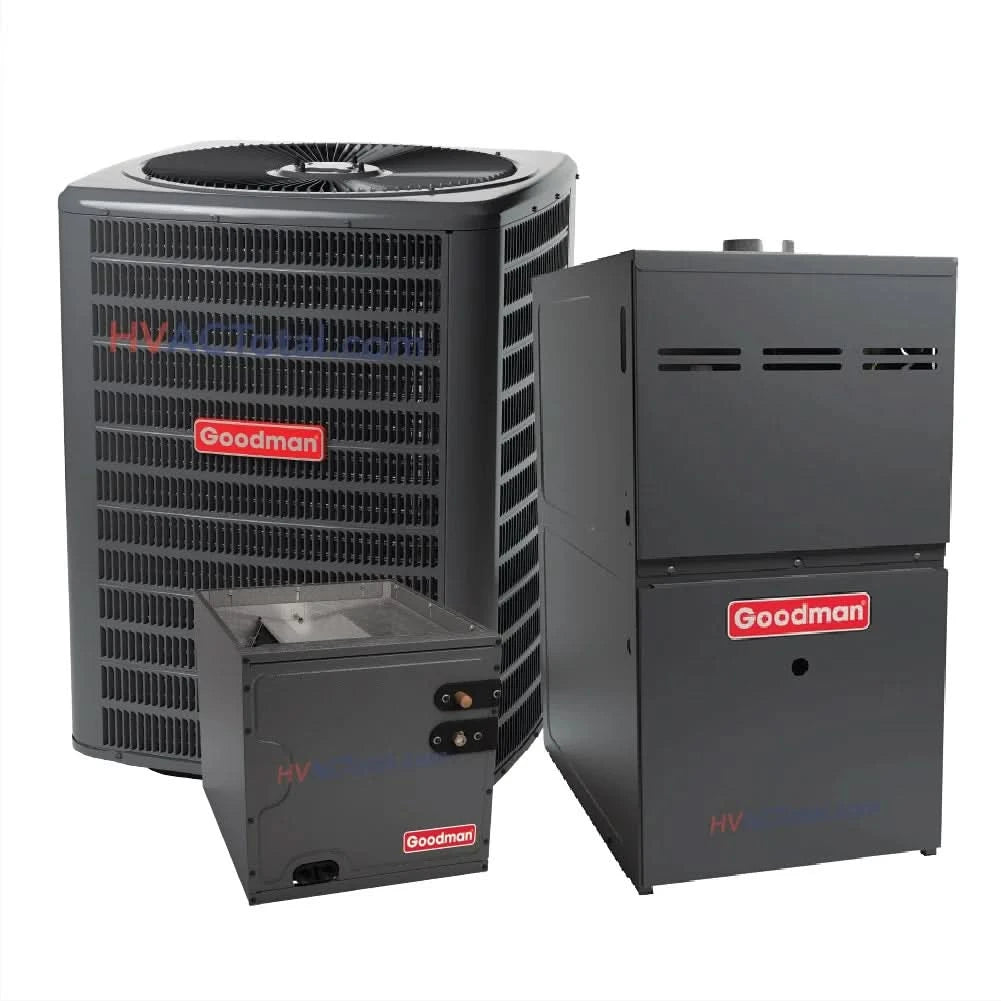

Goodman 1.5 Ton 14.5 SEER2 R32 AC and 80% AFUE 60K BTU Gas Furnace System - Downflow

Goodman 1.5 Ton 14.5 SEER2 R32 AC and 80% AFUE 60K BTU Gas Furnace System - Downflow

Free Liftgate Shipping 10 Year parts warranty W/ online registration

AC & furnace combo: Pre-charged AC to 15ft w/ 14" furnace. Natural gas/propane (kit req).
Regular price $3,943.00
Regular price Sale price $3,943.00
Sale Sold out
Guaranteed Safe Checkout

Free express shipping
Ships in 1-2 business days
60 Days return policy
Expert Support

Price Match Request

Found a lower price on equipment? Let us know and we'll match it (Exclude below-cost items).

Product
Goodman 1.5 Ton 14.5 SEER2 R32 AC and 80% AFUE 60K BTU Gas Furnace System - Downflow
Our Price
$3,943.00

Got a question? Talk with our experts anytime

Call Us at 866-718-1799

CHAT WITH US EMAIL US

Product Details

The Goodman 1.5 Ton 14.5 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System with R32 Refrigerant (Downflow) is a highly efficient and reliable system designed for both cooling and heating.

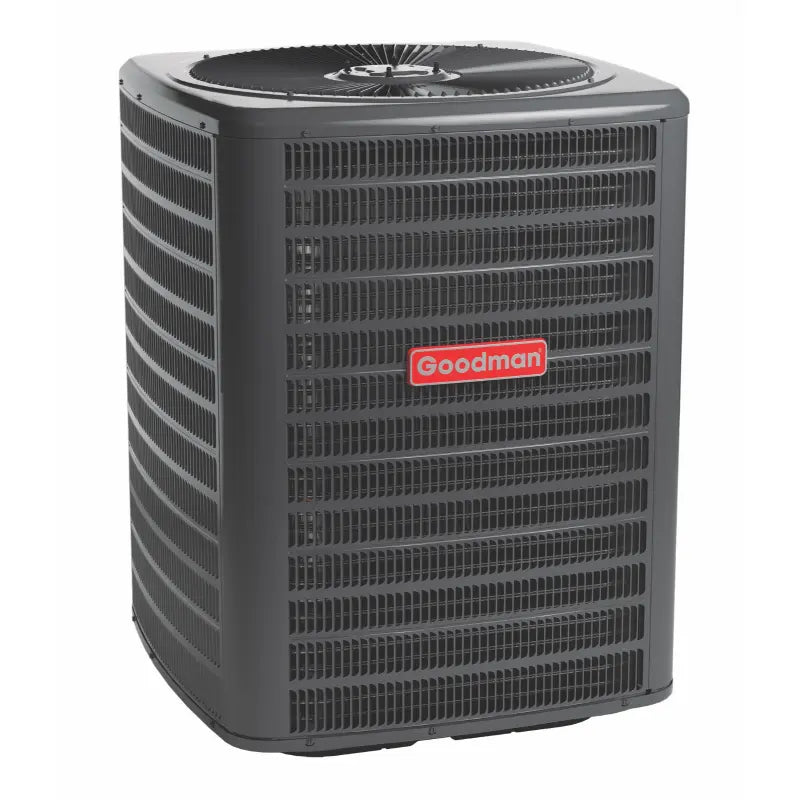

Key Benefits of the Goodman 1.5 Ton 14.5 SEER2 AC:

  • Energy Efficient: The energy-efficient compressor and pre-charged refrigerant for 15' of tubing ensure easy installation and lower energy costs.
  • Reliable Performance: Copper tubing and aluminum fins enhance durability, while the high-pressure switch and extended-life capacitors improve safety and reliability.
  • Advanced Technology: Additionally, AHRI Certified and ETL Listed for quality assurance.

Cabinet Features Goodman 1.5 Ton 14.5 SEER2:

  • Improved Airflow: Venturi design increases airflow for better cooling.
  • Durable Construction: Architectural Gray finish resists rust and salt, ensuring longevity.
  • Convenient Access: Goodman 1.5 Ton 14.5 SEER2 offers easy maintenance with top, side, and single-panel access.

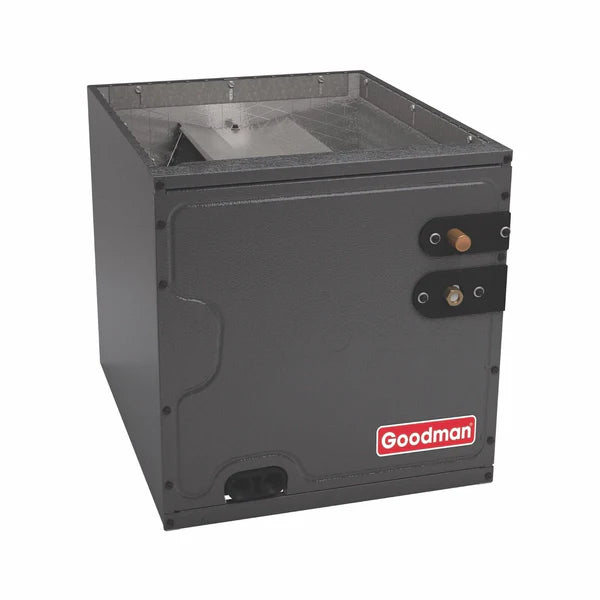

Evaporator Coil - CAPTA2422A3:

  • Optimized for R-32: The all-aluminum coil maximizes efficiency, and the 21" depth fits tight spaces.
  • Reliable Drainage: UV-resistant, rust-proof drain pan reduces water retention.

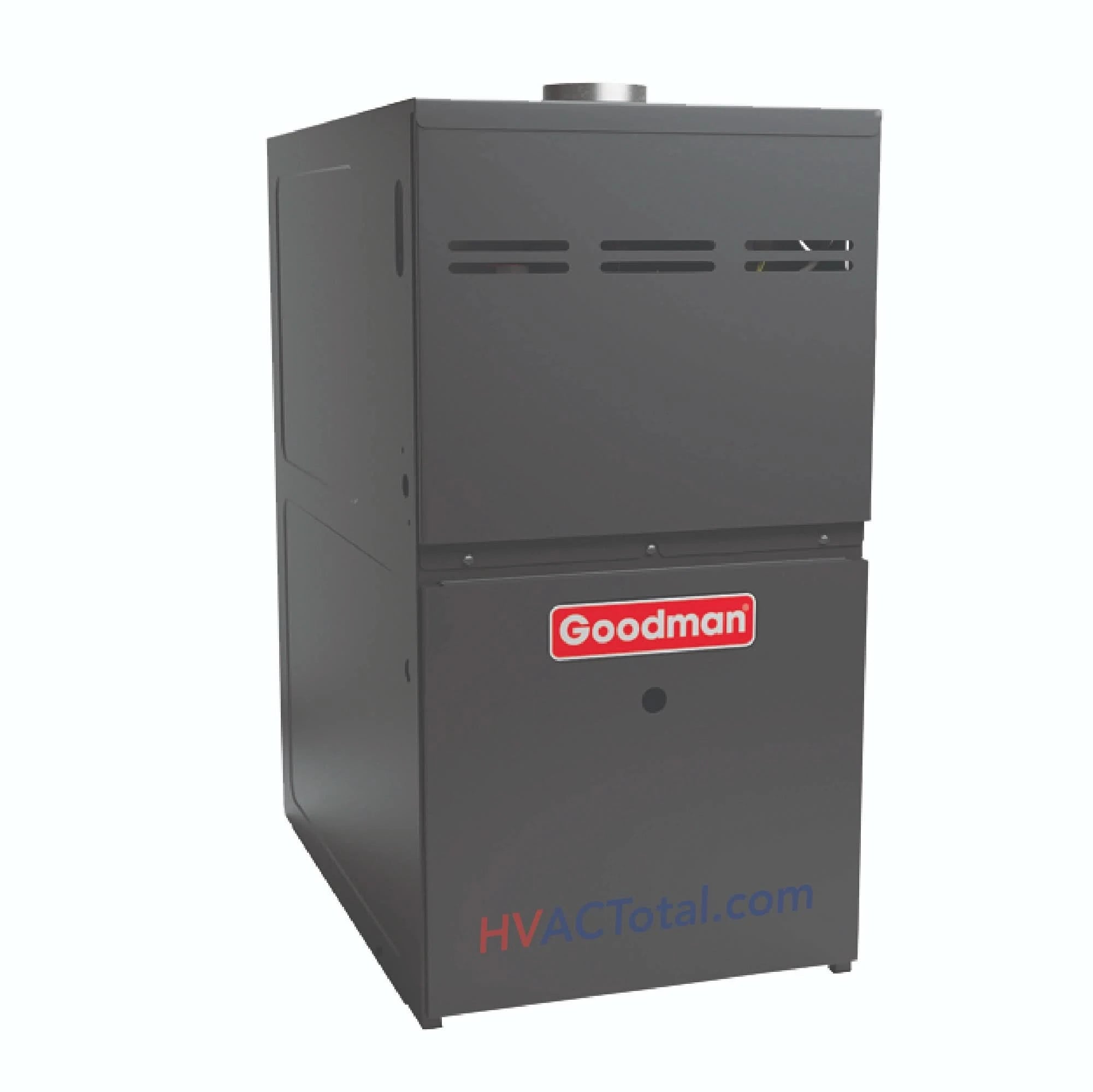

Gas Furnace - GR9S800603AN:

  • Efficient Heating: With 80% AFUE, it provides efficient heating while lowering energy costs.
  • Quiet Operation: Moreover, it delivers quiet, economical heating.
  • User-Friendly: The self-diagnostic control board simplifies setup.

Additional Features:

  • Flexible Installation: Install in upflow, left or right horizontal configurations.
  • Low Air Leakage: Ensures optimal efficiency with minimal air leakage.

In summary, the Goodman 1.5 Ton AC & 80% AFUE Gas Furnace offers efficient, quiet, and durable performance, making it an excellent choice for year-round comfort and savings

Specifications

AHRI Reference 215379995
AC Model Number GLXS5BA1810
SEER 2 15.2
Tonnage 1.5
Unit Height x Width x Depth 27 x 26 x 26 in
Unit Weight 125 lb
Cooling Capacity Nominal 18,000 Btu/H
Power Voltage 208/230 V
Motor Type PSC
Min. Circuit Amps 11.1
Max. Fuse Size 15
Liquid Connection 3/8
Suction Fitting 3/4
Refrigerant Type R-32
Evaporator Coil Model Number CAPTA2422A3
Tonnage 2
Unit Height x Width x Depth 22 x 14 x 21 in
Unit Weight 37 lbs
Cased/Uncased Cased
Coil Application Upflow/Downflow
Refrigerant Type R-32
Gas Furnace Model Number GR9S800603AN
Height x Width x Depth 33 3/8 x 14 x 28 in
Weight 90 lb
AFEU 80%
Configuration Upflow/Horizontal
BtuH Input 60,000
BtuH Output 48,000
Tons 3
CFM 1,200
Min. Circuit Amps 7.7
Motor Type ECM
Stages Single
LoNox No

Warranty & Shipping

Warranty

Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.

Processing Time

We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.

Equipment Arrival

Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.

Making Notes on the Delivery Receipt

If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."

If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."

How Do I Handle a Damaged Shipment?

If  any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
