Model: GLXS3BN1810 / CAPTA1818A3 / GM9S800403AN
Goodman 1.5 Ton AC + 40K BTU Furnace Bundle | 14 SEER2 | 80% AFUE | R-32 | Upflow
Goodman 1.5 Ton AC + 40K BTU Furnace Bundle | 14 SEER2 | 80% AFUE | R-32 | Upflow

Couldn't load pickup availability
Product Details
The Goodman 1.5 Ton 14 SEER2 AC & 80% AFUE 40,000 BTU Gas Furnace System delivers efficient cooling and reliable heating with eco-friendly R32 refrigerant, ensuring year-round comfort and energy savings.

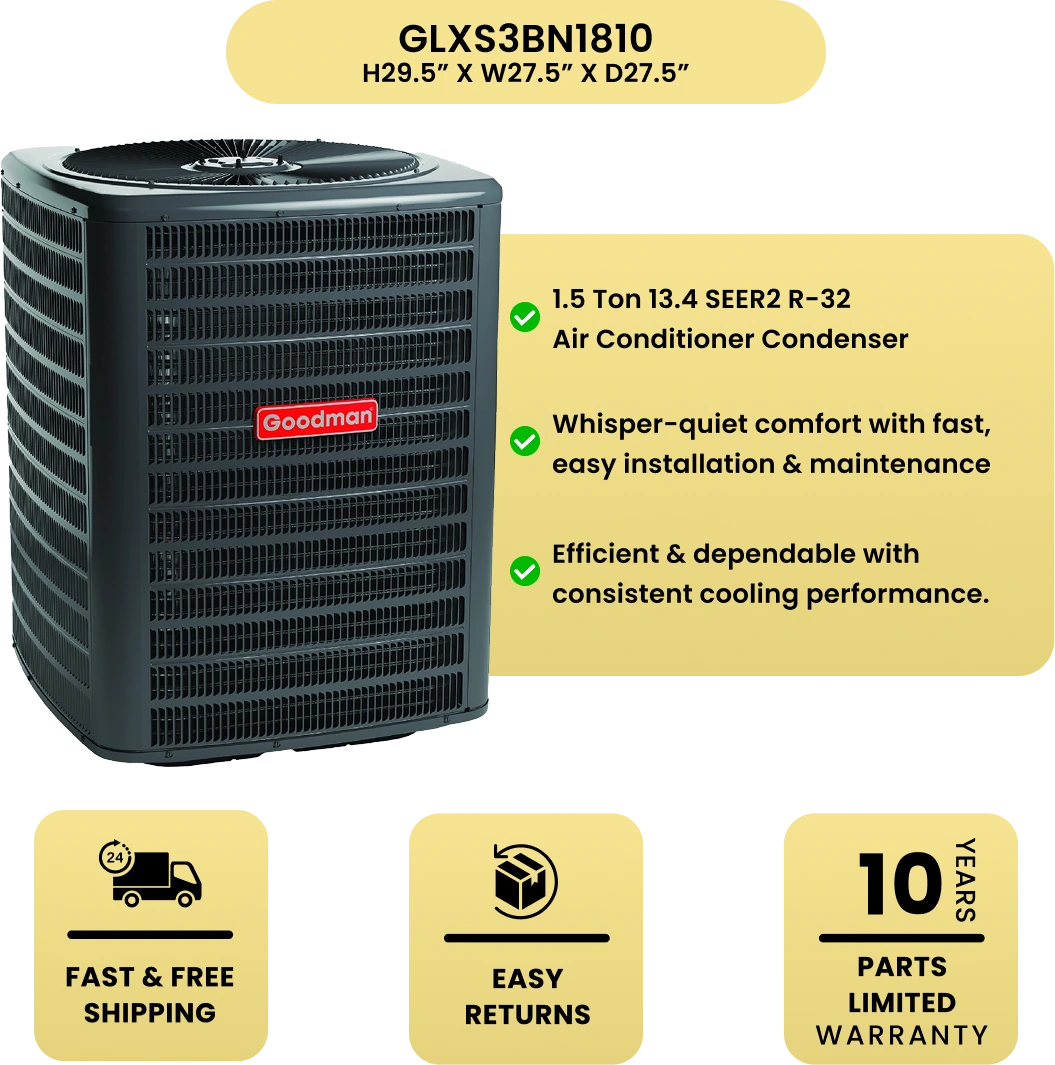

Goodman 1.5 Ton 14 SEER2 80% AFUE Features:
- Energy-Efficient Compressor Goodman 1.5 Ton 14 SEER2 reduces energy costs.
- Pre-Charged for 15' Tubing simplifies installation with a factory-installed filter drier.
- Enhanced Copper/Aluminum Coil improves heat transfer.
- Durable Cabinet with Architectural Gray finish ensures longevity.
- Certified Performance:AHRI Certified and ETL Listed.

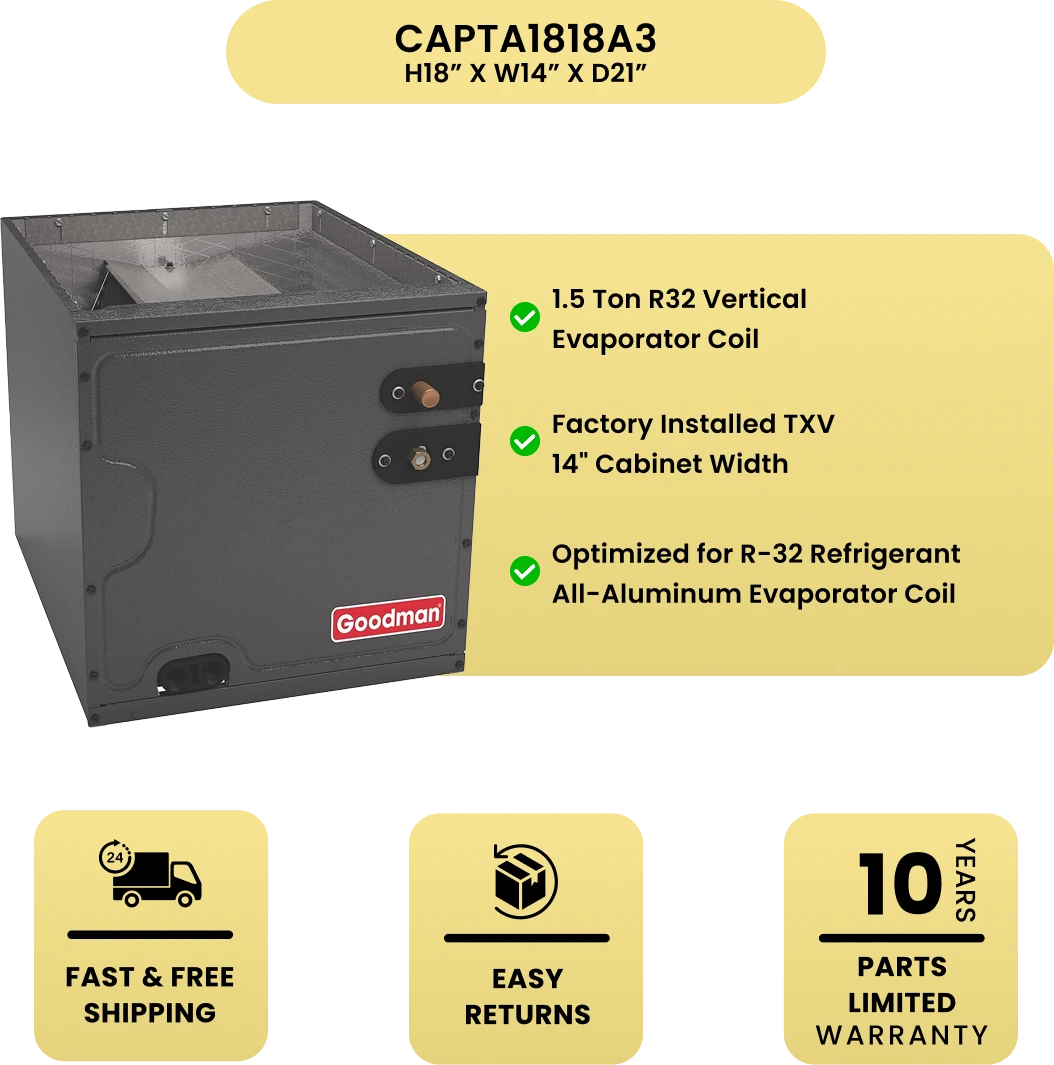

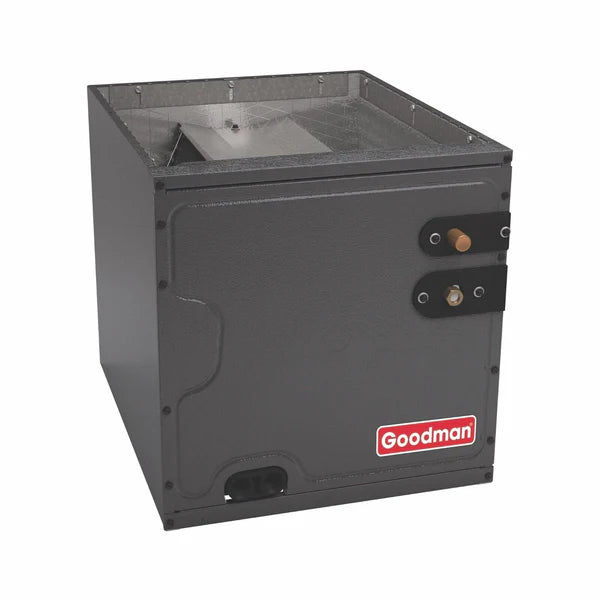

CAPTA1818A3 - Evaporator Coil:
- All-Aluminum Coil optimized for R32 refrigerant with built-in sensors.
- Compact, Rust-Resistant Design for easy maintenance.
- Insulated Casing minimizes condensation, boosting efficiency.

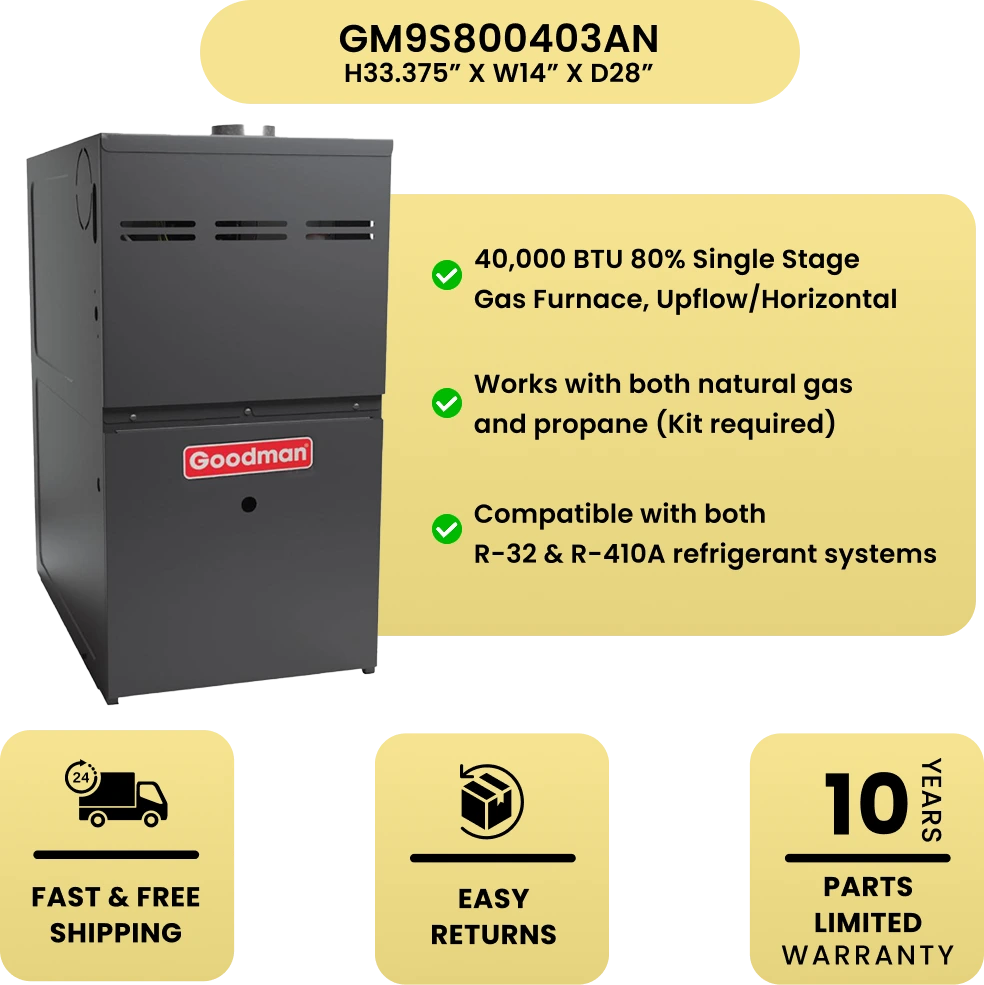

GM9S800403AN - Gas Furnace:
- 80% AFUE Efficiency: 1.5 Ton 14 SEER2 80% AFUE ensures cost-effective heating.
- Quiet Operation with durable igniters and insulated cabinet.
- Self-Diagnostic Control Board simplifies troubleshooting.
- Flexible Installation with multi-position setup and easy connections.
The 1.5 Ton 14 SEER2 AC & 80% AFUE 40,000 BTU Gas Furnace System combines advanced technology and energy efficiency, offering homeowners reliable performance and year-round comfort.
Specifications
AHRI Reference | 215320274 |
---|---|
AC Model Number | GLXS3BN1810 |
SEER 2 | 13.4 |
Unit Height | 27.5 in |
Unit Width | 26 in |
Unit Depth | 26 in |
Unit Weight | 114 lb |
Cooling Capacity Nominal | 18,000 Btu/H |
Max Overcurrent Protection | 15A |
Power Voltage | 208/230 V |
Compressor Stages | Single Stage |
Compressor Type | Rotary |
Refrigerant Type | R-32 |
Evaporator Coil Model Number | CAPTA1818A3 |
Tonnage | 1.5 |
Unit Height | 18 in |
Unit Width | 14 in |
Unit Depth | 21 in |
Cased/Uncased | Cased |
Coil Application | Upflow/Downflow |
Refrigerant Type | R-32 |
Gas Furnace Model Number | GM9S800403AN |
Height x Width x Depth | 33-3/8 x 14 x 28 in |
Weight | 86 lb |
AFEU | 80% |
Configuration | Upflow/Horizontal |
BtuH Input | 40,000 |
BtuH Output | 32,000 |
Tons | 3 |
CFM | 1,200 |
Min. Circuit Amps | 8.7 |
Motor Type | ECM |
Stages | Single |
LoNox | No |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- //hvactotal.com/cdn/shop/files/GLXS3 Spec Sheet
- //hvactotal.com/cdn/shop/files/GLXS3 Installation Manual
- //hvactotal.com/cdn/shop/files/GLXS3 Warranty Guide
- //hvactotal.com/cdn/shop/files/CAPTA Coils repair parts
- //hvactotal.com/cdn/shop/files/Vertical Coil Installation
- //hvactotal.com/cdn/shop/files/A2L Sensor Dragonfly Installation
- //hvactotal.com/cdn/shop/files/GM9S80 Spec Sheet
- //hvactotal.com/cdn/shop/files/GM9S80 Installation Instructions
- //hvactotal.com/cdn/shop/files/GM9S80 Warranty
