GLXS3BN1810
- Product Benefits:
- Energy-Efficient Compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
CAPTA2422A3
- Product Benefits:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Standardized copper suction tube stub length
- Check flowrator for cooling and heat pump applications
- Vertical application
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pan featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL Listed

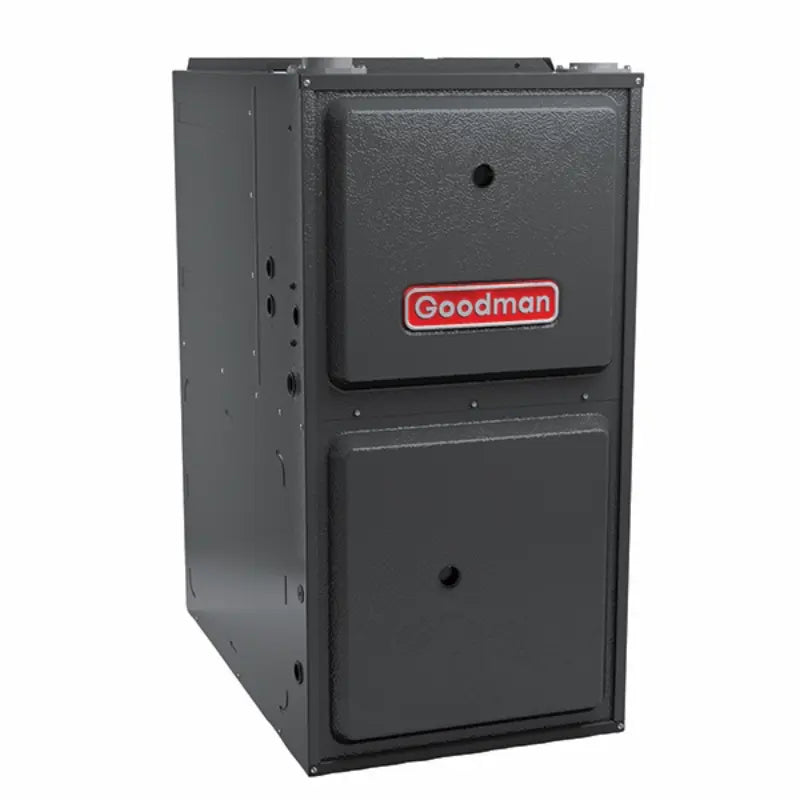

GM9S960403AN
- Product Benefits:
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Self-diagnostic control board with constant memory
- Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
- Tax Credit
- Simple installation and setup
- Easy Connection for EAC and Humidifier
- Extra option for Air flow
- High static airflow capability
- Lower NOx emission
- Product Benefits:
-
AHRI Reference 215320266 AC Model Number GLXS3BN1810 SEER 2 13.4 Unit Height 27.5 in Unit Width 26 in Unit Depth 26 in Unit Weight 114 lb Cooling Capacity Nominal 18,000 Btu/H Max Overcurrent Protection 15A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CAPTA2422A3 Tonnage 2 Unit Height 22 in Unit Width 14 in Unit Depth 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GM9S960403AN Height x Width x Depth 33-3/8 x 14 x 28 in Weight 86 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 40,000 BtuH Output 32,000 Tons 3 CFM 1,200 Min. Circuit Amps 8.7 Motor Type ECM Stages Single LoNox No -
-
