Model: GLXS3BN1810 / CAPTA2422A3 / GD9S800603AN
Goodman 1.5 Ton 14 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Downflow
Goodman 1.5 Ton 14 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Downflow

Couldn't load pickup availability
Product Details
The Goodman 1.5 Ton 14 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System combines efficiency and reliability, offering superior cooling and heating for your home. Utilizing R32 refrigerant, this downflow system is designed to enhance comfort while reducing energy costs.
GLXS3BN1810 - Goodman 1.5 Ton 14 SEER2 ACFeatures:
- Energy-Efficient Compressor: Minimizes energy consumption for cost savings.
- Pre-Charged for 15' Tubing: Includes factory-installed filter drier for easy setup.
- Enhanced Coil Technology: Copper tubes with aluminum fins for efficient heat transfer.
- Durable Cabinet: Features an Architectural Gray finish and corrosion resistance.
- Certified Safety and Performance: AHRI Certified and ETL Listed for reliability.
CAPTA2422A3 Evaporator Coil Features:
- All-Aluminum Coil: Optimized for R32 refrigerant with integrated sensors for durability.
- Compact Design: 21" depth for easy attic access and maintenance.
- Insulated Casing: Moreover, Reduces condensation and enhances energy efficiency.
- Rust-Resistant Drain Pan: UV-resistant and designed for low water retention.
- Simple Maintenance: Single front access panel and easy coil repositioning.

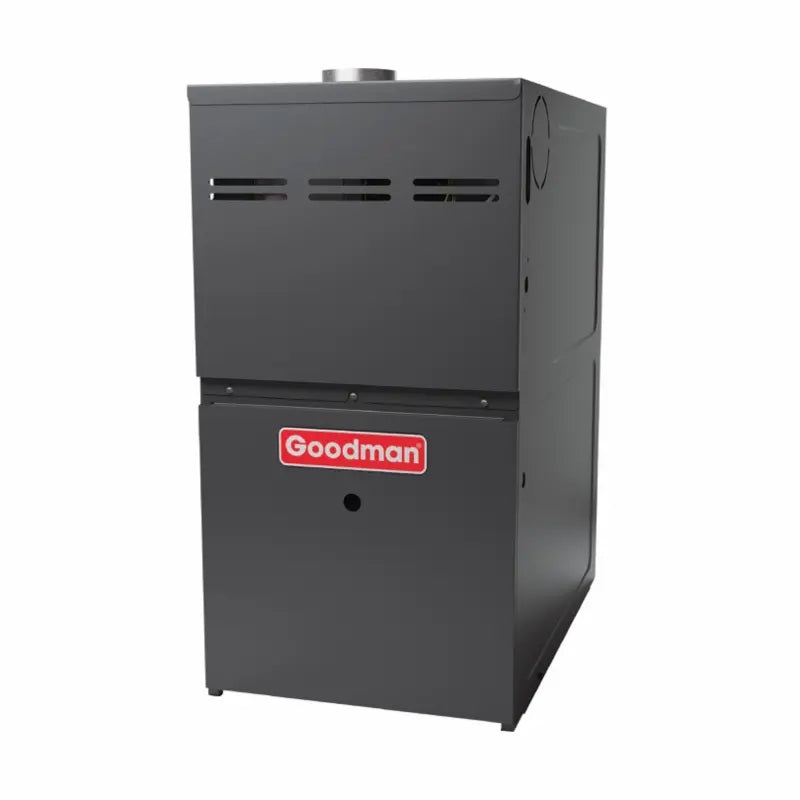

GD9S800603AN Gas Furnace Features:
- 80% AFUE Efficiency: Delivers dependable heating while conserving energy.
- Durable Components: Features long-lasting igniters and quiet operation.
- Advanced Diagnostics: Self-diagnostic control board simplifies troubleshooting.
- Easy Installation: Supports provisions for air cleaners and humidifiers.
- Quiet Air Circulation: Lastly, Ensures a peaceful indoor environment.
In summary, the Goodman 1.5 Ton 14 SEER2 AC & 80% AFUE Gas Furnace System provides year-round comfort with advanced features, eco-friendly design, and robust construction. This system is an excellent choice for reliable performance and energy efficiency
Specifications
AHRI Reference | 215276914 |
---|---|
AC Model Number | GLXS3BN1810 |
SEER 2 | 13.4 |
Tonnage | 1.5 |
Unit Height x Width x Depth | 27.5 x 26 x 26 in |
Unit Weight | 114 lb |
Cooling Capacity Nominal | 18,000 Btu/H |
Max Overcurrent Protection | 15A |
Power Voltage | 208/230 V |
Compressor Stages | Single Stage |
Compressor Type | Rotary |
Refrigerant Type | R-32 |
Evaporator Coil Model Number | CAPTA2422A3 |
Tonnage | 2 |
Unit Height x Width x Depth | 22 x 14 x 21 in |
Cased/Uncased | Cased |
Coil Application | Upflow/Downflow |
Refrigerant Type | R-32 |
Gas Furnace Model Number | GD9S800603AN |
Height x Width x Depth | 33-3/8 x 14 x 28 in |
Weight | 94 lb |
AFEU | 80% |
Configuration | Downflow/Horizontal |
BtuH Input | 60,000 |
BtuH Output | 48,000 |
Tons | 3 |
CFM | 1,200 |
Min. Circuit Amps | 7.7 |
Motor Type | ECM |
Stages | Single |
LoNox | Yes |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- //hvactotal.com/cdn/shop/files/GLXS3 Spec Sheet
- //hvactotal.com/cdn/shop/files/GLXS3 Installation Manual
- //hvactotal.com/cdn/shop/files/GLXS3 Warranty Guide
- //hvactotal.com/cdn/shop/files/Vertical Coil Installation
- //hvactotal.com/cdn/shop/files/CAPTA Coils repair parts
- //hvactotal.com/cdn/shop/files/A2L Sensor Dragonfly Installation
- //hvactotal.com/cdn/shop/files/GD9S80 Spec Sheet
- //hvactotal.com/cdn/shop/files/GD9S80 Installation Instructions
- //hvactotal.com/cdn/shop/files/GD9S80 Warranty
Add Accessories
