Model: GLXS3BN1810 / CAPTA2422A3 / GR9S960403AN
Goodman 1.5 Ton 14 SEER2 AC & 96% AFUE 40K BTU Gas Furnace System, R32 Refrigerant - Upflow
Goodman 1.5 Ton 14 SEER2 AC & 96% AFUE 40K BTU Gas Furnace System, R32 Refrigerant - Upflow
Couldn't load pickup availability
Call Us at 866-718-1799
Product Details
The Goodman 1.5 Ton 14 SEER2 AC & 96% AFUE Gas Furnace System is a top-tier solution, offering efficient cooling and reliable heating for year-round comfort. In addition, it combines eco-friendly and energy-efficient features for superior performance.
Goodman 1.5 Ton 14 SEER2 AC Features:
- Energy-Efficient Compressor: Minimizes energy consumption, ultimately lowering utility bills.
- Pre-Charged Refrigerant: Includes 15' of tubing for quick installation.
- Durable Coil Design: Copper tubing and enhanced aluminum fins for superior performance.
- Factory-Installed Filter Drier: Moreover, Simplifies maintenance.
- Certified for Safety & Performance: It is both AHRI Certified and ETL Listed, guaranteeing high safety and performance standards.
Cabinet Highlights Goodman 1.5 Ton 14 SEER2 Heater:
- Removable Grille-Style Top: Compliant with UL standards for enhanced airflow.
- Architectural Gray Finish: Corrosion-resistant with 500-hour salt-spray approval.
- Accessible Design: Single-panel access to controls and field-installed accessories.

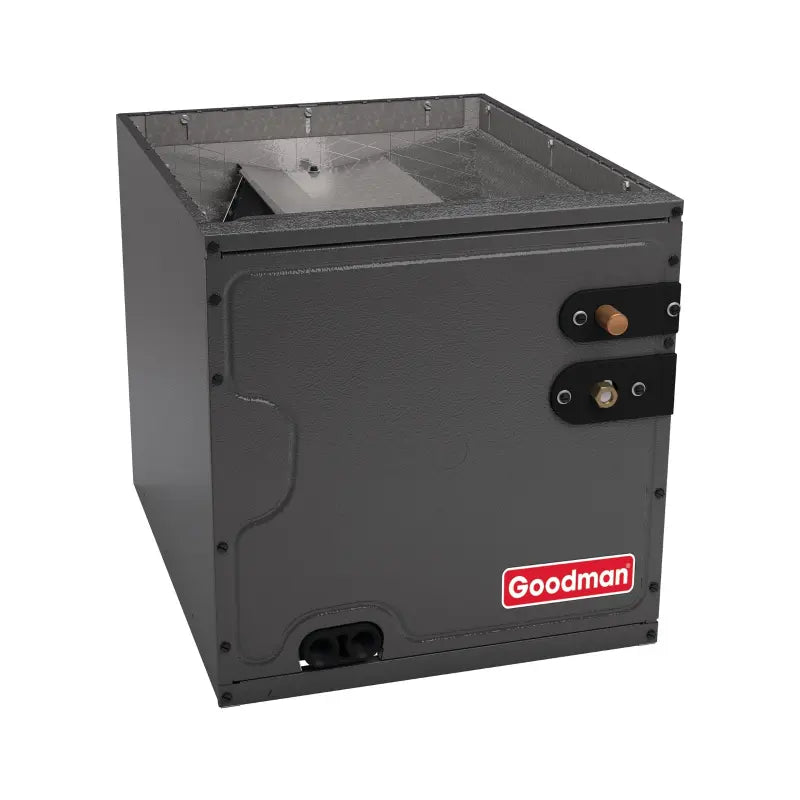

Evaporator Coil Features - CAPTA2422A3:
- All-Aluminum Coil: Optimized for R32 refrigerant.
- Compact & Accessible: The 21" depth allows for installation in tight spaces while simplifying servicing.
- Durable Build: Rust-resistant, UV-protected drain pan, and galvanized finish.
- Enhanced Insulation: Foil-faced casing reduces condensation.
Gas Furnace Features - GR9S960403AN:
- 96% AFUE Efficiency: Delivers consistent, cost-effective heating.
- Quiet Operation: Reduced noise with advanced airflow circulation.
- Eco-Friendly: Low NOx emissions meet strict standards.
- Self-Diagnostics: Monitors performance with constant memory.
- Thermostat Compatibility: Supports single-stage or two-stage setups.
Cabinet Design Goodman 1.5 Ton 14 SEER2 Heater:
- Multi-Position Installation: Upflow, horizontal left, or right configurations.
- Direct or Non-Direct Venting: Flexible venting options for various applications.
- Heavy-Gauge Steel Construction: Durable finish for long-lasting performance.
- Sealed & Insulated: Minimizes air leakage and noise.
In conclusion, the Goodman 1.5 Ton 14 SEER2 AC & 96% AFUE Gas Furnace System is an efficient, eco-friendly, and reliable choice for heating and cooling needs. Its advanced features ensure long-term comfort while maximizing energy savings
Specifications
| AHRI Reference | 215276852 |
|---|---|
| AC Model Number | GLXS3BN1810 |
| SEER 2 | 13.4 |
| Tonnage | 1.5 |
| Unit Height x Width x Depth | 27.5 x 26 x 26 in |
| Unit Weight | 114 lb |
| Cooling Capacity Nominal | 18,000 Btu/H |
| Max Overcurrent Protection | 15A |
| Power Voltage | 208/230 V |
| Compressor Stages | Single Stage |
| Compressor Type | Rotary |
| Refrigerant Type | R-32 |
| Evaporator Coil Model Number | CAPTA2422A3 |
| Tonnage | 2 |
| Unit Height x Width x Depth | 22 x 14 x 21 in |
| Cased/Uncased | Cased |
| Coil Application | Upflow/Downflow |
| Refrigerant Type | R-32 |
| Gas Furnace Model Number | GR9S960403AN |
| Height x Width x Depth | 34.5 x 14 x 28-3/4 in |
| Weight | 108 lb |
| AFUE | 96% |
| Configuration | Upflow/Horizontal |
| BtuH Input | 40,000 |
| BtuH Output | 38,800 |
| Tons | 1.5 - 3 |
| CFM | 1,200 |
| Min. Circuit Amps | 9.7 |
| Motor Type | ECM |
| Stages | Single |
| LoNox | No |
Warranty & Shipping
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a properly certified professional adhering to city, state and federal laws.
Processing Time
We process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. We will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
Documents
- //hvactotal.com/cdn/shop/files/GLXS3 Spec Sheet
- //hvactotal.com/cdn/shop/files/GLXS3 Installation Manual
- //hvactotal.com/cdn/shop/files/GLXS3 Warranty Guide
- //hvactotal.com/cdn/shop/files/Vertical Coil Installation
- //hvactotal.com/cdn/shop/files/CAPTA Coils repair parts
- //hvactotal.com/cdn/shop/files/A2L Sensor Dragonfly Installation
- //hvactotal.com/cdn/shop/files/GR9S96 Spec Sheet
- //hvactotal.com/cdn/shop/files/GR9S96 Installation Instructions
- //hvactotal.com/cdn/shop/files/GR9S96 Warranty
