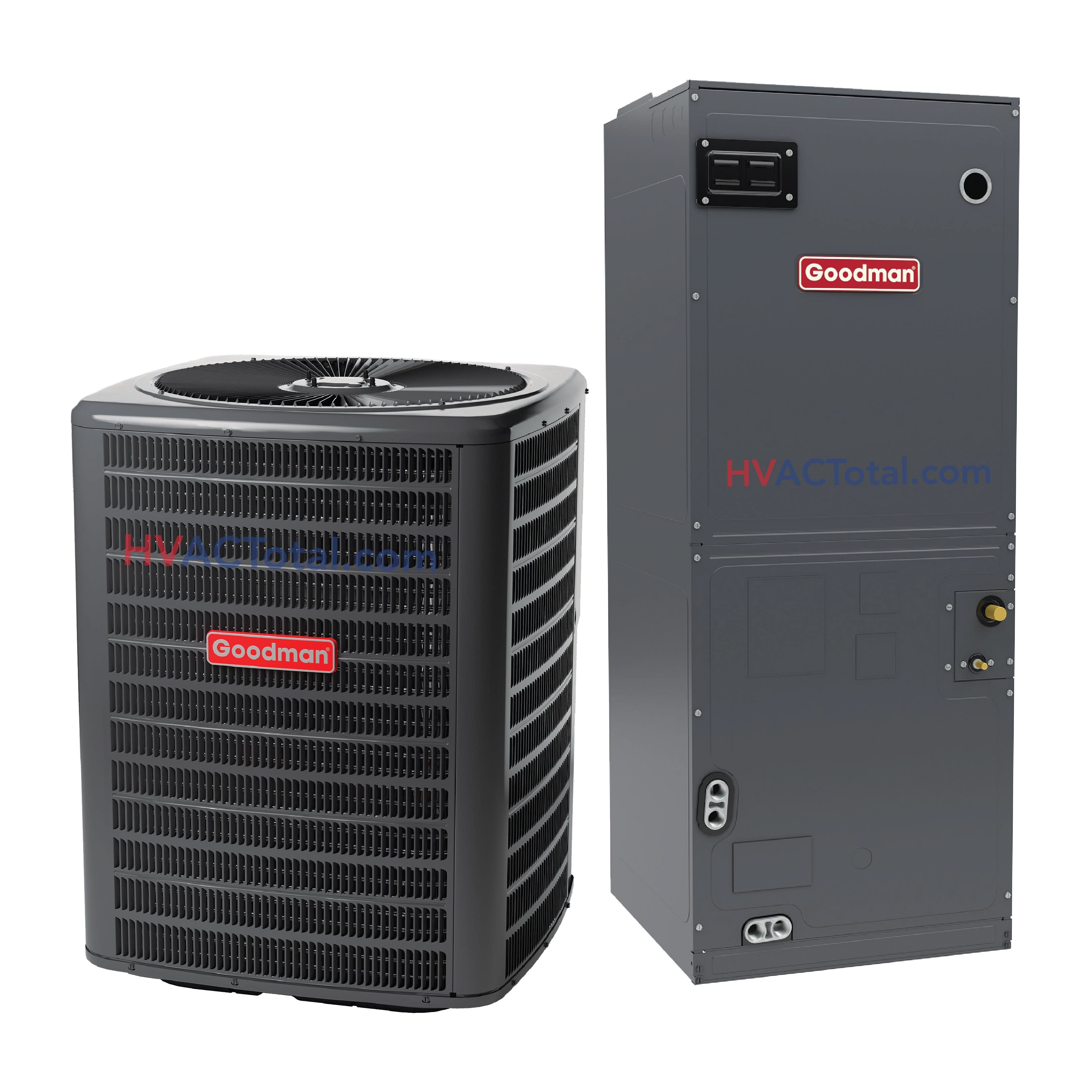

GLXS3BN1810
- Product Benefits:
- Energy-Efficienct Compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories

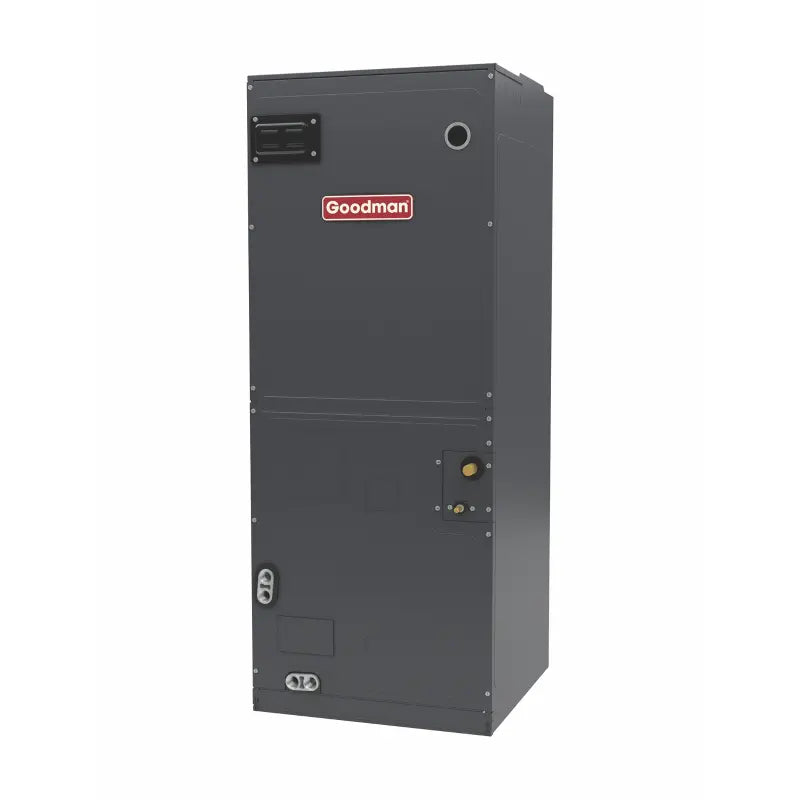

AMST24BU1300
- Product Benefits:
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, 9-speed ECM motor

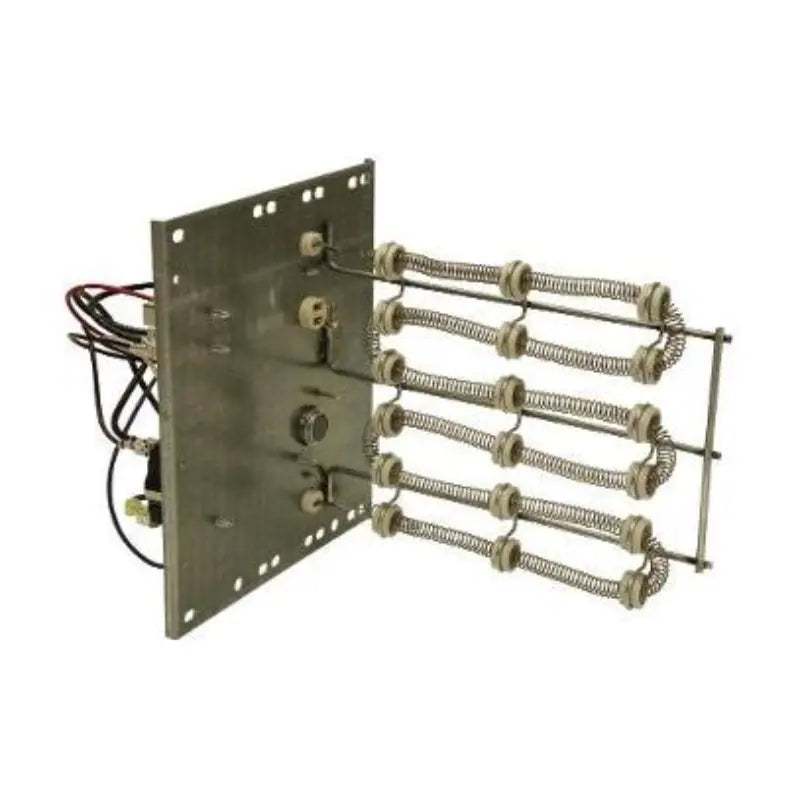

- Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
- High-efficiency evaporator coil
- Quiet operation
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- AHRI Certified
- ETL Listed
- Cabinet Features:
- Rigid SmartFrame cabinet
- Horizontal or vertical configuration capabilities
- 21” depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Product Benefits:
-
AHRI 215272287 AC Model Number GLXS3BN1810 SEER2 13.4 Tons 1.5 BtuH Cooling 18,000 Volts 208/230 Phase Single Motor Type PSC Min. Circuit Amps 10.9 Max. Fuse Size 15 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant R-32 Width 27.5" Height 29.5" Depth 27.5" Weight (lbs.) 114 Air Handler Model Number AMST24BU1300 Unit Depth 21 in Unit Height 45 in Unit Width 17.5625 in Unit Weight 112 lb Cooling Capacity Nominal 24,000 Btu/H Max Overcurrent Protection 50/60 A Power Voltage 208/230 V Cased/Uncased Cased Energy Source Electric Motor Speed Type Nine Speed ECM -
-
