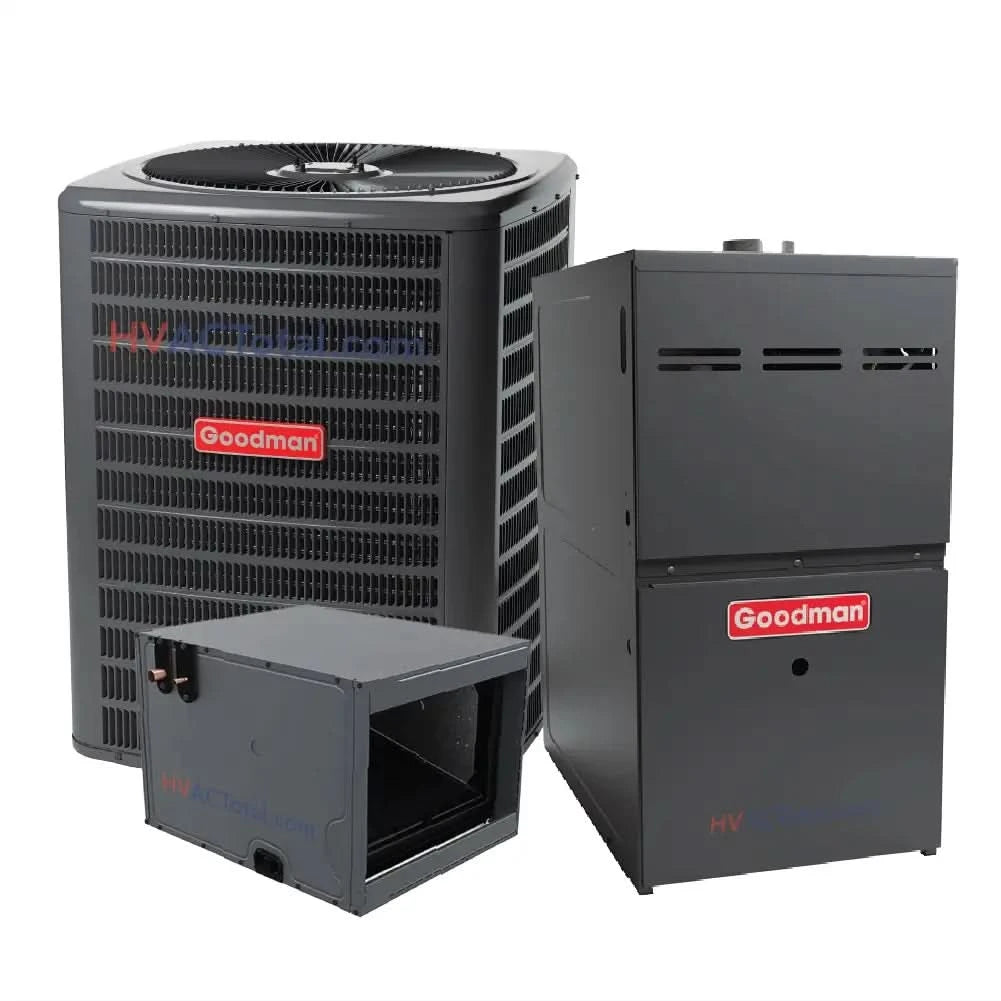

The Goodman 1.5 Ton 15.2 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System (Horizontal) is a high-performing, energy-efficient solution for heating and cooling needs.
Key Features of the Goodman 1.5 Ton 15.2 SEER2 AC:
- Energy Efficiency: To begin with, equipped with an efficient compressor and pre-charged tubing for up to 15 feet.
- Durability: Features copper tubing with enhanced aluminum fin coils and a factory-installed filter drier.
- Certified Quality: Moreover, AHRI Certified and ETL Listed for compliance with industry standards.
- User-Friendly: Includes sweat connection service valves, high-pressure switch, and extended-life capacitors.
Evaporator Coil (CHPTA2426B3):
- R-32 Compatibility: Optimized for R-32 refrigerant with factory-installed thermal expansion valves.
- Compact Design: A 21-inch depth allows for easier installation in tight spaces.
- Long-Lasting Build: Rust-resistant, UV-protected drain pan and galvanized finish ensure durability.
- Certified Performance: In addition, AHRI Certified and ETL Listed for reliability.
Gas Furnace (GR9S800603BN):
- Efficient Heating: Goodman 1.5 Ton 15.2 SEER2 Provides quiet, economical heating with an 80% AFUE rating.
- Advanced Features: Includes a self-diagnostic control board, durable igniter, and support for electronic air cleaners and humidifiers.
- Installation Flexibility: Furthermore, it works with two-stage or single-stage thermostats for seamless setup.
- Environmentally Friendly: Additionally, low NOx emissions and tax credit eligibility.
Cabinet Features of the Goodman 1.5 Ton 15.2 SEER2:
- Sturdy Design: Heavy-gauge steel cabinet with a durable baked-enamel finish.
- Flexible Installation: Also, it supports multi-position setups, including horizontal, upflow, and downflow.
- Convenience: Goodman 1.5 Ton 15.2 SEER2 offers easy access for gas and electrical service and minimal air leakage (≤2%).
In summary, the Goodman 1.5 Ton 15.2 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System combines energy efficiency, reliability, and easy installation, making it a top-tier choice for residential heating and cooling systems.
-
AHRI Reference 215214605 AC Model Number GLXS4BA1810 SEER 2 14.3 Tonnage 1.5 Unit Height x Width x Depth 27 x 26 x 26 in Unit Weight 69 lb Cooling Capacity Nominal 18,000 Btu/H Max Overcurrent Protection 15A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CHPTA2426B3 Tonnage 1.5 - 2 Unit Height x Width x Depth 17.5 x 26 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S800603BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 100 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 48,000 Tons 3 CFM 1,200 Min. Circuit Amps 7.7 Motor Type ECM Stages Single LoNox No -
-
