Model: GLXS3BN3010 / ACiQ-MH36BU3VYEC / MG1E-B090F1ABM1

Goodman 2.5 Ton 13.4 SEER2 80% AFUE 90,000 BTU Mobile Home Air Conditioner and Gas Furnace System with Coil, R32

$4,439.00

Add to Cart for Our Lowest Price.

From $369.92/mo with 🛒shopPay

Product Details

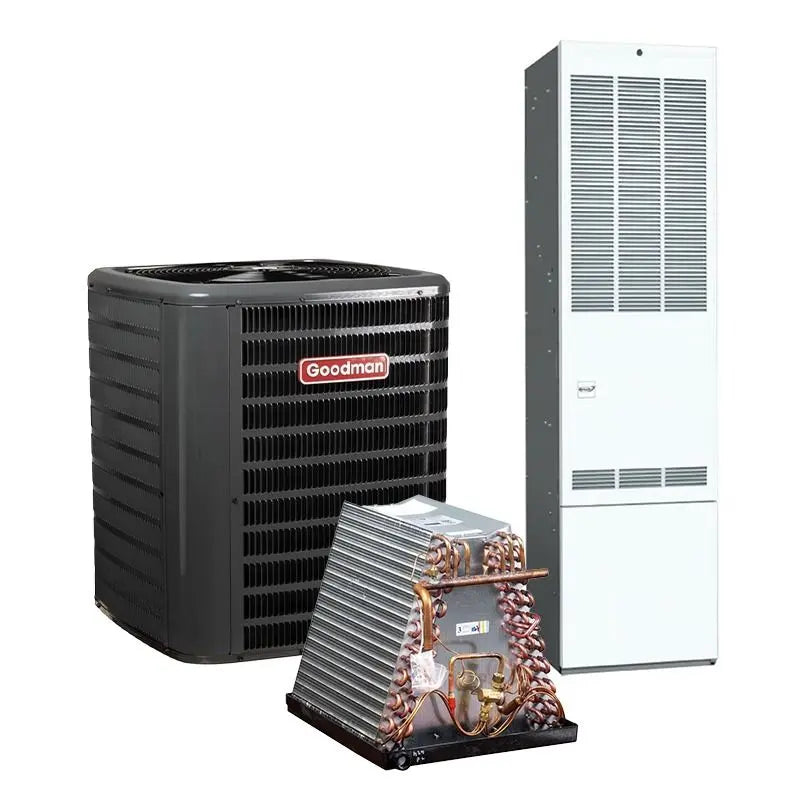

Our mobile home air conditioner and furnace system features a Goodman air conditioner, furnace, and mobile home coil. Plus you can add either a 30ft or 50ft copper line set.

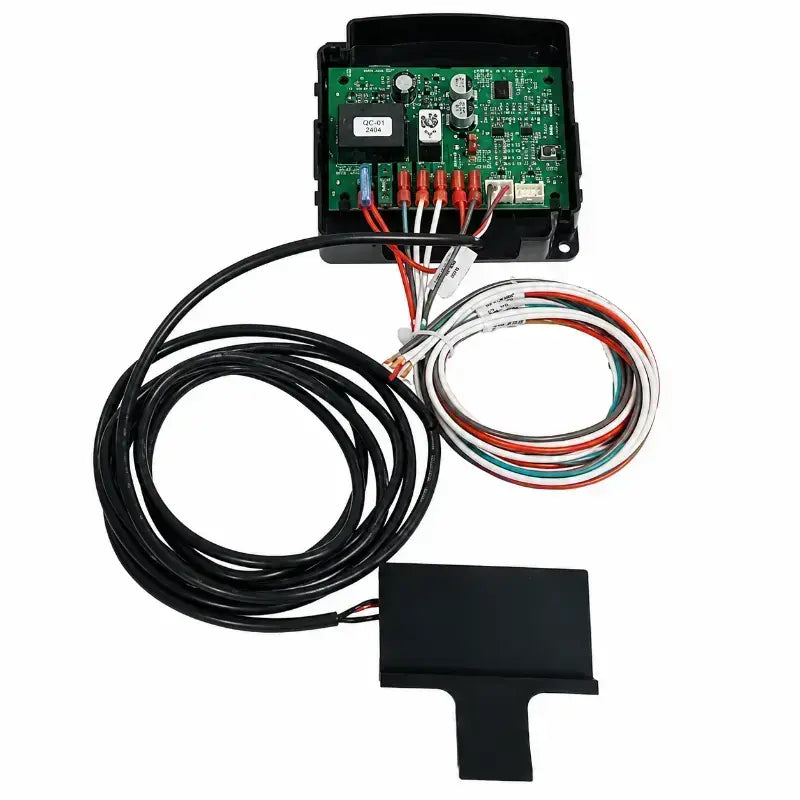

ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B

ACiQ RDS Kit Features

Kit includes all components needed for RDS installation
Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
Flexible installation location, ideal for installs on existing equipment
System designed to last the useful life of the evaporator coil
Optional relay for controlling additional components

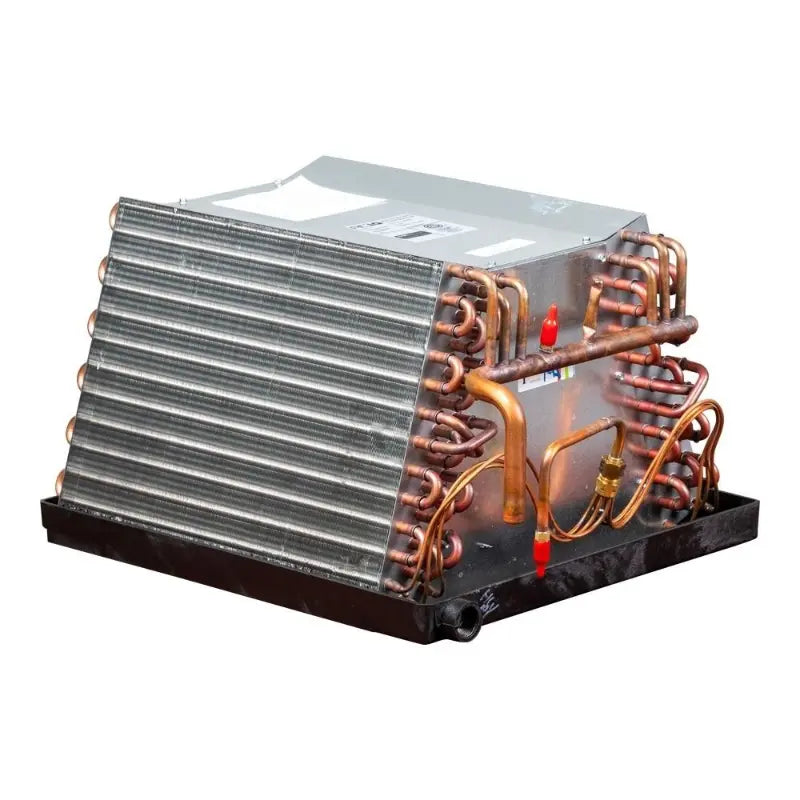

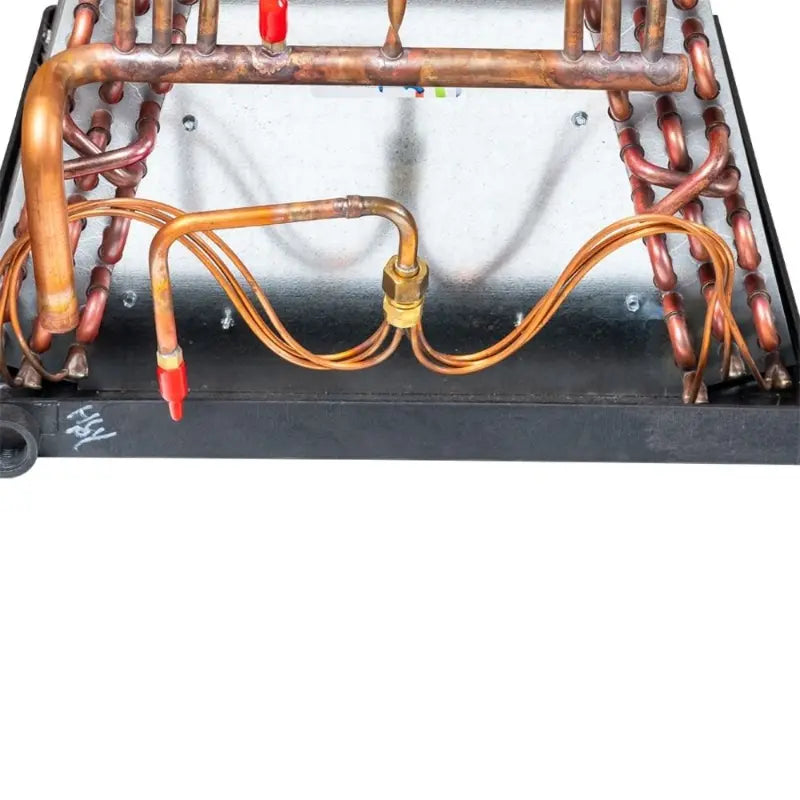

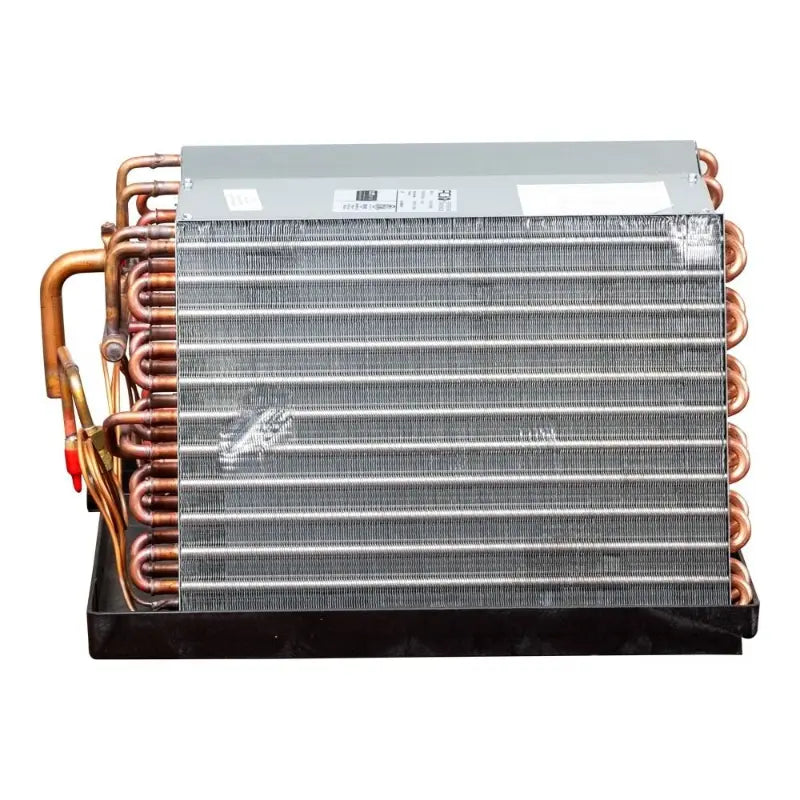

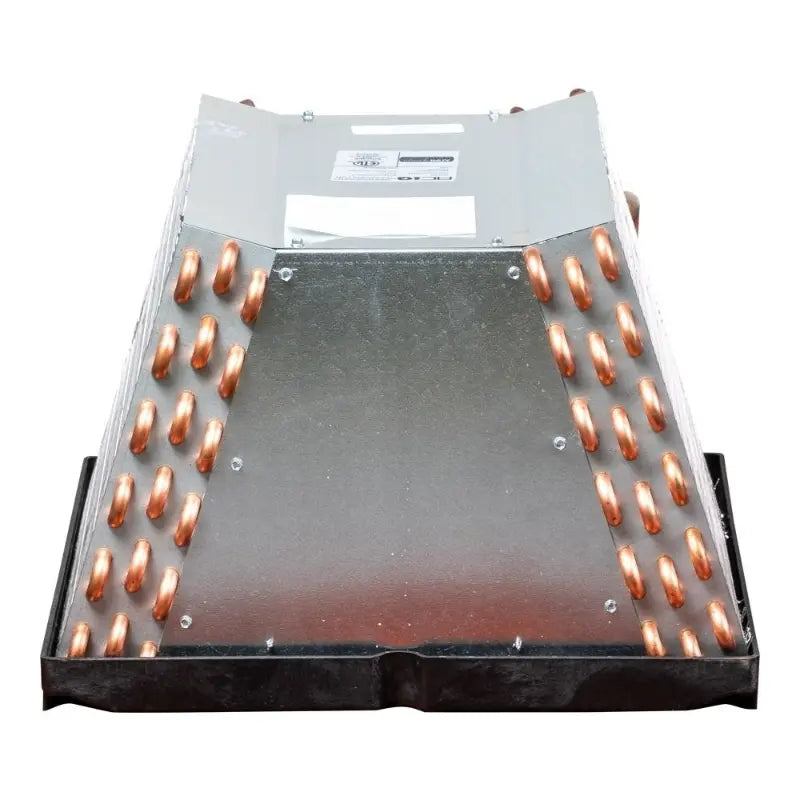

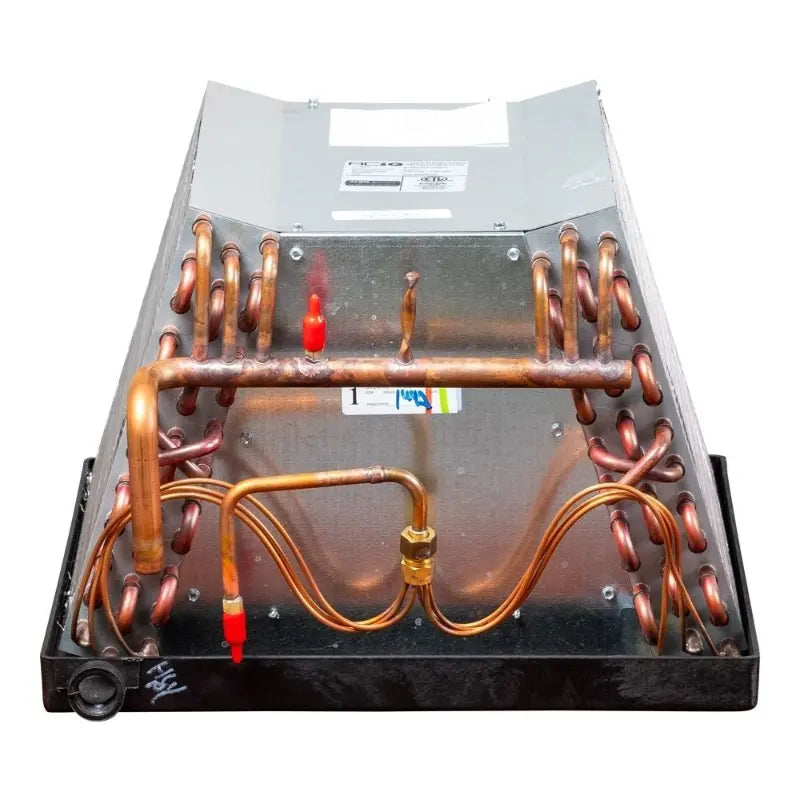

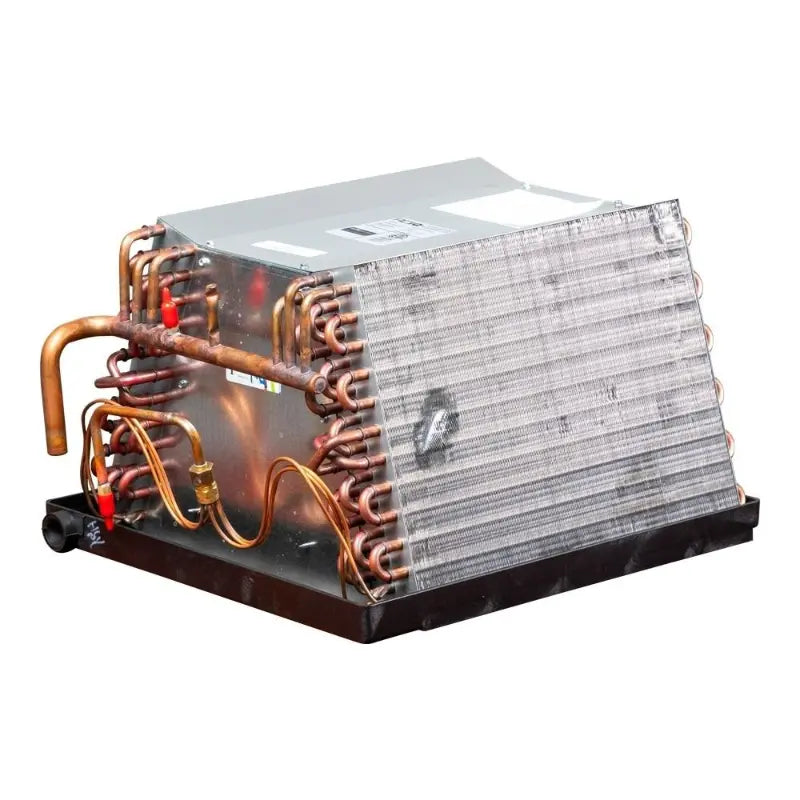

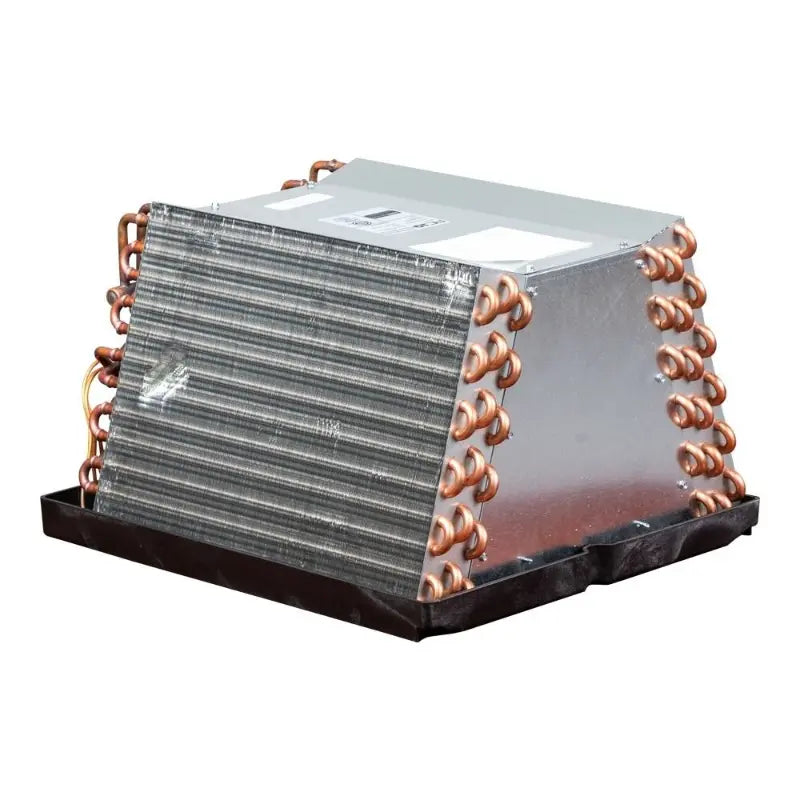

ACIQ 3 Ton Uncased Downflow Mobile Home Coil with TXV | Copper - R32

OVERVIEW

The ACIQ-MH36BU3VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.

QUICK FACTS

3 ton downflow evaporator coil
Designed for mobile and manufactured home use only
AHRI certifiable with all brands of air conditioners and heat pumps
For use with manufactured homes furnaces
Sturdy and compact design
Rifled aluminum tubing with enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
Downflow plate kit included

3 TON

The ACIQ-MH36BU3VYEC evaporator coil is rated to be compatible with condensers with up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.

Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.

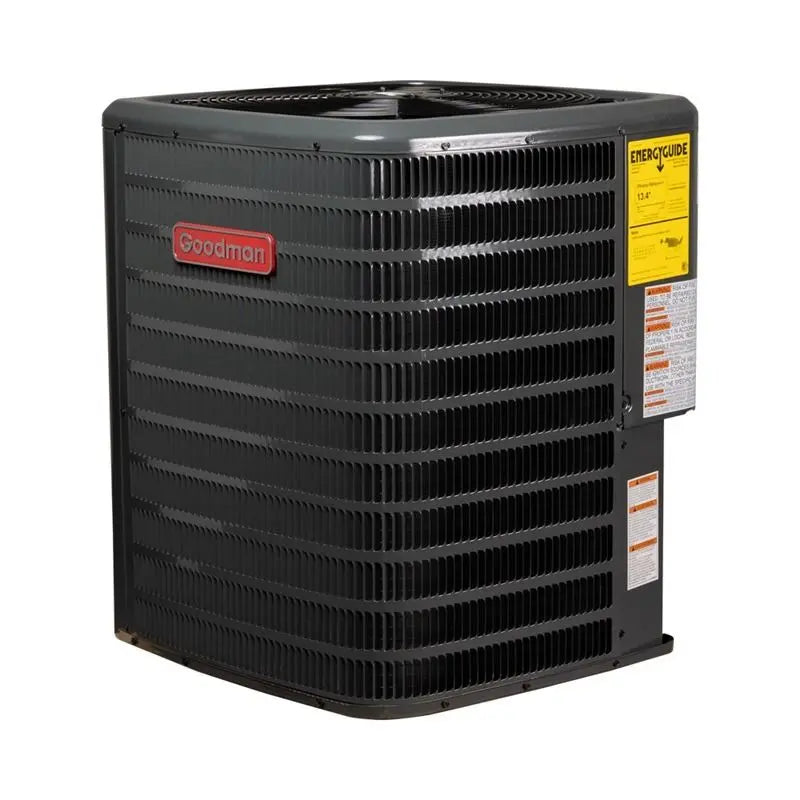

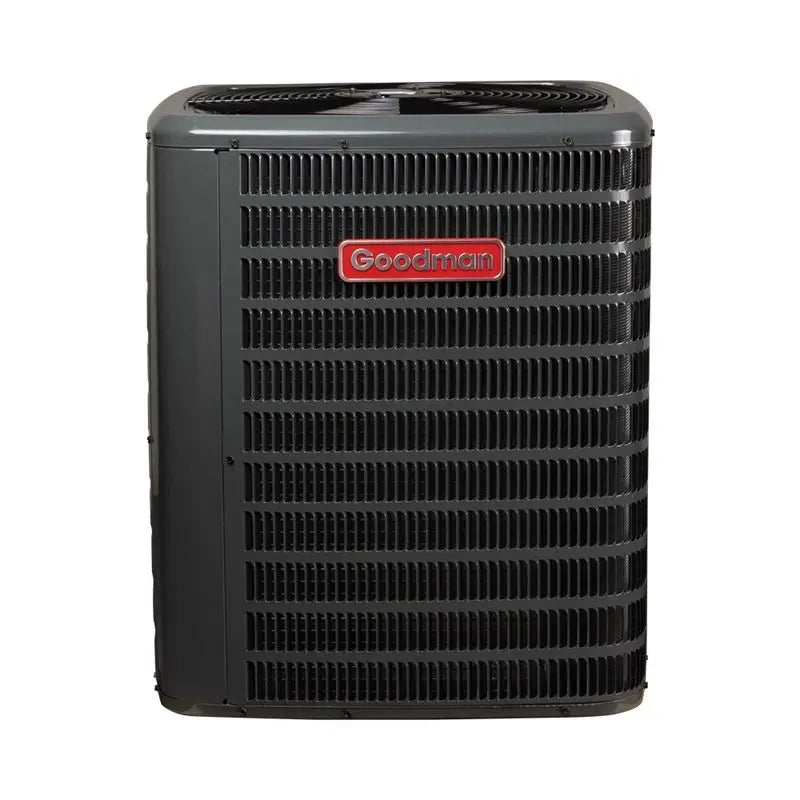

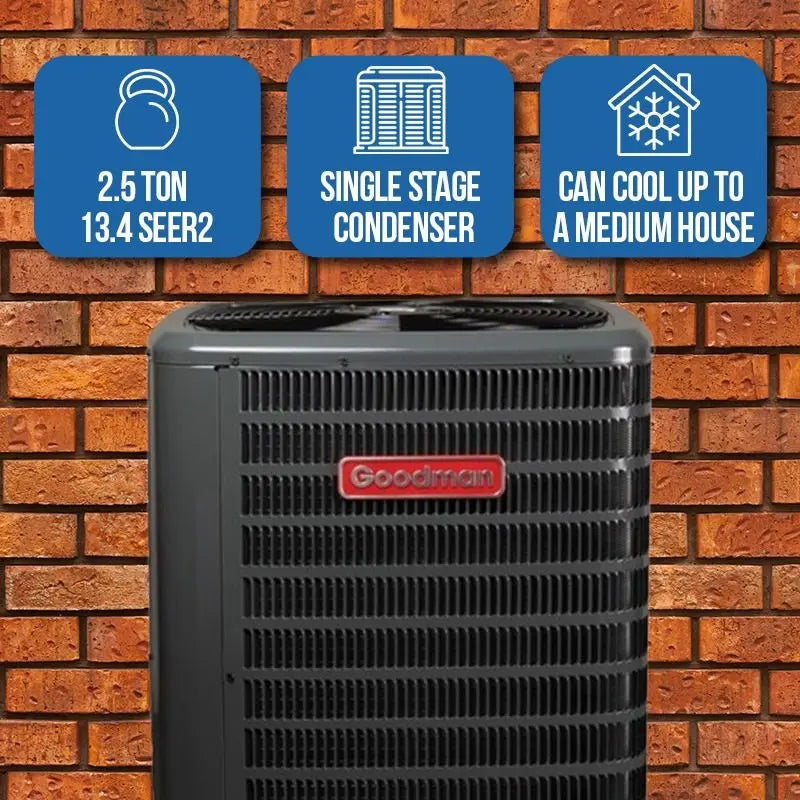

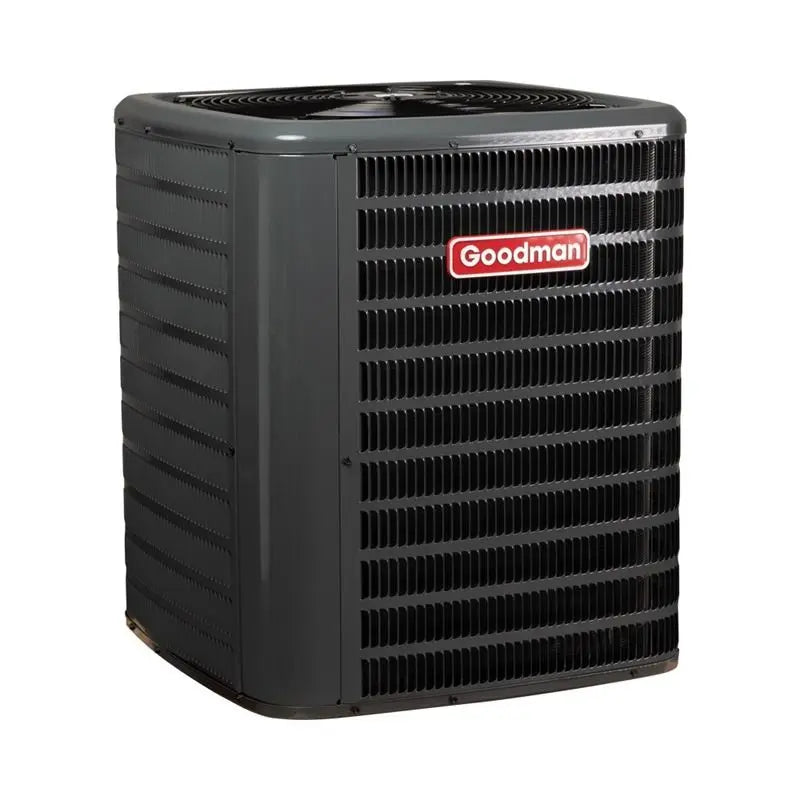

Goodman 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R32 Single Stage

Dependable Cooling for Small to Medium Homes

Keep your home comfortable through warm weather with a budget-friendly Goodman central air conditioner condenser built for reliable split-system cooling. This outdoor condenser is a practical choice for homeowners replacing an existing AC component or completing a compatible cooling setup with a matching indoor coil or air handler. It balances dependable performance, durable outdoor construction, and straightforward installation support for small to medium homes.

Key Benefits

Sized for Small to Medium Homes – 2.5 ton cooling capacity is generally suitable for homes approximately 1,300–1,600 sq. ft., depending on climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
Budget-Friendly Efficiency – 13.4 SEER2 performance provides dependable cooling at an economical efficiency level for approved installation regions.
Cooling-Only Performance – Designed for central air conditioning applications when paired with a compatible indoor evaporator coil or air handler.
Low Outdoor Sound – Designed with sound-dampening features and rated at approximately 74 dBA.
Factory-Charged for Installation – Comes factory charged for up to 15' of line set to support a cleaner installation process.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Durable Outdoor Construction – Heavy-gauge galvanized steel cabinet with a baked-on powder-paint finish is built for long-term outdoor durability.

Cooling Capacity for Small to Medium Homes

With 2.5 tons of cooling capacity, this condenser is commonly used for homes approximately 1,300–1,600 sq. ft. in various climates. It is a cooling-only outdoor unit and must be paired with a compatible indoor evaporator coil or air handler to operate.

Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.

Budget-Friendly 13.4 SEER2 Efficiency

A 13.4 SEER2 efficiency rating provides dependable cooling while keeping equipment costs affordable for eligible installation locations.

Installation Restrictions

Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Built for Reliable Outdoor Performance

An enhanced copper tube and aluminum fin coil, factory-installed filter drier, and heavy-gauge galvanized steel cabinet support dependable long-term operation. Easy-access service ports and top and side access panels also make installation and maintenance more straightforward for qualified HVAC professionals.

Goodman Central AC System: How Does it Work?

Designed to deliver reliable heating and cooling performance, this system helps keep your home comfortable through changing outdoor conditions.

Durable construction and thoughtful system design support dependable operation, while efficiency-focused features help manage comfort throughout the year.

Whether replacing an older system or completing a new installation, this product offers a practical solution for whole-home comfort.

Warranty

This condenser includes a 10-Year Limited Parts Warranty with online registration. Installation must comply with state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.

What’s Included

Goodman Central Air Conditioner Condenser – Outdoor cooling unit for a compatible split-system installation.
Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.

Recommended Accessories

Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow; select the visible line set option that matches the installation.
Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.

Requirements & Considerations

Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible indoor evaporator coil or air handler.
Electrical Requirements – Requires a 208 / 230 V. 1 Phase 60 Hz electrical supply.
Line Set Selection – Use the line set option and connection sizing shown on the live product page or confirmed by Goodman installation guidance.
Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.

R32 Refrigerant Compatibility Notice

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.

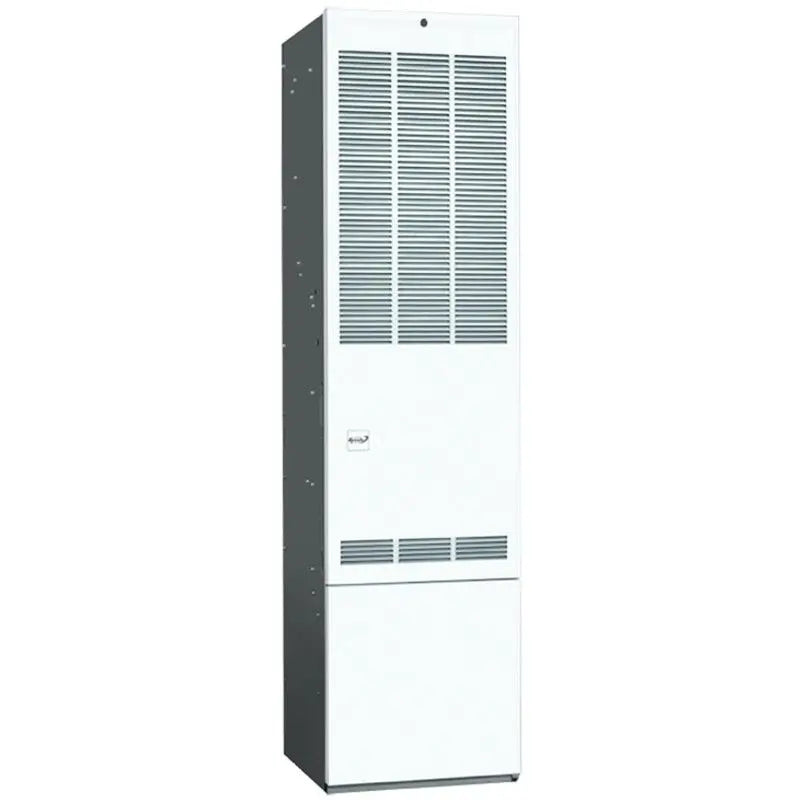

Style Crest-Revolv MG1E 80% 90,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible

OVERVIEW

The Style Crest-Revolv MG1E-B090F1ABM1 is a good solution for many manufactured or mobile home gas furnace applications. With its easy installation procedures, low maintenance, and included LP conversion kit, the MG1E-B090F1ABM1 will save you money both up front and over time.

QUICK FACTS

90,000 BTU, 80% natural gas furnace
Can generally heat a medium mobile home in ideal applications
Compatible with R410A and R454B refrigerant
Natural gas out of the box, but comes with an LP kit for field installation if needed
Low maintenance requirements
AC coil cabinet included with purchase (condenser and coil sold separately)
Efficient ECM blower motor

90,000 BTU, 80% AFUE

With a system input of 90,000 BTU, The Style Crest-Revolv MG1E-B090F1ABM1 furnace can generally heat medium mobile homes in ideal applications. With a basic efficiency rating of 80% AFUE, this input equates to an output of 72,000 BTU, and 80% of the fuel going into the unit is contributed to heating your home and the remaining 20% of the fuel is lost out of the flue venting and is used up in normal furnace operations. Please note that this furnace is intended to only be used in mobile and manufactured homes and requires a straight flue pipe without any elbows.

Warranty

Revolv gas furnaces come with 2 year parts, and 10 year heat exchanger warranty when registered online through the manufacturer and with an installation that follows your state and local codes.

Installation and Maintenance

The Style Crest-Revolv MG1E-B090F1ABM1 furnace is designed to be easily installed for a faster process, lowering labor costs. While this furnace is natural gas out of the box, a propane conversion kit is included in this package to be field-installed if needed with no additional material cost, saving you money. With its sealed motor bearings, reliable burner controls, modern hot surface ignitor, and sealed combustion, this furnace has low maintenance requirements, providing the peace of mind that your unit will reliably heat your home even in the coldest winter months.

Specifications

Goodman 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R32 Single Stage
SKU	GLXS3BN3010
Weight (in lbs)	149.000000
Brand/Manufacturer	Goodman
Replaces	Add GSX130301 and GSXN3N3010
Cooling BTU	30,000
Decibel Level (dBA)	74
Horsepower	1/8 HP
Refrigerant	R32
SEER2 (Efficiency)	13.4
Condenser Stages	Single Stage
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	3/4"
Liquid Valve Size	3/8"
Suction Valve Size	3/4"
Electrical	208 / 230 V. 1 Phase 60 Hz
Max Breaker Size	25 Amps
Min. Breaker Size	14.7 Amps
Tonnage	2.5 Ton
Connection	Sweat
Height	32 1/2"
Width	26"
Depth	26"
Warranty	10 Years Parts Limited Warranty with Online Registration
ACIQ 3 Ton Uncased Downflow Mobile Home Coil with TXV \| Copper - R32
SKU	ACIQ-MH36BU3VYEC
Weight (in lbs)	25.000000
Brand/Manufacturer	ACiQ
Replaces	ACiQ-M36BU3VYEC
Configuration	Downflow
Refrigerant	R32
Liquid Line	3/8"
Suction Line	3/4"
Tonnage	3 Ton
Height	19 1/2"
Width	17 3/4"
Depth	19 5/8"
Warranty	10 Year Limited Warranty
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
SKU	A2LZS
Weight (in lbs)	5.000000
Brand/Manufacturer	ACiQ
Replaces	A2L3SA, A2L4SA
Style Crest-Revolv MG1E 80% 90,000 BTU Mobile Home Gas Furnace with Coil Cabinet - R454B Compatible
SKU	MG1E-B090F1ABM1
Weight (in lbs)	170.000000
Exhaust Flue Requirement	Metal
Brand/Manufacturer	Style Crest-Revolv
Replaces	MG1E-090B
Furnace Efficiency / AFUE	80%
Heating BTU	90,000 BTU
Blower Motor	ECM Multi Speed
Configuration	Downflow
Electrical	120 Volt - Single Phase
Phase	Single Phase
Max Breaker Size	15 amps
Burner Stages	Single
Fuel Type	Gas
Height	76"
Width	19.75"
Depth	23.75"
Warranty	2 years parts (10 years heat exchanger parts)
