The Goodman 2.5 Ton 13.8 SEER2 80% AFUE 80,000 BTU Gas Furnace & R32 Air Conditioner - Upflow delivers year-round comfort with energy-efficient cooling and heating, providing reliable performance for your home.
Product Benefits of the Goodman 2.5 Ton 13.8 SEER2 80% AFUE:
- Energy-Efficient Compressor: Firstly, designed to reduce energy consumption for cost-effective operation.
- Durable Components: Features copper-aluminum coils (5mm diameter) and an enhanced aluminum fin coil for long-lasting performance.
- Maintenance-Friendly: Fully charged for 15' of tubing, factory-installed filter drier, and sweat connection service valves for easy servicing.
- Long-Lasting: Goodman 2.5 Ton 13.8 SEER2 80% capacitors with extended life and high-pressure switch ensure durability.
- Certified Quality: Additionally, AHRI Certified and ETL Listed for reliable performance and safety.
Cabinet Features of the Goodman 2.5 Ton 13.8 SEER2 80%:
- Grille-Style Top Design: Moreover, compliant with UL 60335-2-40 for enhanced safety.
- Improved Airflow: Venturi design increases airflow velocity, improving system efficiency.
- Attractive Finish: Architectural Gray powder-coat finish with a 500-hour salt-spray rating for corrosion resistance.
- Convenient Access: Features top and side maintenance access, as well as a single-panel control access for easy installation of field-installed accessories.
CAPTA3022B3 - Evaporator Coil:
- R-32 Refrigerant Compatibility: Optimized for use with eco-friendly R-32 refrigerant for improved energy efficiency.
- Built for Durability: Rust-resistant, UV-stable thermoplastic drain pan with foil-faced insulation to minimize condensation.
- Compact Design: Also, slim 21" depth for easier attic access, with single front access panel for convenient servicing.
- Factory-Installed Features: Includes thermal expansion valves, standardized copper suction tube and check flowrator for better cooling and heat pump performance.
- Certified Quality: Furthermore, AHRI Certified and ETL Listed for reliable operation.

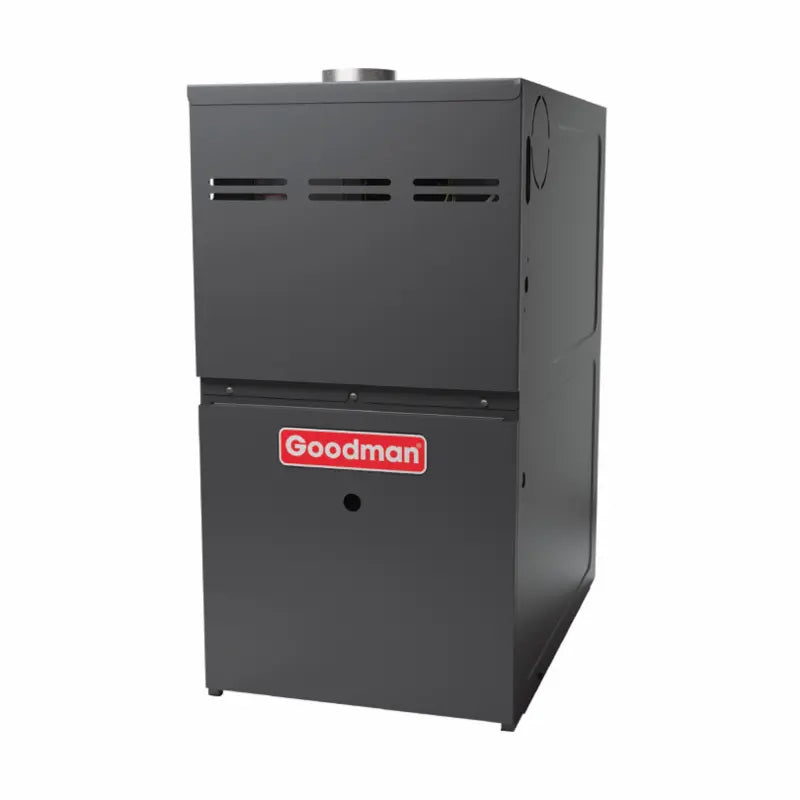

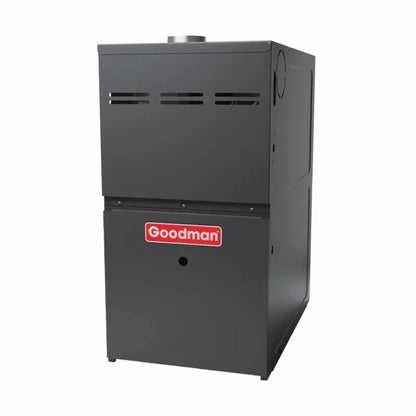

GM9S800803BN - Gas Furnace:
- Energy Efficiency: In addition, with an 80% AFUE rating, it helps reduce heating costs.
- Long-Term Reliability: Goodman 2.5 Ton 13.8 SEER2 80% features a durable igniter and provisions for an electronic air cleaner and humidifier.
- Quiet Operation: Designed to circulate air quietly, improving home comfort.
- Easy Maintenance: Self-diagnostic control board with constant memory ensures quick troubleshooting and easy setup.
In summary, the Goodman 2.5 Ton 13.8 SEER2 80% AFUE 80,000 BTU Gas Furnace & R32 AC system offers energy-efficient, reliable heating and cooling. With advanced features designed for durability and ease of maintenance, this system provides optimal comfort for your home all year long
-
AHRI Reference 215327544 AC Model Number GLXS3BN3010 SEER 2 13.4 Unit Height 32.5 in Unit Width 26 in Unit Depth 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3022B3 Tonnage 2.5 Unit Height 22 in Unit Width 17.5 in Unit Depth 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GM9S800803BN AFUE 80% Unit Height 33.375 in Unit Width 17.5 in Unit Depth 28 in Unit Weight 116 lb Cooling Capacity Nominal 36,000 Btu/H Max Overcurrent Protection 15 A Installation Configuration Upflow/Horizontal Power Voltage 115 V Motor Speed Type Multi Speed ECM -
-
