Model: GLXS3BN3010 / CHPTA3026B3 / GR9S800603BN

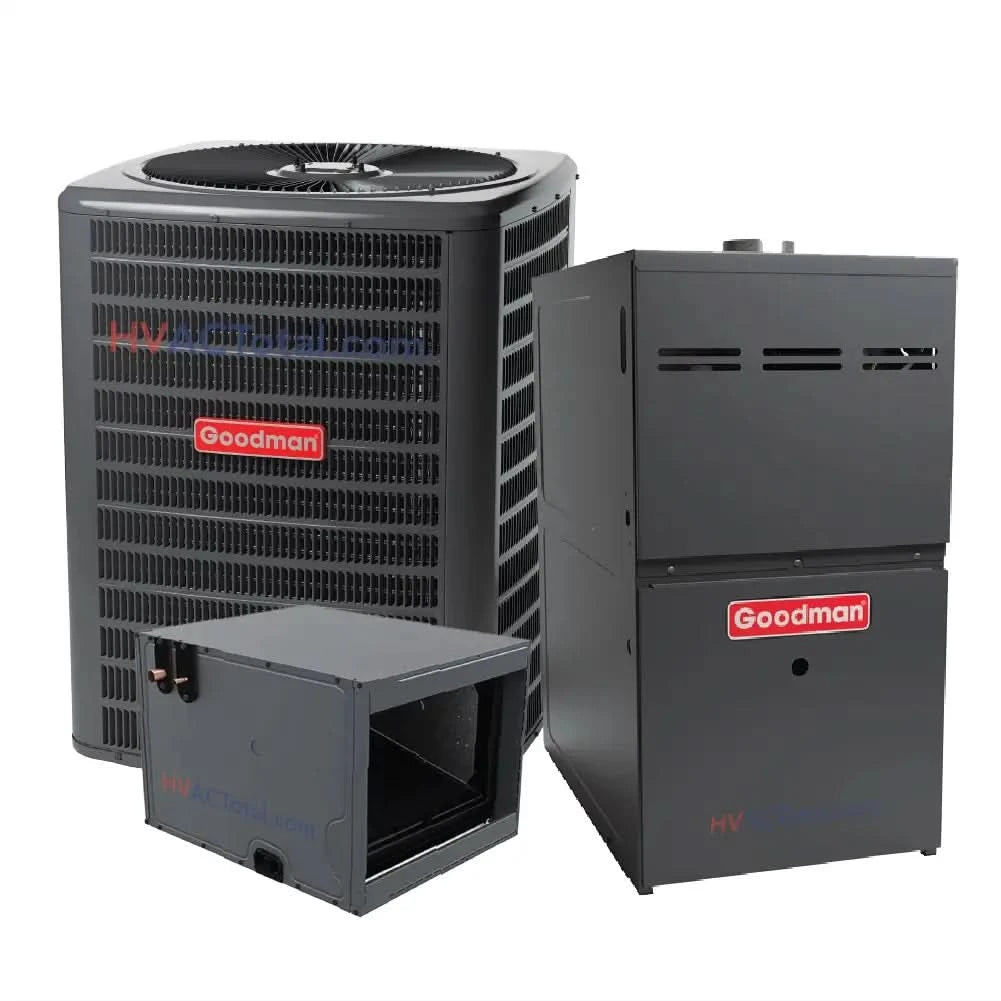

Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Horizontal
Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Horizontal

Couldn't load pickup availability
Got a question? Talk with our experts anytime
Call Us at 866-718-1799
Product Details
The Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System, R32 - Horizontal offers efficient and reliable heating and cooling for year-round comfort. With eco-friendly R-32 refrigerant and advanced features, this system ensures energy savings and durability.
Key Features of the Goodman 2.5 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Provides optimal cooling while reducing energy consumption.
- Durable Construction: Copper tubing and an enhanced aluminum fin coil for long-lasting performance.
- Factory-Installed Filter Drier: Traps moisture and contaminants to protect the system.
- High-Pressure Switch: Goodman 2.5 Ton 13.8 SEER2 prevents damage from excessive pressure.
- Certifications: Additionally, AHRI Certified and ETL Listed for reliability and safety.
Evaporator Coil - CHPTA3026B3:
- R-32 Compatibility: Optimized for eco-friendly refrigerant.
- Enhanced Design: Moreover, all-aluminum coil improves heat transfer for better performance.
- Compact & Efficient: Furthermore, Easy to install with optimized airflow to reduce energy costs.
Gas Furnace - GR9S800603BN:
- Efficient & Quiet: Provides energy-efficient heating with quieter circulation.
- Durable Components: Long-lasting igniter and fast condensate drainage.
- Self-Diagnostic Control Board: Simplifies troubleshooting and ensures reliable performance.
- Provisions for Air Cleaner & Humidifier: Enhances indoor air quality.
- Low NOx Emissions: Goodman 2.5 Ton 13.8 SEER2 reduces environmental impact.
Cabinet Features of the Goodman 2.5 Ton 13.8 SEER2:
- Multi-Position Installation: Supports upflow or horizontal setup.
- Flexible Venting: Easy installation for top or side venting.
- Durable & Insulated: Heavy-gauge steel cabinet with fully insulated components for efficiency.
In summary, the Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System combines energy efficiency, durable construction, and eco-friendly features for reliable, year-round comfort. With flexible installation options and high-performance features, it is an excellent choice for efficient home climate control
Specifications
AHRI Reference | 215277241 |
---|---|
AC Model Number | GLXS3BN3010 |
SEER 2 | 13.4 |
Tonnage | 2.5 |
Unit Height x Width x Depth | 32.5 x 26 x 26 in |
Unit Weight | 134 lb |
Cooling Capacity Nominal | 30,000 Btu/H |
Max Overcurrent Protection | 25A |
Power Voltage | 208/230 V |
Compressor Stages | Single Stage |
Compressor Type | Rotary |
Refrigerant Type | R-32 |
Evaporator Coil Model Number | CHPTA3026B3 |
Tonnage | 2 - 2.5 |
Unit Height x Width x Depth | 17.5 x 26 x 21 in |
Cased/Uncased | Cased |
Coil Application | Horizontal |
Refrigerant Type | R-32 |
Gas Furnace Model Number | GR9S800603BN |
Height x Width x Depth | 33-3/8 x 17.5 x 28 in |
Weight | 100 lb |
AFEU | 80% |
Configuration | Upflow/Horizontal |
BtuH Input | 60,000 |
BtuH Output | 48,000 |
Tons | 3 |
CFM | 1,200 |
Min. Circuit Amps | 7.7 |
Motor Type | ECM |
Stages | Single |
LoNox | No |
