The Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 Refrigerant - Downflow provides efficient heating and cooling for year-round comfort, featuring R-32 refrigerant and a reliable, eco-friendly design.
Key Features of the Goodman 2.5 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Delivers optimal cooling while minimizing energy usage.
- Durable Design: Features a copper tube and enhanced aluminum fin coil for enhanced durability and heat transfer.
- Factory-Installed Filter Drier: Traps moisture and contaminants to protect the system.
- High-Pressure Switch: Goodman 2.5 Ton 13.8 SEER2 protects the system from excessive pressure damage.
- Certifications: Additionally, AHRI Certified and ETL Listed for safety and performance.
Evaporator Coil - CAPTA3626B3:
- R-32 Compatibility: Optimized for R-32 refrigerant to maximize energy efficiency.
- Enhanced Performance: Furthermore, all-aluminum coil improves heat transfer and ensures long-lasting operation.
- Compact Design: Easy to install in tight spaces with a 21" depth for attic access.
- Reliable Construction: Rust-resistant, thermoplastic drain pan with UV-resistant design.

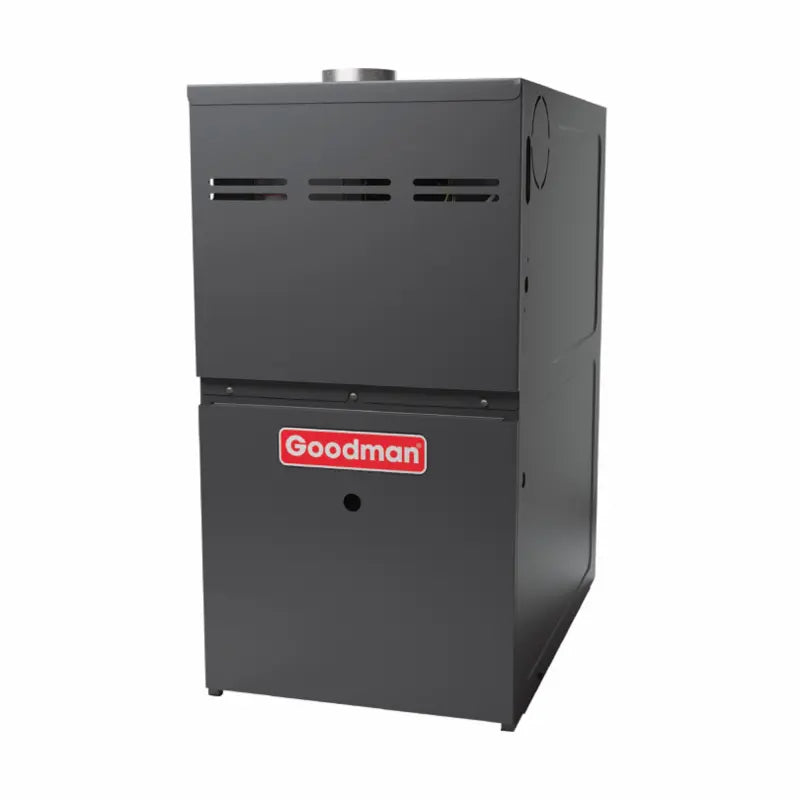

Gas Furnace - GD9S800804BN
- Efficient & Quiet: In addition, it provides reliable heating with energy-efficient and quiet circulation.
- Long-Lasting Igniter: Moreover, it ensures durability and reduces the need for maintenance.
- Self-Diagnostic Control Board: Facilitates easy troubleshooting and enhances reliability.
- Provisions for Air Cleaner & Humidifier: Lastly, optional accessories for better indoor air quality.
Cabinet Features of the Goodman 2.5 Ton 13.8 SEER2:
- Multi-Position Installation: Also, it supports downflow configuration for flexible setup.
- Durable and Attractive Finish: Architectural gray powder-paint with salt-spray approval for long-lasting aesthetics.
- Easy Maintenance: Access points on top and sides for easy servicing.
In summary, the Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System combines efficient performance, durability, and eco-friendly features for reliable year-round comfort. With easy installation and maintenance, it’s an excellent solution for homeowners looking for efficient and quiet heating and cooling.
-
AHRI Reference 215277299 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3626B3 Tonnage 3 Unit Height x Width x Depth 26 x 17.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GD9S800804BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 107 lb AFEU 80% Configuration Downflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox Yes -
-
