The Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 - Horizontal combines energy-efficient cooling with reliable heating, designed for horizontal installation and optimized for year-round comfort.
Key Features of the Goodman 2.5 Ton 13.8 SEER2 AC:
- Energy-Efficient Compressor: Provides optimal cooling while reducing energy consumption.
- Durable Construction: Copper tube and enhanced aluminum fin coil (5mm diameter) enhance durability and heat transfer.
- Factory-Installed Filter Drier: Protects the system from moisture and contaminants.
- High-Pressure Switch: Goodman 2.5 Ton 13.8 SEER2 prevents damage due to excessive pressure buildup.
- Certifications: Additionally, AHRI Certified and ETL Listed for proven performance and safety.

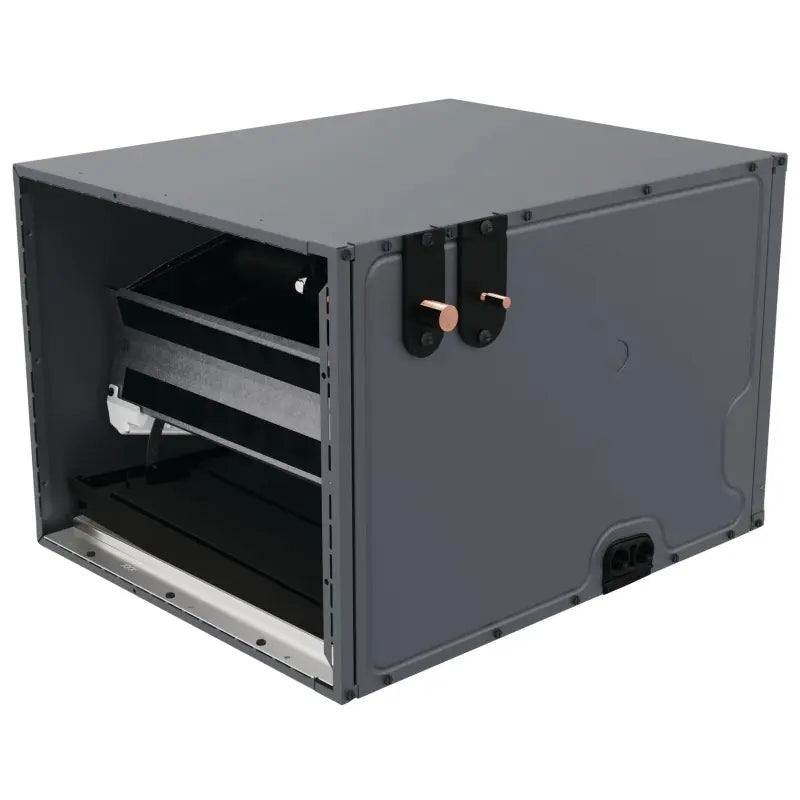

Evaporator Coil - CHPTA3026B3:
- R-32 Compatibility: Optimized for energy-efficient R-32 refrigerant, designed to last.
- Improved Heat Transfer: All-aluminum coil enhances heat transfer and performance.
- Compact Design: 21" depth for easier attic access and simplified installation.
- Advanced Construction: Features rust-resistant thermoplastic drain pan, foil-faced insulation, and UV-resistant design.
Gas Furnace - GR9S800803BN:
- Efficient & Quiet: Furthermore, it provides reliable heating with low noise and high efficiency.
- Self-Diagnostic Control Board: Monitors system performance for easy troubleshooting.
- Long-Lasting Igniter: Moreover, it ensures durability with extended service life.
- Provisions for Accessories: Supports installation of electronic air cleaners and humidifiers.
- Environmentally Friendly: Lower NOx emissions for cleaner operation.
Cabinet Features of the Goodman 2.5 Ton 13.8 SEER2:
- Multi-Position Installation: Supports upflow, downflow, or horizontal left/right configurations for versatile setup.
- Durable Finish: Architectural gray powder-paint finish with 500-hour salt-spray approval.
- Easy Access: Lastly, single-panel control access with convenient maintenance options for easier servicing.
In summary, the Goodman 2.5 Ton 13.8 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System offers reliable, energy-efficient heating and cooling with an emphasis on performance, durability, and ease of installation. With a versatile, space-saving design and eco-friendly features, it’s an excellent choice for homeowners seeking consistent comfort throughout the year.
-
AHRI Reference 215277233 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3026B3 Tonnage 2 - 2.5 Unit Height x Width x Depth 17.5 x 26 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S800803BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 116 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 3 CFM 1,200 Min. Circuit Amps 7.7 Motor Type ECM Stages Single LoNox No -
-
