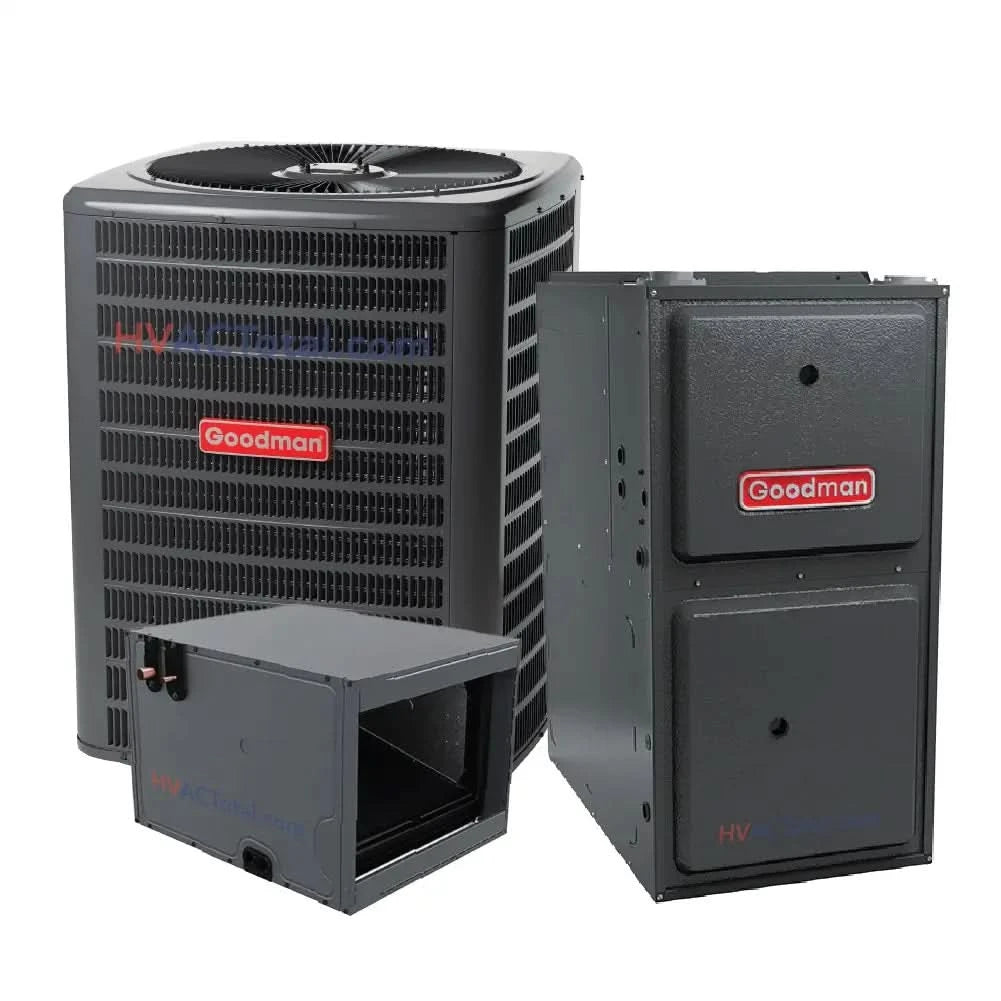

The Goodman 2.5 Ton 13.8 SEER2 AC & 96% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Horizontal is designed for horizontal installations, combining exceptional cooling and heating performance with long-lasting reliability.
Key Features of the Goodman 2.5 Ton 13.8 SEER2 AC:
- Energy Efficiency: Firstly, equipped with an efficient compressor and fully charged for 15' of tubing length.
- Durable Components: Furthermore, features copper tubing with enhanced aluminum fins (5mm diameter) and a factory-installed filter drier.
- Easy Maintenance: Sweat connection service valves with accessible gauge ports and enclosed contactor with lug connection.
- Certifications: In addition, AHRI Certified and ETL Listed for safety and performance assurance.
- Robust Cabinet Design: Includes a venturi for increased airflow velocity, steel louver coil guard, and single-panel access for field-installed accessories.
Evaporator Coil - CHPTA3026B3:
- Optimized for R-32 Refrigerant: Goodman 2.5 Ton 13.8 SEER2 built with circuits and manifolds designed for compatibility and efficiency.
- Compact and Accessible: Moreover, 21" depth allows for easier attic access, and a single front access panel simplifies maintenance.
- Durable and Rust-Resistant: Galvanized leather grain-embossed finish with a UV-resistant, low water-retention thermoplastic drain pan.
- Enhanced Airflow: Equipped with thermal expansion valves and a well-insulated casing to reduce cabinet condensation.
- Certifications: Additionally, AHRI Certified and ETL Listed for reliable operation.
Gas Furnace - GR9T960603BN:
- High Efficiency: Goodman 2.5 Ton 13.8 SEER2 delivers a 96% AFUE rating for energy savings and consistent heating.
- Quiet and Durable: Features a self-diagnostic control board, quiet operation, and a long-life igniter.
- Eco-Friendly Performance: Produces lower NOx emissions and includes provisions for electronic air cleaners and humidifiers.
- Installation Flexibility: Goodman 2.5 Ton 13.8 SEER2 supports upflow, horizontal left, or right configurations with dual venting options.
- Sturdy Construction: Lastly, fully insulated heat exchanger and blower section in a durable, low-leakage (Qleak ≤ 2%) steel cabinet.
In summary, the Goodman 2.5 Ton 13.8 SEER2 AC & 96% AFUE 60K BTU Gas Furnace System offers reliable year-round comfort. Its energy-efficient design, versatile installation options, and robust construction make it an ideal solution for horizontal applications, ensuring consistent performance and lasting value.
-
AHRI Reference 215277152 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3026B3 Tonnage 2 - 2.5 Unit Height x Width x Depth 17.5 x 26 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9T960603BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 115 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 57,600 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 7.8 Motor Type ECM Stages Two LoNox No -
-
