Model: GLXS4BA3010 / ACiQ-MH36BU3VYEC / ACiQ-EFS1020FD-MH

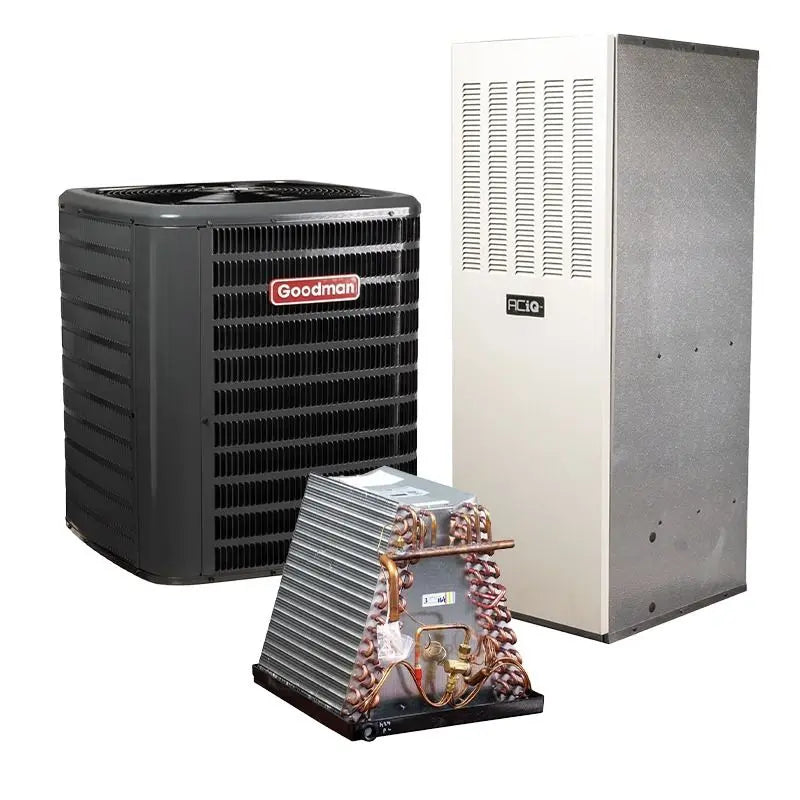

Goodman 2.5 Ton 14.3 SEER2 10KW Mobile Home Air Conditioner & Electric Furnace System with Coil, R32
Couldn't load pickup availability
Product Details
The Goodman mobile home air conditioner, electric furnace, and coil is the next generation of HVAC products designed specifically for mobile homes. This mobile home air conditioner will provide comfort to your home in all-electric system setups.

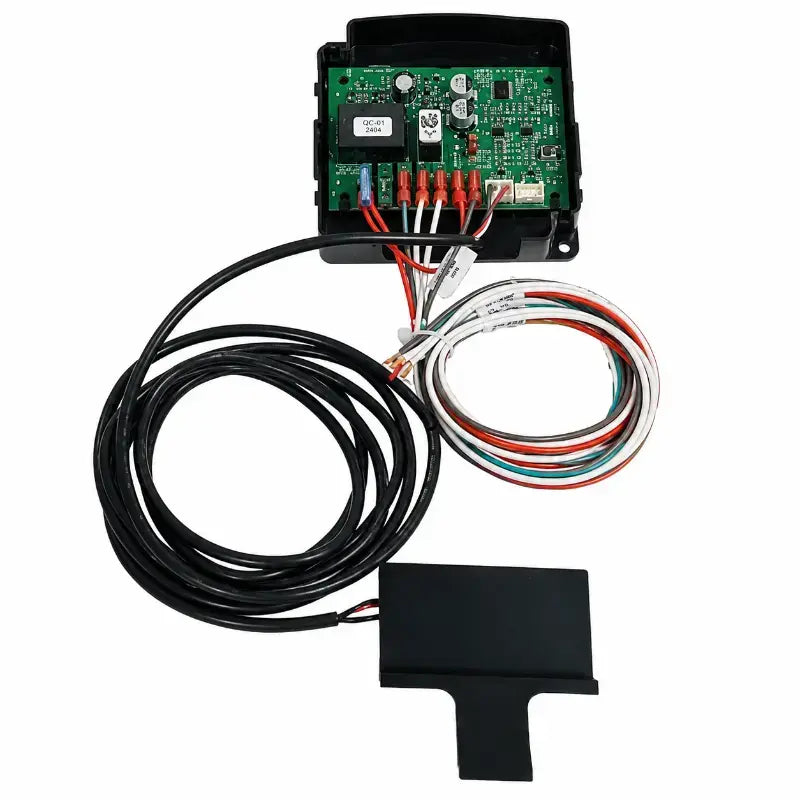

ACiQ RDS Kit Features
- Kit includes all components needed for RDS installation
- Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
- Flexible installation location, ideal for installs on existing equipment
- System designed to last the useful life of the evaporator coil
- Optional relay for controlling additional components
OVERVIEW

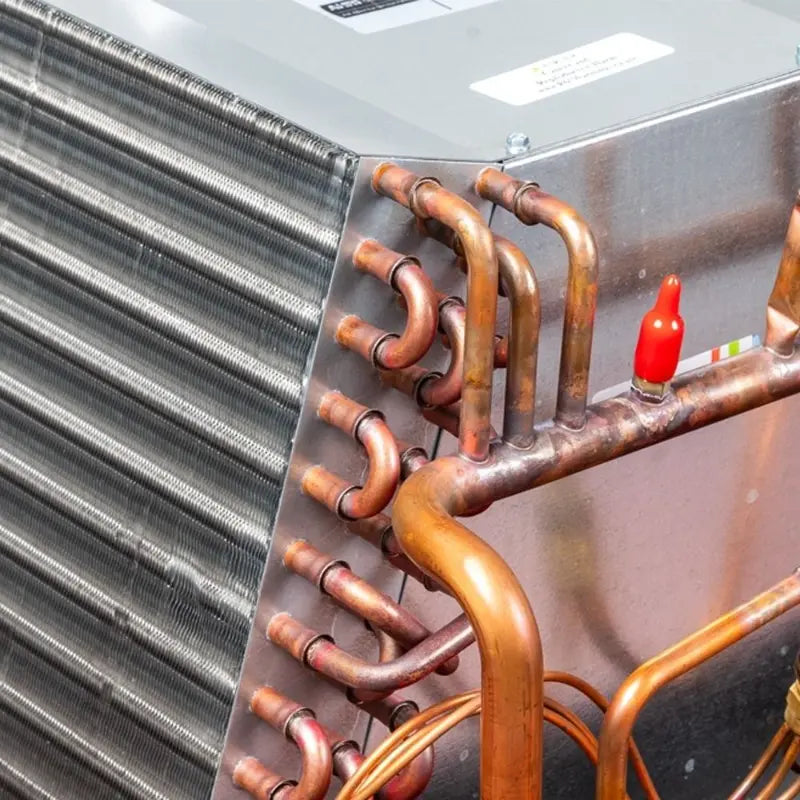

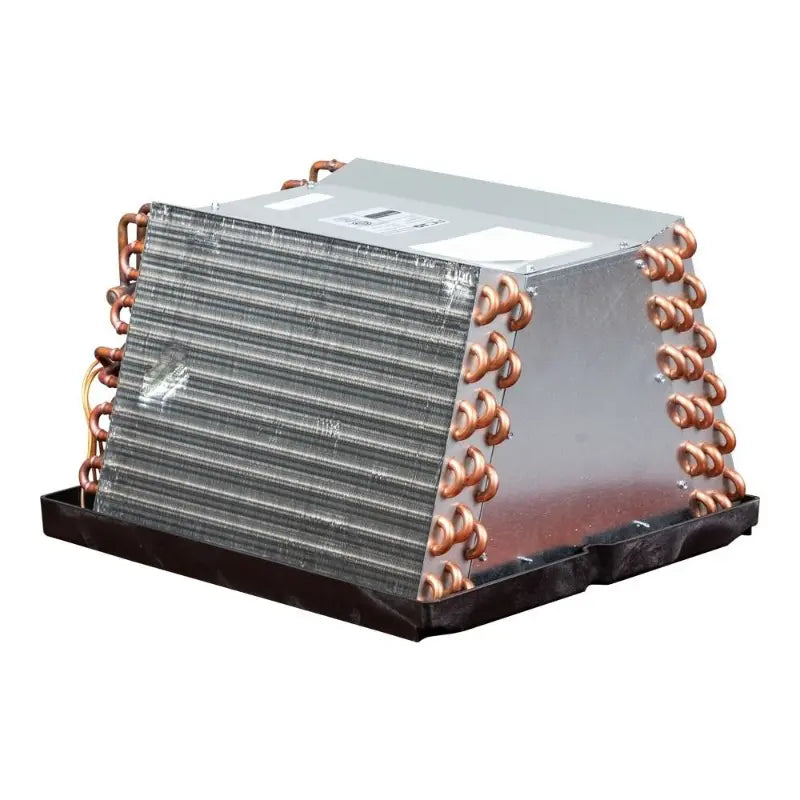

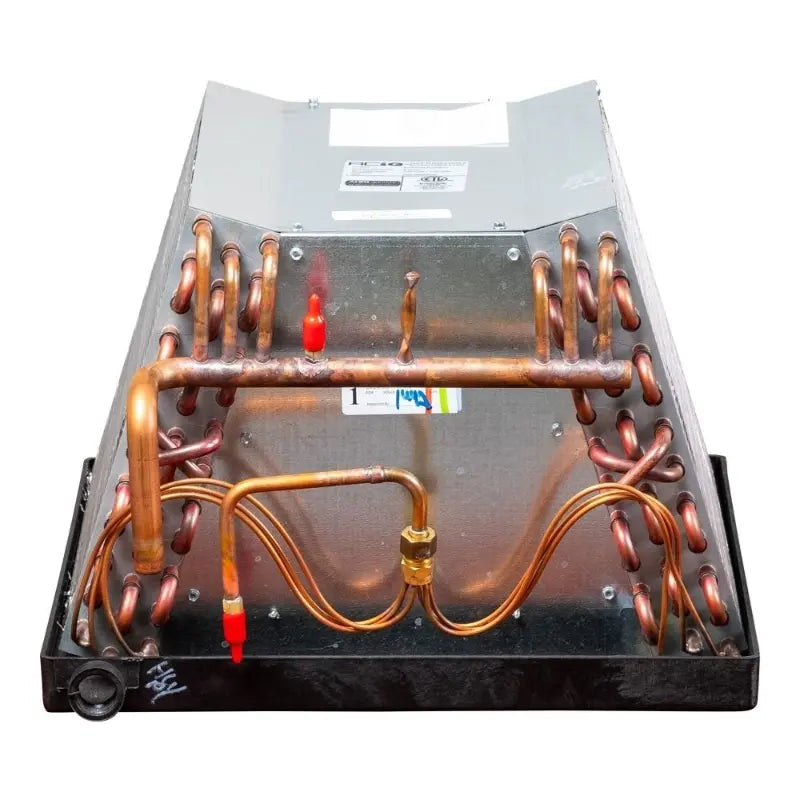

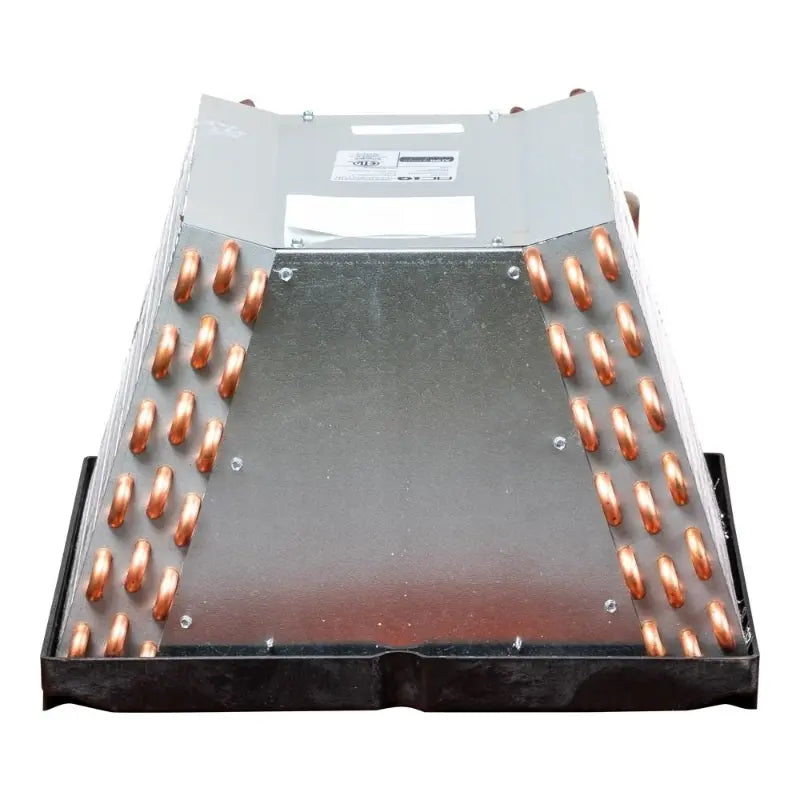

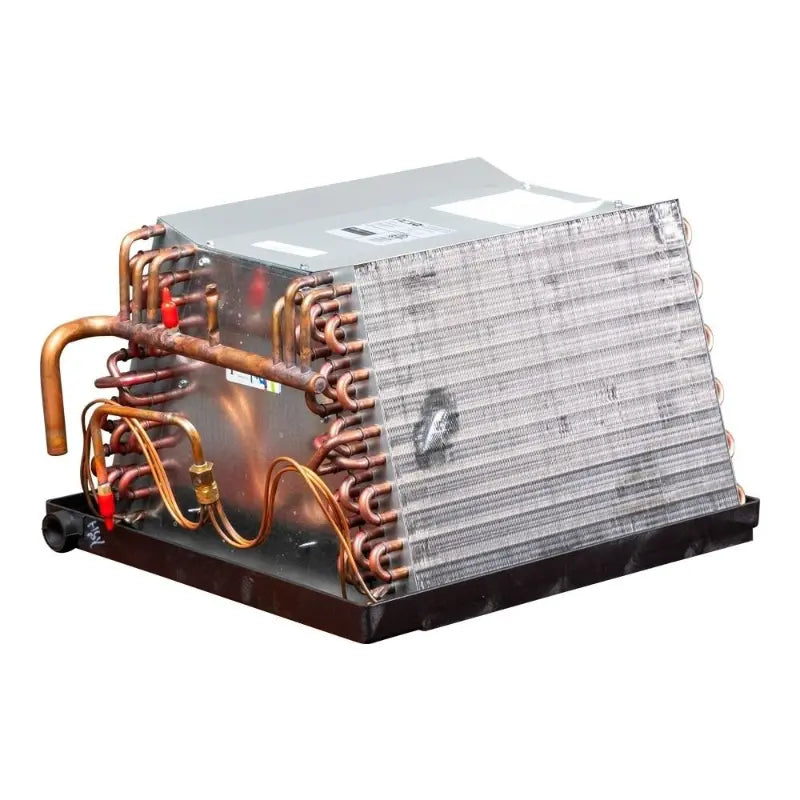

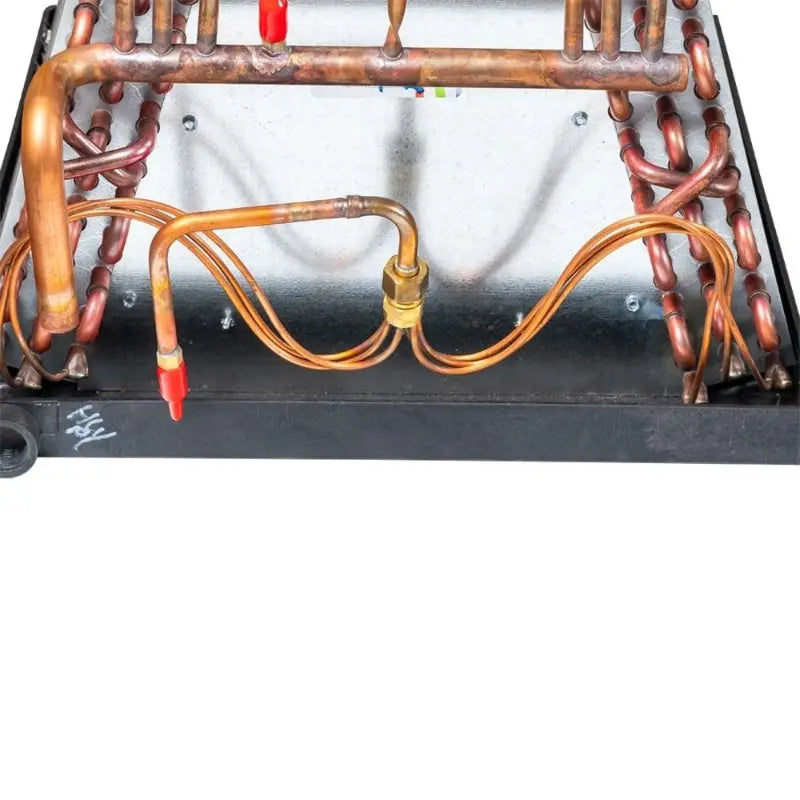

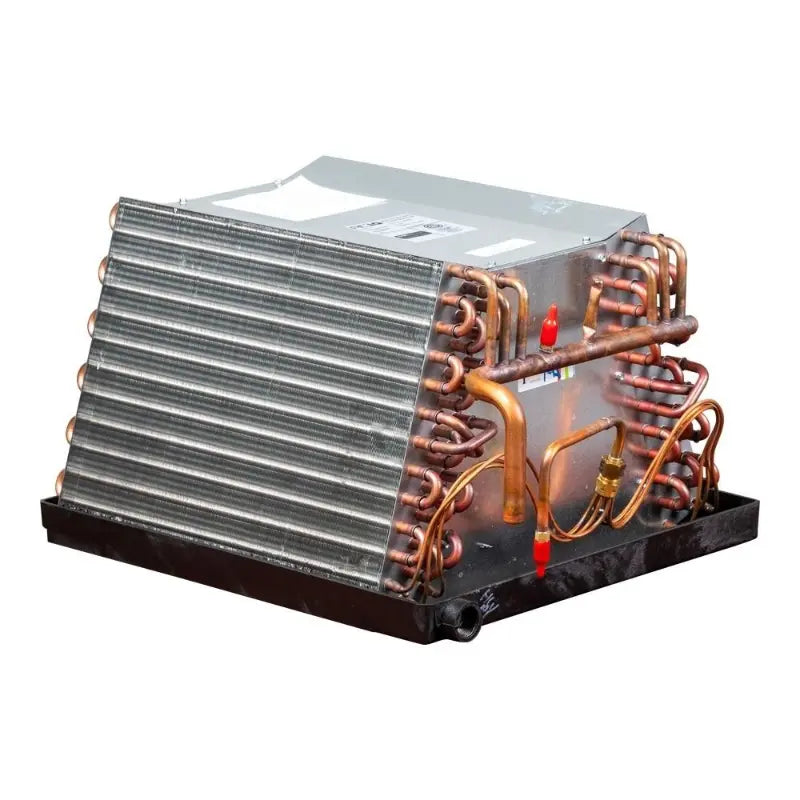

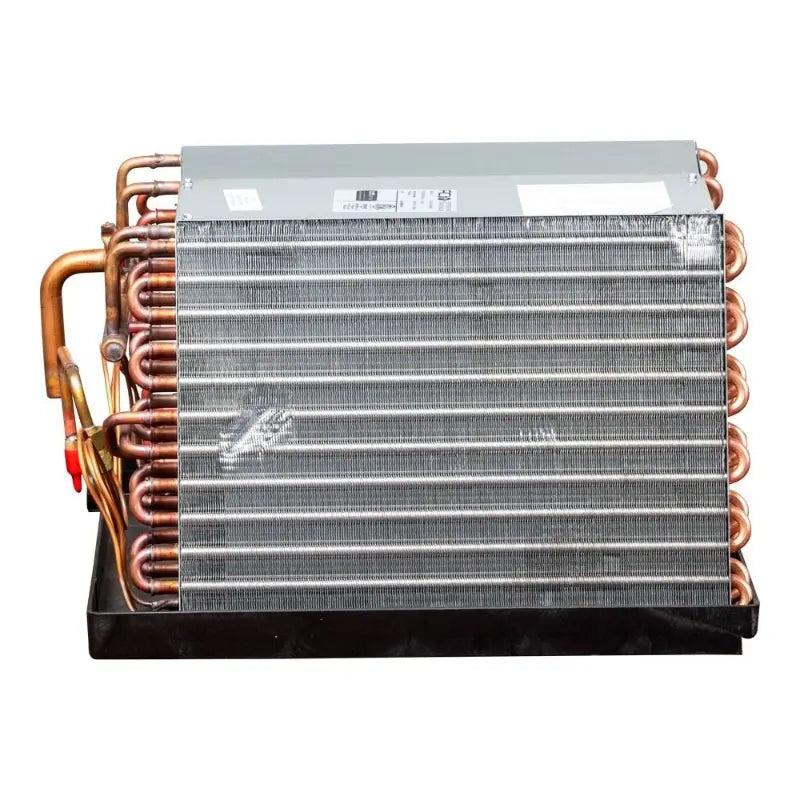

The ACIQ-MH36BU3VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
- 3 ton downflow evaporator coil
- Designed for mobile and manufactured home use only
- AHRI certifiable with all brands of air conditioners and heat pumps
- For use with manufactured homes furnaces
- Sturdy and compact design
- Rifled aluminum tubing with enhanced aluminum fins
- Left-hand refrigerant and plumbing connections
- Heavy duty polypropylene drain pans
- Downflow plate kit included
3 TON
The ACIQ-MH36BU3VYEC evaporator coil is rated to be compatible with condensers with up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.

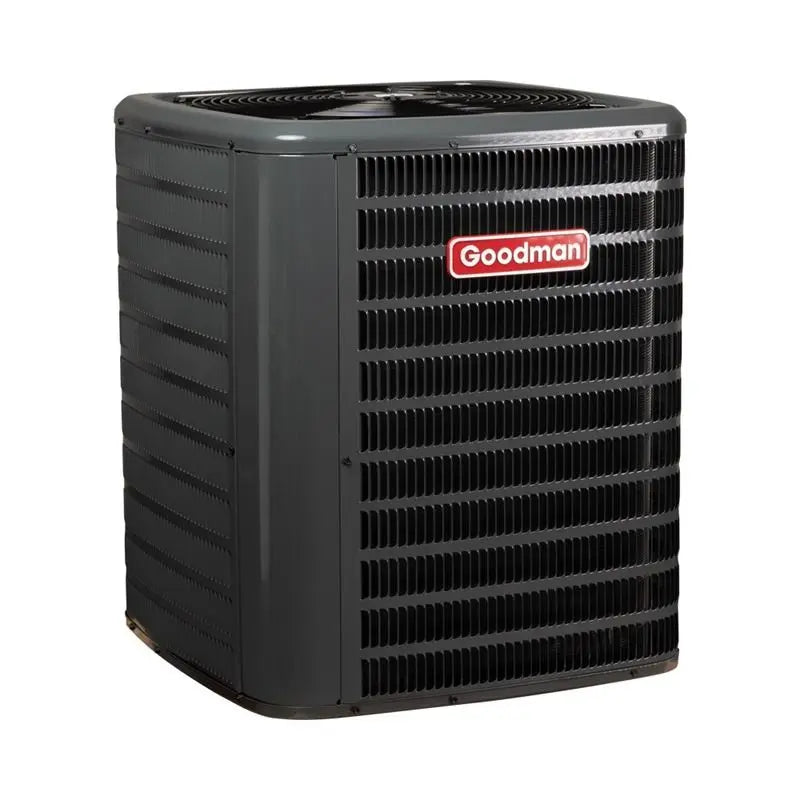

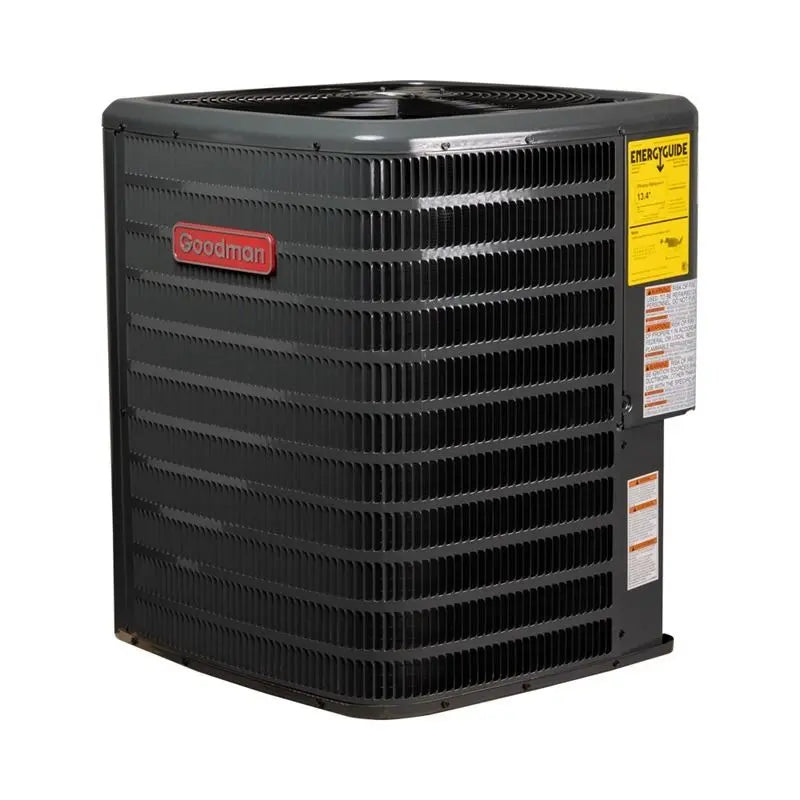

Reliable Standard-Efficiency Cooling for Small to Medium Homes

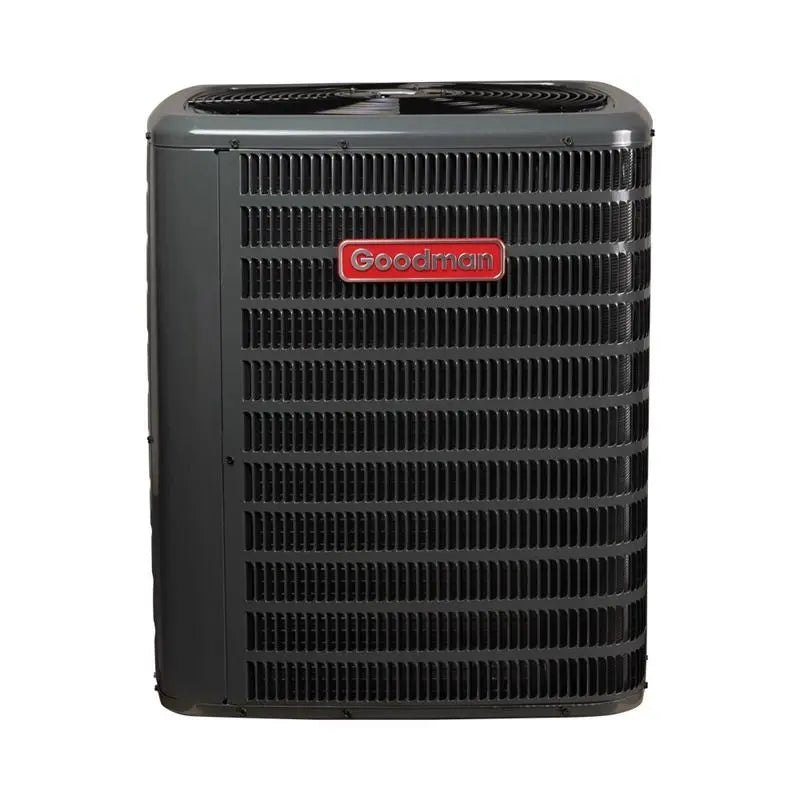

Keep your home comfortable through warm weather with a Goodman central air conditioner condenser built for dependable split-system cooling. This outdoor condenser is a practical choice for homeowners replacing an existing AC component or completing a compatible cooling setup with a matching indoor coil or air handler. It balances reliable performance, durable outdoor construction, and installation-friendly service access for small to medium homes.
Key Benefits
- Sized for Small to Medium Homes – 2.5 ton cooling capacity is generally suitable for homes approximately 1,300–1,600 sq. ft., depending on climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
- 14.3 SEER2 Efficiency – 14.3 SEER2 performance provides dependable cooling at a standard efficiency level.
- Cooling-Only Performance – Designed for central air conditioning applications when paired with a compatible indoor evaporator coil or air handler.
- Low Outdoor Sound – Designed with sound-dampening features to support quieter outdoor operation.
- Factory-Charged for Installation – Comes factory charged for up to 15' of line set to support a cleaner installation process.
- Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
- Durable Outdoor Construction – Heavy-gauge galvanized steel cabinet with a baked-on powder-paint finish is built for long-term outdoor durability.
Cooling Capacity for Small to Medium Homes
With 2.5 tons of cooling capacity, this condenser is commonly used for homes approximately 1,300–1,600 sq. ft. in various climates. It is a cooling-only outdoor unit and must be paired with a compatible indoor evaporator coil or air handler to operate.
Actual sizing depends on your local climate, insulation, windows, ceiling height, air leakage, home layout, and a professional sizing review.
Reliable 14.3 SEER2 Efficiency
A 14.3 SEER2 efficiency rating provides dependable standard-efficiency cooling when paired with compatible indoor equipment.
Built for Reliable Outdoor Performance
Built with a galvanized-steel cabinet, baked-on painted finish, and installation-friendly service access to support dependable outdoor performance. The cabinet includes heavy-gauge galvanized steel construction with a baked-on painted finish, while easy-access gauge ports, service valves, and top/side access panels support a smoother service experience for qualified HVAC professionals.
Goodman Central AC System: How Does it Work?
Designed to deliver reliable heating and cooling performance, this system helps keep your home comfortable through changing outdoor conditions.
Durable construction and thoughtful system design support dependable operation, while efficiency-focused features help manage comfort throughout the year.
Whether replacing an older system or completing a new installation, this product offers a practical solution for whole-home comfort.
Warranty
This condenser includes a 10-Year Limited Parts Warranty with online registration. Installation must comply with state and local codes, and warranty coverage may be void if the unit is not installed by a qualified professional.
What’s Included
- Goodman Central Air Conditioner Condenser – Outdoor cooling unit for a compatible split-system installation.
- Factory-Installed Filter Drier – Protects the refrigeration system by reducing moisture and contaminants.
Recommended Accessories
- Line Set – Connects the outdoor condenser to compatible indoor equipment for refrigerant flow; select the visible line set option that matches the installation.
- Condenser Installation Kit – Provides key installation materials for a cleaner condenser setup.
Requirements & Considerations
- Compatible Indoor Equipment Required – This cooling-only condenser must be paired with a compatible indoor evaporator coil or air handler.
- Electrical Requirements – Requires a 208 / 230 V. 1 Phase 60 Hz electrical supply.
- Line Set Selection – Use the line set option and connection sizing shown on the live product page or confirmed by Goodman installation guidance.
- Professional Installation Recommended – Proper installation, system matching, and refrigerant handling are important for safe operation and warranty coverage.
R32 Refrigerant Compatibility Notice
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
OVERVIEW

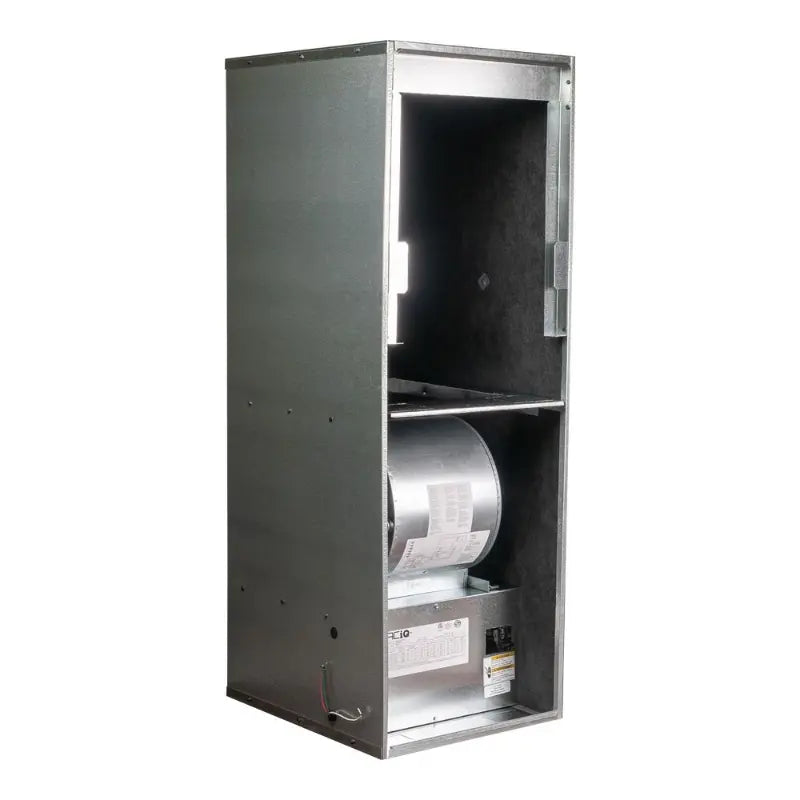

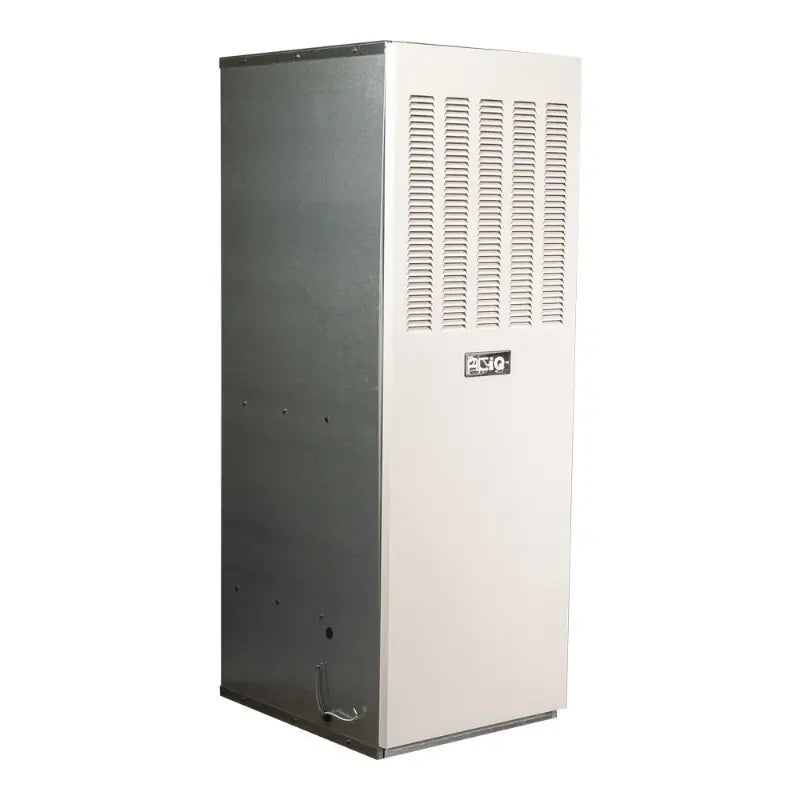

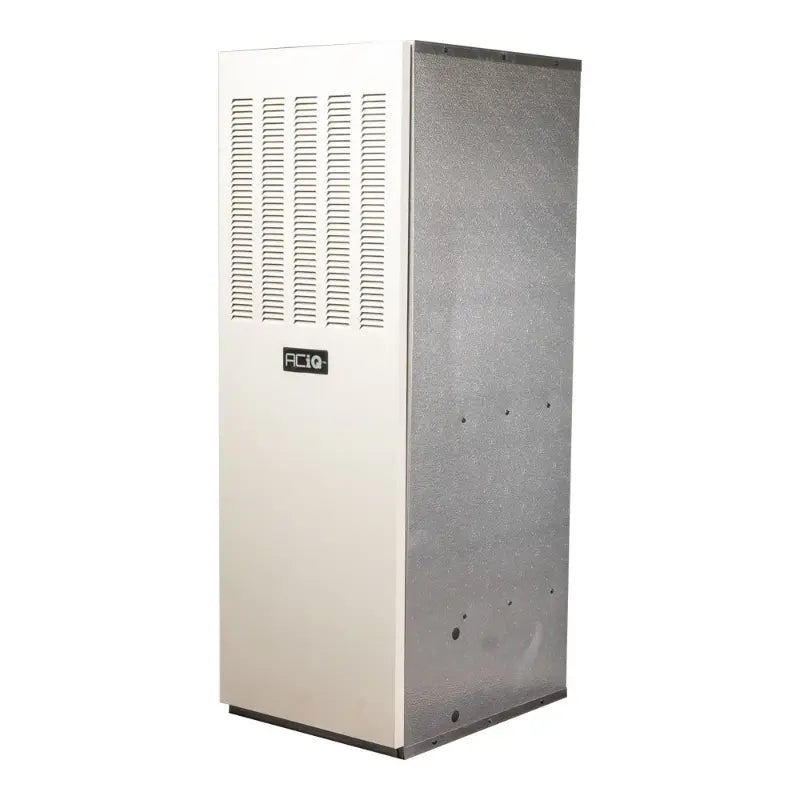

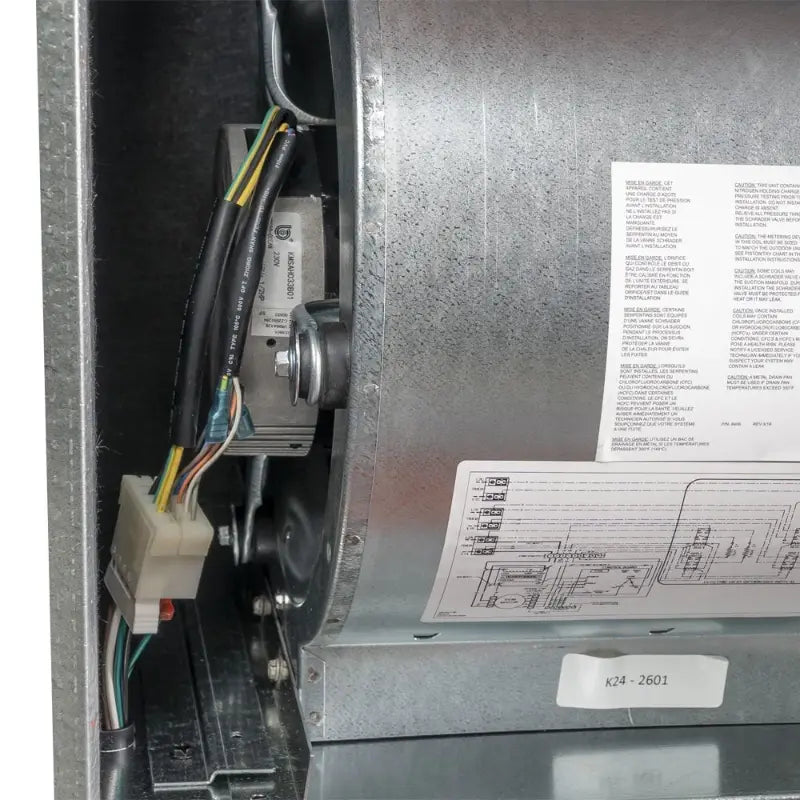

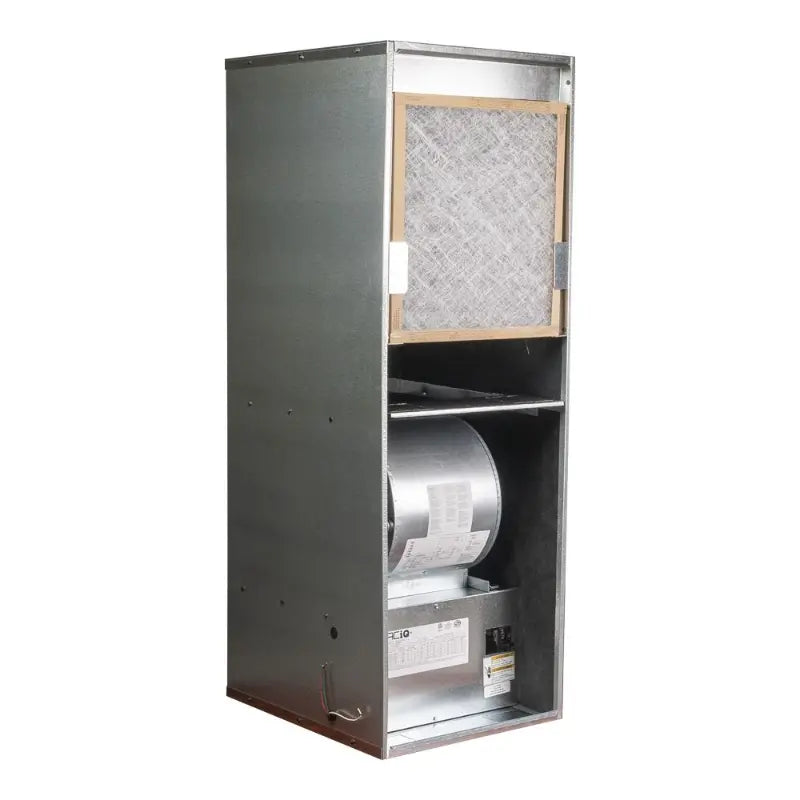

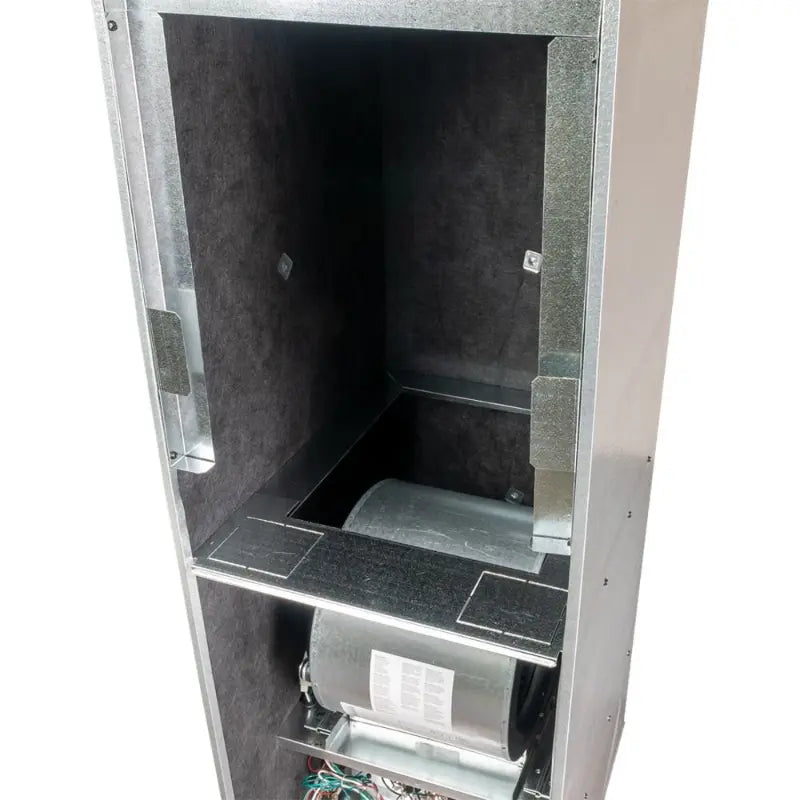

The ACiQ-EFS1020FD-MH electric furnace is a reliable heat source for almost any mobile home application. With its easy installation and maintenance, this unit will provide comfort to your home in all-electric system setups.
QUICK FACTS
- 10 kW electric furnace
- R454B and R32 refrigerant compatible
- Can generally heat a small mobile home in ideal applications
- Low maintenance requirements
- Efficient multi-speed ECM blower motor
- Effective air filter to improve air quality

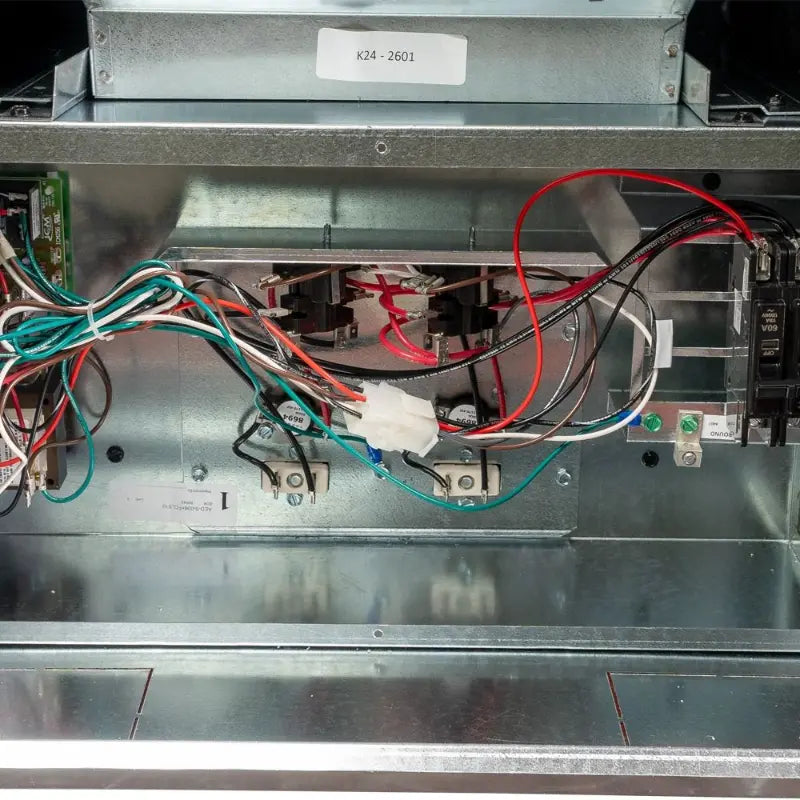

- Built-in circuit breakers for safety and dependability
- Sturdy, galvanized steel cabinet
- AC coil cabinet included with purchase (condenser and coil sold separately)

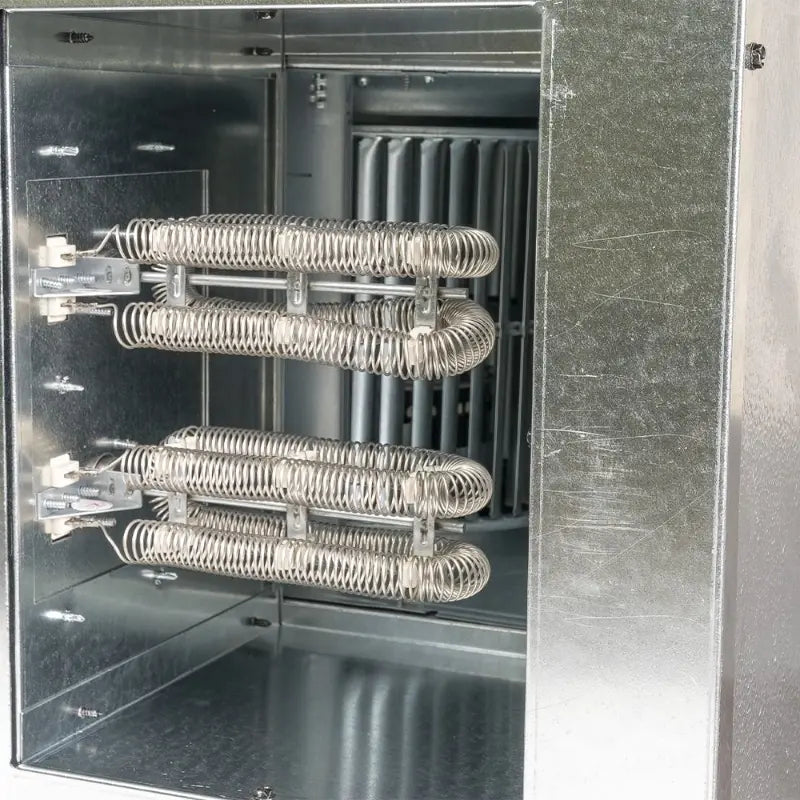

Modular Electric Heat Kit
The ACiQ-EFS1020FD-MH is generally able to heat up to a small mobile home in average installations. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.
Warranty
Hassle-free five-year limited parts warranty.
Installation and Maintenance
The ACiQ-EFS1020FD-MH electric furnace is designed to be easily installed for a faster process, lowering labor costs. The filter is also easy to wash or replace, lowering maintenance costs.
Specifications
| Goodman 2.5 Ton 14.3 SEER2 Central Air Conditioner Condenser - R32 Single Stage | |
|---|---|
| SKU | GLXS4BA3010 |
| Weight (in lbs) | 170.000000 |
| Brand/Manufacturer | Goodman |
| Replaces | GSXN403010 |
| Cooling BTU | 30,000 |
| Decibel Level (dBA) | 71 |
| Horsepower | 1/6 HP |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1 Phase 60Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 15.0 Amps |
| Tonnage | 2.5 Ton |
| Connection | Sweat |
| Height | 32" |
| Width | 29" |
| Depth | 29" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
| ACIQ 3 Ton Uncased Downflow Mobile Home Coil with TXV | Copper - R32 | |
| SKU | ACIQ-MH36BU3VYEC |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | ACiQ-M36BU3VYEC |
| Configuration | Downflow |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 3 Ton |
| Height | 19 1/2" |
| Width | 17 3/4" |
| Depth | 19 5/8" |
| Warranty | 10 Year Limited Warranty |
| ACiQ 10kW Mobile Home Electric Downflow Furnace - R454B/R32 Compatible | |
| SKU | ACIQ-EFS1020FD-MH |
| Weight (in lbs) | 115.000000 |
| Brand/Manufacturer | ACiQ |
| Heating BTU | 32,800 BTU |
| Blower Motor | ECM Multi Speed |
| Drive Type | Direct |
| Maximum CFM | 1760 |
| Horsepower | 3/4 HP |
| Electric Heat | 10 Kilowatts |
| Configuration | Downflow |
| Electrical | 240v 1 Phase |
| Phase | Single Phase |
| Max Breaker Size | 60 Amp |
| Fuel Type | Electric |
| Height | 57" |
| Width | 19 3/4" |
| Depth | 24 1/2" |
| Warranty | 5 Year Limited Parts Warranty |
| ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B | |
| SKU | A2LZS |
| Weight (in lbs) | 5.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | A2L3SA, A2L4SA |
