The Goodman 2.5 Ton 14.3 SEER2 R32 AC & 80% AFUE 60K BTU Gas Furnace System - Upflow delivers efficient and reliable home comfort. This upflow system, designed for modern energy standards, is environmentally friendly with R32 refrigerant and built to withstand harsh conditions, including hurricane-type winds when properly anchored. Its versatile and durable components make it an ideal solution for year-round heating and cooling.
Key Product Features of the Goodman 2.5 Ton 14.3 SEER2 AC:
- Energy-Efficient Compressor: Ensures powerful cooling with lower energy consumption.
- Pre-Charged for 15' Tubing Length: Simplifies installation.
- Copper & Aluminum Coil: 5mm copper tube with enhanced aluminum fins for efficient heat exchange.
- Factory-Installed Filter Drier: Removes moisture and debris to protect the system.
- Extended-Life Capacitors: Enhance the system's reliability over time.
- Certifications: In addition, AHRI Certified and ETL Listed for performance and safety.
Cabinet Features of the Goodman 2.5 Ton 14.3 SEER2:
- Grille-Style Top Design: Improves airflow and meets UL 60335-2-40 compliance.
- Architectural Gray Finish: Corrosion-resistant with a 500-hour salt-spray approval.
- Hurricane-Ready: Complies with 2023 Florida Building Code for hurricane winds (anchor brackets sold separately).
- Top & Side Maintenance Access: Simplifies servicing with easy-to-remove panels.
- Flexible Installation Options: Goodman 2.5 Ton 14.3 SEER2 supports upflow and horizontal configurations for diverse setups.
- Direct & Non-Direct Venting: Accommodates both single-pipe and two-pipe installations.
- Fully Insulated Sections: Maintains quiet operation while maximizing energy efficiency.
- Heavy-Gauge Steel Construction: Durable with a sleek, powder-coated finish.
Evaporator Coil - CAPTA3022A3:
- All-Aluminum Construction: Moreover, it offers lightweight durability and optimal thermal performance.
- R32 Refrigerant Ready: Designed for modern refrigerants with factory-installed sensors and valves.
- Compact Design: Fits tight spaces with a 21" depth and single front access panel.
- Foil-Faced Insulation: Reduces condensation and improves cabinet efficiency.
- Rust-Resistant Drain Pan: Low water retention and secondary drain connections for reliable performance.
- Certifications: AHRI Certified and ETL Listed for safety and quality assurance.

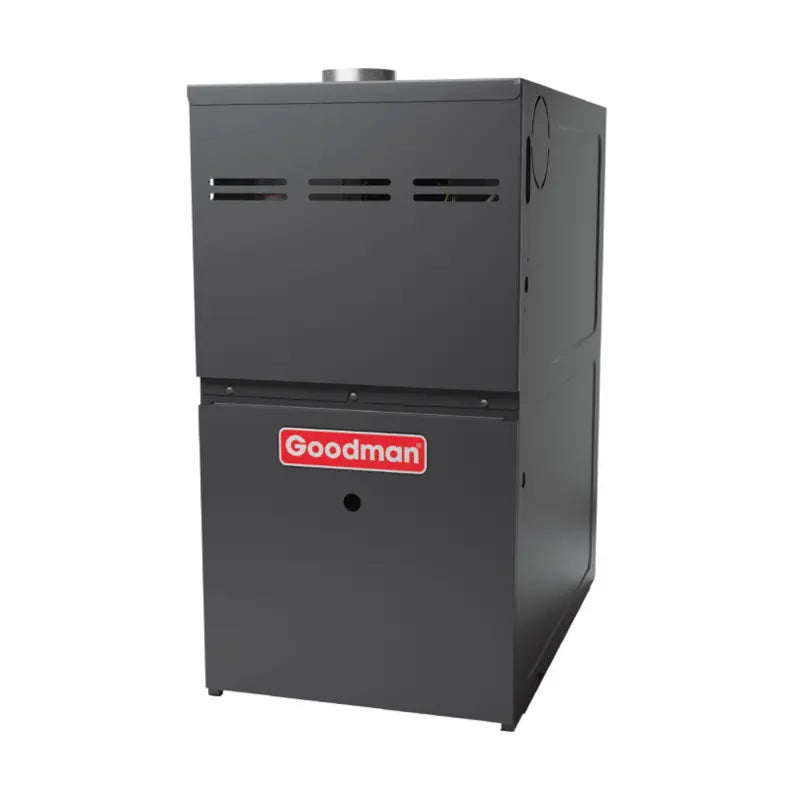

Gas Furnace - GR9S800603AN
- 80% AFUE Efficiency: Provides consistent and economical heating performance.
- Durable Igniter: Built for long-lasting reliability.
- Self-Diagnostic Control Board: Monitors and stores system performance data for easier troubleshooting.
- Quiet Circulation: Energy-efficient blower minimizes noise while delivering superior comfort.
- Lower NOx Emissions: Eco-friendly heating that meets environmental standards.
- Tax Credit Eligible: Complies with energy-efficient incentive requirements.
In summary, the Goodman 2.5 Ton 14.3 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System combines efficiency, durability, and versatility to ensure year-round comfort in your home. Designed for ease of installation and maintenance, this system offers a reliable and cost-effective solution for modern heating and cooling needs.
-
AHRI Reference 215214760 AC Model Number GLXS4BA3010 SEER 2 14.3 Tonnage 2.5 Unit Height x Width x Depth 32 x 29 x 29 in Unit Weight 155 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 14.95 Max Fuse Size 25 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3022A3 Tonnage 2.5 Unit Height x Width x Depth 22 x 14 x 21 in Unit Weight 37 lb Liquid Connection 3/8" Suction Fitting 3/4" Coil Type Cased Configuration Upflow/Downflow Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S800603AN Height x Width x Depth 33-3/8 x 14 x 28 in Weight 90 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 48,000 Tons 3 CFM 1,200 Min. Circuit Amps 7.7 Motor Type ECM Stages Single LoNox No -
-
