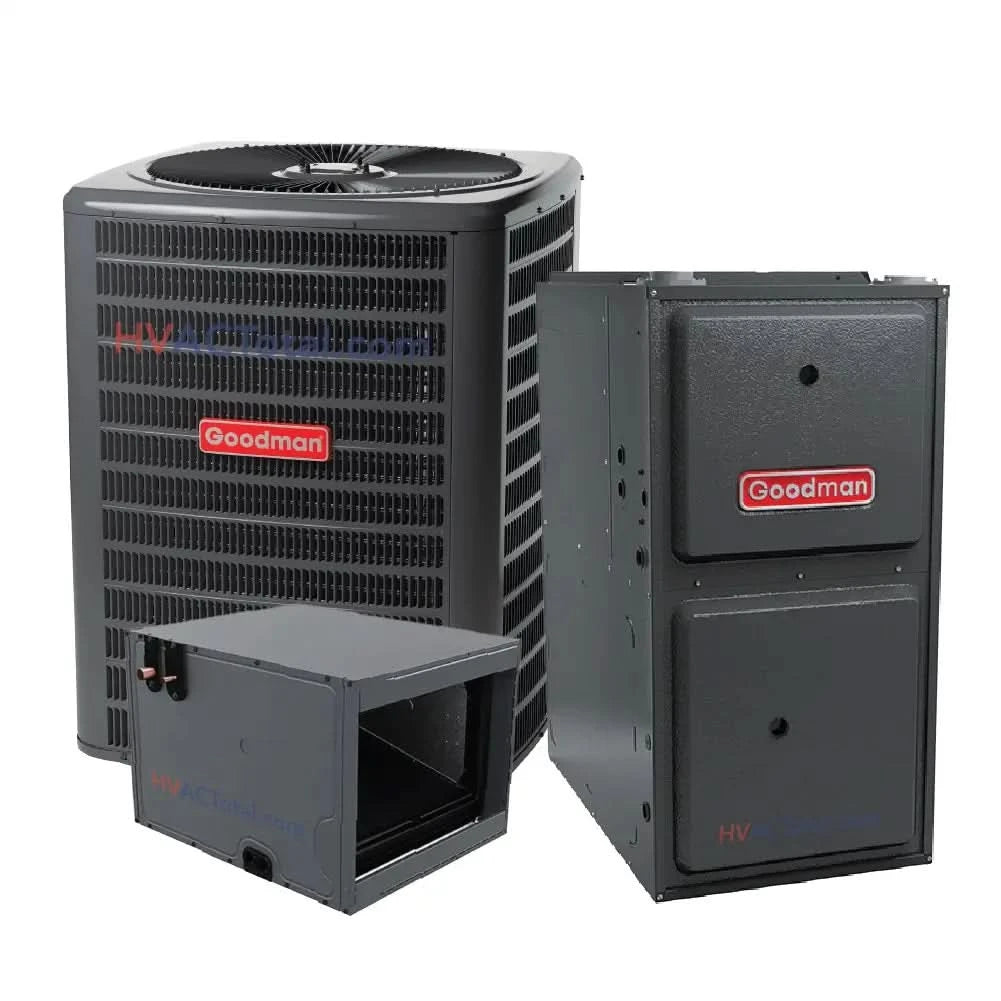

The Goodman 2.5 Ton 14.5 SEER2 AC & 96% AFUE 80K BTU Gas Furnace System - Horizontal, R32 is a premium solution for reliable year-round heating and cooling. Designed for horizontal installations, this system combines energy efficiency, durability, and advanced engineering to provide optimal comfort for residential spaces.
Key Features of the Goodman 2.5 Ton 14.5 SEER2 AC:
- Energy-Efficient Compressor: Optimized for reliable cooling performance.
- Pre-Charged Refrigerant: Ready for 15' tubing for quick installation.
- Enhanced Coil Design: Copper tubing with 5mm aluminum fins for efficient heat transfer.
- Certified Performance: In addition, AHRI and ETL listed for safety and reliability.
Cabinet Highlights of the Goodman 2.5 Ton 14.5 SEER2:
- Durable Finish: Powder-coated for long-lasting protection and 500-hour salt-spray approval.
- Efficient Airflow: Venturi design enhances velocity.
- Hurricane-Ready: Meets 2023 Florida Building Code for wind integrity when anchored.
- Easy Access: Single-panel design simplifies maintenance and service.
Evaporator Coil - CHPTA3026B3:
- All-Aluminum Build: Corrosion-resistant and optimized for R-32 refrigerant.
- Compact Design: 21" depth for easier attic installation.
- Durable Drain Pan: UV-resistant, rust-proof, and designed for effective water drainage.
- Certified Quality: Backed by AHRI and ETL certifications.
Gas Furnace - GR9S960803BN:
- 96% AFUE Efficiency: Reduces heating costs while maintaining comfort.
- Quiet Operation: Designed for low-noise, economical performance.
- Smart Diagnostics: Control board with memory for easy troubleshooting.
- Environmentally Friendly: Lastly, low NOx emissions for a cleaner footprint.
Goodman 2.5 Ton 14.5 SEER2 Installation Versatility:
- Multi-position setup: Horizontal left or right, upflow.
- Direct and non-direct vent options (2-pipe/1-pipe).
- Convenient left/right gas and electrical connections.
- Fully insulated heat exchanger and blower for efficiency.
The Goodman 2.5 Ton 14.5 SEER2 AC & 96% AFUE 80K BTU Gas Furnace System - Horizontal, R32 combines high efficiency, durability, and advanced features to deliver consistent year-round comfort while reducing energy costs. Designed to last, it offers flexibility and performance for residential installations.
-
AHRI Reference 215214854 AC Model Number GLXS4BA3010 SEER 2 14.3 Tonnage 2.5 Unit Height x Width x Depth 32 x 29 x 29 in Unit Weight 155 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 14.95 Max Fuse Size 25 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3026B3 Tonnage 2.5 Unit Height x Width x Depth 17.5 x 26 x 21 in Unit Weight 59 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S960803BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 118 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 76,880 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 10.1 Motor Type ECM Stages Single LoNox No -
-
