The Goodman 2.5 Ton 14 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System, R32 Refrigerant - Upflow offers a highly efficient and reliable solution for both heating and cooling. With R32 refrigerant and robust components, this system is built to provide long-lasting comfort, energy savings, and ease of maintenance.
Product Benefits of the Goodman 2.5 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Provides effective cooling with minimal energy usage.
- Pre-Charged for 15 Feet: Simplifies installation with a fully charged system.
- Durable Components: Copper tube and enhanced aluminum fin coil for superior heat exchange.
- Reliable Safety Features: Includes high-pressure switch and enclosed contactor for reliability.
- Extended Life Capacitors: Designed for long-term performance.
- Certifications: AHRI Certified and ETL Listed for safety and performance compliance.
Cabinet Features of the Goodman 2.5 Ton 14 SEER2:
- Removable Grille-Style Top: Compliant with UL 60335-2-40 for safety.
- Venturi Design: Enhances airflow velocity for more efficient cooling.
- Durable Architectural Finish: 500-hour salt-spray resistance with a powder-coated gray finish.
- Steel Coil Guard: Protects coils from damage.
- Easy Access for Maintenance: Top and side access panels for servicing.
- Flexible Installation Options: Multi-position design supports upflow, horizontal left or right configurations.
- Ventilation Flexibility: Certified for direct vent (2-pipe) or non-direct vent (1-pipe).
- Insulated Heat Exchanger: Improves efficiency and reduces operational noise.
- Heavy-Gauge Steel Cabinet: Furthermore, it provides long-term durability and structural integrity.

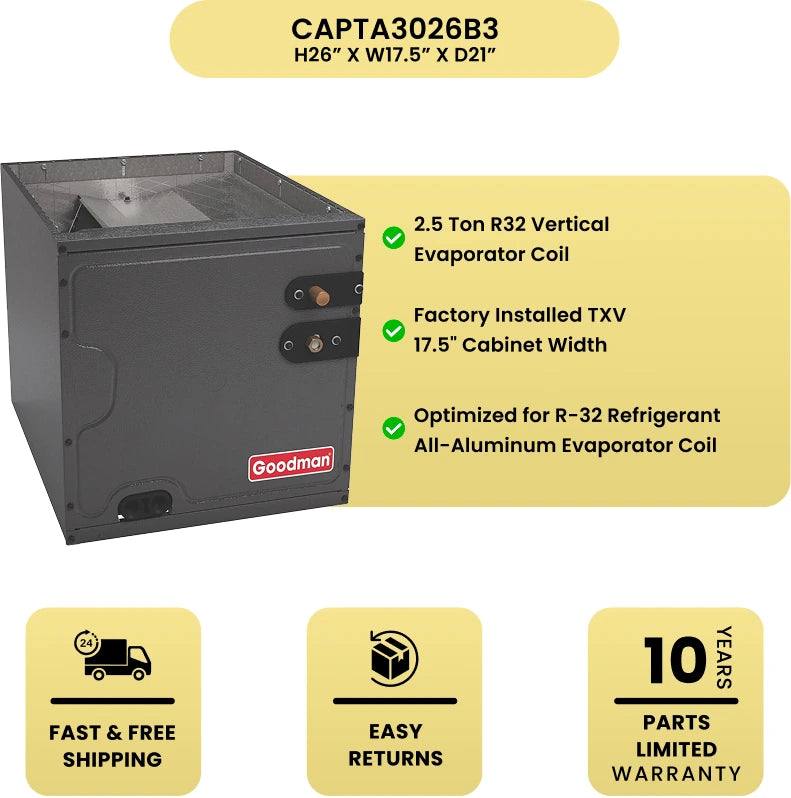

Evaporator Coil - CAPTA3026B3:
- All-Aluminum Construction: Moreover, it reduces the risk of leaks and improves durability.
- Optimized for R-32 Refrigerant: Goodman 2.5 Ton 14 SEER2 ensures efficient performance with R-32 systems.
- Factory-Installed Expansion Valves: In addition, it improve cooling performance.
- Compact and Accessible: 21" depth for easier attic installation and single front access panel.
- Rust-Resistant Drain Pan: Designed for improved longevity with a UV-resistant, low water retention design.
- Certifications: AHRI Certified and ETL Listed.

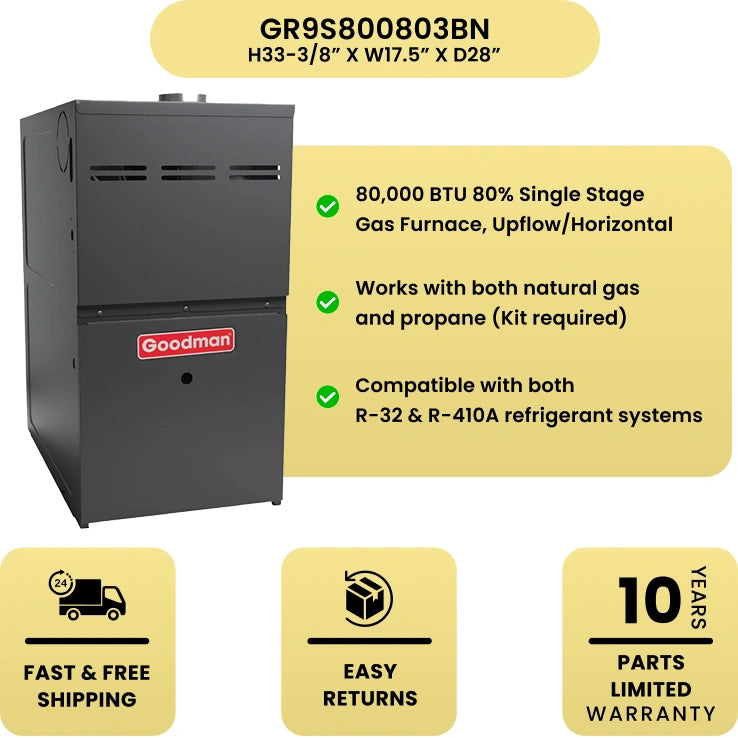

Gas Furnace - GR9S800803BN:
- 80% AFUE Efficiency: Energy-efficient heating for reduced energy costs.
- Long-Lasting Igniter: Durable for reliable performance.
- Quiet and Efficient: Minimizes noise while maintaining effective heating.
- Self-Diagnostic Control Board: Simplifies troubleshooting and improves reliability.
- Eco-Friendly: Lastly, it meets low NOx emission standards and qualifies for tax credits.
In summary, the Goodman 2.5 Ton 14 SEER2 AC & 80K BTU Gas Furnace System offers reliable, energy-efficient performance for both cooling and heating. With durable components, easy maintenance features, and multiple installation options, this system provides lasting comfort and cost savings
-

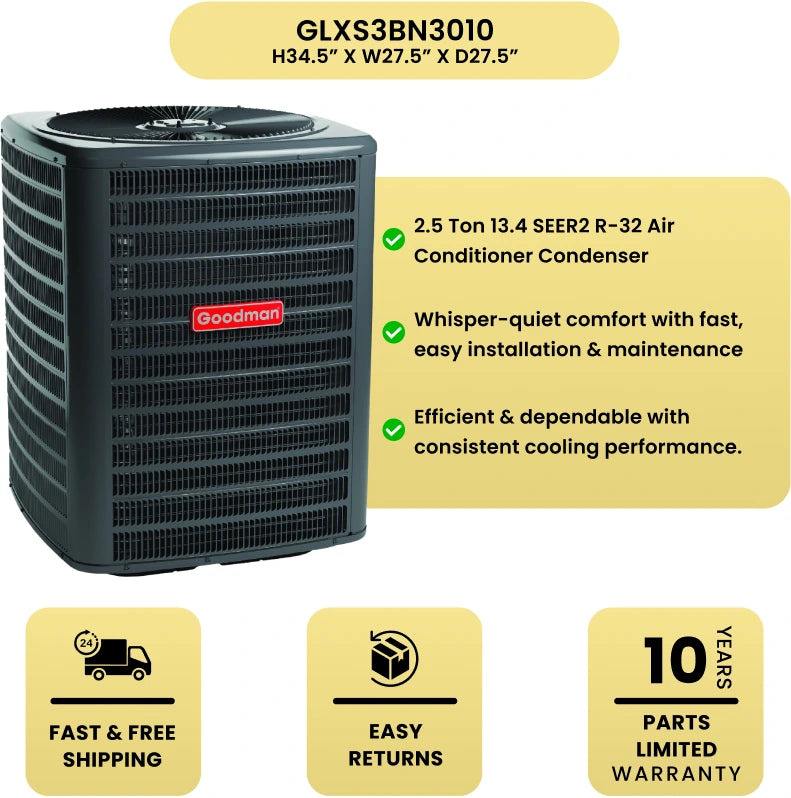

AHRI Reference 215277235 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3026B3 Tonnage 2.5 Unit Height x Width x Depth 26 x 17.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S800803BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 116 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 3 CFM 1,200 Min. Circuit Amps 7.7 Motor Type ECM Stages Single LoNox No -
-
