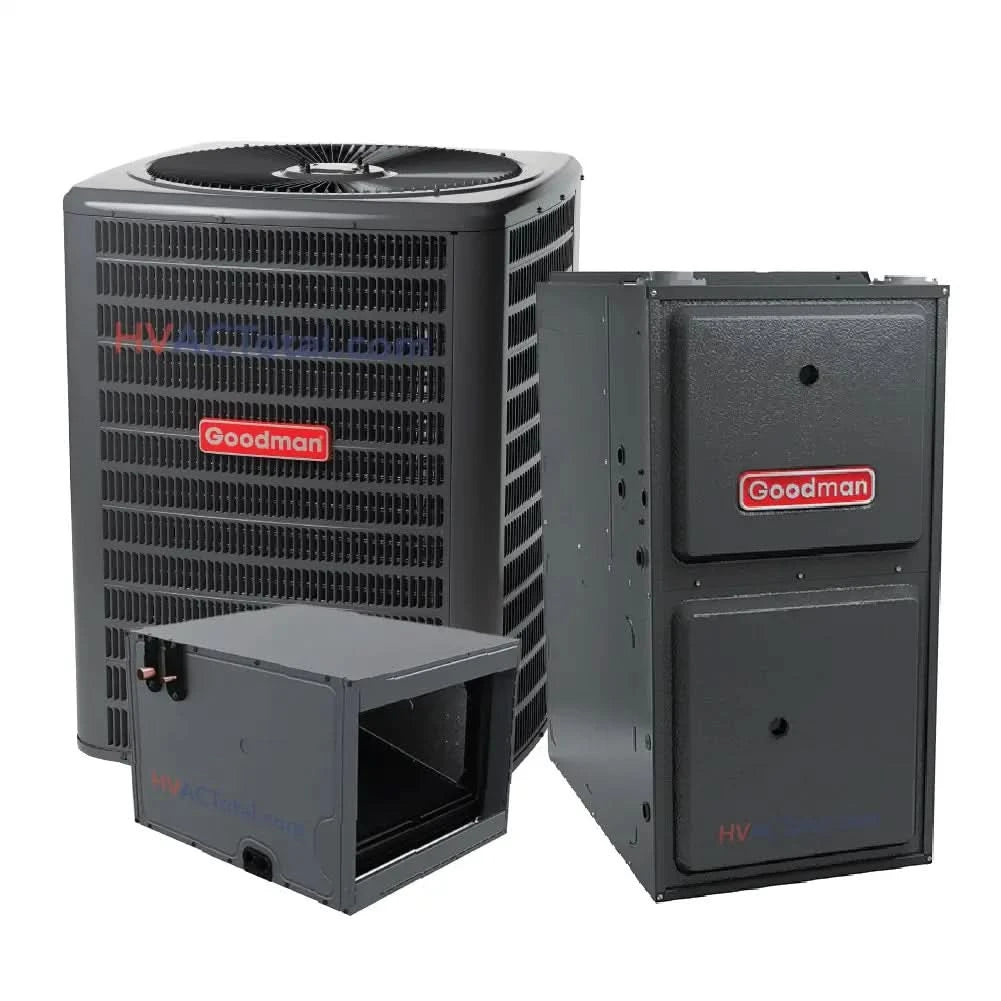

The Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 60K BTU Gas Furnace System, R32 Refrigerant - Horizontal delivers high-performance heating and cooling with superior energy efficiency and reliability. Its innovative design, durable construction, and ease of maintenance make it a perfect choice for year-round comfort.
Key Benefits of the Goodman 2.5 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Firstly, it ensures effective cooling with minimal energy use.
- Pre-Charged for 15 Feet: Simplifies installation with factory-filled refrigerant.
- Enhanced Aluminum Fin Coil: Copper tube with 5mm diameter for optimized heat exchange.
- Factory-Installed Filter Drier: Furthermore, it protects the system from moisture and contaminants.
- High-Pressure Switch: Adds safety and reliability.
- Certifications: AHRI Certified and ETL Listed for performance and safety.
Cabinet Features of the Goodman 2.5 Ton 14 SEER2:
- Removable Grille Design: UL-compliant for safety and airflow efficiency.
- Architectural Gray Finish: Powder-coated for durability, with 500-hour salt-spray approval.
- Easy Access Panels: Streamlined maintenance with single-panel access.
- Durable Construction: Steel louver coil guard and venturi for increased airflow velocity.
- Multi-Position Installation: Supports upflow, horizontal left, or right configurations.
- Flexible Venting Options: Certified for direct or non-direct venting.
- Insulated Heat Exchanger: Goodman 2.5 Ton 14 SEER2 reduces operational noise and improves efficiency.
- Heavy-Gauge Steel Cabinet: Robust construction ensures longevity.
Evaporator Coil - CHPTA3630B3:
- All-Aluminum Coil: Enhances durability and reduces leaks.
- Optimized for R-32 Refrigerant: Tailored circuits and manifolds for optimal cooling performance.
- Factory-Installed Expansion Valves: In addition, it ensures efficient operation in cooling and heat pump applications.
- Compact Design: 21" depth for easier installation in tight spaces.
- Rust-Resistant Drain Pan: UV-resistant thermoplastic design with low water retention for longevity.
- Certifications: AHRI Certified and ETL Listed.
Gas Furnace - GR9S960603BN:
- 96% AFUE Efficiency: Additionally, it reduces heating costs with high energy efficiency.
- Quiet, Economical Heating: Operates smoothly with low NOx emissions for an eco-friendly performance.
- Self-Diagnostic Control Board: Simplifies troubleshooting and enhances reliability.
- Two-Stage Thermostat Compatibility: Moreover, it provides precise temperature control.
- Durable Igniter: Lastly, built for long-lasting operation.
In summary, the Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 60K BTU Gas Furnace System combines advanced features and reliable performance to deliver exceptional year-round comfort. With easy installation, durable components, and energy-efficient operation, it’s an excellent choice for any home.
-
AHRI Reference 215277194 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3630B3 Tonnage 2 - 2.5 Unit Height x Width x Depth 17.5 x 30 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S960603BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 118 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 58,200 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 10.1 Motor Type ECM Stages Single LoNox No -
-
