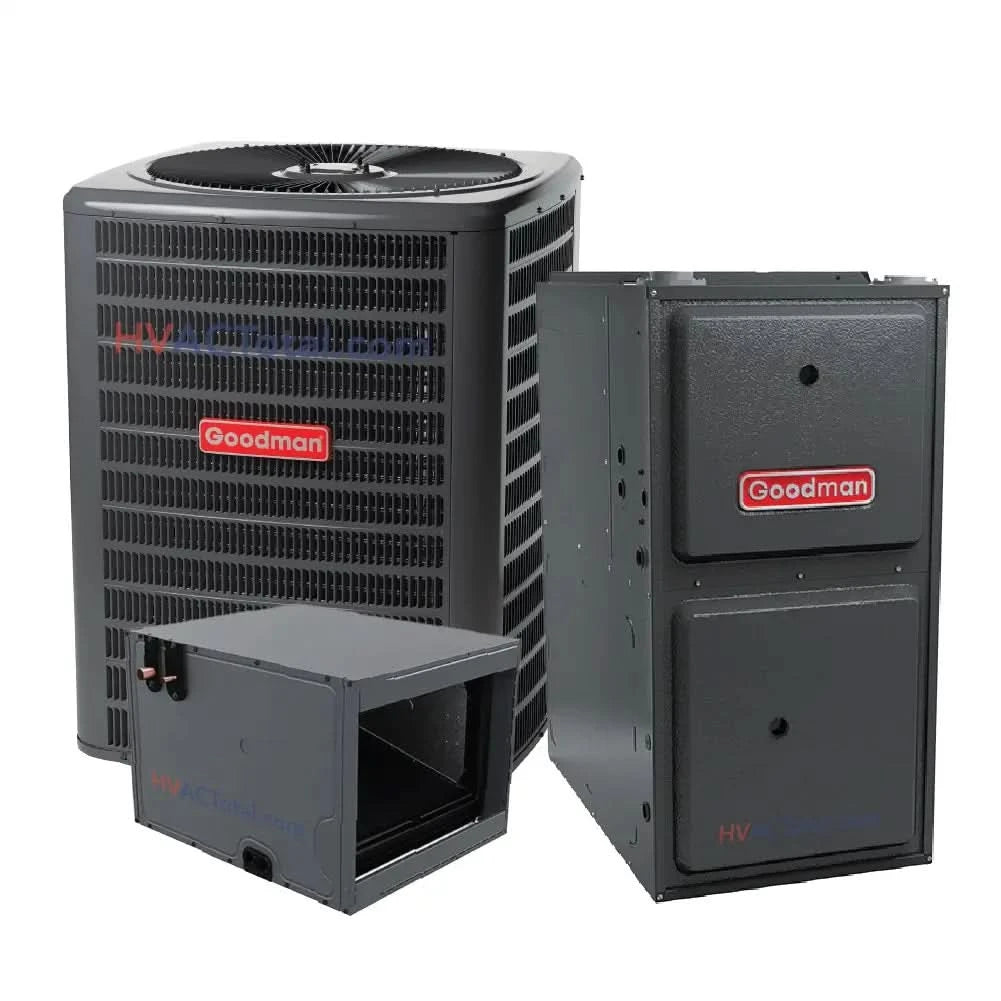

The Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 60K BTU Gas Furnace System offers efficient, reliable, and quiet operation for both cooling and heating. Its high-quality components, energy-efficient performance, and durable construction make it a standout solution for year-round comfort.
Key Benefits of the Goodman 2.5 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Minimizes energy consumption while delivering consistent cooling.
- Pre-Charged Refrigerant: Comes charged for up to 15 feet of tubing, ensuring easy setup.
- Enhanced Aluminum Fin Coil: Features a copper tube for better heat exchange.
- Factory-Installed Filter Drier: Furthermore, it improves reliability by eliminating moisture and contaminants.
- High-Pressure Switch & Extended-Life Capacitors: Enhance safety and durability.
- Certifications: AHRI Certified and ETL Listed for safety and performance compliance.
Cabinet Features of the Goodman 2.5 Ton 14 SEER2:
- Removable Grille Design: UL-compliant for safety and easy maintenance.
- Durable Gray Finish: Powder-coated with 500-hour salt-spray approval for longevity.
- Easy Maintenance Access: Single-panel design simplifies servicing.
- Steel Louver Coil Guard & Venturi Design: Protects the unit and improves airflow.
- Flexible Installation: Supports upflow, horizontal left, or right configurations.
- Venting Options: Certified for direct (2-pipe) or non-direct (1-pipe) venting.
- Insulated Heat Exchanger: Minimizes noise while maximizing energy efficiency.
- Robust Steel Cabinet: Heavy-gauge construction ensures durability and resistance to wear.
Evaporator Coil - CHPTA3630B3:
- All-Aluminum Coil: Designed for durability and resistance to leaks.
- Optimized for R-32 Refrigerant: Goodman 2.5 Ton 14 SEER2 ensures maximum cooling efficiency.
- Factory-Installed Thermal Expansion Valves: Enhances performance in cooling and heat pump systems.
- Compact & Accessible: 21" depth for easy attic installation and single-panel front access.
- Rust-Resistant Drain Pan: Features UV-resistant thermoplastic material for extended lifespan.
- Certifications: AHRI Certified and ETL Listed for reliable performance.
Gas Furnace - GR9T960603BN:
- 96% AFUE Efficiency: Moreover, it delivers significant savings on heating costs.
- Quiet, Economical Heating: Operates with low NOx emissions for an eco-friendly and efficient experience.
- Self-Diagnostic Control Board: Additionally, it provides ongoing performance monitoring for easier maintenance.
- Durable Igniter: Goodman 2.5 Ton 14 SEER2 ensures long-lasting reliability.
- Two-Stage Thermostat Compatibility: Offers precise temperature control.
Overall, the Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 60K BTU Gas Furnace System combines advanced features, reliable operation, and energy efficiency, making it an excellent choice for maintaining comfort throughout the year. Its versatile installation options and high-quality components ensure dependable performance for any home
-
AHRI Reference 215277151 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3630B3 Tonnage 2 - 2.5 Unit Height x Width x Depth 17.5 x 30 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9T960603BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 115 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 57,600 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 7.8 Motor Type ECM Stages Two LoNox No -
-
