This Goodman system pairs a 2.5 Ton 14 SEER2 AC with a 96% AFUE 60K BTU Gas Furnace, offering high energy efficiency and durability for optimal year-round comfort. Designed for upflow installation, this system ensures reliability and performance while being environmentally conscious with R32 refrigerant.

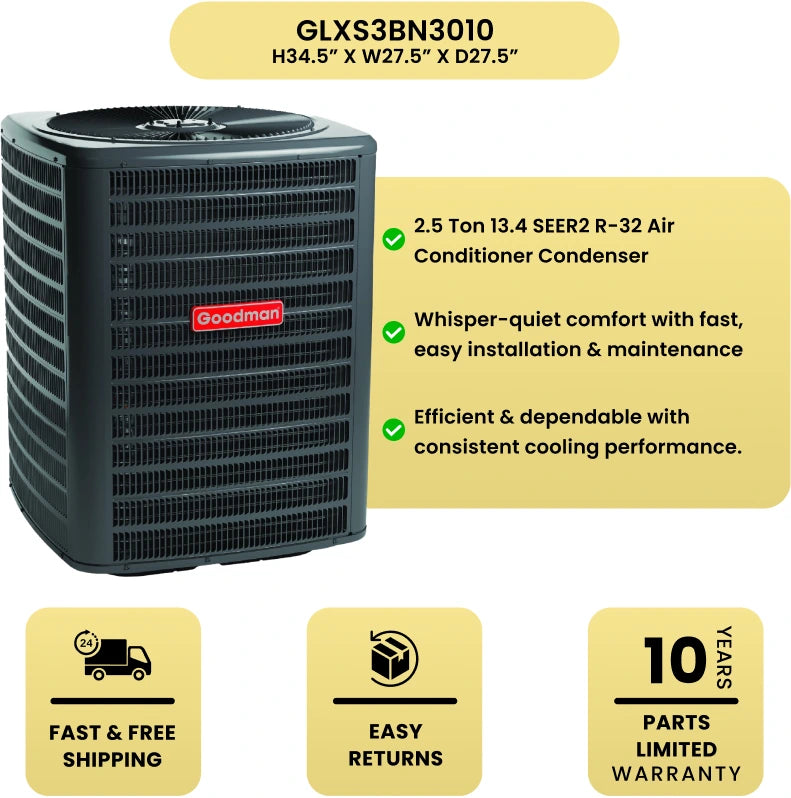

Key Benefits of the Goodman 2.5 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Optimized for consistent and cost-effective cooling.
- Pre-Charged Refrigerant: Additionally, it comes charged for up to 15 feet of tubing for easy installation.
- Enhanced Aluminum Fin Coil: Incorporates copper tubing for efficient heat transfer.
- Factory-Installed Filter Drier: Improves system reliability by removing moisture and contaminants.
- Long-Life Capacitors & High-Pressure Switch: Enhances safety and system longevity.
- Certifications: AHRI Certified and ETL Listed for dependable operation.
Cabinet Features of the Goodman 2.5 Ton 14 SEER2:
- Removable Grille Design: UL-compliant for maintenance ease and durability.
- Architectural Gray Finish: Powder-coated with 500-hour salt-spray resistance.
- Simplified Maintenance: Single-panel access to controls and serviceable components.
- Steel Louver Coil Guard: Goodman 2.5 Ton 14 SEER2 protects vital components while improving airflow efficiency.
- Flexible Installation: Supports upflow, horizontal left, or right configurations.
- Direct and Non-Direct Vent Options: Versatile venting to suit different setups.
- Insulated Heat Exchanger Section: Minimizes noise while improving efficiency.
- Heavy-Gauge Steel Construction: Provides long-lasting durability and reduced air leakage (≤2%).

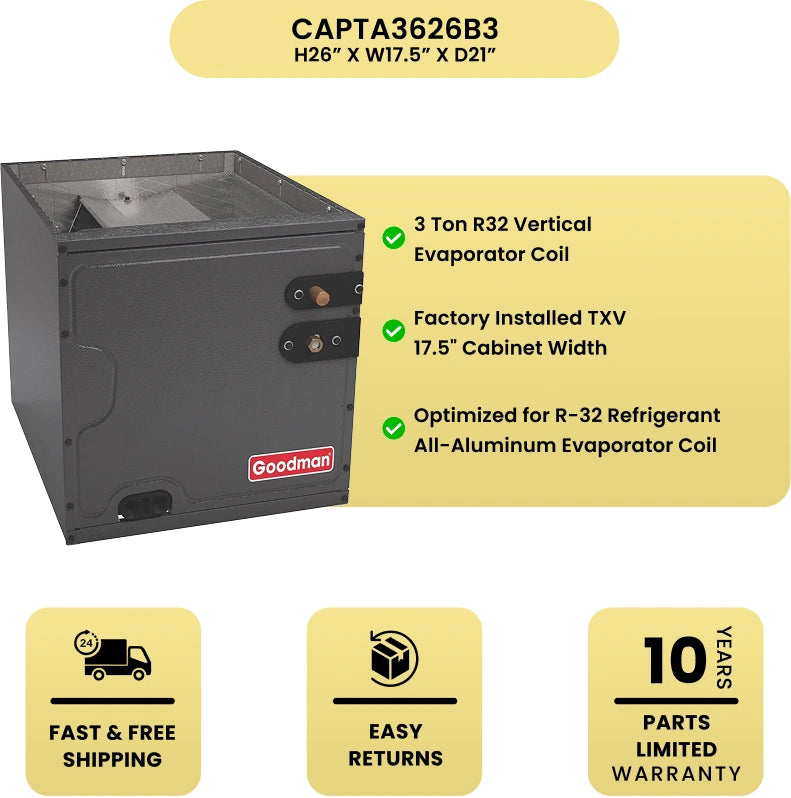

Evaporator Coil - CAPTA3626B3:
- All-Aluminum Coil: Lightweight, durable, and resistant to corrosion.
- R-32 Refrigerant Optimization: Designed for enhanced cooling efficiency.
- Thermal Expansion Valves (Factory-Installed): Boost performance in cooling and heat pump applications.
- Compact Depth: 21” design simplifies attic installations.
- Rust-Resistant Thermoplastic Drain Pan: Moreover, it prevents water retention and extends system life.
- Certifications: AHRI Certified and ETL Listed for trusted quality and performance.

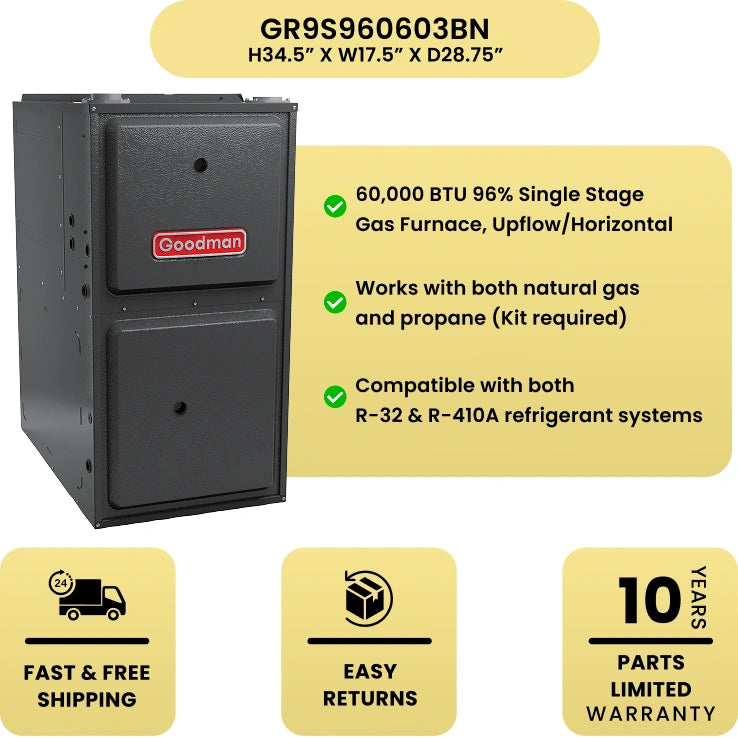

Gas Furnace - GR9S960603BN:
- 96% AFUE Efficiency: Maximizes heating performance while reducing energy costs.
- Quiet, Economical Heating: Designed for reduced NOx emissions and smooth operation.
- Self-Diagnostic Control Board: Goodman 2.5 Ton 14 SEER2 provides constant performance monitoring for easy maintenance.
- Two-Stage Thermostat Compatibility: Allows for precise temperature control.
- Electronic Air Cleaner (EAC) Compatibility: Prepped for advanced air cleaning add-ons.
In summary, the Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 60K BTU Gas Furnace System offers an efficient and eco-friendly solution for year-round comfort. Its advanced features, versatile installation options, and high-quality components make it an ideal choice for homes requiring dependable heating and cooling performance
-
AHRI Reference 215277196 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3626B3 Tonnage 3 Unit Height x Width x Depth 26 x 17.5 x 21 in Cased/Uncased Cased Coil Application Upflow/Downflow Refrigerant Type R-32 Gas Furnace Model Number GR9S960603BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 118 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 58,200 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 10.1 Motor Type ECM Stages Single LoNox No -
-
