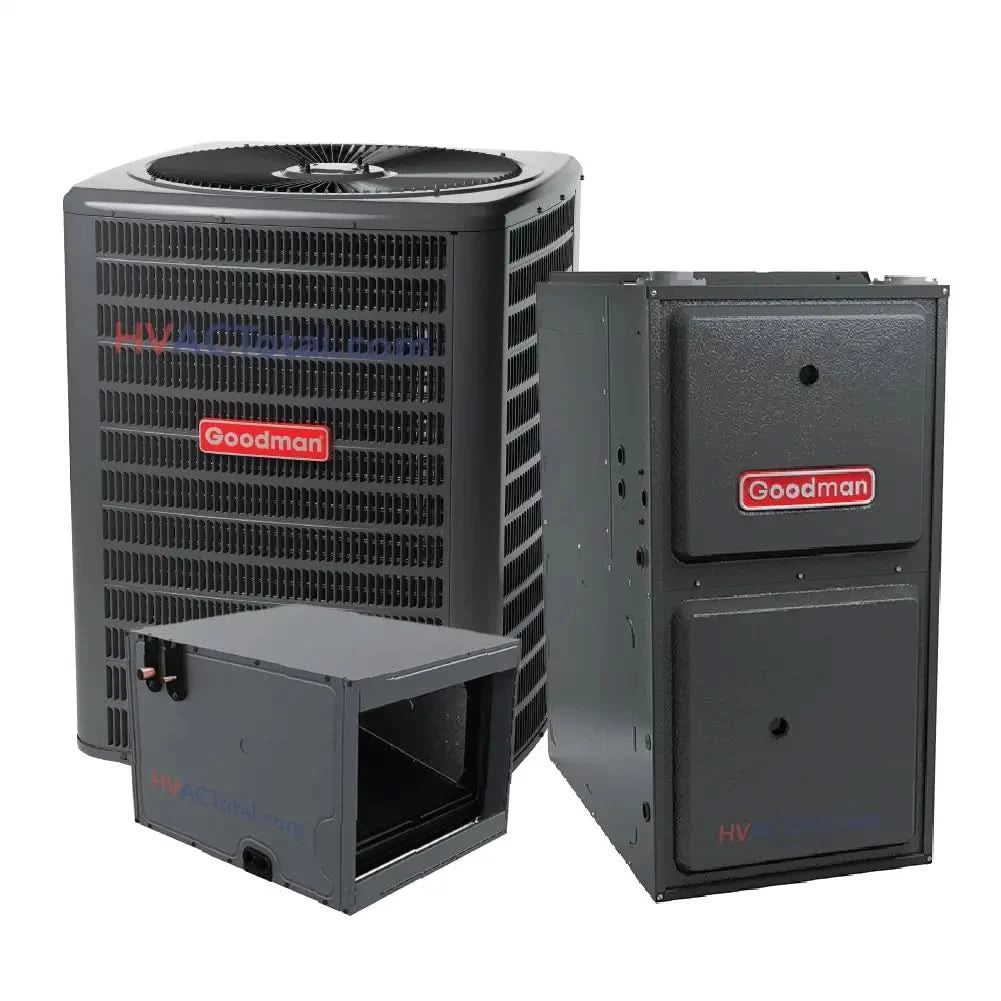

This Goodman system pairs Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 80K BTU Gas Furnace System, providing an efficient, eco-friendly solution for year-round climate control. Designed for horizontal installations, this system features R32 refrigerant for reduced environmental impact.
Key Components & Features of the Goodman 2.5 Ton 14 SEER2 AC:
- Energy-Efficient Compressor: Ensures reliable cooling while saving energy.
- Pre-Charged Refrigerant: Ready for up to 15 feet of tubing for seamless installation.
- Advanced Coil Design: 5mm copper tube with enhanced aluminum fins for superior heat transfer.
- Factory-Installed Filter Drier: Enhances system reliability by removing moisture and contaminants.
- High-Pressure Switch: Ensures safety under varying conditions.
- Certifications: AHRI Certified and ETL Listed for performance and safety.
Cabinet Features of the Goodman 2.5 Ton 14 SEER2:
- Durable Grille Design: UL-compliant, with enhanced airflow through a venturi design.
- Architectural Gray Finish: Powder-coated for corrosion resistance and aesthetic appeal.
- Maintenance Accessibility: Single-panel access to internal components and protected service valves.
- Multi-Position Installation: Goodman 2.5 Ton 14 SEER2 supports upflow, horizontal left, and horizontal right configurations.
- Direct and Non-Direct Vent Options: Flexible venting for various building layouts.
- Insulated Heat Exchanger: Improves system efficiency while reducing sound levels.
- Heavy-Gauge Steel Construction: Withstands wear and tear while ensuring low air leakage (≤2%).

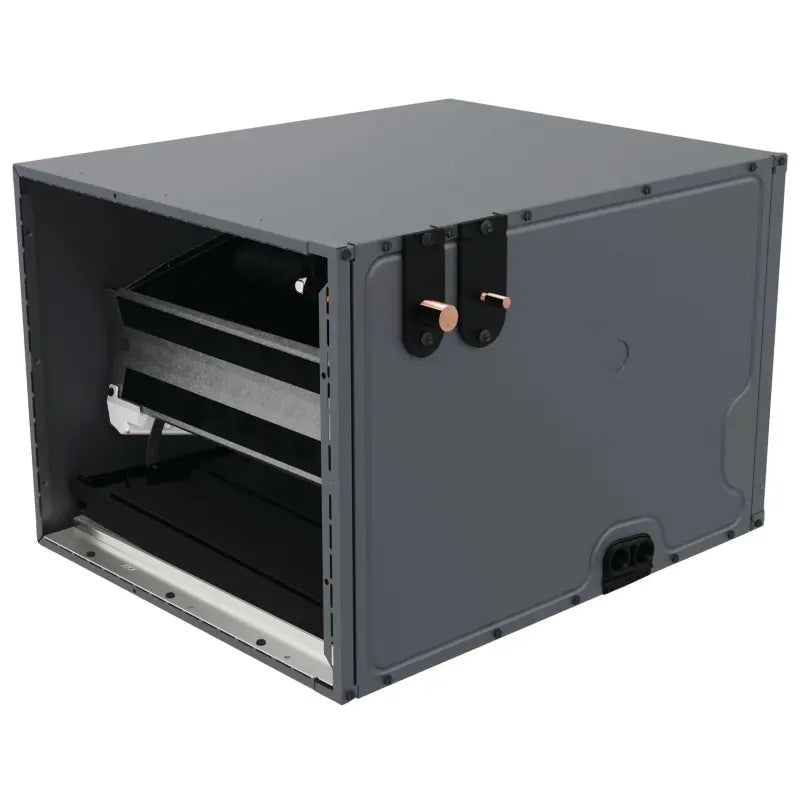

Evaporator Coil - CHPTA3630B3:
- All-Aluminum Coil: Combines durability with lightweight construction for consistent performance.
- R32 Refrigerant Optimization: Built to handle modern refrigerant requirements efficiently.
- Thermal Expansion Valves: Factory-installed for optimized cooling and heat pump operations.
- Compact Design: Depth of 21” allows easier attic and tight-space installations.
- UV-Resistant Drain Pan: Thermoplastic design prevents water retention and enhances longevity.
- Certifications: AHRI Certified and ETL Listed.
Gas Furnace - GR9S960803BN:
- 96% AFUE Efficiency: Minimizes energy waste while providing powerful heating.
- Durable Igniter: Designed for extended life and reliable performance.
- Self-Diagnostic Control Board: In addition, it monitors system performance with constant memory storage.
- Quiet Circulation: Reduces operational noise while maintaining energy efficiency.
- Lower NOx Emission: Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 80K BTU Gas Furnace System meets environmental standards for reduced emissions.
- EAC and Humidifier Compatibility: Supports enhanced indoor air quality solutions.
Overall, the Goodman 2.5 Ton 14 SEER2 AC & 96% AFUE 80K BTU Gas Furnace System is an excellent choice for homeowners seeking a reliable, energy-efficient HVAC system for horizontal installations. With advanced components, quiet operation, and eco-conscious design, it delivers year-round comfort and long-lasting performance.
-
AHRI Reference 215277190 AC Model Number GLXS3BN3010 SEER 2 13.4 Tonnage 2.5 Unit Height x Width x Depth 32.5 x 26 x 26 in Unit Weight 134 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Compressor Stages Single Stage Compressor Type Rotary Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3630B3 Tonnage 2 - 2.5 Unit Height x Width x Depth 17.5 x 30 x 21 in Cased/Uncased Cased Coil Application Horizontal Refrigerant Type R-32 Gas Furnace Model Number GR9S960803BN Height x Width x Depth 34.5 x 17.5 x 28.75 in Weight 118 lb AFEU 96% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 76,880 Tons 1.5 - 3 CFM 1,200 Min. Circuit Amps 10.1 Motor Type ECM Stages Single LoNox No -
-
