The Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System - Upflow, R32 (Model: GLXS4BA3010) offers high efficiency and reliable comfort for residential and light commercial spaces, combining cutting-edge cooling and heating technology in a compact design. Ideal for installations with available vertical space, this system ensures optimal performance while meeting modern energy standards.
Product Benefits of the Goodman 2.5 Ton 15.2 SEER2 AC:
- Energy-Efficient Compressor: Provides exceptional cooling while reducing energy consumption.
- Fully Charged System: Pre-charged for up to 15 feet of tubing for faster and easier installation.
- Durable Construction: Features copper tubing and enhanced 5mm aluminum fins for increased durability.
- Factory-Installed Filter Drier: Ensures system longevity by removing moisture and contaminants.
- Enclosed Contactor with Lug Connection: Safe and secure connection for improved reliability.
- High-Pressure Switch & Extended Life Capacitors: Contributes to long-lasting performance.
- Certified Quality: AHRI Certified and ETL Listed for performance and safety.
Cabinet Features of the Goodman 2.5 Ton 15.2 SEER2:
- Removable Grille-Style Top: Compliant with UL 60335-2-40 standards for durability.
- Venturi for Increased Airflow Velocity: Improves air distribution for better system efficiency.
- Architectural Gray Powder-Paint Finish: Provides an attractive, durable finish with 500-hour salt-spray approval.
- Maintenance Access: Top and side access panels for easy servicing, with additional space for field-installed accessories.
- Hurricane-Type Wind Compliance: Meets 2023 Florida Building Code when anchored (optional anchor kits available).
Evaporator Coil - CAPTA3026B3:
- All-Aluminum Construction: Designed for long-lasting performance and corrosion resistance.
- Optimized for R-32 Refrigerant: Features circuits and manifolds built specifically for R-32, ensuring high efficiency.
- Compact Design: 21-inch depth for easier installation in tight spaces like attics.
- Advanced Drainage: UV-resistant thermoplastic drain pan with low water retention and secondary drain connections.

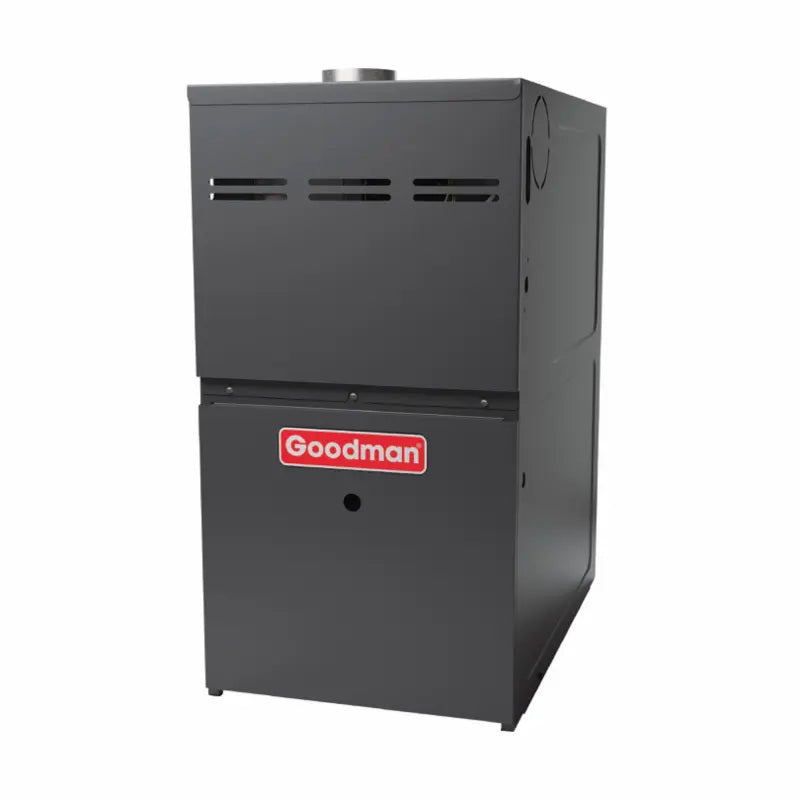

Gas Furnace - GR9S800604BN:
- Reliable Heating: Furthermore, 80% AFUE for reliable, energy-efficient warmth.
- Quiet Operation: Designed for quiet heating and airflow.
- Self-Diagnostic Control Board: Simplifies troubleshooting with memory for easy identification of issues.
- Eco-Friendly: Lower NOx emissions and energy-efficient operation qualify for tax credits.
- Compatibility: Works with both two-stage or single-stage thermostats and offers easy connections for electronic air cleaners and humidifiers.
Cabinet Features of the Goodman 2.5 Ton 15.2 SEER2:
- Multi-Position Installation: Additionally, it supports upflow, left, or right horizontal installation for flexible positioning.
- Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) applications.
- Easy Venting: Optional side venting with convenient left or right gas and electrical service connections.
- Durability: Heavy-gauge steel cabinet with a durable finish and low air leakage (Qleak ≤ 2%).
The Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System - Upflow, R32 provides an ideal solution for efficient, quiet, and reliable heating and cooling. Combining advanced features and energy-efficient technology, it offers year-round comfort with an environmentally friendly, cost-effective operation.
-
AHRI Reference 215214762 AC Model Number GLXS4BA3010 SEER 2 14.3 Tonnage 2.5 Unit Height x Width x Depth 32 x 29 x 29 in Unit Weight 155 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 14.95 Max Fuse Size 25 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3026B3 Tonnage 2.5 Unit Height x Width x Depth 26 x 17.5 x 21 in Unit Weight 46 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Upflow/Downflow Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S800603BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 108 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 48,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox No -
-
