The Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System - Upflow, R32 (Model: GLXS4BA3010) is engineered for efficiency, reliability, and ease of installation, making it a great choice for residential or light commercial applications. The combination of a high SEER rating for cooling and an efficient gas furnace ensures year-round comfort.
Product Benefits of the Goodman 2.5 Ton 15.2 SEER2 AC
- Energy-Efficient Compressor: Ensures optimal cooling performance while reducing electricity consumption.
- Fully Precharged System: Precharged for up to 15 feet of tubing, simplifying installation and reducing labor time.
- Copper Tube/Enhanced Aluminum Fin Coil (5mm Diameter): Enhances heat transfer and provides long-lasting durability.
- Factory-Installed Filter Drier: Helps maintain system reliability by removing moisture and impurities.
- Sweat Connection Service Valves: Easy access to service ports, making maintenance more straightforward.
- Enclosed Contactor with Lug Connection: Provides enhanced safety and secure electrical connections.
- High-Pressure Switch: Prevents system damage from excessive pressure, adding reliability.
- Capacitors with Extended Life: Contributes to the longevity of the system.
- AHRI Certified & ETL Listed: Ensures compliance with industry standards for performance and safety.
Cabinet Features of the Goodman 2.5 Ton 15.2 SEER2:
- Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for safety and easy maintenance.
- Venturi for Increased Velocity of Airflow: Optimizes the efficiency of air distribution throughout the space.
- Architectural Gray Powder-Paint Finish: Offers durability with 500-hour salt-spray approval for corrosion resistance.
- Wire Fan Discharge Grille & Steel Louver Coil Guard: Protects the internal components while maintaining airflow efficiency.
- Easy Maintenance Access: Single-panel access to controls and components simplifies servicing.
- Meets 2023 Florida Building Code: Complies with hurricane-type wind requirements when properly anchored, with optional anchor kits available.
Evaporator Coil - CAPTA3626B3:
- All-Aluminum Coil: Optimized for use with R-32 refrigerant, offering excellent energy efficiency and corrosion resistance.
- Factory-Installed Thermal Expansion Valves: Ensures the system operates efficiently in cooling and heat pump applications.
- Vertical Application & 21" Depth: Perfect for installations in tight spaces like attics, with easy access to the coil through the front panel.
- UV-Resistant, Rust-Resistant Thermoplastic Drain Pan: Ensures fast drainage with low water retention, reducing the risk of leaks and water damage.
- Foil-Faced Insulation: Reduces condensation and enhances energy efficiency.

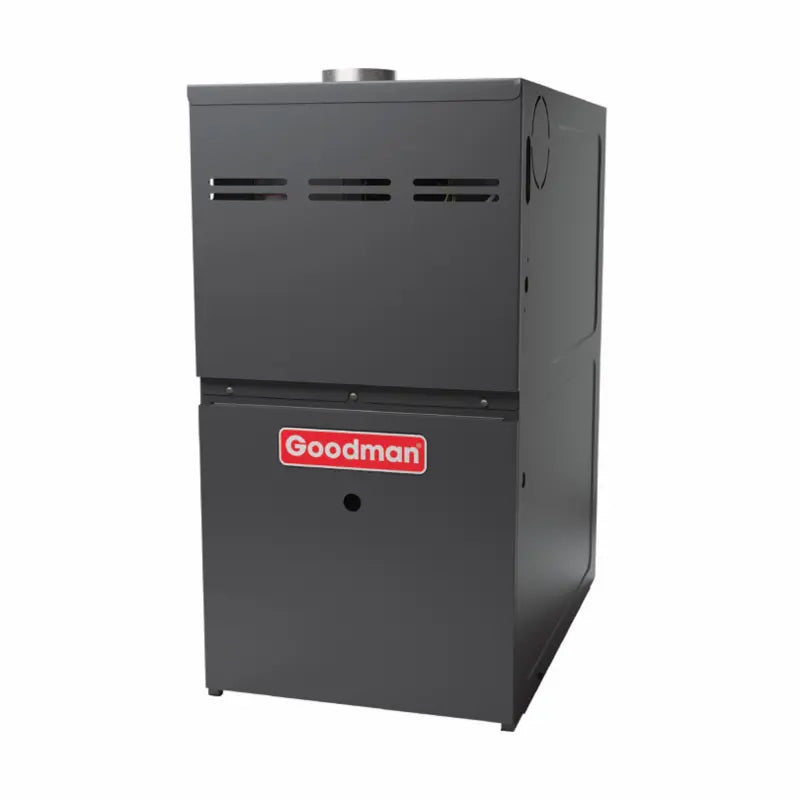

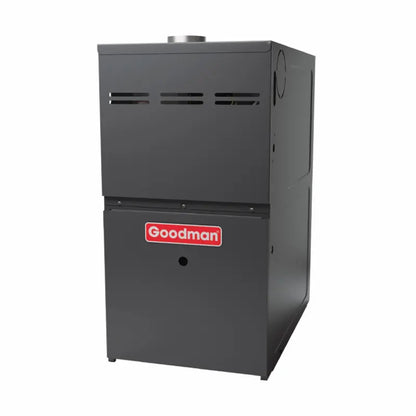

Gas Furnace - GR9S800604BN:
- 80% AFUE: Delivers reliable and efficient heating while reducing energy consumption.
- Low NOx Emissions: Environmentally friendly, producing fewer pollutants during operation.
- Durable Igniter: Extends the furnace’s lifespan and reduces maintenance frequency.
- Quiet Operation: Designed to operate with minimal noise, creating a comfortable indoor environment.
- Self-Diagnostic Control Board: With constant memory for easier troubleshooting and maintenance.
- Energy Efficient & Quiet Circulation: Provides both economical and comfortable heating.
- Tax Credit Eligibility: Meets performance standards for possible tax incentives based on energy efficiency.
Cabinet Features of the Goodman 2.5 Ton 15.2 SEER2:
- Multi-Position Installation: Supports upflow, horizontal left or right configurations for flexible installation.
- Certified for Direct and Non-Direct Venting: Offers options for both 2-pipe and 1-pipe venting configurations.
- Easy Venting Options: Top venting with optional side vent installation for flexibility.
- Low Cabinet Air Leakage: Ensures optimal efficiency with air leakage less than or equal to 2%.
- Heavy-Gauge Steel Cabinet: Durable and well-insulated, providing both longevity and protection for internal components.
The Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 60K BTU Gas Furnace System provides a high level of comfort and performance, with energy-efficient cooling and heating features. It is a great solution for homes or businesses looking for reliable, long-lasting HVAC equipment.
-
AHRI Reference 215214804 AC Model Number GLXS4BA3010 SEER 2 14.3 Tonnage 2.5 Unit Height x Width x Depth 32 x 29 x 29 in Unit Weight 155 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 14.95 Max Fuse Size 25 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant Type R-32 Evaporator Coil Model Number CAPTA3626B3 Tonnage 3 Unit Height x Width x Depth 26 x 17.5 x 21 in Unit Weight 48 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Upflow/Downflow Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S800604BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 108 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 60,000 BtuH Output 48,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox No -
-
