The Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Downflow, R32 (Model: GLXS5BA3010) combines advanced features, energy efficiency, and durability to deliver reliable comfort and performance for your home.

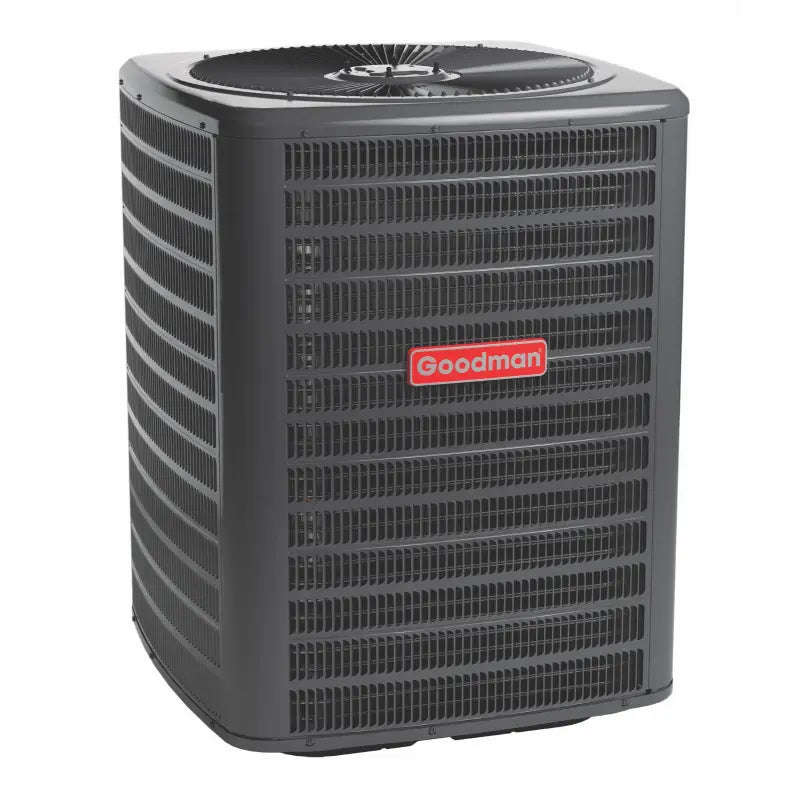

Air Conditioner of the Goodman 2.5 Ton 15.2 SEER2 AC:
- Energy Efficiency: Equipped with an energy-efficient compressor, pre-charged for 15' tubing length.
- Durable Build: Furthermore, it includes copper tubing with enhanced 5mm aluminum fin coil and factory-installed filter drier.
- Convenience: Easy access service valves and enclosed contactor simplify maintenance.
- Certified Quality: In addition, AHRI Certified and ETL Listed for performance and safety.
Cabinet Highlights of the Goodman 2.5 Ton 15.2 5SEER2:
- Enhanced Airflow: Venturi design boosts air velocity, and UL-compliant grille-style top, hence, improving airflow efficiency.
- Durable Finish: Architectural Gray powder-coated finish resists corrosion with 500-hour salt-spray certification.
- Service Friendly: Offers top and side access, plus room for additional accessories to simplify maintenance.
- Hurricane-Ready: Compliant with 2023 Florida Building Code for high-wind conditions when properly anchored.
- Flexible Installation: Supports multi-position setups - upflow, horizontal left, or right, with direct or non-direct venting.
- Accessible Design: Gas and electrical connections available on either side for easier setup.
- Energy Efficient: Fully insulated heat exchanger and blower section help reduce air leakage to ≤ 2%.
- Rugged Construction: Heavy-gauge steel cabinet with a durable finish ensures reliable, long-term performance.

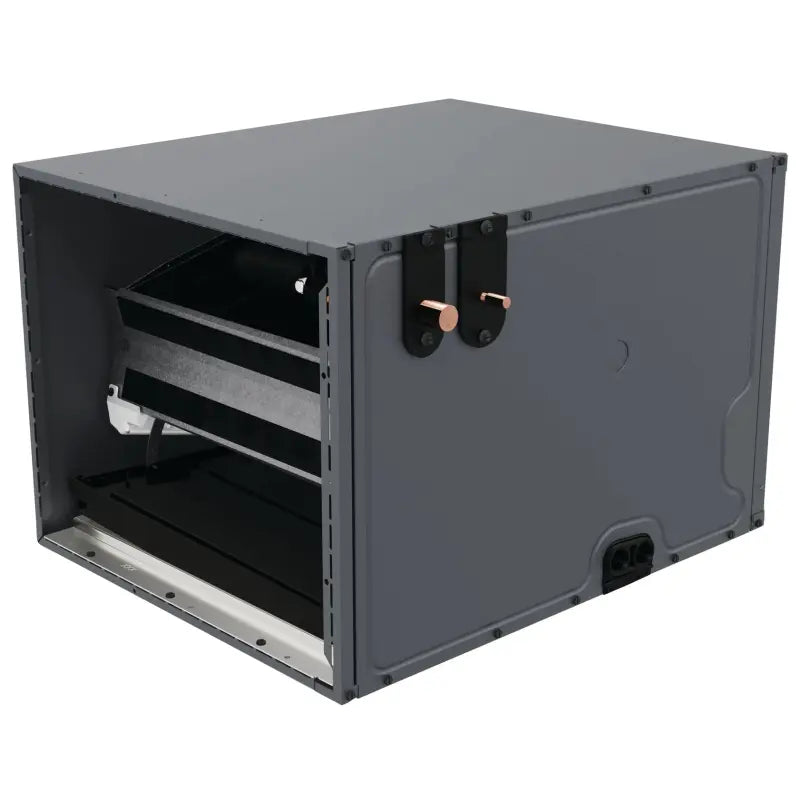

Evaporator Coil - CHPTA3026B3:
- R-32 Optimized: All-aluminum coil with factory-installed TXV maximizes cooling efficiency with R-32 refrigerant.
- Compact Design: 21" depth allows for easier attic installation, with a single front panel for simple service access.
- Built for Durability: Features a rust-resistant, low-retention drain pan and foil-faced insulation, thus, minimizing condensation.
- Certified Performance: The Goodman 2.5 Ton 15.2 SEER2 AC is AHRI Certified and ETL Listed for proven quality and reliability

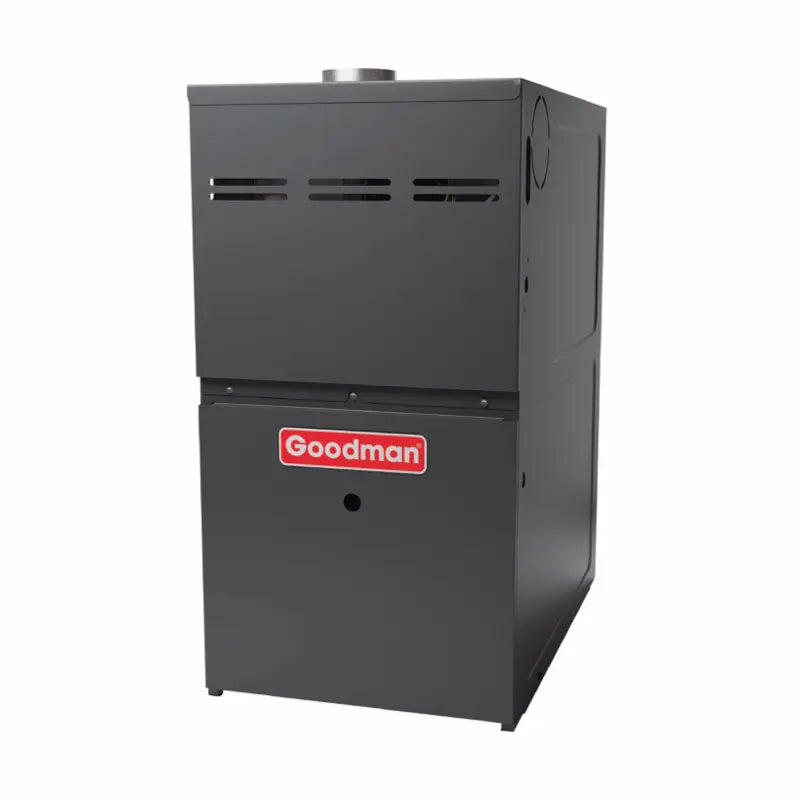

Gas Furnace - GD9S800804BN:
- Reliable Heating: Built with a durable igniter and self-diagnostic control system, thus, ensuring consistent and efficient performance.
- Eco-Friendly Operation: Delivers quiet, economical heating with low NOx emissions for a reduced environmental impact.
- Versatile Compatibility: Supports both single-stage and two-stage thermostats, with built-in options for electronic air cleaners and humidifiers.
- Certified Quality: AHRI Certified, ETL Listed, and eligible for energy efficiency tax credits.
Therefore, the Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System offers a perfect balance of efficiency, durability, and versatility, making it an ideal choice for modern homes.
-
-
Warranty
Enjoy a 10-year limited parts warranty when your unit is registered within 60 days of installation. The installation must be completed by a certified HVAC technician.
Processing TimeWe process and ship orders Monday through Friday. Orders placed by 12 p.m. EST on these days are usually shipped within 1 to 2 business days and arrive within 3 to 5 business days. Orders placed on weekends will start processing the next business day. Some items may be backordered, leading to possible delays. Shipping times begin once the order leaves our warehouse. While we aim for timely delivery, delays by freight or ground carriers are beyond our control. FREE Life Gate.
Equipment Arrival
Shipping times are not guaranteed and may vary by address. Upon delivery, inspect each item and match the count with the delivery receipt before signing. Report any missing or incorrect items within 24 hours; claims reported after this period may be denied. Inspect items for damage in front of the driver before signing the receipt. Note any issues like dents or scratches clearly on the receipt or reject the shipment if damaged.
Making Notes on the Delivery Receipt
If the items and quantity on the delivery receipt match what you received and are undamaged, sign and mark the receipt as "Clear."
If items or boxes are missing, mark the receipt as " Short" and list the missing items. A packing slip will be attached for reference. Allow up to 7 business days for the carrier to find the missing items. If they cannot be located, we will ship replacements to you at no extra charge. If the strip wrap is torn or replaced, mark the receipt as "Wrap Broken."
How Do I Handle a Damaged Shipment?
If any items are damaged, mark the receipt as "Damaged," specifying the items and the nature of the damage. Refuse only the damaged items, keep and sign for the rest, and clearly note the refused items on the receipt. Contact our Customer Service to report which items were refused and which were accepted. We will ship replacements once our Shipping Department confirms the damage with the Freight LTL Company. If you sign for the delivery but later discover damage, you are responsible for it. You will need to contact the Freight LTL Company’s claims department directly to file a claim.
-
AHRI Reference 215380556 AC Model Number GLXS5BA3010 SEER 2 15.2 Tonnage 2.5 Unit Height x Width x Depth 39.5 x 35.5 x 35.5 in Unit Weight 201 lb Cooling Capacity Nominal 30,000 Btu/H Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 15.4 Max Fuse Size 25 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3026B3 Tonnage 2.5 Unit Height x Width x Depth 17.5 x 26 x 21 in Unit Weight 59 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GD9S800804BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 107 lb AFEU 80% Configuration Downflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox Yes
