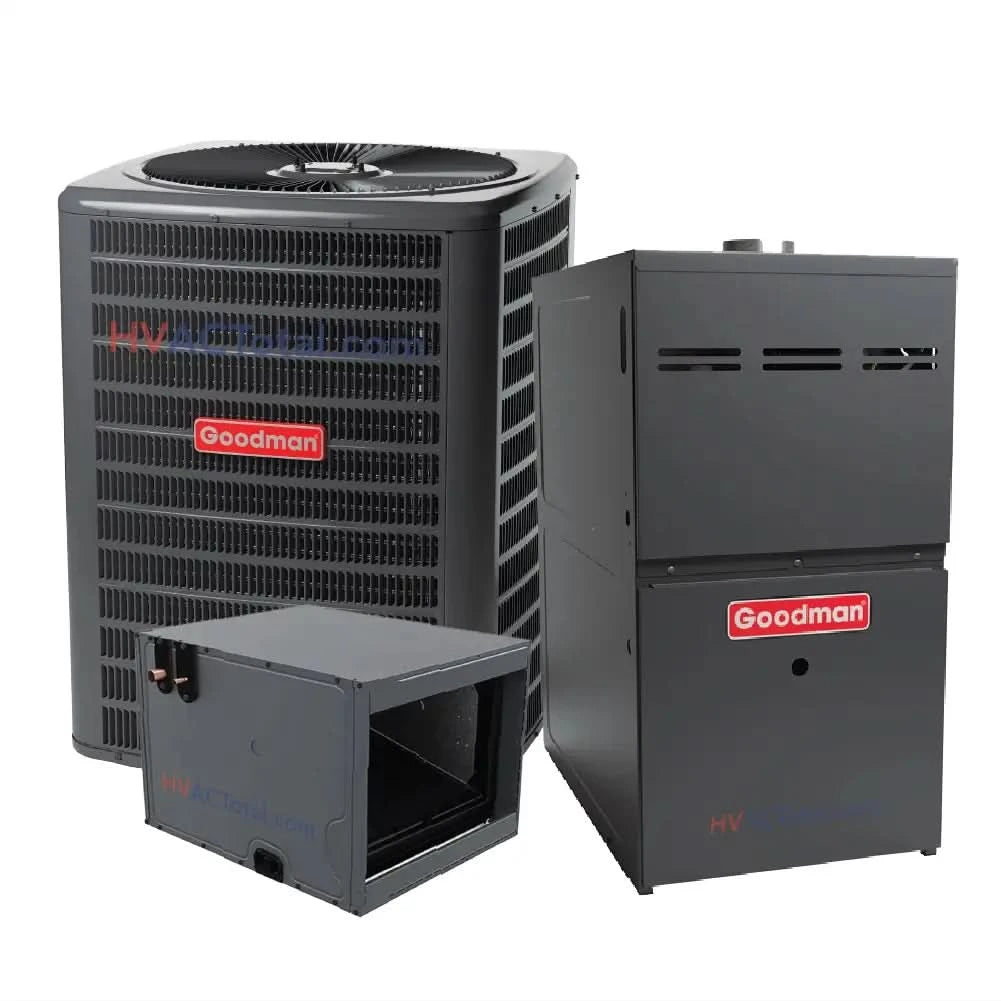

The Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System - Horizontal, R32 (Model: GLXS4BA3010) delivers efficient heating and cooling in a horizontal configuration, designed for durability and ease of installation.
Key Features of the Goodman 2.5 Ton 15.2 SEER2 AC:
- Energy Efficiency: Includes an energy-efficient compressor, factory-charged for up to 15’ of tubing, with long-lasting capacitors.
- Robust Design: Goodman 2.5 Ton 15.2 SEER2 features a 5mm enhanced aluminum fin coil and a factory-installed filter drier for enhanced reliability.
- Easy Maintenance: Furthermore, it comes with sweat connection service valves, enclosed contactor, and single-panel access for quick servicing.
- Certifications: Also, AHRI Certified and ETL Listed; meets 2023 Florida Building Code standards for hurricane-type winds.
Evaporator Coil - CHPTA3026B3:
- Optimized for R-32 Refrigerant: Incorporates factory-installed thermal expansion valves and an R-32 sensor for enhanced performance.
- Compact and Accessible: Designed for vertical applications, with a 21” depth and single front access panel for easy attic installation.
- Durable Construction: Goodman 2.5 Ton 15.2 SEER2 includes a rust-resistant thermoplastic drain pan, galvanized casing, and UV-resistant components.
- Certifications: Additionally, AHRI Certified and ETL Listed for quality and safety.
Gas Furnace - GR9S800804BN:
- Reliable Heating: Durable igniter, self-diagnostic control board, and quiet circulation for consistent performance.
- Flexible Installation: Moreover, multi-position setup (upflow, horizontal, left/right venting), with easy connections for electronic air cleaners and humidifiers.
- Sturdy Build: Heavy-gauge steel cabinet, fully insulated heat exchanger, and low cabinet air leakage (≤ 2%).
- Certifications: Lastly, AHRI Certified, ETL Listed, and eligible for tax credits.
In summary, the Goodman 2.5 Ton 15.2 SEER2 AC & 80% AFUE 80K BTU Gas Furnace System combines energy efficiency, durable components, and versatile installation options to provide year-round comfort in a horizontal setup.
-
AHRI Reference 215214846 AC Model Number GLXS4BA3010 SEER 2 14.3 Tonnage 2.5 Unit Height x Width x Depth 32 x 29 x 29 in Unit Weight 155 lb Cooling Capacity Nominal 30,000 Btu/H Max Overcurrent Protection 25A Power Voltage 208/230 V Phase Single Motor Type PSC Min Circuit Amps 14.95 Max Fuse Size 25 Liquid Connection 3/8" Suction Fitting 3/4" Refrigerant Type R-32 Evaporator Coil Model Number CHPTA3026B3 Tonnage 2.5 Unit Height x Width x Depth 17.5 x 26 x 21 in Unit Weight 59 lb Liquid Connection 3/8" Suction Fitting 7/8" Coil Type Cased Configuration Horizontal Metering Device TXV Refrigerant Type R-32 Gas Furnace Model Number GR9S800804BN Height x Width x Depth 33-3/8 x 17.5 x 28 in Weight 120 lb AFEU 80% Configuration Upflow/Horizontal BtuH Input 80,000 BtuH Output 64,000 Tons 4 CFM 1,600 Min. Circuit Amps 11.3 Motor Type ECM Stages Single LoNox No -
-
